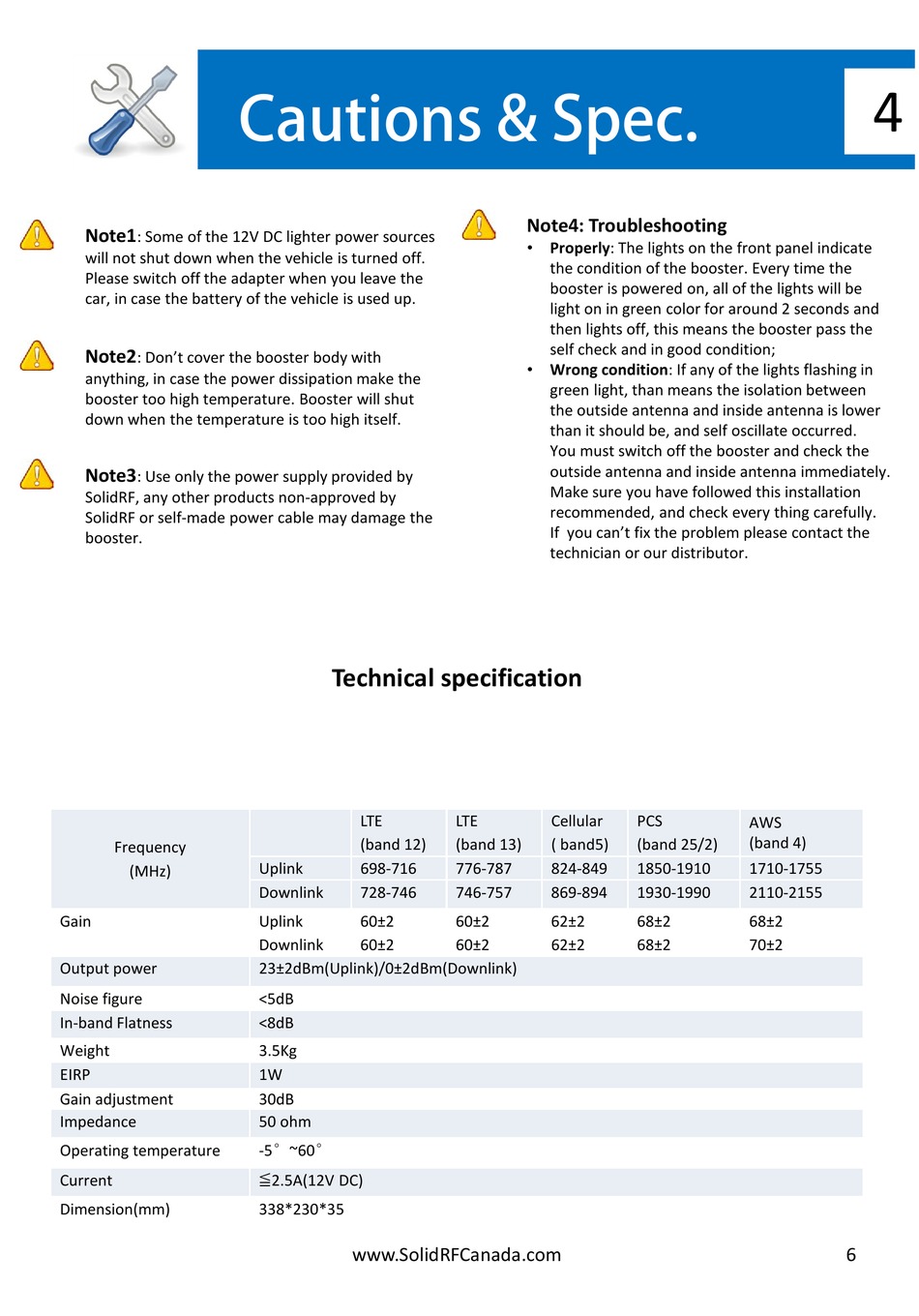

Technical Specification - SolidRF BP5 User Manual

Note1
: Some of the 12V DC lighter power sources
will not shut down when the vehicle is turned off.
Please switch off the adapter when you leave the
car, in case the battery of the vehicle is used up.
Note2
: Don't cover the booster body with
anything, in case the power dissipation make the
booster too high temperature. Booster will shut
down when the temperature is too high itself.
Note3
: Use only the power supply provided by
SolidRF, any other products non-approved by
SolidRF or self-made power cable may damage the
booster.
Frequency
(MHz)
Gain
Output power
Noise figure
In-band Flatness
Weight
EIRP
Gain adjustment
Impedance
Operating temperature
Current
Dimension(mm)
Cautions & Spec.

Technical specification

LTE
(band 12)
Uplink 698-716
Downlink 728-746
Uplink 60±2
Downlink 60±2
23±2dBm(Uplink)/0±2dBm(Downlink)
<5dB
<8dB
3.5Kg
1W
30dB
50 ohm
≦2.5A(12V DC)
-5°~60°
338*230*35
www.SolidRFCanada.com
Note4: Troubleshooting
• Properly: The lights on the front panel indicate
the condition of the booster. Every time the
booster is powered on, all of the lights will be
light on in green color for around 2 seconds and
then lights off, this means the booster pass the
self check and in good condition;
• Wrong condition: If any of the lights flashing in
green light, than means the isolation between
the outside antenna and inside antenna is lower
than it should be, and self oscillate occurred.
You must switch off the booster and check the
outside antenna and inside antenna immediately.
Make sure you have followed this installation
recommended, and check every thing carefully.
If you can't fix the problem please contact the
technician or our distributor.
LTE Cellular
(band 13) ( band5)
776-787 824-849
746-757 869-894
60±2 62±2
60±2 62±2
PCS
AWS
(band 4)
(band 25/2)
1850-1910 1710-1755
1930-1990 2110-2155
68±2 68±2
68±2 70±2
4
6
