SolidRF BP5 User Manual page 4

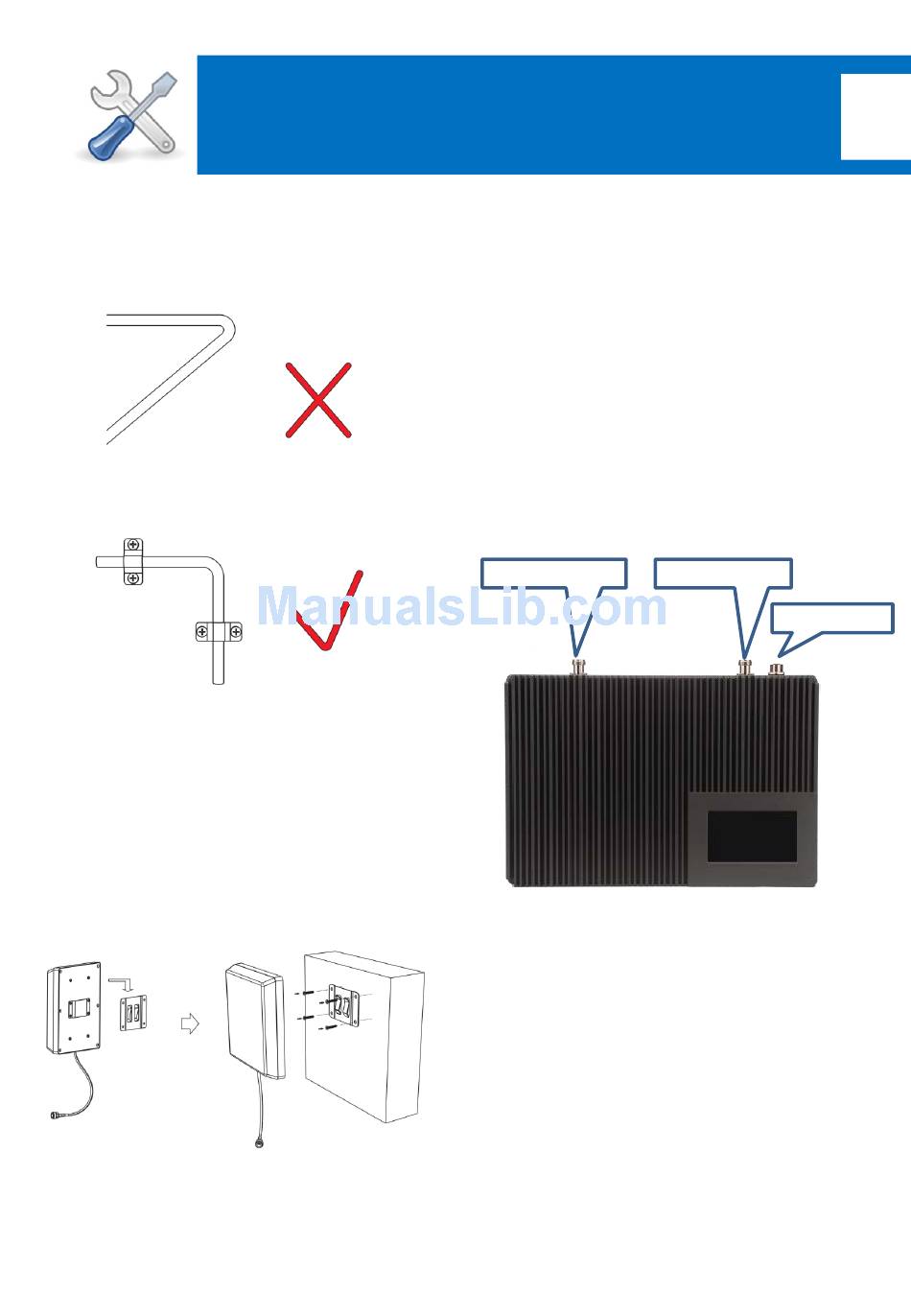

e. Set the outside antenna cable into the building
Carefully arrange the cable along the building outside
•
and make sure don't fold it;
Fix the cable at each corner;
•
Step 2: mount the inside antenna
a. Choose right position
20cm away from any other metallic objects;
•
50cm away from any windows;
•
For the panel antenna the position on the end of the b
•
uilding is recommended;
b. Mount the inside antenna;
c. Connect the inside cable to the inside antenna;
Installation
www.SolidRFCanada.com
Step 3: arrange the booster
a. Choose position
Be sure away from heat source;
•
In ventilate dry place, temperature range should
•
-5~+50degree;
b. Connect the outside antenna's connector to the "outsid-
e" labeled port of the booster;
c. Connect the inside antenna's connector to the "inside" l
abeled port of the booster
Outside antenna
Step 4: power on the booster
a. Plug the power adapter to the AC power;
b. Attach the cord of the adapter to the booster;
Inside antenna
Adapter cord
