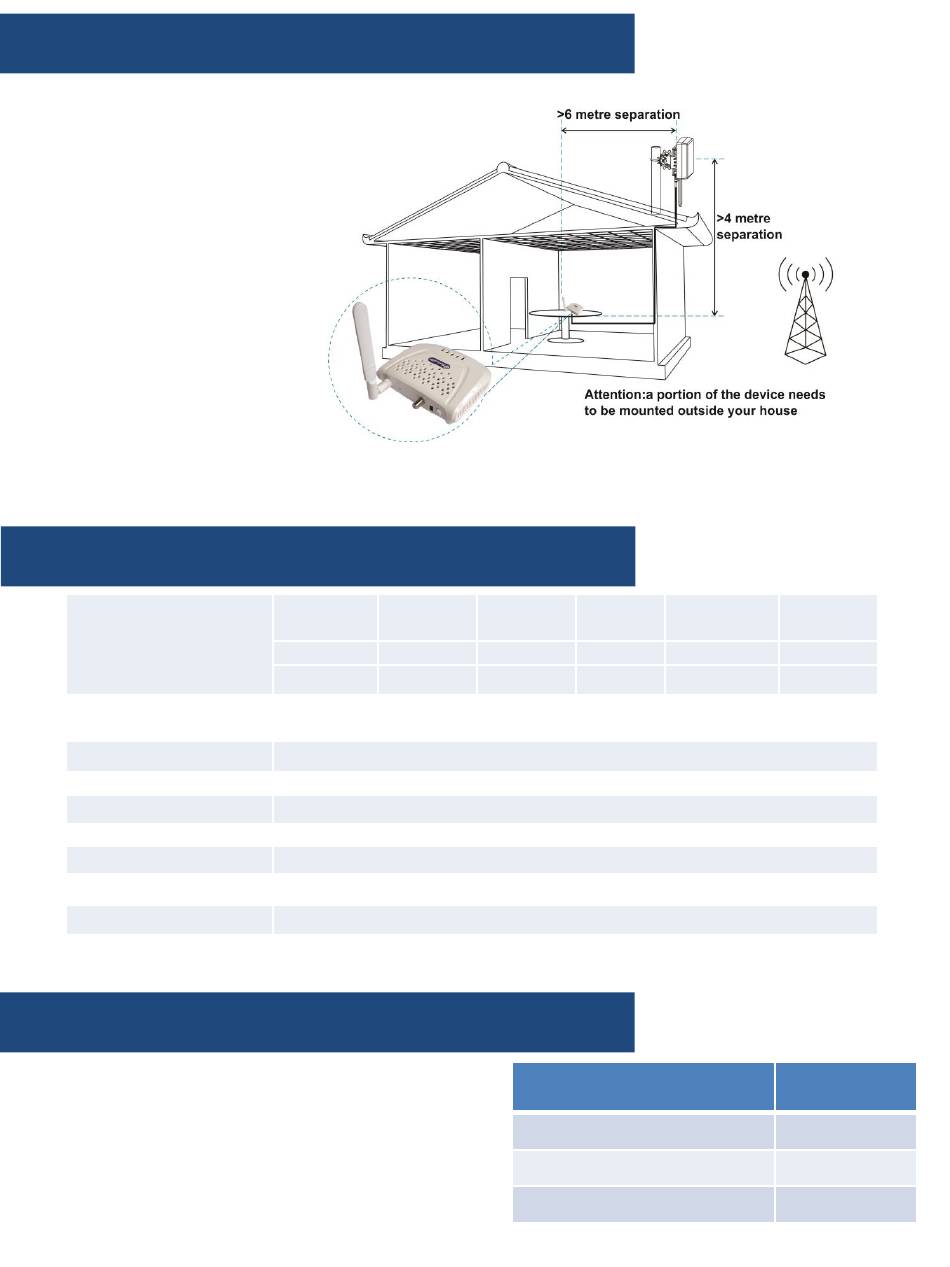

Recommended Installation Position

ARRANGE BOOSTER
a. Choose right position
• Be sure to be far from
any heat source
• In a ventilated dry
place, temperature
range should be from -
25 ℃ to +50 ℃
b. Mount the booster as
the picture shows

Technical Specification

Frequency
(MHz)
Gain
Output power
Noise figure
In-band Flatness
Weight
EIRP
Operating temperature
Current
Dimension(mm)
Coverage Area
Note: Any cell phone booster has
a limit of amplification power.
This depends on the original
output power of the closest cell
tower.
LTE
(band 12)
Uplink 698-716
Downlink 728-746
Uplink 55±2
Downlink 60±2
26±2dBm(Uplink)/0±2dBm(Downlink)
<5dB
<8dB
0.7Kg
1W
-5°~60°
≦1.5A(6V DC)
155*125*25
LTE Cellular
(band 13) ( band5)
776-787 824-849
746-757 869-894
55±2 55±2
60±2 60±2
Power level
at the outdoor antenna location
Strong (5 bars on the cellphone)
Medium (3~4 bars on the cellphone)
Weak (1~2 bars on the cellphone)
PCS
AWS
(band 4)
(band 25/2)
1850-1915 1710-1755
1930-1995 2110-2155
60±2 60±2
65±2 65±2
Coverage Area
(sq. ft.)
10000
3000
800
