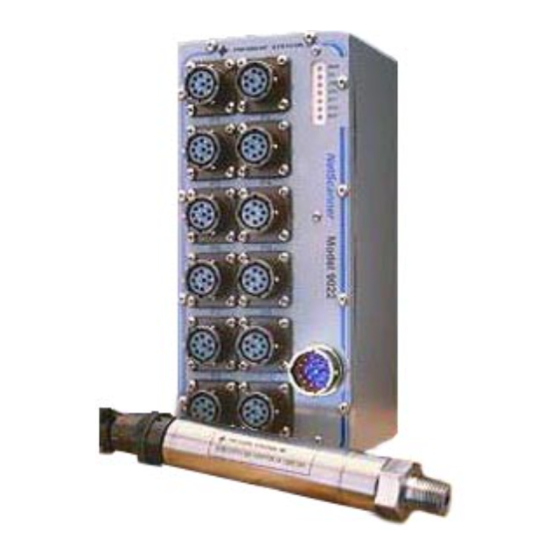

Intelligent Pressure Scanner
User's Manual
(Models 9016, 9021, 9022)
th
13
Edition
September 2007
NetScanner™ System
Visit us on the web:
www.PressureSystems.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9022 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Pressure Systems 9022

Summary of Contents for Pressure Systems 9022

  • Page 1 Intelligent Pressure Scanner User’s Manual (Models 9016, 9021, 9022) Edition September 2007 NetScanner™ System Visit us on the web: www.PressureSystems.com...
  • Page 2 Pressure Systems, Inc. NetScanner™ System (9016, 9021, & 9022) User’s Manual ©This User’s Manual is a copyright product of Pressure Systems, Inc. , 2007. Permission is hereby granted to make copies and distribute verbatim copies of this manual, provided the copyright notice and this permission notice are preserved on all copies.
  • Page 3 (add infor- mation about the 9021R- ruggedized version) Edition (officially change name from 9021R to 9022, a new ruggedized version of the 9021) Edition (added new commands and updates to Chapter 3, Chapter 4, and Chapter 5 to ac-...
  • Page 4 Pressure Systems, Inc. This manual describes the NetScanner System Intelligent Pressure Scanner modules (Models 9016, 9021, and 9022). It does not cover the 98RK Scanner Interface Rack, model 9816 Intelligent Pressure Scanner, nor models 903x (Pressure Standards/Controllers) and the 9116 Intelligent Pressure Scanner.

  • Page 5: Technical Support

    Merchandise Return Procedures If your scanner needs to be returned to Pressure Systems, obtain a Returned Merchandise Authorization (RMA) from the Customer Service Department. Be prepared to supply the following information when requesting the RMA:...
  • Page 6 PSI assumes no responsibility for other computers, languages, or operating systems. PSI reserves the right to change the specifications without notice. NetScanner™ System (9016, 9021, & 9022) User’s Manual to look at our new product releases, - v -...

  • Page 7: Table Of Contents

    2.3.6.5 Supply Air ......... 2-9 2.3.7 9021 and 9022 Transducer Installation ......2-9 2.3.7.1 Installation of 9400, 9401, and 9402 Transducers .
  • Page 8 Change Module’s IP Address Resolution and Re-boot ..3-72 NetScanner™ System (9016, 9021, & 9022) User’s Manual (Cont.) Startup Initialization ......3-6 Correction Coefficients .
  • Page 9 9021/9022 Analog Calibration ........
  • Page 10 9022 Excitation Trim ........
  • Page 11 Figure 2.4a 9022 Transducer Wiring ........2-10 Figure 2.5...

  • Page 12: Chapter 1 - General Information

    Model 9016 is a pneumatic Intelligent Pressure Scanner, with integral pressure transducers and a pneumatic calibration manifold. Models 9021 and 9022 are all-media Intelligent Pressure Scanners which may be fitted with up to twelve (12) external all-media transducers (9400, 9401, 9402, or third party). Because of the external nature of these transducers, and the variety of pneumatic or hydraulic media supported, the 9021/9022 do not contain an integral calibration manifold.
  • Page 13 NOTE: The newest PSI Intelligent Pressure Scanner is the 9022. Its serial numbers begin with 1000. The 9022 is similar in function to the 9021 (using external sensors), however, the 9022 features circular (military style connectors), splash-proof case and connectors,...

  • Page 14: Description Of Instruments

    System family of Intelligent Pressure Scanner modules are flexible pressure measuring devices intended for use in test and production environments. Models are available with 12 (Model 9021/9022), or 16 (Model 9016) channels, each with individual pneumatic or all- media transducers per channel. The most distinctive features are highlighted below: Pre-calibrated Transducer —...

  • Page 15: Options

    Transducers with different pressure ranges may be combined in a single module. Models 9021 and 9022 can attach up to twelve (12) Series 9400 or third party external all-media transducers. The 9400 gauge-type transducers are available with full-scale pressure ranges from 5 psi to 10,000 psi (35 kPa to 69000 kPa).

  • Page 16: Communication Interfaces

    Any necessary valves and manifolds must be customer- supplied if automatic calibration with the appropriate medium is desired at the module installation site. Both the 9021 and 9022 scanners are designed to operate with either PSI or third-party transducers.
  • Page 17 Pressure Systems, Inc. NetScanner™ System (9016, 9021, & 9022) User’s Manual This page intentionally left blank 1 - 6 www.PressureSystems.com...

  • Page 18: Chapter 2 - Installation And Set Up

    Repair Department at Pressure Systems. ™ Each NetScanner System Intelligent Pressure Scanner shipment will contain the following minimum components: Model 9016 or 9021/9022 Intelligent Pressure Scanner module Start-up software diskette(s) or CD-ROM ™ NetScanner System User’s Manual for Intelligent Pressure Scanners (Models...

  • Page 19: Preparation For Use

    Models 9016, 9021, and 9022 Intelligent Pressure Scanners need only a single unregulated power supply. Models 9016 and 9021/9022 have a single round, ruggedized connector through which all power and input/output signals pass as shown in Figure 2.1. Improper connection of power to the Intelligent Pressure WARNING: Scanner can result in permanent damage to module electronics.

  • Page 20: Mounting And Module Dimensions

    Every NetScanner System Intelligent Pressure Scanner contains a Host Port, allowing it to be interconnected in a network with other modules and a host computer. Models 9016, 9021, and 9022 have an Ethernet Host Port using TCP/IP and UDP/IP transmission protocols.
  • Page 21 200.20x.yyy.zzz where x is derived from the module type (0 for 9016 and 1 for 9021/9022) and yyy.zzz is derived from the module serial number. A similar method is used to calculate each module’s Ethernet hardware address shown on the module tag. Note that each of these fields (separated by a period, ‘.’) is a decimal representation of a byte value.
  • Page 22 Dynamic IP assignment, a dynamic server must be configured on the network to return an IP address to the module. Without an IP address, the host will be unable to open a TCP/IP or UDP/IP connection to the module. NetScanner™ System (9016, 9021, & 9022) User’s Manual 2 - 5 www.PressureSystems.com...

  • Page 23: Figure 2.3 Ethernet Network Topology

    Pressure Systems, Inc. NetScanner™ System (9016, 9021, & 9022) User’s Manual Figure 2.3 Ethernet Network Topology 2 - 6 www.PressureSystems.com...

  • Page 24: Diagnostic Port Hookup

    The 9016, 9021 and 9022 use the diagnostic interface for optional configuration and diagnostic purposes only. The diagnostic port functions on the 9016, 9021, and 9022 are generally not required by the end user. Standard cables for these modules do not include diagnostic port connections.

  • Page 25: Run Mode Inputs

    Warning: Introduction of contaminants or corrosive materials to the module pneumatic inputs may damage module transducers, manifolds, and O-ring seals. Users of the 9021 and 9022 may proceed to Section 2.3.7 since these modules do not require any pneumatic connections to the module itself.

  • Page 26: Cal Mode Inputs

    9016 into a non-purge mode such as CAL. Purge cycles should never be terminated by turning off the purge supply air while in the purge position. NetScanner™ System (9016, 9021, & 9022) User’s Manual 2 - 9 www.PressureSystems.com...

  • Page 27: Leak Mode Inputs

    (i.e., RUN, CAL, PURGE, LEAK-CHARGE). WARNING! Supply air should not exceed 125 psi (875 kPa). Excessive pressure may damage the internal solenoids. NetScanner™ System (9016, 9021, & 9022) User’s Manual 2 - 10 www.PressureSystems.com...

  • Page 28: 9021 And 9022 Transducer Installation

    9400, 9401, and 9402 transducer cables are typically ordered from Pressure Systems pre-wired for use with the 9021/9022. If it is necessary to fabricate interface cables to interface the Series 9400 transducer to the 9021, the diagram in Figure 2.4 should be used. The 9021 makes use of 9-pin D-shell mating connectors.

  • Page 29: Figure 2.4A 9022 Transducer Wiring

    +12VDC unregulated supply voltage to power the transducer. The 9022 has a jumper (JB1) on the PC-317 board for selecting the precision 5 or 10 VDC excitation source. See Figure 2.5. JB1 is a three-pin jumper. When the two pins closest to the edge of the board are connected (pins 2 and 3), the configuration is set for 10 VDC excitation.

  • Page 30: Case Grounding

    The factory default setting for jumper JB1 is 10 VDC 2.3.8 Case Grounding The 9016 and 9021/9022 modules contain a case bypass capacitor which allows the module case to be mounted on hardware with a small common mode line voltage (less than 20 Volts). 2.3.9...

  • Page 31: Chapter 3 - Programming And Operation

    (e.g., Model 9016 or Model 9022). Models 9016, 9021, and 9022 (stand alone scanner modules), have an Ethernet interface, and use layered TCP/IP or UDP/IP transmission protocols to communicate with a host computer. All commands/responses to/from NetScanner either a TCP or UDP packet header.

  • Page 32: Commands

    3.1.2 Commands The commands (and responses) used by Models 9016, 9021, and 9022 modules consist of short strings of ASCII characters. The TCP/IP and UDP/IP protocols allow for the transfer of either printable ASCII characters or binary data. When using certain formats, internal binary data values are often converted to ASCII-hex digit strings externally.

  • Page 33: Command Field

    The Model 9016 Intelligent Pressure Scanner may contain up to sixteen (16) separate input/output channels, whereas the Models 9021 and 9022 have only twelve (12) channels. When commands affect certain channels scanned by the module, the position field is used to identify those channels as bits in a bit map.

  • Page 34: Datum Fields

    (e.g., ‘ -vv.vvvvvv’). For other formats it may be a hex digit string or pure binary number. NetScanner™ System (9016, 9021, & 9022) User’s Manual 3 - 4...

  • Page 35: Format Field

    Acknowledge with Data response, or a Network Query response. The first three may be returned by TCP/IP commands, the latter from a UDP/IP command. NetScanner™ System (9016, 9021, & 9022) User’s Manual ™ System Intelligent Pressure 3 - 5 www.PressureSystems.com...

  • Page 36: Interpreting Offset Values (Re-Zero Calibration Adjustment)

    (in current engineering units (EU) of pressure) to allow the user to make reasonableness checks on them. The Read Internal Coefficients (‘u’) command will return them on demand. NetScanner™ System (9016, 9021, & 9022) User’s Manual Table 3.1 Error Codes...

  • Page 37: Interpreting Gain Values (Span Calibration Adjustment)

    3.1.4 Functional Command Overview The various commands for 9016, 9021, and 9022 modules are best introduced by classifying them into functional groups and then describing how each function is carried out in a typical system. The following functions are defined for this purpose:...
  • Page 38 Pressure Systems, Inc. NetScanner™ System (9016, 9021, & 9022) User’s Manual 3.1.4.1 Startup Initialization Since power supplies may be distributed widely across a network of modules and host computer(s), it is not uncommon for modules (singly or together) and the host to lose power independently.

  • Page 39: Module Data Acquisition

    Pressure Systems, Inc. NetScanner™ System (9016, 9021, & 9022) User’s Manual 3.1.4.2 Module Data Acquisition After power-up, all modules will begin to scan all attached transducer channels in channel number order. Scanning will occur at the module’s maximum internal rate (using the previously stored number of data averages per channel).
  • Page 40 Models 9021 and 9022 require such pneumatic/ hydraulic plumbing be provided by the customer (if deemed necessary). Refer to Chapter 4 of this manual for detailed background and procedures for periodic calibration of the Intelligent Pressure Scanners.

  • Page 41: Delivery Of Data To Host

    Pressure Systems, Inc. NetScanner™ System (9016, 9021, & 9022) User’s Manual 3.1.4.4 Delivery of Acquired Data To Host Several commands apply to host delivery of acquired data, either on demand or autonomously. The Read High Precision Data (‘r’) command may be used to obtain high precision data (selected channels in various formats).

  • Page 42: Other Functions

    Pressure Systems, Inc. NetScanner™ System (9016, 9021, & 9022) User’s Manual 3.1.4.6 Other Functions Some commands may be used at any time to obtain information about the internal setup and status of a module. The Read Module Status (‘q’) command is an example. Also, the Set/Do Operating Options (‘w’) command, though generally used after power-up reset, may also be used at other...

  • Page 43: Detailed Command Description Reference

    3.2 Detailed Command Description Reference All commands applicable to the various models of the NetScanner Scanner modules are described on the following pages. They are summarized in the following table. For convenience, this table is also repeated in Appendix B.

  • Page 44: Power Up Clear

    Example: Send TCP/IP command to a module (via its open socket) to acknowledge module power on: “A” Read following response: “A” NetScanner™ System (9016, 9021, & 9022) User’s Manual ™ System module. 3 - 14 www.PressureSystems.com...

  • Page 45: Reset

    Send TCP/IP command to a module (via open socket) to reset defaults: “B” Read following response: “A” NetScanner™ System (9016, 9021, & 9022) User’s Manual Re-zero correction (offset) terms are set to the last values stored in transducer memory. Span correction (gain) terms are set to the last values stored in transducer memory.

  • Page 46: Configure/Control Multi-Point Calibration

    Configure/Control Autonomous Host Streams command ‘c’ (lower case c). but unlike most other module commands, all sub-commands of this command require a space between the command id (‘C’) and the first parameter (ii). NetScanner™ System (9016, 9021, & 9022) User’s Manual 3 - 16 www.PressureSystems.com...
  • Page 47 ‘ 00’ is the sub-command index (ii) for Configure & Start. ‘ pppp’ is a 1-4 hex digit position field (channel selection bit map), that selects any of the 1-16 (9016) or 1-12 (9021/9022) internal channels to be affected by the multi-point calibration.
  • Page 48 (32) is used to collect each calibration data point, so as to minimize any noise in the data samples. The module’s data acquisition process is altered immediately to collect the increased number of averages. Read response: NetScanner™ System (9016, 9021, & 9022) User’s Manual “C 00 F 3 1 32” “A” 3 - 18...
  • Page 49 Pressure may be applied to either the Cal or Run ports, as necessary. Use a Model 903x Calibrator or some other suitable precision pressure source to generate the pressure. NetScanner™ System (9016, 9021, & 9022) User’s Manual 3 - 19 www.PressureSystems.com...
  • Page 50 Read responses (separately after each command executed above): Data are returned in reverse channel number order (i.e., 4, 3, 2, 1) in each response. NetScanner™ System (9016, 9021, & 9022) User’s Manual “C 01 1 -2.5” “C 01 2 0.0”...
  • Page 51 Finally, this sub-command restores the original “A/D samples for averaging” count used by the module’s data acquisition process to the value that was in use before the Multi-Point Calibration function was originally started. NetScanner™ System (9016, 9021, & 9022) User’s Manual 3 - 21 www.PressureSystems.com...
  • Page 52 If execution of the last two ‘w’ commands is skipped above, the new calibration data obtained will be stored only in volatile storage, and will be available for use only until the module is RESET or loses power. NetScanner™ System (9016, 9021, & 9022) User’s Manual “C 02” “w08”...
  • Page 53 (per Calculate & Apply (‘02’) sub-command), will have the same affect as this Abort function. Example: Abort the Multi-Point Calibration function previously started Read response: NetScanner™ System (9016, 9021, & 9022) User’s Manual “C 03” “A” 3 - 23 www.PressureSystems.com...

  • Page 54: Read Transducer Voltages

    Example: NetScanner™ System (9016, 9021, & 9022) User’s Manual 7-10-digit signed decimal “ [-xxx]x.xxxxxx” 8-digit hex integer “ xxxxxxxx” 16-digit hex integer “ xxxxxxxxxxxxxxxx” long integer (EU*1000) then to 8-digit hex integer...
  • Page 55 Response contains data for channels 13, 9, 5, and 1 (left to right): “ 4.999999 -4.989500 0.005390 2.500001” This command example also works for Models 9021 and 9022 if non-existent channel 13 is not set in the position field bit map ( e.g., “V01110”).

  • Page 56: Calculate And Set Gains

    The desired calibrating pressure must be applied to all of the specified channels and allowed to stabilize before this command is executed. presumably generated by a separate model 903x calibrator module or suitable user- supplied substitute. NetScanner™ System (9016, 9021, & 9022) User’s Manual 3 - 26 www.PressureSystems.com Such a pressure is...
  • Page 57 Actual gain values are returned in the above response as decimal ASCII strings, each preceded by a space character. From left-to-right: they are for channels 8, 7, 6, 5, and 4. NetScanner™ System (9016, 9021, & 9022) User’s Manual 3 - 27 www.PressureSystems.com...

  • Page 58: Read Transducer A/D Counts

    Description: The 4-character hex position field (pppp) specifies a 16-bit binary bit-map, with each bit (set to 1) specifying a particular channel number (16-1, left-to-right). Only channels 12-1 are allowed for Models 9021 and 9022. The 1-character format field (f) specifies the format of each data field (dddd) that will be returned in the requested response.
  • Page 59 -full scale. Channel 5 reads near zero and channel 1 is about ½ +full- scale. This command example also works for Models 9021 and 9022 if the non-existent channel 13 is not set in the position field bit map.

  • Page 60: Read High-Speed Data

    Thus for a Model 9016, channel #16 will always be the first 4-byte (32-bit binary, big-endian, IEEE floating-point) value (‘aaaa’) sent in the response. For Models 9021 and 9022, channel #12 will be first. It is followed by similar values for lower numbered channels.

  • Page 61: Define/Control Autonomous Host Streams

    NOTE: all parameters are separated by a space. Depends upon particular sub-command (‘ ii’) sent. See below. Response Autonomous Depends upon the particular sub-command Packet: (‘ ii’) sent. See below. NetScanner™ System (9016, 9021, & 9022) User’s Manual 3 - 31 www.PressureSystems.com...
  • Page 62 Multi-Point Calibration command ‘C’ (upper case C). Like ‘C’, but unlike most other module commands, all sub-commands of this command require a space between the command id (‘c’) and the first parameter (ii). NetScanner™ System (9016, 9021, & 9022) User’s Manual 3 - 32 www.PressureSystems.com...
  • Page 63 This choice is made with the sync type ‘sync’ parameter (a single digit) where: 0 = synchronize with hardware trigger; 1= synchronize with periodic software clock. NetScanner™ System (9016, 9021, & 9022) User’s Manual 3 - 33 www.PressureSystems.com...
  • Page 64 ‘per’ number of hardware trigger periods to wait before sending each packet delay period (in milliseconds) to wait before sending each packet NOTE: minimum is 10 milliseconds NetScanner™ System (9016, 9021, & 9022) User’s Manual 3 - 34 www.PressureSystems.com...
  • Page 65 The value 0 for this parameter requests “continuous” output packets for the defined host stream (unbounded). NetScanner™ System (9016, 9021, & 9022) User’s Manual 7-10-digit signed decimal “ [-xxx]x.xxxxxx” 8-digit hex integer “ xxxxxxxx”...
  • Page 66 Read responses: The above example is for a Model 9016 module. It would also be suitable for a Models 9021 and 9022 if no channels above 12 are scanned as in stream 3 above. NOTE: The type of data delivered for each specified channel (when the streams are started) is EU pressure unless sub-command “05”...
  • Page 67 Each of the three possible host streams will report their own unique sequence number. Note that if a previously stopped data NetScanner™ System (9016, 9021, & 9022) User’s Manual 3 - 37 www.PressureSystems.com...
  • Page 68 Soon after the response is received, the requested data stream packets will begin arriving in the host at a quantity, content, and rate determined by each stream’s own particular current configuration (per both the “00” and “05” sub-commands). NetScanner™ System (9016, 9021, & 9022) User’s Manual “c 01 0” “A”...
  • Page 69 =1. Any expired limited stream must be reconfigured to restart at all. Example: Stop all the streams configured in the previous example: Read response: NetScanner™ System (9016, 9021, & 9022) User’s Manual “c 02 0” “A” 3 - 39 www.PressureSystems.com...
  • Page 70 Stop all the streams configured previously. Then clear (un-define) only stream 3. Finally, resume the remaining defined streams 1 and 2: Read response: NetScanner™ System (9016, 9021, & 9022) User’s Manual “c 02 0” “c 03 3” “c 01 0”...
  • Page 71 Select Data in a Stream, “05.”). Note that the ‘num’ field represents the number of packets returned so far (= last sequence number returned, or =0 if stream not yet started. NetScanner™ System (9016, 9021, & 9022) User’s Manual This protocol identifier pertains to stream delivery only. 3 - 41...
  • Page 72 The above example shows all 16 (sixteen) channels (Model 9016). The value FFFF would be 0FFF for all channels of Models 9021 and 9022. Data is acquired using hardware trigger with one (1) data packet acquired for every trigger events. Data is returned in format 7.
  • Page 73 “A” ‘A’is the acknowledge letter. Description: NetScanner™ System (9016, 9021, & 9022) User’s Manual If this sub-command is never executed for a particular stream, then Pressure EU Data are delivered (by default) in that stream following the fixed format binary header ( tssss as described by the “01”...
  • Page 74 ** NOTE: This status field (0001) cannot be specified for Models 9016, 9021, or 9022. However it is shown should the capability be added to future firmware versions. Currently, only Models 9816 and 903x can return Valve Position status in their streams.
  • Page 75 Pressure Systems, Inc. NetScanner™ System (9016, 9021, & 9022) User’s Manual 3 - 45 www.PressureSystems.com...
  • Page 76 The standard 5-byte binary prefix (tssss) that begins all stream packets would precede this status and data group.(See the Autonomous Packet box in Start Stream sub-command (index 01.) NetScanner™ System (9016, 9021, & 9022) User’s Manual “c 05 1 0012” “A”...
  • Page 77 However, remport = 7001 should be avoided, since NetScanner modules emit UDP Query responses to that port, and most host programs should have a UDP socket already bound to that port for receiving these special responses. The choice of NetScanner™ System (9016, 9021, & 9022) User’s Manual 3 - 47 www.PressureSystems.com...
  • Page 78 UDP datagram. Read response: Configure all streams to be delivered via the default TCP/IP protocol. Read response: NetScanner™ System (9016, 9021, & 9022) User’s Manual “c 06 0 1 7500” “A” “c 06 0 0”...

  • Page 79: Calculate And Set Offsets

    If the optional pressure value [‘vv.vvv’] is not provided, an applied pressure of 0.0 psi(a) will be assumed when calculating coefficients. When using the 9021/9022 module with 9401 absolute pressure transducers, it will usually be required to use the applied pressure field [‘vv.vvv’] as it may not be possible to apply 0.0 psia to the 9401 transducers.
  • Page 80 From left-to-right: they are for channels 16, 15, 14, and 13. This command example also works for Models 9021 and 9022 if the bits in the position field bit map are restricted to channels 12-1 (e.g., h0FFF).

  • Page 81: Read Temperature Counts

    Description: The 4-character hex position field (pppp) specifies a 16-bit binary bit-map, with each bit (set to 1) specifying a particular channel number (16-1, left-to-right). Models 9021 and 9022 use only channels 12-1. The 1-character format field (f) specifies the format of each data field (dddd) that will be returned in the requested response.
  • Page 82 Response contains data for channels 13, 9, 5, and 1 (left to right): “ 20692.000000 19783.000000 19204.000000 20432.000000” A Model 9021 or 9022 example would be similar, but without specifying non- existent channel 13. (“m01110”) NetScanner™ System (9016, 9021, & 9022) User’s Manual 3 - 52 www.PressureSystems.com...

  • Page 83: Read Temperature Voltages

    NetScanner™ System (9016, 9021, & 9022) User’s Manual 7-10-digit signed decimal “ [-xxx]x.xxxxxx” 8-digit hex integer “ xxxxxxxx” 16-digit hex integer “ xxxxxxxxxxxxxxxx” long integer (EU*1000) then to 8-digit hex integer...
  • Page 84 0.5 to 0.6 volts. Note that channel 1 returns a value of 0.0 volts, indicating a possible error in its temperature signal. A Model 9021/9022 example would be similar, but without specifying the non- existent channel 13. (“n01110”) NetScanner™...

  • Page 85: Read Module Status

    Bit 4: reserved (for transducer checksum) Bit 5: FLASH Initialized Data Section Checksum Error (if error, all data variables set to factory defaults and stored in FLASH). NetScanner™ System (9016, 9021, & 9022) User’s Manual “qii” ‘q’ is the command letter ‘ii’...
  • Page 86 (**) format 0 representation of internal IEEE float, with leading space). Maximum Temperature Alarm Set Point (9016 only)(in degrees C), as decimal (**) format 0 representation of internal IEEE float, with leading space). NetScanner™ System (9016, 9021, & 9022) User’s Manual 3 - 56 www.PressureSystems.com...
  • Page 87 “9016” Request TCP back-off delay for any NetScanner “Q07" Read hex (16-bit binary) response: “001F” (31 decimal, or 31 x 20=620 µsec.) NetScanner™ System (9016, 9021, & 9022) User’s Manual ™ System (9016) module: ™ System module: 3 - 57...

  • Page 88: Read High-Precision Data

    Description: The 4-character hex position field (pppp) specifies a 16-bit binary bit-map, with each bit (set to 1) specifying a particular channel number (16-1, left-to-right). Models 9021 and 9022 use only channels 12-1. The 1-character format field (f) specifies the format of each data field (dddd) that will be returned in the requested response.
  • Page 89 Response contains data for channels 13, 9, 5, and 1 (left to right): “ 1.234000 0.989500 1.005390 0.899602” This command example also works for Models 9021 and 9022 if the bits in the position field are restricted to channels 9, 5, and 1. (“r01110”) NetScanner™...

  • Page 90: Read Transducer Temperature

    NetScanner™ System (9016, 9021, & 9022) User’s Manual “tppppf” ‘t’ is the command letter ‘pppp’ is the position field ‘f’ is the format field “ dddd.. dddd”...
  • Page 91 Response contains data (in °C) for channels 13, 9, 5, and 1 (left to right): “ 21.234000 20.989500 21.005390 20.899602” This command example also works for Models 9021 and 9022 if the bits in the position field bit map are restricted to channels 9, 5, and 1. (“t01110”) NetScanner™...

  • Page 92: Read Internal Coefficients

    The first array index (aa=01) refers to channel one’s transducer, the 16th (aa=10) refers to channel sixteen’s transducer. Finally, the last array (aa=11) refers to a special global array. Models 9021 and 9022 would have no data for aa=OD-10 since they only have 12 channels.
  • Page 93 The coefficients of internal DH200 transducers used in the Model 9016 are selected with array indexes aa=01 through 10 (hex). Coefficients of external 9400 transducers used by Models 9021 and 9022 (digitally compensated) are selected with array indexes aa=01 through 0C (hex). All valid coefficient indexes (for each...

  • Page 94: Download Internal Coefficients

    The Date of Factory Calibration field (cc=08) identifies the date of factory calibration for the DH200 transducer (9016) or 9400 transducer (9021/9022. It is stored internally as a 32-bit integer whose value (viewed as a decimal number) is in the format of yymmdd (year, month, day).
  • Page 95 NOTE: The maximum response size is 300 characters. If the requested range of coefficients requested exceeds this, the module will return an “N07" error response. NetScanner™ System (9016, 9021, & 9022) User’s Manual Other Coefficients Description 3 - 65 Datum...
  • Page 96 Multiple contiguous coefficients may be specified by using a coefficient index “range” specified by adding a hyphen (negative sign) between two such indexes. NetScanner™ System (9016, 9021, & 9022) User’s Manual “vfaacc[-cc]dddd..dddd” ‘v’ is the command letter.
  • Page 97 The coefficients of internal DH200 transducers used in the Model 9016 are selected with array indexes aa=01 through 10 (hex). Coefficients of external 9400 transducers used by Models 9021 and 9022 (digitally compensated) are selected with array indexes aa=01 through 0C (hex). All valid coefficient indexes (for each...
  • Page 98 Pressure Systems, Inc. NetScanner™ System (9016, 9021, & 9022) User’s Manual 3 - 68 www.PressureSystems.com...
  • Page 99 Gain=45 Reference Coefficient (902 1/90 22 o nly) Gain=90 Reference Coefficient (902 1/90 22 o nly) Tempe rature G ain Re ference Co efficient (9022 only) Examples: Sen d TCP/IP command to module (i.e., via its connected socket): with replacement values for the channel’s offset and gain correction terms loaded into the module’s...
  • Page 100 01-10 Set Number of Channels in Module (default =16 for 9016, 12 for 9021 and 9022). NetScanner™ System (9016, 9021, & 9022) User’s Manual “wii[dd[ eeee]]” ‘w’ is the command letter. ‘ii’ is the option index field. ‘dd’ is an [optional] hex datum field.
  • Page 101 Ethernet Address(converted to decimal value * 20 µsec.). Enable Host Response/Stream Back-Off Delay specified per eeee as decimal value (* 20 µsec.) NetScanner™ System (9016, 9021, & 9022) User’s Manual Description 3 - 71 www.PressureSystems.com ‘q’ read...
  • Page 102 Pressure Systems, Inc. (for Models 9021 and 9022 only; reserved for 9016) Set Amplifier Gain to 5000 mV FS Range (G=1) (default) Set Amplifier Gain to 250 mV FS Range (G=20) Set Amplifier Gain to 100 mV Range (G=45) Set Amplifier Gain to 50 mV FS Range (G=90) Disable Host Response/Stream Total Size Prefix (default).
  • Page 103 Pressure Systems, Inc. (for Models 9021 and 9022 ONLY) Initialize Generic Sensor Parameters with Factory Default Parameters on Power-up. Retrieve user-provided parameters out of non-volatile memory Store current coefficient terms into transducer’s non- volatile memory. (For use only with non-digitally compensated 9400 sensors with EEPROM.) (‘w27’...
  • Page 104 If the programmer “knows” that the module is already in the RUN/CAL valve mode, the first command above is optional. For more information, see Figures 4.1 through 4.4 in Chapter 4. NetScanner™ System (9016, 9021, & 9022) User’s Manual C1 Energized C2 Not...

  • Page 105: Network Query

    NetScanner™ System (9016, 9021, & 9022) User’s Manual Command Response “ipadr, ethadr, sernum, mtype, sfwver, connst, ipadrst, lisport, subnet, iparpst, udpast, pwrst,” IP address Ethernet address Serial number Module type (e.g., 9016) Software version (e.g., x.xx decimal format)
  • Page 106 Example: Query all module(s) on the network. “psi9000” Response(s): 200.201.7.207, 0-e0-8d-1-7-cf, 1999, 9022, 2.32, 0, 1, 9000, 192.0.0.0, 0, 1, 0x0 NetScanner™ System (9016, 9021, & 9022) User’s Manual 3 - 76 www.PressureSystems.com...

  • Page 107: Re-Boot Module

    Example: Re-boot a specified module on the network. “psireboot 00-E0-8D-00-00-01” Response: (None) NetScanner™ System (9016, 9021, & 9022) User’s Manual “psireboot ethadr” where ethadr is the Ethernet address of the specified module in the following special hex-digit format ‘xx-xx-xx-xx-xx-xx’...
  • Page 108 (iparpst) as a result of a recent Network Query response from the module. “psirarp 00-E0-8D-00-00-01” Response: (None) NetScanner™ System (9016, 9021, & 9022) User’s Manual “psirarp ethadr” where ethadr is the Ethernet address of the specified module in the following special hex-digit format ‘xx-xx-xx-xx-xx-xx’...

  • Page 109: Obsolete Commands

    They may still continue to exist in newer firmware versions of several older models. However, they are not available in the 9016, 9021, and 9022 models, and will eventually be removed from all NetScanner...
  • Page 110 Pressure Systems, Inc. NetScanner™ System (9016, 9021, & 9022) User’s Manual which should be replaced as follows. The sequence ‘T’, ‘I’, and ‘U’ were piecemeal parts of the (now obsolete) command ‘M,’ which was itself replaced by Read Scaled Analog Inputs (‘L’).

  • Page 111: Chapter 4 - Calibration

    Each internal DH200 transducer in a NetScanner 9016) contains non-volatile read/write memory capable of storing the transducer's full thermal and pressure calibration data. For Models 9021 and 9022, most Series 9400 transducers (that have “digital compensation” specified for them) also have thermal sensors and on-board non-volatile memory.
  • Page 112 Each model 9016 Intelligent Pressure Scanner contains an integral purge/leak check calibration manifold. (Models 9021 and 9022 have no valves.) Through software commands to each 9016, this valve may be placed in one of four positions: RUN, CAL, PURGE, or LEAK-CHARGE. (See the Set/Do Operating Options/Functions (‘w’) command (ii=0C &...
  • Page 113 Pressure Systems, Inc. NetScanner™ System (9016, 9021, & 9022) User’s Manual Figures 4.1 - 4.4 Pneumatic Diagrams of the Calibration Manifold 4 - 3 www.PressureSystems.com...

  • Page 114: Re-Zero Calibration

    After the Re-zero adjustment is complete, the Model 9016 calibration valve will be placed in the RUN position. Models 9021 and 9022 assume a “minimum” calibration is already applied to the transducers. This automatic shift of the calibration valve can be disabled through use of the NetScanner™...

  • Page 115: Re-Zero Calibration Summary

    Following is a simple, step-by-step procedure for executing a Re-zero calibration of a 9016 or 9021/9022 Intelligent Pressure Scanner. For Models 9021 and 9022, skip the steps that manipulate valves as denoted by a double asterisk (**). Optional commands are shown within brackets [ ].

  • Page 116: Span Calibration

    For Models 9021 and 9022, which have external 9400, 9401 or 9402 (or third-party) all-media transducers, the user must supply any necessary valves and controls to accomplish the application of an upscale pneumatic or hydraulic pressure to these transducers before executing the span adjustment.

  • Page 117: Span Calibration Valve Control

    (‘Z’) has a channel selection bit map parameter allowing it to calibrate only the desired pressure channels, the RUN port is a viable option for supplying the calibration pressures. This also applies to Models 9021 and 9022, which assumes an upscale pressure is already applied to its transducer being adjusted.

  • Page 118: Span Calibration Summary

    Following is a simple, step-by-step procedure for executing a “full scale” span calibration of a 9016, 9021, or 9022 Intelligent Pressure Scanner. For Models 9021 and 9022, skip the steps that manipulate valves, as denoted with a double asterisk (**). It is assumed that all channels in the unit are of the same full scale pressure range.
  • Page 119 Following is a simple, step-by-step procedure for executing a specified-value span calibration of a 9016, 9021, or 9022 Intelligent Pressure Scanner. For Models 9021/9022, skip the steps that manipulate valves as denoted by the double asterisk (**). For the purposes of this example, it will be assumed that an upscale pressure of 14.9800 psi is available from a dead weight tester for the...

  • Page 120: Integrated Multi-Point Calibration Adjustment

    Re-zero and Span calibration adjustment functions already described in Sections 4.2 and 4.3. For users who have installed scanner firmware version 2.24 or later, an integrated and more comprehensive Multi-Point Calibration function may be used instead to adjust the same offset and gain coefficients for a module’s channels.

  • Page 121: Multi-Point Calibration Summary

    Following is a simple step-by-step procedure for executing a “multi-point” calibration of a 9016, 9021, or 9022 Intelligent Pressure Scanner. For Models 9021 and 9022, skip the steps that manipulate valves as denoted by the double asterisk (**). It is assumed that all channels in the unit have the same full-scale pressure range.
  • Page 122 ‘C’. This also restores the module to using its original averaging parameters that existed before the first ‘C’ command. NetScanner™ System (9016, 9021, & 9022) User’s Manual C 00 FFFF 3 1 64 (9016) C 00 0FFF 3 1 64 (9021/9022)

  • Page 123: 9021/9022 Analog Calibration

    … continue normal data acquisition. 4.5 9021/9022 Analog Calibration Both the standard 9021 and the 9022 modules are used to make absolute analog measurements from either the PSI 9400 transducers or third party analog output transducers. In order to maintain the highest level of analog accuracy, the 9021/9022 is designed to allow its firmware to perform automatic software calibration of the analog interface circuitry.

  • Page 124: Setup

    9021 and 9022 transducer interface connectors. Application of this voltage may be made through any one of the twelve 9021 and 9022 interface connectors although more complete verifications of performance will require applying these voltages to all twelve input connectors.

  • Page 125: Calibration Procedure

    4.5.2 Calibration Procedure The calibration procedures may be summarized as follows: 1. Set all 9021/9022 channels for the desired gain (1, 20, 45, or 90). (9022 temperature voltage input gain is fixed at gain = 1) 2. Apply a known upscale or full scale voltage to the 9021/9022.
  • Page 126 Pressure Systems, Inc. The above process is repeated for each of the four (4) 9021/9022 gain settings (or selected gain settings as needed for your application). Calculation of the new reference coefficient is performed as follows: CoefOld = current reference coefficient value...
  • Page 127 Pressure Systems, Inc. A detailed step-by-step procedure follows that includes the specific 9021/9022 commands to be sent to the module under test. DESCRIPTION Set AD averaging to 32 to minimize reading jitter Turn off front-end calibration function (9022 ONLY) Set all channels to gain of 1 (or 20, 45, 90)
  • Page 128 The example command structure will provide the new coefficient, shown as x.xxxx in ASCII floating point format. for gain = 1 for gain = 20 for gain = 45 for gain = 90 for temperature NetScanner™ System (9016, 9021, & 9022) User’s Manual Reference 9021/9022 Coefficient Command for gain = 1 u01104...

  • Page 129: Coefficient Storage

    This section describes the capability to download and store parameters to NetScanner System 9021 and 9022 modules for use in calibrating and/or identifying sensors that do not conform to the serial data storage and retrieval format of digitally compensated PSI 9400 sensors. When using other than digitally compensated 9400 sensors, two alternative methods are available to allow for non-volatile storage of key parameters for sensors attached to a 9021 or 9022.
  • Page 130 If a non-digitally compensated 9400 sensor is attached but is equipped with non-volatile memory (EEPROM) and responds properly to the 9021/9022 module query, it’s parameters are uploaded and used for calibrating the sensor. If a 9400 sensor is not detected, the module will look to see if the module has been configured to utilize the user- provided parameters out of scanner non-volatile memory.
  • Page 131 25. For each third-party type sensor attached, this command sets the volatile copy of each parameter back to the factory default value as follows: NetScanner™ System (9016, 9021, & 9022) User’s Manual Offset term = 0.0 Gain term = 1.0 c0 = 0.0...
  • Page 132 The user parameters are set to the factory default values at time of module manufacture. NetScanner™ System (9016, 9021, & 9022) User’s Manual 4 - 22 www.PressureSystems.com...
  • Page 133 ‘v’ command (together with the associated index number for each parameter). NetScanner™ System (9016, 9021, & 9022) User’s Manual Sensor offset and gain terms are 4 - 23 www.PressureSystems.com...

  • Page 134: Line Pressure Precautions

    Pressure Systems, Inc. NetScanner™ System (9016, 9021, & 9022) User’s Manual 4.8 Line Pressure Precautions When operating 9016 pressure scanners at elevated line or reference pressures, care must be taken when any command is issued that may result in shifting of the calibration valve. The user must ensure that any valve shifts will not result in the internal DH200 transducers being exposed to pressure transients that may exceed the proof pressure rating of the transducer.

  • Page 135: Chapter 5 - Service

    System Intelligent Pressure Scanners. The method for upgrading module firmware is also presented in Section 5.2. Figure 5.1 is an exploded view of the Model 9016 and 9022. Please refer to these drawings for an understanding of the construction of Intelligent Pressure Scanners models. Figures 5.1a, 5.1b, and 5.1c depict the 9016, 9021 and 9022 top plates.
  • Page 136 Pressure Systems, Inc. NetScanner™ System (9016, 9021, & 9022) User’s Manual NOTE: It must be emphasized that printed circuit boards in 9016, 9021, and 9022 modules are field replaceable, but are NOT field repairable. Figure 5.1c Figure 5.1b Figure 5.1a...

  • Page 137: Common Maintenance

    Pressure Systems, Inc. Table 5.1 provides a convenient cross reference summary of the components found in each Intelligent Pressure Scanner. This may be used as a guide to identify the appropriate component replacement sections in this chapter. Component PC -280 Microp rocessor P CB Assem bly...
  • Page 138 ® a tube of Krytox lubricant (PSI P/N 42-06-KRYX), a spray bottle of silicone liquid lubricant (PSI P/N 41-06-Silicone). NetScanner™ System (9016, 9021, & 9022) User’s Manual ™ System components, the NOTE: PSI offers an optional maintenance kit (PSI P/N S901-0200000000) with the lubricants included.

  • Page 139: Module Disassembly

    For 9021 scanners these will be six (6) 4-40 Allen-head screws which require a 3/32" Allen driver (for 9022 scanners, there are twelve (12) Phillips-head screws). The 9016 uses twelve (12) Phillips head screws around the top plate outside perimeter.

  • Page 140: Amplifier/Multiplexer Board

    PC-203 or PC-280 electronics support brackets when placing the top panel and electronics back into the housing. Replace the screws that secure the top panel to the scanner housing and tighten. Do not over- tighten; 7-9 inch-pounds torque should be sufficient.

  • Page 141: Amplifier/Multiplexer Board

    PC-203 or PC-280 electronics support brackets when placing the top panel and electronics back in the housing. Replace the six (6) Allen-head screws that secure the top panel to the scanner housing and tighten. Do not over-tighten; 7-9 inch-pounds should be sufficient.
  • Page 142 Tighten the three (3) screws attached to the PC-280 mounting brackets. Test your scanner to ensure proper operation. NetScanner™ System (9016, 9021, & 9022) User’s Manual Figure 5.3 PC-280 Board 5 - 8...

  • Page 143: Figure 5.3A 9022 Pcbs Outside The Housing

    The following procedures should be used for replacement of the PC-315, PC-316, or PC-317 boards. Use the tools and follow the general warnings already described in Section 5.1.1. Disassemble the module as described in Section 5.1.2. NetScanner™ System (9016, 9021, & 9022) User’s Manual Figure 5.3a 9022 PCBs Outside the Housing Figure 5.3b...

  • Page 144: Replacement Of Transducers

    Carefully replace the Viton gasket around the top plate and replace the twelve (12) Phillips-head screws that secure the top plate to the scanner housing. Tighten the screws. Do not over-tighten; 7-9 inch-pounds should be sufficient.

  • Page 145: Figure 5.4 Top View Of Dh200

    O-ring surfaces are free of contaminants. The DH200 must fit the guiding pins smoothly and be aligned with all other DH200 transducers. Tighten the retaining screw to 40 inch-ounces ±5 inch-ounces of torque. NetScanner™ System (9016, 9021, & 9022) User’s Manual Figure 5.4 Top View of DH200 5 - 11 www.PressureSystems.com...

  • Page 146: Calibration Valve Solenoid Replacement

    Following is a step-by-step procedure to replace the Calibration Valve Solenoids in a Model 9016 Intelligent Pressure Scanner. All Model 9016 scanners contain the purge and leak check calibration manifold and contain two solenoid valves. Use the tools and follow the general warnings already described at the start of Section 5.1.1.

  • Page 147: Replacement Of O-Rings

    Test your scanner to ensure proper operation. 5.1.6 Replacement of O-Rings Pressure Systems’ calibration valves include static and dynamic O-ring seals. When used properly, the rated durability of the dynamic O-rings is in excess of 1,000,000 shifts of the calibration valve.

  • Page 148: Dh200 Transducer O-Ring Replacement

    Repeat steps 3, 4, 5 and 6 for each set of O-rings in need of replacement. Replace the PC-206 board as described in Section 5.1.3.1 and reassemble the module. Test your scanner to ensure proper operation. NetScanner™ System (9016, 9021, & 9022) User’s Manual Figure 5.6 DH200 Transducer O-Ring Replacement ®...

  • Page 149: Tubing Plate O-Ring Replacement

    1/8 turn. It is important not to over tighten the screws since the pneumatic seal is made using dynamic O-rings. Reassemble the module. (10) Test your scanner to ensure proper operation. NetScanner™ System (9016, 9021, & 9022) User’s Manual ® grease. 5 - 15 www.PressureSystems.com...

  • Page 150: Adapter Plate O-Ring Replacement

    Following is a step-by-step procedure to replace Adapter plate O-rings in a Model 9016 Intelligent Pressure Scanner. The adapter plate is located opposite of the tubing plate on the calibration manifold. All DH200 transducers are attached to the adapter plate.

  • Page 151: Calibration Manifold Piston O-Ring Replacement

    Following is a step-by-step procedure to replace Calibration Manifold O-rings in a Model 9016 Intelligent Pressure Scanner. There are eight (8) pistons, each with an O-ring, inside the calibration valve housing; one (1) on each end of the housing, and three (3) on each side of the calibration valve itself.

  • Page 152: Solenoid Valve O-Ring Replacement

    Section 5.1.6.1. Replace the solenoid valve and gently tighten the screws. Reassemble the module. Test your scanner to ensure proper operation. NetScanner™ System (9016, 9021, & 9022) User’s Manual ® , etc.). Lightly spray the inner Figure 5.7 5 - 18...

  • Page 153: 9022 Excitation Trim

    Pressure Systems, Inc. 5.2 9022 Excitation Trim The 9022 output voltage is factory set at 10 volts. The following procedure can be used to trim the 10 volt output (~±5%). Disassemble the unit as described in Section 5.1.2. Locate R-19, the output voltage trim potentiometer, on the PC-317 board. It is the only...

  • Page 154: 9022 Procedure For Changing The Excitation Jumper Setting (Jb1)

    Install the screw that secures the top panel to the housing. Tighten the three (3) screws attached to the PC-280 mounting brackets. Test your scanner to ensure proper operation. 5.3 9022 Procedure for Changing the Excitation Jumper Setting (JB1) The following procedure can be used to change the output voltage selection.

  • Page 155: Upgrading Module Firmware

    Download links can be found on the home page and in the information page for each model (e.g., Model 9016, Model 9022, etc.). All firmware is stored as a self-extracting .ZIP file. Once downloaded from the internet, simply execute the download file to extract the archived file(s).
  • Page 156 Pressure Systems, Inc. NetScanner™ System (9016, 9021, & 9022) User’s Manual This page intentionally left blank. 5 - 22 www.PressureSystems.com...

  • Page 157: Chapter 6 - Troubleshooting Guide

    LED is OFF, verify that the module is properly connected to the communications hub or switch. Verify proper power is applied to the hub. Also try connecting the 9016, 9021, or 9022 cable to a different port of the hub. Note that most hubs have similar link LEDs to indicate proper NetScanner™...

  • Page 158: Checking Module Tcp/Ip Communications

    6.1.2 Checking Module TCP/IP Communications If the LED indicators of the 9016, 9021, and 9022 are correct, the module is normally capable of proper communications. In order for communications to be established with a functional 9016, 9021, or 9022 (assuming correct interface cables are used), two user-controlled parameters must be met.
  • Page 159 Dynamic IP server to be present and properly configured on the network. Before host communications can be established, the user must ensure that the 9016 or 9021/9022 has been assigned a known IP address through either Static IP or using a Dynamic IP server.

  • Page 160: Host Ip Address Assignment For Windows 95/98/Nt

    6.1.2.2 Host IP Address Assignment for Windows In order to communicate with the Ethernet 9016, 9021, or 9022, the host computer must also be configured with an appropriate IP address. For Windows configuration is described below. Note that this configuration assumes that a host PC Ethernet adapter is installed and not in use for any other TCP/IP application.

  • Page 161: Verifying Host Tcp/Ip Communications

    In the IP address, enter a TCP/IP address for your host computer. An IP address of 200.200.200.001 will work if the 9016, 9021, or 9022 is using the factory default IP address. If the leftmost fields of the 9016, 9021, or 9022 module IP addresses are different than the factory default of 200.20x.yyy.zzz then the leftmost fields of the host computer’s IP address must match the module’s leftmost IP...

  • Page 162: Zero And Gain Calibration Troubleshooting

    Ensure the IP address of the host computer and the NetScanner not duplicated on the network. Ensure the link LEDs are active on the scanner and the Ethernet hub or switch to which it is attached. Also ensure the link LEDs are active on the host computer’s Ethernet adapter and the hub or switch to which it is attached.
  • Page 163 (as when calibrating an absolute pressure transducer), the alternate form of this command should be used. This allows the host to specify the exact minimum pressure applied to the transducers being calibrated. NetScanner™ System (9016, 9021, & 9022) User’s Manual 6 - 7 www.PressureSystems.com...
  • Page 164 Pressure Systems, Inc. NetScanner™ System (9016, 9021, & 9022) User’s Manual 6 - 8 www.PressureSystems.com...

  • Page 165: User Software

    Pressure Systems, Inc. NetScanner™ System (9016, 9021, & 9022) User’s Manual User Software ™ ™ For a complete description of NetScanner System software, please refer to the NetScanner Unified Startup Software (NUSS) User’s Manual. 6 - 9 www.PressureSystems.com...

  • Page 166: Chapter 7 - Start-Up Software

    ™ NUSS is provided to all customers who have purchased a NetScanner System Intelligent Pressure Scanner. The software as well as the User’s Manual may be downloaded from PSI’s Web site, www.PressureSystem.com. 7 - 1 www.PressureSystems.com...
  • Page 167 Pressure Systems, Inc. NetScanner™ System (9016, 9021, & 9022) User’s Manual This page intentionally left blank 7 - 2 www.PressureSystems.com...

  • Page 168: C Configure/Control Multi-Point Calibration

    Pressure Systems, Inc. All Commands — Quick Reference: Type TCP/IP NetScanner™ System (9016, 9021, & 9022) User’s Manual Command id Command Function Power-Up Clear Reset Configure/Control Multi-Point Calibration (4 sub-commands) Read Transducer Voltages Calculate and Set Gains (Span Cal) Read Transducer Raw A/D Counts...
  • Page 169 Pressure Systems, Inc. NetScanner™ System (9016, 9021, & 9022) User’s Manual Type Command id Command Function Query Network UDP/IP psi9000 Broadcast Reboot Specified Module psireboot psirarp Change Specified Module’s IP Address Resolution Method (then Reboot) A - 2 www.PressureSystems.com...
  • Page 170 Pressure Systems, Inc. ™ NetScanner System Response Error Codes: CODE NetScanner™ System (9016, 9021, & 9022) User’s Manual MEANING (Unused) Undefined Command Received Unused (by TCP/IP) Input Buffer Overrun Invalid ASCII Character Received Data Field Error Unused (by TCP/IP) Specified Limits Invalid ™...
  • Page 171 Pressure Systems, Inc. NetScanner™ System (9016, 9021, & 9022) User’s Manual This page intentionally left blank B - 2 www.PressureSystems.com...

  • Page 172: Cable Diagrams

    9400 Series/9022 (Circular Connector) Cable 9021 to Series 27 Interface Cable 9022 to Series 27 Interface Cable Calibration Cable Party Sensor Interface Cable NetScanner™ System (9016, 9021, & 9022) User’s Manual Applicable Models 9016, 9021, and 9022 9016, 9021, and 9022 9021 9022...
  • Page 173 Pressure Systems, Inc. NetScanner™ System (9016, 9021, & 9022) User’s Manual ™ NetScanner System Ethernet Interface Cable P/N 9080 C - 2 www.PressureSystems.com...
  • Page 174 Pressure Systems, Inc. NetScanner™ System (9016, 9021, & 9022) User’s Manual ™ NetScanner System Ethernet Interface Cable 9080 Cable C - 3 www.PressureSystems.com...
  • Page 175 Pressure Systems, Inc. NetScanner™ System (9016, 9021, & 9022) User’s Manual 9096 Cable 9400/9021 (D-Shell) Cable C - 4 www.PressureSystems.com...
  • Page 176 Pressure Systems, Inc. NetScanner™ System (9016, 9021, & 9022) User’s Manual 9096 Cable 9400/9022 (Circular Connector) Cable C - 5 www.PressureSystems.com...
  • Page 177 Pressure Systems, Inc. NetScanner™ System (9016, 9021, & 9022) User’s Manual 9021 to Series 27 Interface Cable 9021 C - 6 www.PressureSystems.com...
  • Page 178 Pressure Systems, Inc. NetScanner™ System (9016, 9021, & 9022) User’s Manual 9022 to Series 27 Interface Cable C - 7 www.PressureSystems.com...
  • Page 179 Pressure Systems, Inc. NetScanner™ System (9016, 9021, & 9022) User’s Manual Calibration Cable (9022) C - 8 www.PressureSystems.com...
  • Page 180 Pressure Systems, Inc. NetScanner™ System (9016, 9021, & 9022) User’s Manual Third-Party Sensor Interface Cable (9022) C - 9 www.PressureSystems.com...
  • Page 181 Pressure Systems, Inc. NetScanner™ System (9016, 9021, & 9022) User’s Manual This page intentionally left blank C - 10 www.PressureSystems.com...

  • Page 182: Mounting Dimensions

    9022 Mounting Dimensions ........
  • Page 183 Pressure Systems, Inc. NetScanner™ System (9016, 9021, & 9022) User’s Manual 9016 Mounting Dimensions D - 2 www.PressureSystems.com...
  • Page 184 Pressure Systems, Inc. NetScanner™ System (9016, 9021, & 9022) User’s Manual 9021 Mounting Dimensions D - 3 www.PressureSystems.com...
  • Page 185 Pressure Systems, Inc. NetScanner™ System (9016, 9021, & 9022) User’s Manual 9022 Mounting Dimensions D - 4 www.PressureSystems.com...
  • Page 186 The range code of each transducer can be read through the Read Internal Coefficient (‘u’) command. Standard Range Codes are shown in Bold and Italics. Range Code NetScanner™ System (9016, 9021, & 9022) User’s Manual Full Scale Pressure ±0.360 psi (±10" Water Column) ±0.720 psi (±20"...
  • Page 187 Pressure Systems, Inc. Range Code NetScanner™ System (9016, 9021, & 9022) User’s Manual Full Scale Pressure 15 psid 30 psid 45 psid 20 psid 20 psi 15 psi 15 psid 5 psi 10 psi 30 psi 50 psi 100 psi...
  • Page 188 Pressure Systems, Inc. Range Code NetScanner™ System (9016, 9021, & 9022) User’s Manual Full Scale Pressure 60 psid 375 psi 150 psi 75 psi 150 psi 650 psi 850psi 150 psia 750 psia 75 psia 1.2 psi E - 3...
  • Page 189 Pressure Systems, Inc. NetScanner™ System (9016, 9021, & 9022) User’s Manual This page intentionally left blank E - 4 www.PressureSystems.com...
  • Page 190 9096 Series 9400 Interface Cable. 9080 Interface cable for connecting NetScanner and hubs. 9400/9401/9402 - Media-Isolated Pressure Transducers for Models 9021 and 9022 NetScanner™ System (9016, 9021, & 9022) User’s Manual ™ System modules. ™ System modules to switches F - 1 www.PressureSystems.com...
  • Page 191 Pressure Systems, Inc. NetScanner™ System (9016, 9021, & 9022) User’s Manual This page intentionally left blank F - 2 www.PressureSystems.com...

  • Page 192: Binary Bit Map

    8192 16384 32768 Decimal to Binary Conversion: 892 dec = 512 + 256 + 64 + 32 + 16 + 8 + 4 0000 0011 NetScanner™ System (9016, 9021, & 9022) User’s Manual Binary Number 0000 0000 0000 0000 0000...
  • Page 193 Pressure Systems, Inc. NetScanner™ System (9016, 9021, & 9022) User’s Manual This page intentionally left blank G - 2 www.PressureSystems.com...
  • Page 194 Headquarters/Factory: Pressure Systems, Inc. 34 Research Drive Hamtpton, VA 23666 Phone: (757) 865-1243 Toll Free: (800) 328-3665 Fax: (757) 865-8744 E-mail: sales@PressureSystems.com European Office: PSI, Ltd. 124, Victoria Road Farnborough, Hants GU14 7PW United Kingdom Phone: +44 1252 510000 Fax: +44 1252 510099 E-mail: PSI@WestonAero.com...

This manual is also suitable for:

90169021

Table of Contents
