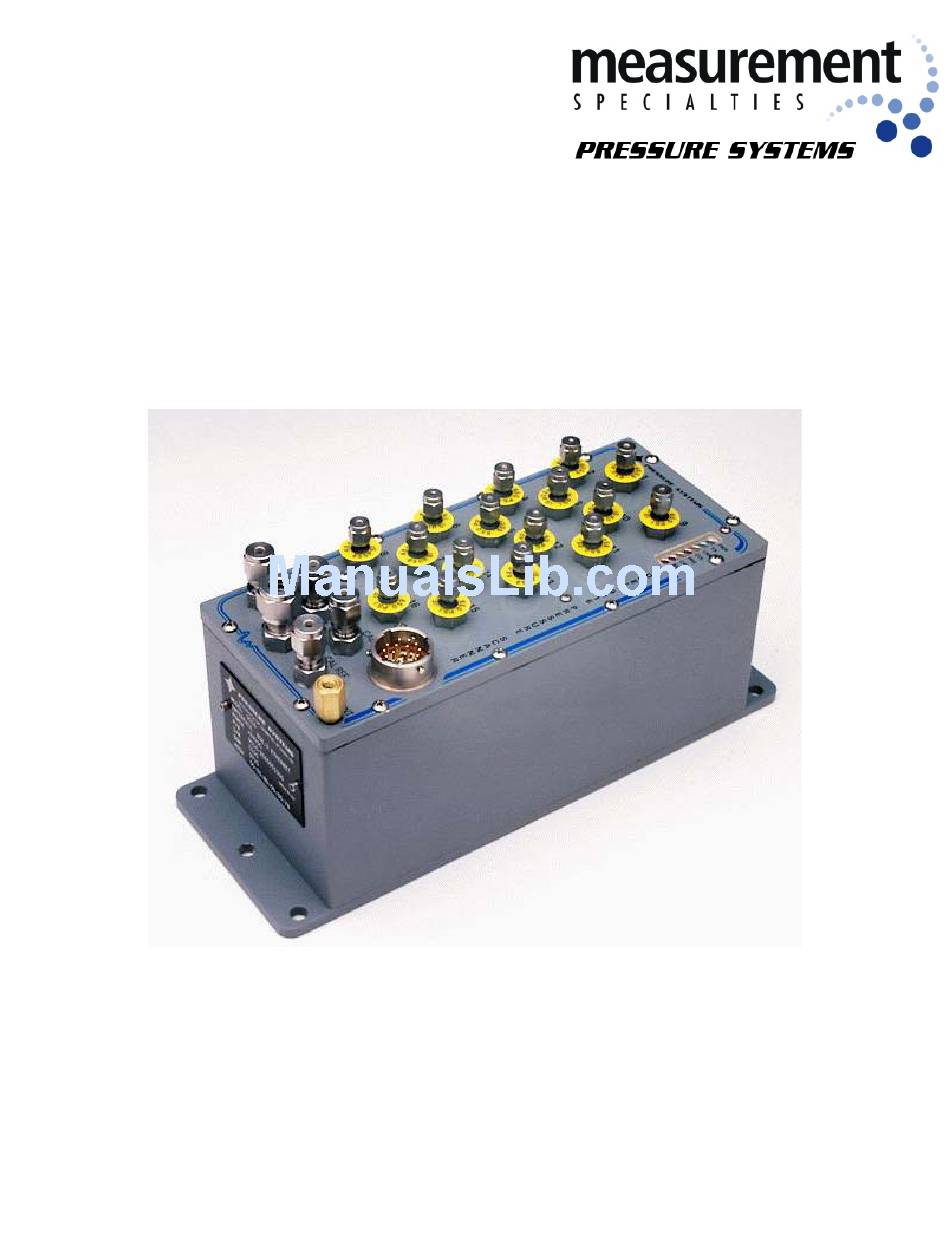

- Page 1 Model 9016 Upgrade Instructions February 2004 NetScanner™ System www.PressureSystems.com...
-
Page 2: Packing List
Pressure Systems, Inc. 9016 Upgrade Instructions Packing List When you purchase your 9016 Upgrade Kit, the following parts will be included: 1 - 9016 Upgrade Installation Instructions 1 - Upgrade Tag 1 - PC327 analog board 1 - Assembled PC322-PC323 processor unit 1 - Cable tie 5.5 inch... - Page 3 9016 Intelligent Pressure Scanner to 9116 scanner capabilities. Figure 1 is an exploded view of the Model 9016. Please refer to this drawings for an understanding of the construction of Intelligent Pressure Scanners. Figure 2 depicts the 9016 top plate.
-
Page 4: Module Disassembly
These are located around the perimeter of the top panel of the module housing. The 9016 uses twelve (12) Phillips-head screws around the top plate outside perimeter. See Figure 3, next page. - Page 5 Pressure Systems, Inc. 9016 Upgrade Instructions Remove 12 perimeter Phillips- head screws. REMOVE ONLY THE 12 PERIMETER SCREWS. Figure 3 9016 Top Plate When all screws have been removed, gently lift the top panel and attached electronics up and out of the housing. All components of the pressure scanner are attached to the top plate and will lift out of the module housing when the top plate is removed.
-
Page 6: Electronic Circuit Board Replacement
Figure 4 9016 Out of Housing Electronic Circuit Board Replacement Your 9016 contains two (2) electronic circuit boards that must be removed and replaced for this upgrade. PC-206 Amplifier/Multiplexer Board The following procedures should be used for removal of the PC-206 Amplifier/Multiplexer Board. - Page 7 Pressure Systems, Inc. 9016 Upgrade Instructions PC-280 Ethernet Microprocessor/A-D Board The following procedures should be used for removal of the PC-280 Ethernet Microprocessor/A-D Board. Use the tools and follow the general warnings already described. Carefully remove any attached wiring harnesses from connectors P1, P3, and P6 of the PC- 280 board.
- Page 8 Pressure Systems, Inc. 9016 Upgrade Instructions Retain all of the existing connecting cables for use with your new PC boards. The two (2) boards you have just removed will be replaced with three (3) new printed circuit boards. The PC-206 board will be replaced by the PC-327 Analog Board.
- Page 9 Pressure Systems, Inc. 9016 Upgrade Instructions C1 tube C4 tube C4 tube Figure 7a PC-327 Board Installing the PC-322/323 Boards As previously mentioned, the PC-322 and the PC-323 boards will arrive to you completely connected and may be installed very similarly to the installation of the old PC-280 board. (See Figure 8.)
- Page 10 Pressure Systems, Inc. 9016 Upgrade Instructions wire wrap, starting near the P6 connector. The freed white nylon spiral wire wrap may be re-used on other wires or tubes, or may simply be cut off and discarded. If you choose to cut off the spiral wire wrap, be careful not to nick or cut any other wires or tubes.
- Page 11 Insert a plastic cable tie-down through the tie-down mount previously installed and around the clear plastic tubing as shown in Figure 11. The following two pictures show a completed 9016 module upgrade with side and top views. Figure 12 Figure 13...
- Page 12 Final Checkout Test your Intelligent Pressure Scanner for proper operation. For operation of your newly upgraded Intelligent Pressure scanner, please refer to your 9116 User’s Manual, available from the Pressure Systems web site, www.PressureSystems.com. www.PressureSystems.com...
- Page 13 Headquarters/Factory: Pressure Systems, Inc. 34 Research Drive Hampton, VA 23666 Phone: (757) 865-1243 Toll Free: (800) 328-3665 Fax: (757) 865-8744 E-mail: sales@PressureSystems.com...
