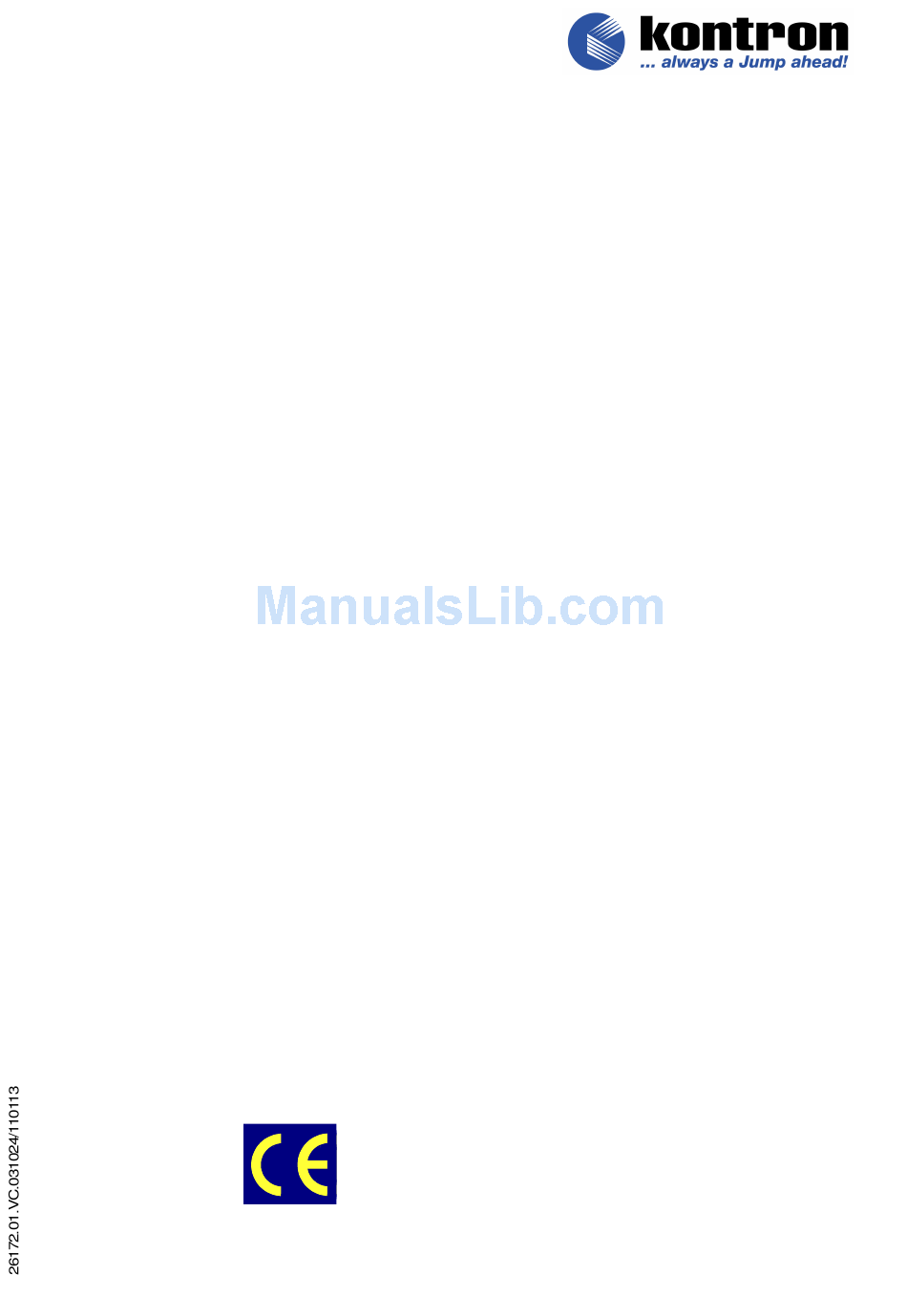

CP930
Fast Ethernet Switch
Manual ID: 26683, Rev. Index 01
24 October, 2003
The product described in this manual is
in compliance with all applied CE stan-
dards.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CP930 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Kontron CP930

Summary of Contents for Kontron CP930

  • Page 1 CP930 Fast Ethernet Switch Manual ID: 26683, Rev. Index 01 24 October, 2003 The product described in this manual is in compliance with all applied CE stan- dards.

  • Page 2: Imprint

    Copyright © 2003 Kontron Modular Computers GmbH. All rights reserved. This manual may not be copied, photocopied, reproduced, translated or converted to any electronic or machine- readable form in whole or in part without prior written approval of Kontron Modular Computers. GmbH.

  • Page 3: Table Of Contents

    Front Panels ................. 1 - 6 1.4.3 Board Layout ................1 - 7 Technical Specifications ................ 1 - 8 Applied Standards ................. 1 - 9 Related Publications ................1 - 9 ID 26683, Rev. 01 © 2003 Kontron Modular Computers GmbH Page iii...
  • Page 4 3.1.4 Installation Procedures for Use in Floppy Disk Drive Slot ..... 3 - 5 3.1.5 Removal Procedures for Use in Floppy Disk Drive Slot ....3 - 5 Page iv © 2003 Kontron Modular Computers GmbH ID 26683, Rev. 01...
  • Page 5 CP930 Preface Chapter Configuration ....................4 - 3 ID 26683, Rev. 01 © 2003 Kontron Modular Computers GmbH Page v...
  • Page 6 Preface CP930 This page was intentionally left blank. Page vi © 2003 Kontron Modular Computers GmbH ID 26683, Rev. 01...

  • Page 7: List Of Tables

    CP930 Preface List of Tables CP930 Product Overview ................. 1 - 4 CP930 Main Specifications ..............1 - 8 CP930 Power Consumption ..............1 - 8 Applied Standards ..................1 - 9 Related Publications ................1 - 9 Pinouts of CON3, CON4 and CON6 Based on the Implementation ..2 - 6 Compact PCI Connector CON1 Pinout ............
  • Page 8 Preface CP930 This page was intentionally left blank. Page viii © 2003 Kontron Modular Computers GmbH ID 26683, Rev. 01...

  • Page 9: List Of Figures

    CP930 Preface List of Figures CP930 Front Panel Standard Variant Views ..........1 - 6 CP930 Board Layout ................1 - 7 CP930 Board Level Interfacing ..............2 - 5 CON3/4 and CON6 Connectors ............... 2 - 6 CON5 Fiber Optic Receptacle, Front Panel View ........2 - 7 CompactPCI Connector CON1 Front View ..........
  • Page 10 Preface CP930 This page was intentionally left blank. Page x © 2003 Kontron Modular Computers GmbH ID 26683, Rev. 01...

  • Page 11: Proprietary Note

    This document contains information proprietary to Kontron Modular Computers GmbH. It may not be copied or transmitted by any means, disclosed to others, or stored in any retrieval system or media without the prior written consent of Kontron Modular Computers GmbH or one of its authorized agents.

  • Page 12: Explanation Of Symbols

    Note... This symbol and title emphasize aspects the reader should read through carefully for his or her own advantage. Page xii © 2003 Kontron Modular Computers GmbH ID 26683, Rev. 01...

  • Page 13: For Your Safety

    However, the life expectancy of your product can be drastically reduced by improper treatment during unpacking and installation. Therefore, in the interest of your own safety and of the correct operation of your new Kontron product, you are requested to conform with the following guidelines.

  • Page 14: General Instructions On Usage

    CP930 General Instructions on Usage In order to maintain Kontron’s product warranty, this product must not be altered or modified in any way. Changes or modifications to the device, which are not explicitly approved by Kontron Modular Computers GmbH and described in this manual or received from Kontron’s Technical Support as a special handling instruction, will void your warranty.

  • Page 15: Two Year Warranty

    However, no other warranties YEAR LIMITED HARDWARE WARRANTY that may be granted or implied by anyone on behalf of Kontron are valid unless the consumer has the express written consent of Kontron Modular Computers GmbH.
  • Page 16 Preface CP930 This page has been intentionally left blank. Page xvi © 2003 Kontron Modular Computers GmbH ID 26683, Rev. 01...

  • Page 17: Introduction

    CP930 Introduction Chapter Introduction ID 26683, Rev. 01 © 2003 Kontron Modular Computers GmbH Page 1 - 1...
  • Page 18 Introduction CP930 This page was intentionally left blank. Page 1 - 2 © 2003 Kontron Modular Computers GmbH ID 26683, Rev. 01...

  • Page 19: System Overview

    • Information on the distinctive features of Kontron CompactPCI boards, such as functionality, hotswap capability. In addition, an overview is given for all existing Kontron CompactPCI boards with links to the relating datasheets. • Generic information on the Kontron CompactPCI backplanes, such as the slot...

  • Page 20: Product Overview

    CP930 Product Overview The CP930 Five Channel Unmanaged Ethernet Switch is part of a comprehensive concept to provide CompactPCI system integrators with a complete range of CompactPCI communica- tions products for data networks. This concept ensures a maximum degree of system design flexibility, thus allowing efficient and effective use of available resources.

  • Page 21: Board Overview

    Board Overview 1.3.1 Board Introduction The CP930 five Channel Ethernet Switch is a 3U/4HP CPCI Board designed for use in a CPCI system. The CP930 itself is equipped with a five channel switch controller (Marvell 88E6063-RCJ). Network interfacing is accomplished using CAT5 UTP cabling for 10Base-T and 100Base-TX, and, optionally, for the fiber optical port, a MT-RJ multimode optical cable is recommended.

  • Page 22: Front Panels

    CP930 1.4.2 Front Panels There are four standard variants of the CP930 available: • Variant A: five front panel RJ45 connector and optionally extended temperatures • Variant B: four front panel RJ45 connectors and one internal RJ45 connector • Variant C: four RJ45 connectors; one MTRJ-type fiber optic connector, all on front panel •...

  • Page 23: Board Layout

    CP930 Introduction 1.4.3 Board Layout The following figure shows the board layout for the above indicated variants of the CP930. Figure 1-2: CP930 Board Layout MAGNETICS VOLTAGE REGULATORS OSCILLATOR CON3 ETHERNET CONNECTOR ETHERNET SWITCH CON6 CONTROLLER CON5 CON4 MAGNETICS ID 26683, Rev. 01 ©...

  • Page 24: Technical Specifications

    Introduction CP930 Technical Specifications Table 1-2: CP930 Main Specifications GROUP TYPE DESCRIPTION Marvell Ethernet Switch • Provides up to five channels Fast Ethernet including PHY CONTROLLER controller 88E6063-RCJ • Ethernet standards supported: 10Base-T, 100Base-TX, 100Base-FX Ethernet copper Up to five, 8-contact, female, RJ45 connector(s) Supports up to five channels of full or half duplex 10Base-T, 100Base-TX Ethernet operation up to 100 meters cable length.

  • Page 25: Applied Standards

    CP930 Introduction Applied Standards The CP930 complies with the requirements of the following standards: Table 1-4: Applied Standards TYPE STANDARD Emission EN50081-1 Immunity, Industrial Environment EN50082-2 Immunity, IT Equipment EN55024 Electrical Safety EN60950 Conforms with IEEE1101.1 MECHANICAL Mechanical Dimensions Vibration, Sinusoidal...
  • Page 26 Introduction CP930 This page was intentionally left blank. Page 1 - 10 © 2003 Kontron Modular Computers GmbH ID 26683, Rev. 01...

  • Page 27: Functional Description

    CP930 Functional Description Chapter Functional Description ID 26683, Rev. 01 © 2003 Kontron Modular Computers GmbH Page 2 - 1...
  • Page 28 Functional Description CP930 This page was intentionally left blank. Page 2 - 2 © 2003 Kontron Modular Computers GmbH ID 26683, Rev. 01...

  • Page 29: General Information

    2.1.1 Signal Conditioning Signal conditioning is a function of the type of network being serviced by the individual CP930 channel. Copper cabling networks are provided with galvanic isolation whereas the fiber optic link is interfaced using an MT-RJ type fiber optic connector with integrated transceiver for full duplex operation.

  • Page 30: Board-Level Interfacing Diagram

    • ETH = Ethernet Channel As the Fast Ethernet controller provides automatic detection of the Ethernet standard in use on copper links the CP930 may be used with any mix of Ethernet networks with 10Base-T or 100Base-TX. Page 2 - 4 ©...

  • Page 31: Cp930 Board Level Interfacing

    Eth 3 Eth 4 Eth 5 There are five variants of the CP930 available. Three of the variants have five Ethernet front panel connectors, the difference between the three being that the first is for standard temperatures and the second is for extended temperatures, and the last is for FDD-Slot mounting.

  • Page 32: Ethernet Wire Cabling Interface

    Table 2-1: Pinouts of CON3, CON4 and CON6 Based on the Implementation MDI / Standard Ethernet Cable MDIX / Crossed Ethernet Cable 10BASE-T 100BASE-TX 10BASE-T 100BASE-TX SIGNAL SIGNAL SIGNAL SIGNAL Page 2 - 6 © 2003 Kontron Modular Computers GmbH ID 26683, Rev. 01...

  • Page 33: Channel 5 Interface

    Figure 2-3: CON5 Fiber Optic Receptacle, Front Panel View Note... The maximum length of cabling over which the Ethernet transmission can oper- ate effectively depends upon the transceiver in use. ID 26683, Rev. 01 © 2003 Kontron Modular Computers GmbH Page 2 - 7...

  • Page 34: Compactpci Interface

    CompactPCI connector, CON1 (J1). Figure 2-4: CompactPCI Connector CON1 Front View Table 2-2: Compact PCI Connector CON1 Pinout Note: Pinrows are GND pins Page 2 - 8 © 2003 Kontron Modular Computers GmbH ID 26683, Rev. 01...

  • Page 35: Molex Power Interface Con2

    2.4.2 Operation M/C Operation M/C is a function of the CP930 driver software and the application. Direct interaction by the operator is limited to the functionality provided by the LED’s assigned to the respective Ethernet channels. These LED’s can be used to determine the basic operational status of a channel and if data is being transferred.
  • Page 36 Functional Description CP930 This page was intentionally left blank. Page 2 - 10 © 2003 Kontron Modular Computers GmbH ID 26683, Rev. 01...

  • Page 37: Installation

    CP930 Installation Chapter Installation ID 26683, Rev. 01 © 2003 Kontron Modular Computers GmbH Page 3 - 1...
  • Page 38 Installation CP930 This page was intentionally left blank. Page 3 - 2 © 2003 Kontron Modular Computers GmbH ID 26683, Rev. 01...

  • Page 39: Hardware Installation

    Installation Installation The CP930 has been designed for easy installation. However, the following standard precau- tions, installation procedures and general information must be observed to ensure proper in- stallation and to preclude damage to the board or injury to personnel.

  • Page 40: Installation Procedures For Use In Compactpci Slot

    (If the handle does not move, it is not unlocked. Repeat the un- locking procedure above and try again. Do not use force!) Page 3 - 4 © 2003 Kontron Modular Computers GmbH ID 26683, Rev. 01...

  • Page 41: Installation Procedures For Use In Floppy Disk Drive Slot

    3. Disconnect any interfacing cables that may be connected to the board. 4. Loosen all retaining screws. 5. Pull out the CP930-FDD by pulling out to the front side. (Do not use force if the assembly is canted!) ID 26683, Rev. 01 ©...
  • Page 42 Installation CP930 This page was intentionally left blank. Page 3 - 6 © 2003 Kontron Modular Computers GmbH ID 26683, Rev. 01...
  • Page 43 CP930 Configuration Chapter Configuration ID 26683, Rev. 01 © 2003 Kontron Modular Computers GmbH Page 4 - 1...
  • Page 44 Configuration CP930 This page was intentionally left blank. Page 4 - 2 © 2003 Kontron Modular Computers GmbH ID 26683, Rev. 01...
  • Page 45 CP930 Configuration Configuration The CP930 is designed for plug and play operation, and, as such, it does not have any user configurable board settings which are required for operation. ID 26683, Rev. 01 © 2003 Kontron Modular Computers GmbH Page 4 - 3...
  • Page 46 Configuration CP930 This page was intentionally left blank. Page 4 - 4 © 2003 Kontron Modular Computers GmbH ID 26683, Rev. 01...
