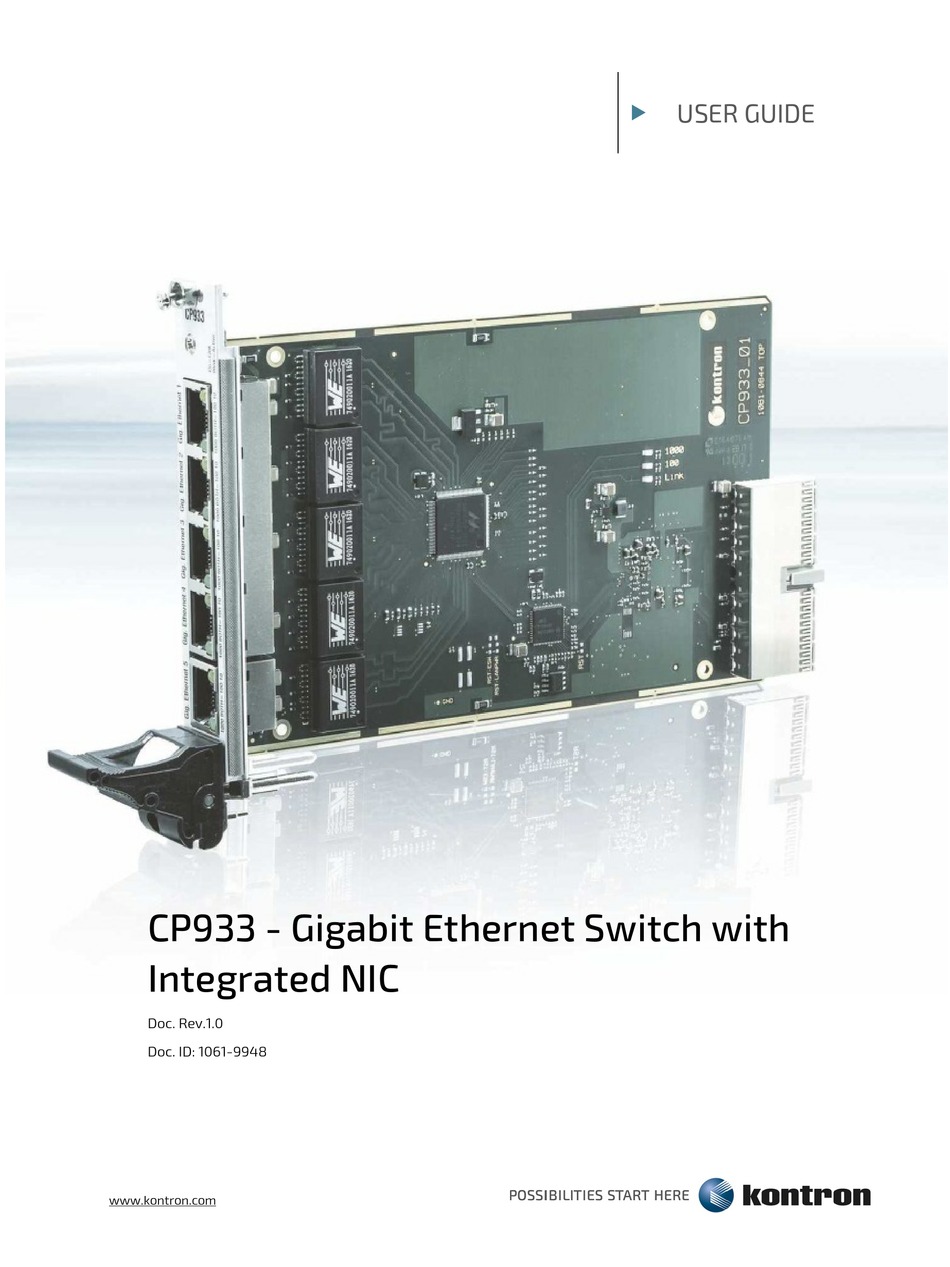

- Page 1 USER GUIDE CP933 - Gigabit Ethernet Switch with Integrated NIC Doc. Rev.1.0 Doc. ID: 1061-9948 www.kontron.com // 1...
- Page 2 CP933 - Gigabit Ethernet Switch with Integrated NIC - Rev.1.0 This page has been intentionally left blank www.kontron.com // 2...
- Page 3 In cases of doubt, please contact Kontron. This user guide is protected by copyright. All rights are reserved by Kontron. No part of this document may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means (electronic, mechanical, photocopying, recording, or otherwise), without the express written permission of Kontron.
- Page 4 ENVIRONMENTAL DAMAGE (COLLECTIVELY, "HIGH RISK APPLICATIONS"). You understand and agree that your use of Kontron devices as a component in High Risk Applications is entirely at your risk. To minimize the risks associated with your products and applications, you should provide adequate design and operating safeguards.
- Page 5 If you have any difficulties using this user guide, discover an error, or just want to provide some feedback, contact Kontron support. Detail any errors you find. We will correct the errors or problems as soon as possible and post the revised user guide on our website.
-
Page 6: Symbols
CP933 - Gigabit Ethernet Switch with Integrated NIC - Rev.1.0 Symbols The following symbols may be used in this user guide DANGER indicates a hazardous situation which, if not avoided, will result in death or serious injury. WARNING indicates a hazardous situation which, if not avoided, could result in death or serious injury. -
Page 7: For Your Safety
Therefore, in the interest of your own safety and of the correct operation of your new Kontron product, you are requested to conform with the following guidelines. -
Page 8: Lithium Battery Precautions
General Instructions on Usage In order to maintain Kontron’s product warranty, this product must not be altered or modified in any way. Changes or modifications to the product, that are not explicitly approved by Kontron and described in this user guide or received from Kontron Support as a special handling instruction, will void your warranty. -
Page 9: Table Of Contents
CP933 - Gigabit Ethernet Switch with Integrated NIC - Rev.1.0 Table of Contents Symbols ..........................................6 For Your Safety ........................................7 High Voltage Safety Instructions .................................. 7 Special Handling and Unpacking Instruction ............................7 Lithium Battery Precautions ..................................8 General Instructions on Usage ..................................8 Quality and Environmental Management .............................. -
Page 10: List Of Tables
CP933 - Gigabit Ethernet Switch with Integrated NIC - Rev.1.0 3.2. Software Installation ..................................... 28 Configuration ...................................... 29 Power Considerations ..................................30 5.1. System Power......................................30 5.2. Voltage Requirements ................................... 30 5.3. Backplane Requirements ..................................30 5.4. Power Consumption ....................................30 Support ........................................ -
Page 11: 1/ Introduction
1.2. Board Overview The CP933 is a six port, unmanaged, layer 2, Gigabit Ethernet switch with integrated NIC designed on a 3U form factor CompactPCI board for use in CompactPCI systems using the CompactPCI bus architecture. The CP933 is part of a comprehensive concept to provide CompactPCI system integrators with a complete range of CompactPCI communications products for data networks. -
Page 12: Board Variants
CP933 - Gigabit Ethernet Switch with Integrated NIC - Rev.1.0 1.3. Board Variants The CP933 is available in different temperature grades to enable operation in standard and industrial/harsh environments. Table 1: CP933 Board Variants with Description Product Name Description CP933... -
Page 13: Front Panel Connectors
CP933 - Gigabit Ethernet Switch with Integrated NIC - Rev.1.0 1.4.2. Front Panel Connectors The CP933’s front panel contains five RJ45 connectors, each including two integrated status LEDs (yellow/green) displaying the link/activity and speed of Ethernet ports [1-5]. Figure 2: Front Panel Connectors... -
Page 14: Board Layout
CP933 - Gigabit Ethernet Switch with Integrated NIC - Rev.1.0 1.4.3. Board Layout Figure 3: Board Layout – Top View Table 2: Connector and Component Description – Top View Item Component Chapter Insertion and extraction handle 3.1.4 & 3.1.5 RJ45 connector for Ethernet port 5 with 2 indication status LEDs (J7) RJ45 connector for Ethernet port [1-4] with 2indication status LEDs (J6) Top fastening screw, to securely fasten board to CompactPCI system’s housing... -
Page 15: Table 3: Connector And Component Description - Bottom View
CP933 - Gigabit Ethernet Switch with Integrated NIC - Rev.1.0 Figure 4: Board Layout – Bottom View Table 3: Connector and Component Description – Bottom View Item Component Chapter PCI to PCIe bridge Bottom fastening screw, to securely fasten board to CompactPCI system’s housing 3.1.4 &... -
Page 16: Technical Specification
CP933 - Gigabit Ethernet Switch with Integrated NIC - Rev.1.0 1.5. Technical Specification The following table provides information regarding the CP933’s main technical specifications. Table 4: Technical Specification Form Factor CPCI Form Factor 3U/4HP CompactPCI board Dimensions 100 mm x 160 mm, single-height... - Page 17 CP933 - Gigabit Ethernet Switch with Integrated NIC - Rev.1.0 Power Considerations Power Requirements Powered by the CompactPCI backplane with: 3.3 V: 3.3 V +5% /-3% V(I/O): 5 V or 3.3 V +5% /-3% To power up, the board must be connected to the CompactPCI backplane.
-
Page 18: Environmental Considerations
Up to 2000 m maximum 1.6.2. Thermal Management The CP933 is designed to efficiently support forced airflow concepts as found in a modern CompactPCI rack supporting vertical card orientation for improved cooling. The CP933’s physical size, shape, and construction ensures the best possible thermal resistance (Rth) coefficients. -
Page 19: Standards
CP933 - Gigabit Ethernet Switch with Integrated NIC - Rev.1.0 1.7. Standards The CP933 is CE compliant and been found to comply with the following standards and directives. Table 8: Applied Standards Type Standard Emission EN 55032 Class B Immission... -
Page 20: 2/ Functional Description
2.1. General Information The CP933 is a six port, unmanaged, layer 2, Gigabit Ethernet switch with integrated NIC designed on a 3U form factor CompactPCI board for use in CompactPCI systems using the CompactPCI bus architecture. -
Page 21: Gigabit Ethernet Controller (Integrated Nic)
2.4. PCI to PCI Express Bridge In CompactPCI systems, a PCI interface connects to the CompactPCI backplane. The CP933 uses the Pericom PI7C9X111SL PCI to PCI Express reversible bridge featuring 3.3 V V(I/O) PCI signaling with 5 V V(I/O) tolerances, 32-bit PCI signaling, and up to 66 MHz PCI clock support. -
Page 22: On-Board Status Leds
CP933 - Gigabit Ethernet Switch with Integrated NIC - Rev.1.0 Figure 5: Front Panel LED Activity Definition of Status LED activity On = Link Blink = Active Yellow status LED only 10 Mbit/s Link No 10 Mbit/s Link ... -
Page 23: Board Interfaces
CP933 - Gigabit Ethernet Switch with Integrated NIC - Rev.1.0 2.8. Board Interfaces 2.8.1. Front Panel Ethernet Interfaces The front panel Ethernet wire-cabling interface uses 8-pin, female, RJ45 connectors for category 5e (or better) Ethernet cables for 10/100/1000Base-T Ethernet connections. -
Page 24: Compactpci Connector (J1) Interface
+3.3 V operating voltage with support for universal V(I/O) power pins for operation in CompactPCI systems with 3.3 V or 5 V (VI/O). The CompactPCI connector (J1) is located at the rear of the CP933 board. For information on the CompactPCI connector (J1), pin layout and the pin assignment, see Table 11: CompactPCI Connector (J1). -
Page 25: Table 12: Compactpci Connector (J1) Signal Description
C/BE[3:0] # Command and byte enable 33 MHz or 66 MHz CompactPCI clock M66EN Not used on CP933 because the PCI-to-PCIe bridge is in reverse mode. DEVSEL# Device select driven when accessed as CompactPCI slave FRAME# Cycle frame indicates beginning of a PCI transfer... -
Page 26: 3/ Installation
CP933 - Gigabit Ethernet Switch with Integrated NIC - Rev.1.0 3/ Installation The CP933 is designed for installation within a CompactPCI system rack where the CP933 is easily inserted into one of the CompactPCI backplane peripheral slots. However, the following standard precautions, installation procedures, and general information must be observed to ensure proper installation and to prevent damage to the board or injury to personnel. -
Page 27: Board Installation Procedures
CP933 - Gigabit Ethernet Switch with Integrated NIC - Rev.1.0 3.1.4. Board Installation Procedures Before Installing the CP933 in a CompactPCI system rack, observe the safety information indicated in Chapter 3.1.1: Safety Requirements. Failure to comply with the installation instructions below may cause damage to the board or other system boards and result in improper system operation. -
Page 28: Cabling
Up to five category 5e (or better) Ethernet cables for 10/100/1000Base-T Ethernet connections can be connected on the front panel. 3.2. Software Installation The following CP933 Board Support Packages (BSP) with drivers are approved for Windows®, Linux and VXWorks®. Windows® - standard Intel® drivers ... -
Page 29: 4/ Configuration
CP933 - Gigabit Ethernet Switch with Integrated NIC - Rev.1.0 4/ Configuration The CP933 is designed for plug and play operation, and, as such, it does not have any user configurable board settings that are required for operation. www.kontron.com // 29... -
Page 30: 5/ Power Considerations
+5 %/-3% that must not be exceeded. If operated outside the specified voltage tolerance range, the CP933 is not guaranteed. The CP933 features universal +3.3 V V(I/O) PCI signaling with a 5 V V( I/O) tolerance, enabling the CP933 to operate within a CompactPCI system with either +3.3 V or 5 V V(I/O) PCI signal voltages. -
Page 31: 6/ Support
6.1. Product Identification and Type Label The CP933 board can be identified by a type label positioned on the top side of the board on the CompactPCI connector. For more information on the location of the type label, see Figure 3: Board Layout – Top View. -
Page 32: 7/ Warranty
7.1. Limitation/Exemption from Warranty Obligation In general, Kontron shall not be required to honor the warranty, even during the warranty period, and shall be exempted from the statutory accident liability obligations in the event of damage caused to the product due to failure to observe the following: ... -
Page 33: 8/ Returning A Defective Product
The buyer accepts responsibility for all freight charges for the return of goods to Kontron's designated facility. Kontron will pay the return freight charges back to the buyer's location in the event that the product is repaired or replaced, within the stipulated warranty period. -
Page 34: 9/ Storage, Transportation, And Maintenance
9.3.1. Preventative Maintenance To avoid possible cleaning maintenance of the board, care should be taken to ensure that the CP933 is used in a dust free environment, within a CompactPCI rack including air filters to reduce dust and dirt particle to a minimum. -
Page 35: 10/ Disposal
Many of the components used are capable of being recycled. Kontron follows the Waste Electrical and Electronic Equipment (WEEE) Directive that aims to reduce waste arising from Electrical and Electronic waste and therefore encourages customers to return Kontron products for proper disposal. -
Page 36: Appendix A: List Of Acronyms
CP933 - Gigabit Ethernet Switch with Integrated NIC - Rev.1.0 Appendix A: List of Acronyms Table 14: List of Acronyms Board Support Package MDIX Media Dependent Interface crossed cPCI Compact Peripheral Component Media Independent Interface Interconnect Peripheral Component Interconnect Central Processing Unit... -
Page 37: About Kontron
CP933 - Gigabit Ethernet Switch with Integrated NIC – Rev.1.0 About Kontron Kontron is a global leader in embedded computing technology (ECT). As a part of technology group S&T, Kontron offers a combined portfolio of secure hardware, middleware and services for Internet of Things (IoT) and Industry 4.0 applications.
