IEI Technology SPCIE-C236 User Manual

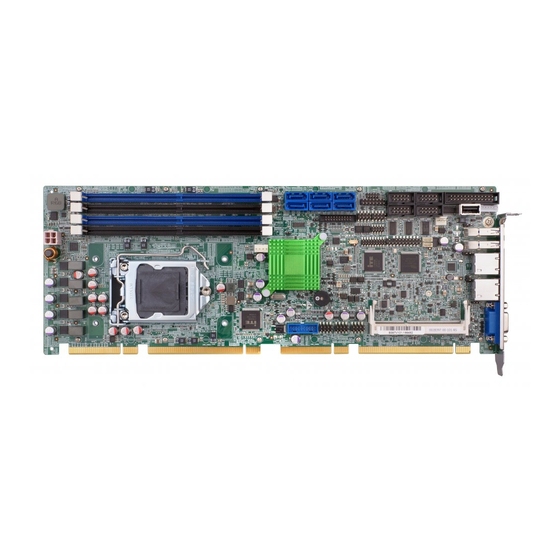

Full-size picmg 1.3 cpu card supports lga1151 intel xeon e3 v5/v6, 6th/7th generation intel core i7/i5/i3, pentium or celeron cpu, intel c236 chipset, ddr4, dual intel pcie gbe, vga, idp, usb 3.0, sata 6gb/s, msata, intel amt and rohs
Hide thumbs Also See for SPCIE-C236:
Table of Contents

Advertisement

Quick Links

Download this manual

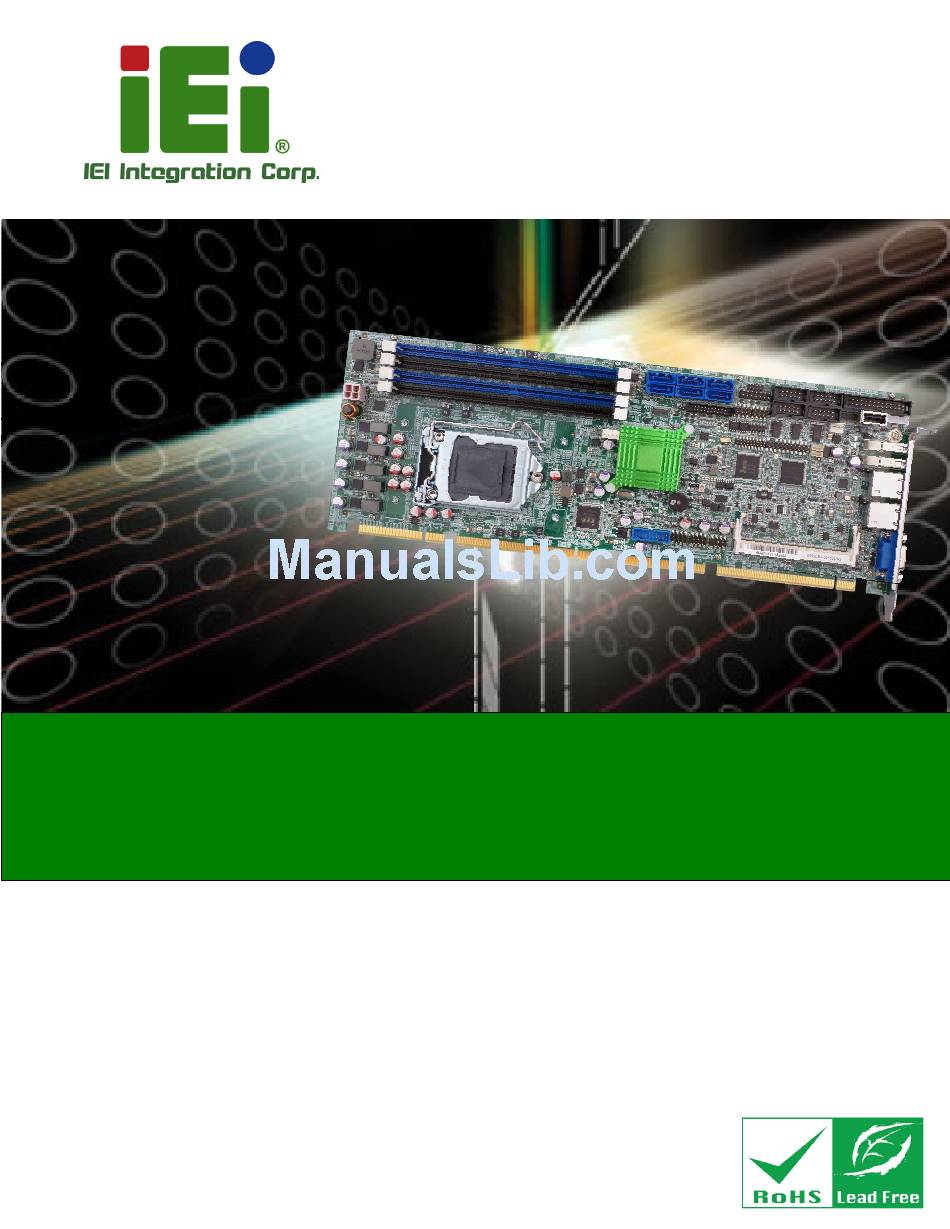

SPCIE-C236 Full-size PICMG 1.3 CPU Card
MODEL:
SPCIE-C236
Full-Size PICMG 1.3 CPU Card Supports LGA1151 Intel® Xeon®
E3 v5/v6, 6th/7th Generation Intel® Core™ i7/i5/i3, Pentium® or
Celeron® CPU, Intel® C236 Chipset, DDR4, Dual Intel® PCIe GbE,
VGA, iDP, USB 3.0, SATA 6Gb/s, mSATA, Intel® AMT and RoHS
User Manual
Page i
Rev. 1.02 – November 13, 2017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SPCIE-C236 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for IEI Technology SPCIE-C236

Summary of Contents for IEI Technology SPCIE-C236

  • Page 1 SPCIE-C236 Full-size PICMG 1.3 CPU Card MODEL: SPCIE-C236 Full-Size PICMG 1.3 CPU Card Supports LGA1151 Intel® Xeon® E3 v5/v6, 6th/7th Generation Intel® Core™ i7/i5/i3, Pentium® or Celeron® CPU, Intel® C236 Chipset, DDR4, Dual Intel® PCIe GbE, VGA, iDP, USB 3.0, SATA 6Gb/s, mSATA, Intel® AMT and RoHS...
  • Page 2 SPCIE-C236 Full-size PICMG 1.3 CPU Card Revision Date Version Changes November 13, 2017 1.02 Updated supported CPUs September 11, 2017 1.01 Added Intel® Core™ i7/i5 as supported CPU October 27, 2016 1.00 Initial release Page ii...
  • Page 3 SPCIE-C236 Full-size PICMG 1.3 CPU Card Copyright COPYRIGHT NOTICE The information in this document is subject to change without prior notice in order to improve reliability, design and function and does not represent a commitment on the part of the manufacturer.
  • Page 4 SPCIE-C236 Full-size PICMG 1.3 CPU Card Manual Conventions WARNING Warnings appear where overlooked details may cause damage to the equipment or result in personal injury. Warnings should be taken seriously. CAUTION Cautionary messages should be heeded to help reduce the chance of losing data or damaging the product.

  • Page 5: Table Of Contents

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Table of Contents 1 INTRODUCTION......................1 1.1 I ......................2 NTRODUCTION 1.2 M ....................3 ODEL ARIATIONS 1.3 F ........................3 EATURES 1.4 C ......................4 ONNECTORS 1.5 D ....................... 5 IMENSIONS 1.6 D ........................
  • Page 6 3.2.11 Front Panel Connector................... 27 3.2.12 I C Connector ....................28 3.2.13 Internal DisplayPort Connector ..............29 3.2.14 iRIS-2400 Module Slot (SPCIE-C236-i2-R10 Only) ........30 3.2.15 Keyboard and Mouse Connector ..............30 3.2.16 LAN LED Connectors ..................31 3.2.17 Parallel Port Connector ................32 3.2.18 PCIe Mini Slot....................
  • Page 7 SPCIE-C236 Full-size PICMG 1.3 CPU Card 4.9.1 AT/ATX Power Mode Setting ................61 4.9.2 Clear CMOS Button..................62 4.9.3 PCIe x4 Channel Mode Setup ................62 4.9.4 PCIe x16 Channel Mode Setup ................ 63 4.9.5 Flash Descriptor Security Override Jumper............ 64 4.9.6 USB Power Selection ..................
  • Page 8 SPCIE-C236 Full-size PICMG 1.3 CPU Card 5.3.8 CPU Configuration ..................96 5.3.9 SATA Configuration..................98 5.3.10 NVMe Configuration..................99 5.3.11 USB Configuration ..................100 5.3.12 iEi Feature ....................101 5.4 C ......................... 102 HIPSET 5.4.1 System Agent (SA) Configuration ..............103 5.4.1.1 Graphics Configuration................
  • Page 9 SPCIE-C236 Full-size PICMG 1.3 CPU Card G HAZARDOUS MATERIALS DISCLOSURE ............142 Page ix...
  • Page 10 SPCIE-C236 Full-size PICMG 1.3 CPU Card List of Figures Figure 1-1: SPCIE-C236........................2 Figure 1-2: Connectors ........................4 Figure 1-3: SPCIE-C236 Dimensions (mm) ..................5 Figure 1-4: Data Flow Diagram......................6 Figure 3-1: Peripheral Interface Connectors ................17 Figure 3-2: +12V ATX Power Connector Pinout Location ............20 Figure 3-3: Audio Connector Location ..................21...
  • Page 11 SPCIE-C236 Full-size PICMG 1.3 CPU Card Figure 3-27: TPM Connector Location..................41 Figure 3-28: USB 2.0 Connector Locations ................42 Figure 3-29: USB 2.0 Connector (Type A) Pinout Location............43 Figure 3-30: USB 3.0 Connector Location .................44 Figure 3-31: External Peripheral Interface Connector ..............45 Figure 3-32: Ethernet Connector....................45...
  • Page 12 SPCIE-C236 Full-size PICMG 1.3 CPU Card List of Tables Table 1-1: SPCIE-C236 Model Variations ..................3 Table 1-2: SPCIE-C236 Specifications..................9 Table 2-1: Packing List.........................13 Table 2-2: Optional Items......................15 Table 3-1: Peripheral Interface Connectors ................19 Table 3-2: External Peripheral Connectors................19 Table 3-3: +12V ATX Power Connector Pinouts ................20 Table 3-4: Audio Connector Pinouts ..................21...
  • Page 13 SPCIE-C236 Full-size PICMG 1.3 CPU Card Table 3-27: TPM Connector Pinouts ...................41 Table 3-28: USB 2.0 Connector Pinouts ..................42 Table 3-29: USB 2.0 Connector (Type A) Pinouts ..............43 Table 3-30: USB 3.0 Connector Pinouts ..................44 Table 3-31: LAN Pinouts ......................45 Table 3-32: USB 3.0 Port Pinouts....................46...
  • Page 14 SPCIE-C236 Full-size PICMG 1.3 CPU Card BIOS Menus BIOS Menu 1: Main ........................77 BIOS Menu 2: Advanced ......................78 BIOS Menu 3: Trusted Computing ....................79 BIOS Menu 4: ACPI Configuration ....................80 BIOS Menu 5: AMT Configuration....................81 BIOS Menu 6: Super IO Configuration..................82 BIOS Menu 7: Serial Port n Configuration Menu...............83...
  • Page 15 SPCIE-C236 Full-size PICMG 1.3 CPU Card BIOS Menu 31: Save & Exit....................... 116 BIOS Menu 32: Server Mgmt ....................117 BIOS Menu 33: System Event Log ................... 117 BIOS Menu 34: System Event Log ................... 119 Page xv...

  • Page 16: Introduction

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Chapter Introduction Page 1...

  • Page 17: Introduction

    1.1 Introduction Figure 1-1: SPCIE-C236 The SPCIE-C236 is a full-size PICMG 1.3 CPU card. It accepts a Socket LGA1151 Intel® Xeon® E3 v5/v6, 6th/7th generation Intel® Core™ i7/i5/i3, Pentium® or Celeron® processor and supports four 288-pin 2133 MHz dual-channel DDR4 DIMM modules up to 64 GB.

  • Page 18: Model Variations

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 1.2 Model Variations The model variations of the SPCIE-C236 series are listed below. Model No. Supported CPU iRIS-2400 Module Slot SPCIE-C236-R10 LGA1151 Intel® Xeon® E3 v5/v6, 6th/7th generation Intel® Core™ SPCIE-C236-i2-R10 i7/i5/i3, Pentium® or Celeron®...

  • Page 19: Connectors

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 1.4 Connectors The connectors on the SPCIE-C236 are shown in the figure below. Figure 1-2: Connectors Page 4...

  • Page 20: Dimensions

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 1.5 Dimensions The main dimensions of the SPCIE-C236 are shown in the diagram below. Figure 1-3: SPCIE-C236 Dimensions (mm) Page 5...

  • Page 21: Data Flow

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 1.6 Data Flow Figure 1-4 shows the data flow between the system chipset, the CPU and other components installed on the motherboard. Figure 1-4: Data Flow Diagram Page 6...

  • Page 22: Technical Specifications

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 1.7 Technical Specifications The SPCIE-C236 technical specifications are listed below. Specification/Model SPCIE-C236 Form Factor Full-size PICMG 1.3 CPU card LGA1151 Intel® Xeon® E3 v5/v6, 6th/7th generation Intel® CPU Supported Core™ i7/i5/i3, Pentium® or Celeron® CPU Intel®...
  • Page 23 SPCIE-C236 Full-size PICMG 1.3 CPU Card Fintek F81866D-I Super I/O Controller ITE IT8528E Embedded Controller Watchdog Timer Software programmable supports 1~255 sec. system reset I/O Interface Connectors Audio Connector One audio connector (10-pin header) Chassis Intrusion One 2-pin header Digital I/O...

  • Page 24: Table 1-2: Spcie-C236 Specifications

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Two USB 3.0 ports on rear panel Two USB 3.0 ports via internal box header * The Windows® 7 installation media does not include native driver support for USB 3.0. In order to use the USB keyboard USB 3.0...

  • Page 25: Packing List

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Chapter Packing List Page 10...

  • Page 26: Anti-Static Precautions

    Only handle the edges of the PCB: Don't touch the surface of the motherboard. Hold the motherboard by the edges when handling. 2.2 Unpacking Precautions When the SPCIE-C236 is unpacked, please do the following: Follow the anti-static guidelines above. Make sure the packing box is facing upwards when opening.

  • Page 27: Packing List

    If any of the components listed in the checklist below are missing, do not proceed with the installation. Contact the IEI reseller or vendor the SPCIE-C236 was purchased from or contact an IEI sales representative directly by sending an email to ales@ieiworld.com.

  • Page 28: Optional Items

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Quantity Item and Part Number Image Quick installation guide Table 2-1: Packing List 2.4 Optional Items The following are optional components which may be separately purchased: Item and Part Number Image RS-232/422/485 cable, 230 mm, P=2.54...
  • Page 29 SPCIE-C236 Full-size PICMG 1.3 CPU Card Item and Part Number Image LGA1150 cooler kit (high-performance compatible, 65W) (P/N: CF-1150SB-R11) LGA1150 cooler kit (1U chassis compatible, 65W) (P/N: CF-1150SC-R20) LGA1150 cooler kit (high-performance compatible, 95W) (P/N: CF-1150SE-R11) LGA1150 cooler kit (1U chassis compatible, 54W)

  • Page 30: Table 2-2: Optional Items

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Item and Part Number Image DisplayPort to DVI-D converter board (for IEI iDP connector) (P/N: DP-DVI-R10) DisplayPort to DisplayPort converter board (for IEI iDP connector) (P/N: DP-DP-R10) SATA to IDE/CompactFlash® converter board (P/N: SAIDE-KIT01-R10)

  • Page 31: Connectors

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Chapter Connectors Page 16...

  • Page 32: Peripheral Interface Connectors

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 3.1 Peripheral Interface Connectors This chapter details all the peripheral interface connectors. 3.1.1 SPCIE-C236 Layout The figure below shows all the peripheral interface connectors. Figure 3-1: Peripheral Interface Connectors Page 17...

  • Page 33: Peripheral Interface Connectors

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 3.1.2 Peripheral Interface Connectors The table below lists all the connectors on the board. Connector Type Label 4-pin Molex power +12V ATX power supply connector CPU12V1 connector Audio kit connector 10-pin header J_AUDIO1 Battery connector...

  • Page 34: External Interface Panel Connectors

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Connector Type Label RS-232/422/485 serial ports 10-pin box header COM3, COM4 S_ATA1, S_ATA2, SATA 6Gb/s drive connector 7-pin SATA connector S_ATA3, S_ATA4, S_ATA5, S_ATA6, SMBus connector 4-pin wafer SMB1 SPI flash connector 8-pin header...

  • Page 35: Internal Peripheral Connectors

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 3.2 Internal Peripheral Connectors The section describes all of the connectors on the SPCIE-C236. 3.2.1 +12V ATX Power Connector CN Label: CPU12V1 4-pin Molex power connector, p=4.2 mm CN Type: CN Location: See Figure 3-2...

  • Page 36: Battery Connector

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Figure 3-3: Audio Connector Location Description Description HDA_SYNC HDA_BIT_CLK HDA_SDOUT HDA_SPKR HDA_SDIN HDA_RST# HDA_VCC HDA_GND HDA_+12V HDA_GND Table 3-4: Audio Connector Pinouts 3.2.3 Battery Connector CAUTION: Risk of explosion if battery is replaced by an incorrect type. Only certified engineers should replace the on-board battery.

  • Page 37: Chassis Intrusion Connector

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Figure 3-4: Battery Connector Location Description VBATT Table 3-5: Battery Connector Pinouts 3.2.4 Chassis Intrusion Connector CN Label: CHASSIS1 2-pin header, p=2.54 mm CN Type: CN Location: F igure 3-5 CN Pinouts: See Table 3-6 The chassis intrusion connector is for a chassis intrusion detection sensor or switch that detects if a chassis component is removed or replaced.

  • Page 38: Crt Fw Update Connector

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 3.2.5 CRT FW Update Connector CN Label: J_CRTFW1 3-pin header, p=2.00 mm CN Type: CN Location: See Figure 3-6 CN Pinouts: See Table 3-7 The CRT FW update connector is used to update the CRT firmware.

  • Page 39: Digital I/O Connector

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Figure 3-7: DDR4 DIMM Socket Locations 3.2.7 Digital I/O Connector CN Label: DIO1 CN Type: 10-pin header, p=2.00 mm CN Location: See Figure 3-8 CN Pinouts: See Table 3-8 The digital I/O connector provides programmable input and output for external devices.

  • Page 40: Ec Debug Connector

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 3.2.8 EC Debug Connector CN Label: 18-pin header, p=2.00 mm CN Type: CN Location: See Figure 3-9 CN Pinouts: See Table 3-9 The EC debug connector is used for EC debug. Figure 3-9: EC Debug Connector Location...

  • Page 41: Fan Connector (Cpu)

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 3.2.9 Fan Connector (CPU) CN Label: CPU_FAN1 4-pin wafer, p=2.54 mm CN Type: CN Location: See Figure 3-10 CN Pinouts: See Table 3-10 The fan connector attaches to a CPU cooling fan. Figure 3-10: CPU Fan Connector Location...

  • Page 42: Front Panel Connector

    SPCIE-C236 Full-size PICMG 1.3 CPU Card The fan connector attaches to a system cooling fan. Figure 3-11: System Fan Connector Location Description FANIO +12V (PWM) Table 3-11: System Fan (SYS_FAN1) Connector Pinouts 3.2.11 Front Panel Connector CN Label: F_PANEL1 14-pin header, p=2.54 mm...

  • Page 43: I 2 C Connector

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Function Description Function Description Speaker BEEP_PWR Power LED IPMI ID_LED+ IPMI LED IPMI ID_LED- PWRBTN_SW# Speaker PC_BEEP Power Button EXTRST- HDD LED Reset SATA_LED# Table 3-12: Front Panel Connector Pinouts 3.2.12 I C Connector...

  • Page 44: Internal Displayport Connector

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 3.2.13 Internal DisplayPort Connector CN Label: 20-pin box header, p=2.00 mm CN Type: CN Location: See Figure 3-14 CN Pinouts: See Table 3-14 The DisplayPort connector supports HDMI, LVDS, VGA, DVI and DisplayPort graphics interfaces with up to 3840x2160 resolutions.

  • Page 45: Iris-2400 Module Slot (Spcie-C236-I2-R10 Only)

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 3.2.14 iRIS-2400 Module Slot (SPCIE-C236-i2-R10 Only) CN Label: IPMI1 iRIS-2400 module slot CN Type: CN Location: See Figure 3-15 The iRIS-2400 module slot allows installation of the iRIS-2400 module. Figure 3-15: iRIS-2400 Module Slot Location...

  • Page 46: Lan Led Connectors

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Figure 3-16: Keyboard and Mouse Connector Location Description Mouse Data Mouse Clock Keyboard Data Keyboard Clock Table 3-15: Keyboard and Mouse Connector Pinouts 3.2.16 LAN LED Connectors CN Label: LED_LAN1, LED_LAN2 2-pin header, p=2.54 mm...

  • Page 47: Parallel Port Connector

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Description +3.3V LAN1_LED_LINK#_ACT Table 3-16: LAN1 LED Connector (LED_LAN1) Pinouts Description +3.3V LAN2_LED_LINK#_ACT Table 3-17: LAN2 LED Connector (LED_LAN2) Pinouts 3.2.17 Parallel Port Connector CN Label: LPT1 CN Type: 26-pin box header, p=2.54 mm...

  • Page 48: Pcie Mini Slot

    SPCIE-C236 Full-size PICMG 1.3 CPU Card RPD4 RPD5 RPD6 RPD7 SIO_ACK# SIO_BUSY SIO_PE SIO_SLCT Table 3-18: Parallel Port Connector Pinouts 3.2.18 PCIe Mini Slot CN Label: MPCIE1 PCIe Mini slot CN Type: CN Location: F igure 3-19 CN Pinouts: See Table 3-19 The PCIe Mini slot is for installing a full-size/half-size PCIe Mini expansion card, such as an mSATA SSD or wireless LAN card.

  • Page 49: Table 3-19: Pcie Mini Slot Pinouts

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Description Description PCIE_WAKE# +3.3V 1.5V MSATA_CLK# MSATA _CLK PLTRST_N +3.3V PLTRST_N +3.3V SATA_RX-/PCIE_RX- SATA_RX+/PCIE_RX+ 1.5V SMB_CLK SMB_DATA SATA_TX-/PCIE_TX- SATA_TX+/PCIE_TX+ USB_DATA- USB_DATA+ +3.3V +3.3V +3.3V CLINK_CLK CLINK_DATA 1.5V CLINK_RST# MSATA_DET +3.3V Table 3-19: PCIe Mini Slot Pinouts...

  • Page 50: Power Button

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 3.2.19 Power Button CN Label: PWR_SW1 Push button CN Type: CN Location: See Figure 3-20 The on-board power button controls system power. Figure 3-20: Power Button Location 3.2.20 RS-232 Serial Port Connectors CN Label:...

  • Page 51: Rs-232/422/485 Serial Port Connectors

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Description Description SOUT Table 3-20: RS-232 Serial Port Connector Pinouts 3.2.21 RS-232/422/485 Serial Port Connectors CN Label: COM3, COM4 CN Type: 10-pin box header, p=2.54 mm CN Location: See Figure 3-22 CN Pinouts: See Table 3-21 Each of these connectors provides RS-232/422/485 connections.

  • Page 52: Sata 6Gb/S Drive Connector

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Description Description SOUT Table 3-21: RS-232/422/485 Serial Port Connector Pinouts The user may use the RS-232/422/485 cable to connect to a serial device. The pinouts of the DB-9 connector are listed below. RS-232 Pinouts...

  • Page 53: Smbus Connector

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Figure 3-23: SATA 6Gb/s Drive Connector Locations Description Description Table 3-23: SATA 6Gb/s Drive Connector Pinouts NOTE: If the user shorts the mSATA setup jumper (MSATA_SW1) to force the system to enable mSATA device or an mSATA device is detected, the S_ATA6 connector will be disabled.

  • Page 54: Spi Flash Connector

    SPCIE-C236 Full-size PICMG 1.3 CPU Card The SMBus (System Management Bus) connector provides low-speed system management communications. Figure 3-24: SMBus Connector Location Description SMB_DATA SMB_CLK Table 3-24: SMBus Connector Pinouts 3.2.24 SPI Flash Connector CN Label: JSPI1 CN Type: 8-pin header, p=2.54 mm...

  • Page 55: Spi Flash Connector, Ec

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Description Description SPI_CS SPI_CLK_SW SPI_SO_SW SPI_SI_SW Table 3-25: SPI Flash Connector Pinouts 3.2.25 SPI Flash Connector, EC CN Label: JSPI2 CN Type: 8-pin header, p=2.54 mm CN Location: See Figure 3-26 CN Pinouts: See Table 3-26 The SPI flash connector is used to flash the EC ROM.

  • Page 56: Tpm Connector

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 3.2.26 TPM Connector CN Label: TPM1 20-pin header, p=2.54 mm CN Type: CN Location: See Figure 3-27 CN Pinouts: See Table 3-27 The TPM connector connects to a TPM module. Figure 3-27: TPM Connector Location...

  • Page 57: Usb 2.0 Connectors

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 3.2.27 USB 2.0 Connectors CN Label: USB1, USB2, USB3 8-pin header, p=2.54 mm CN Type: CN Location: See Figure 3-28 CN Pinouts: See Table 3-28 The USB 2.0 connectors connect to USB 2.0 devices. Each pin header provides two USB 2.0 ports.

  • Page 58: Usb 2.0 Connector (Type A)

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 3.2.28 USB 2.0 Connector (Type A) CN Label: USB4 USB Type A CN Type: CN Location: See Figure 3-29 CN Pinouts: See Table 3-29 The USB Type A connector connects to a USB 2.0/1.1 device.

  • Page 59: Usb 3.0 Connector

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 3.2.29 USB 3.0 Connector CN Label: USB3_34 19-pin box header, p=2 mm CN Type: CN Location: See Figure 3-30 CN Pinouts: See Table 3-30 The USB 3.0 connector connects to USB 3.0 devices. This connector provides two USB 3.0 ports.

  • Page 60: External Peripheral Interface Connector Panel

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 3.3 External Peripheral Interface Connector Panel The figure below shows the external peripheral interface connector (EPIC) panel. The EPIC panel consists of the following: Figure 3-31: External Peripheral Interface Connector 3.3.1 Ethernet Connectors CN Label:...

  • Page 61: Usb 3.0 Connectors

    3.3.2 USB 3.0 Connectors CN Label: USB3_1, USB3_2 CN Type: USB 3.0 See Figure 3-31 CN Location: CN Pinouts: See Table 3-32 There are two external USB 3.0 connectors on the SPCIE-C236. Description Description VBUS STDA_SSRX_N STDA_SSRX_P GND_DRAIN STDA_SSTX_N STDA_SSTX_P Table 3-32: USB 3.0 Port Pinouts...

  • Page 62: Figure 3-33: Vga Connector

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Description Description GREEN BLUE HOT PLUG DETECT DDCDA HSYNC VSYNC DDCCLK Table 3-33: VGA Connector Pinouts Figure 3-33: VGA Connector Page 47...

  • Page 63: Installation

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Chapter Installation Page 48...

  • Page 64: Anti-Static Precautions

    Electrostatic discharge (ESD) can cause serious damage to electronic components, including the SPCIE-C236. Dry climates are especially susceptible to ESD. It is therefore critical that whenever the SPCIE-C236 or any other electrical component is handled, the following anti-static precautions are strictly adhered to.
  • Page 65 This helps to prevent potential ESD damage. Turn all power to the SPCIE-C236 off: When working with the SPCIE-C236, make sure that it is disconnected from all power supplies and that no electricity is being fed into the system.

  • Page 66: Socket Lga1151 Cpu Installation

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 4.3 Socket LGA1151 CPU Installation WARNING: CPUs are expensive and sensitive components. When installing the CPU please be careful not to damage it in anyway. Make sure the CPU is installed properly and ensure the correct cooling kit is properly installed.

  • Page 67: Figure 4-2: Remove Protective Cover

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Figure 4-2: Remove Protective Cover Step 3: Inspect the CPU socket. Make sure there are no bent pins and make sure the socket contacts are free of foreign material. If any debris is found, remove it with compressed air.

  • Page 68: Figure 4-3: Insert The Socket Lga1151 Cpu

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Step 7: Insert the CPU. Gently insert the CPU into the socket. If the CPU pins are properly aligned, the CPU should slide into the CPU socket smoothly. See Figure 4-3. Figure 4-3: Insert the Socket LGA1151 CPU Step 8: Close the CPU socket.

  • Page 69: Socket Lga1151 Cooling Kit Installation

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Step 9: Connect the 12 V power to the board. Connect the 12 V power from the power supply to the board. Step 0: 4.4 Socket LGA1151 Cooling Kit Installation WARNING: DO NOT attempt to install a push-pin cooling fan.

  • Page 70: Figure 4-5: Cooling Kit Support Bracket

    Do not overtighten the screws. Step 5: Connect the fan cable. Connect the cooling kit fan cable to the CPU fan connector on the SPCIE-C236. Carefully route the cable and avoid heat generating chips and fan blades.Step 0:...

  • Page 71: Dimm Installation

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 4.5 DIMM Installation To install a DIMM, please follow the steps below and refer to Figure 4-6. Figure 4-6: DIMM Installation Step 1: Open the DIMM socket handles. Open the two handles outwards as far as they can.

  • Page 72: Iris-2400 Module Installation (Optional)

    To install the iRIS-2400 module, please follow the steps below and refer to Figure 4-7. Figure 4-7: iRIS-2400 Module Installation Step 1: Locate the IPMI module slot. Place the SPCIE-C236 on an anti-static pad. Step 2: Align the iRIS-2400 module with the iRIS module slot. Align the notch on the module with the notch on the iRIS module slot.

  • Page 73: Full-Size Pcie Mini Card Installation

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 4.7 Full-size PCIe Mini Card Installation The PCIe Mini card slot allows installation of either a full-size or half-size PCIe Mini card. To install a full-size PCIe Mini card, please follow the steps below.

  • Page 74: Half-Size Pcie Mini Card Installation

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Step 4: Secure the full-size PCIe Mini card. Secure the full-size PCIe Mini card with the retention screw previously removed (Figure 4-10). Step 0: Figure 4-10: Securing the Full-size PCIe Mini Card 4.8 Half-size PCIe Mini Card Installation The PCIe Mini card slot allows installation of either a full-size or half-size PCIe Mini card.

  • Page 75: Figure 4-11: Installing The Standoff

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Figure 4-11: Installing the Standoff Step 3: Insert into the socket at an angle. Line up the notch on the card with the notch on the slot. Slide the PCIe Mini card into the slot at an angle of about 20º (Figure 4-12).

  • Page 76: System Configuration

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Figure 4-13: Securing the Half-size PCIe Mini Card 4.9 System Configuration The system configuration should be performed before installation. 4.9.1 AT/ATX Power Mode Setting The AT and ATX power mode selection is made through the AT/ATX power mode switch which is shown in Figure 4-14.

  • Page 77: Clear Cmos Button

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 4.9.2 Clear CMOS Button To reset the BIOS, remove the on-board battery and press the clear CMOS button for three seconds or more. The clear CMOS button location is shown in Figure 4-15. Figure 4-15: Clear CMOS Button Location 4.9.3 PCIe x4 Channel Mode Setup...

  • Page 78: Pcie X16 Channel Mode Setup

    Main BIOS menu (BIOS Menu 1). 4.9.4 PCIe x16 Channel Mode Setup The SPCIE-C236 supports one PCIe x16 interface on the backplane. The PCIe x16 channel mode setup is made through the BIOS menu in “Chipset System Agent (SA) Configuration PEG Port Configuration”.

  • Page 79: Flash Descriptor Security Override Jumper

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 4.9.5 Flash Descriptor Security Override Jumper The flash descriptor security override jumper (J_FLASH2) allows to enable or disable the ME firmware update. Refer to Table 4-4 and Figure 4-17 for the jumper location and settings.

  • Page 80: Usb Power Selection

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 4.9.6 USB Power Selection The USB power selection is made through the BIOS menu in “Chipset PCH-IO Configuration”. Use the USB Power SW1 and the USB Power SW2 BIOS options to configure the correspondent USB ports (see Table 4-5) and refer to Table 4-6 to select the USB power source.

  • Page 81: Msata Setup

    This section outlines the installation of peripheral devices to the onboard connectors. 4.10.1 SATA Drive Connection The SPCIE-C236 is shipped with two SATA drive cables. To connect the SATA drives to the connectors, please follow the steps below. Step 1: Locate the connectors.

  • Page 82: Figure 4-19: Sata Drive Cable Connection

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Figure 4-19: SATA Drive Cable Connection Step 3: Connect the cable to the SATA disk. Connect the connector on the other end of the cable to the connector at the back of the SATA drive. See Figure 4-20.

  • Page 83: Adding Usb 3.0 Drivers To A Windows 7 Installation Image

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Figure 4-20: SATA Power Drive Connection The SATA power cable can be bought from IEI. See Optional Items in Section 2.4. 4.11 Adding USB 3.0 Drivers to a Windows 7 Installation Image The Windows 7 installation media does not include native driver support for USB 3.0. In order to use the USB keyboard or mouse connected to a USB 3.0 port during OS...

  • Page 84: Figure 4-21: Windows 7 Usb 3.0 Creator Utility

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Step 3: Extract the downloaded file to a temporary folder on a computer where the user has logged in as the administrator. NOTE: The OS version of the computer can be Windows 7, Windows 8.1 or Windows 10.

  • Page 85: Intel ® Amt Setup Procedure

    ® 4.12 Intel AMT Setup Procedure The SPCIE-C236 is featured with the Intel® Active Management Technology (AMT). To enable the Intel® AMT function, follow the steps below. Step 1: Make sure at least one of the memory sockets is installed with a DDR4 DIMM.

  • Page 86: Ipmi Setup Procedure (Spcie-C236-I2-R10 Only)

    The SPCIE-C236-i2 features Intelligent Platform Management Interface (IPMI) that helps lower the overall costs of server management by enabling users to maximize IT resources, save time and manage multiple systems. The SPCIE-C236-i2 supports IPMI 2.0 through the optional iRIS-2400 module. Follow the steps below to setup IPMI.

  • Page 87: Figure 4-23: Iei Iman Web Address

    SPCIE-C236 Full-size PICMG 1.3 CPU Card a. Copy the Ipmitool.exe file to a bootable USB flash drive. b. Insert the USB flash drive to the SPCIE-C236-i2 c. The SPCIE-C236-i2 boots from the USB flash drive d. Enter the following command: ipmitool 20 30 02 01 03 00 00 (there is a space between each two-digit number) e.

  • Page 88: Figure 4-24: Iei Iman Web Gui

    Figure 4-24: IEI iMAN Web GUI NOTE: To understand how to use the IEI iMAN Web GUI, please refer to the iRIS-2400 Web GUI user manual in the utility CD came with the SPCIE-C236. The user manual describes each function in detail. Page 73...

  • Page 89: Bios

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Chapter BIOS Page 74...

  • Page 90: Introduction

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 5.1 Introduction The BIOS is programmed onto the BIOS chip. The BIOS setup program allows changes to certain system settings. This chapter outlines the options that can be changed. NOTE: Some of the BIOS options may vary throughout the life cycle of the product and are subject to change without prior notice.

  • Page 91: Getting Help

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Function Main Menu – Quit and not save changes into CMOS Status Page Setup Menu and Option Page Setup Menu -- Exit current page and return to Main Menu General help, only for Status Page Setup Menu and Option Page...
  • Page 92 SPCIE-C236 Full-size PICMG 1.3 CPU Card Aptio Setup Utility – Copyright (C) 2016 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit Server Mgmt BIOS Information Set the Date. Use Tab to BIOS Vendor American Megatrends switch between Date Core Version 5.11...

  • Page 93: Advanced

    SPCIE-C236 Full-size PICMG 1.3 CPU Card The Main menu has two user configurable fields: System Date [xx/xx/xx] Use the System Date option to set the system date. Manually enter the day, month and year. System Time [xx:xx:xx] Use the System Time option to set the system time. Manually enter the hours, minutes and seconds.

  • Page 94: Trusted Computing

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 5.3.1 Trusted Computing Use the Trusted Computing menu (BIOS Menu 3) to configure settings related to the Trusted Computing Group (TCG) Trusted Platform Module (TPM). Aptio Setup Utility – Copyright (C) 2016 American Megatrends, Inc.

  • Page 95: Acpi Settings

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 5.3.2 ACPI Settings The ACPI Settings menu (BIOS Menu 4) configures the Advanced Configuration and Power Interface (ACPI) options. Aptio Setup Utility – Copyright (C) 2016 American Megatrends, Inc. Advanced ACPI Settings Select the highest ACPI...

  • Page 96: Amt Configuration

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 5.3.3 AMT Configuration The AMT Configuration menu (BIOS Menu 5) allows the Intel® AMT options to be configured. Aptio Setup Utility – Copyright (C) 2016 American Megatrends, Inc. Advanced Intel AMT [Enabled] Enable/Disable Intel (R)

  • Page 97: Super Io Configuration

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 5.3.4 Super IO Configuration Use the Super IO Configuration menu (BIOS Menu 6) to set or change the configurations for the serial ports and parallel port. Aptio Setup Utility – Copyright (C) 2016 American Megatrends, Inc.

  • Page 98: Serial Port N Configuration

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 5.3.4.1 Serial Port n Configuration Use the Serial Port n Configuration menu (BIOS Menu 7) to configure the serial port n. Aptio Setup Utility – Copyright (C) 2016 American Megatrends, Inc. Advanced Serial Port n Configuration...
  • Page 99 SPCIE-C236 Full-size PICMG 1.3 CPU Card IO=3F8h; Serial Port I/O port address is 3F8h and the interrupt IRQ=3, 4, 11 address is IRQ3, 4, 11 Serial Port I/O port address is 2F8h and the interrupt IO=2F8h; address is IRQ3, 4, 11 IRQ=3, 4, 11 IO=3E8h;...
  • Page 100 SPCIE-C236 Full-size PICMG 1.3 CPU Card IO=2F8h; Serial Port I/O port address is 2F8h and the interrupt IRQ=3, 4, 11 address is IRQ3, 4, 11 Serial Port I/O port address is 3E8h and the interrupt IO=3E8h; address is IRQ3, 4, 11 IRQ=3, 4, 11 IO=2E8h;...
  • Page 101 SPCIE-C236 Full-size PICMG 1.3 CPU Card IO=3E8h; Serial Port I/O port address is 3E8h and the interrupt IRQ=3, 4, 11 address is IRQ3, 4, 11 Serial Port I/O port address is 2E8h and the interrupt IO=2E8h; address is IRQ3, 4, 11 IRQ=3, 4, 11 IO=2D0h;...

  • Page 102: Parallel Port Configuration

    SPCIE-C236 Full-size PICMG 1.3 CPU Card IO=2F8h; Serial Port I/O port address is 2F8h and the interrupt IRQ=3, 4, 11 address is IRQ3, 4, 11 Serial Port I/O port address is 3E8h and the interrupt IO=3E8h; address is IRQ3, 4, 11 IRQ=3, 4, 11 IO=2E8h;...

  • Page 103: Iwdd H/W Monitor

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Parallel Port [Enabled] Use the Parallel Port option to enable or disable the parallel port. Disable the parallel port Disabled Enabled Enable the parallel port EFAULT Device Mode [STD Printer Mode] Use the Device Mode option to select the mode the parallel port operates in.
  • Page 104 SPCIE-C236 Full-size PICMG 1.3 CPU Card Aptio Setup Utility – Copyright (C) 2016 American Megatrends, Inc. Advanced PC Health Status Smart Fan Mode Select CPU temperature : +40ºC SYS temperature : +36ºC --------------------- CPU_FAN1 Speed : 1416 RPM : Select Screen ↑...

  • Page 105: Smart Fan Mode Configuration

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 5.3.5.1 Smart Fan Mode Configuration Use the Smart Fan Mode Configuration submenu (BIOS Menu 10) to configure fan speed settings. Aptio Setup Utility – Copyright (C) 2016 American Megatrends, Inc. Advanced Smart Fan Mode Configuration...

  • Page 106: Rtc Wake Settings

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Auto mode fan slope PWM Use the + or – key to change the Auto mode fan slope PWM value. Enter a decimal number between 1 and 8. 5.3.6 RTC Wake Settings The RTC Wake Settings menu (BIOS Menu 11) enables the system to wake at the specified time.

  • Page 107: Serial Port Console Redirection

    SPCIE-C236 Full-size PICMG 1.3 CPU Card selected: Wake up date Wake up hour Wake up minute Wake up second After setting the alarm, the computer turns itself on from a suspend state when the alarm goes off. 5.3.7 Serial Port Console Redirection The Serial Port Console Redirection menu (BIOS Menu 12) allows the console redirection options to be configured.
  • Page 108 SPCIE-C236 Full-size PICMG 1.3 CPU Card Console Redirection [Disabled] Use Console Redirection option to enable or disable the console redirection function. Disabled the console redirection function Disabled EFAULT Enabled Enabled the console redirection function The following options are available in the Console Redirection Settings submenu when the Console Redirection option is enabled.
  • Page 109 SPCIE-C236 Full-size PICMG 1.3 CPU Card Parity [None] Use the Parity option to specify the parity bit that can be sent with the data bits for detecting the transmission errors. None No parity bit is sent with the data bits.

  • Page 110: Legacy Console Redirection Settings

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 5.3.7.1 Legacy Console Redirection Settings Aptio Setup Utility – Copyright (C) 2016 American Megatrends, Inc. Advanced Legacy Serial Redirection Port [COM1] Select a COM port to display redirection of Legacy OS and Legacy OPROM Messages.

  • Page 111: Cpu Configuration

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 5.3.8 CPU Configuration Use the CPU Configuration menu (BIOS Menu 14) to view detailed CPU specifications or enable the Intel Virtualization Technology. Aptio Setup Utility – Copyright (C) 2016 American Megatrends, Inc. Advanced CPU Configuration...
  • Page 112 SPCIE-C236 Full-size PICMG 1.3 CPU Card Active Processor Cores [All] Use the Active Processor Cores BIOS option to enable numbers of cores in the processor package. Enable all cores in the processor package. EFAULT Enable one core in the processor package.

  • Page 113: Sata Configuration

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Intel TXT(LT) Support [Disabled] Use the Intel TXT(LT) Support option to enable or disable the Intel(R) TXT(LT) support. Disabled Disables Intel® TXT(LT) support EFAULT Enabled Enables Intel® TXT(LT) support 5.3.9 SATA Configuration Use the SATA Configuration menu (BIOS Menu 15) to change and/or set the configuration of the SATA devices installed in the system.

  • Page 114: Nvme Configuration

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Hot Plug [Disabled] Use the Hot Plug option to designate the correspondent SATA port as hot-pluggable. Disables the hot-pluggable function of the SATA port. Disabled EFAULT Enabled Designates the SATA port as hot-pluggable. 5.3.10 NVMe Configuration Use the NVMe Configuration (BIOS Menu 16) menu to display the NVMe controller and device information.

  • Page 115: Usb Configuration

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 5.3.11 USB Configuration Use the USB Configuration menu (BIOS Menu 17) to read USB configuration information and configure the USB settings. Aptio Setup Utility – Copyright (C) 2016 American Megatrends, Inc. Advanced USB Configuration Enables Legacy USB support.

  • Page 116: Iei Feature

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 5.3.12 iEi Feature Use the iEi Feature menu (BIOS Menu 18) to configure One Key Recovery function. Aptio Setup Utility – Copyright (C) 2016 American Megatrends, Inc. Advanced iEi Feature Auto Recovery Function Reboot and recover...

  • Page 117: Chipset

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 5.4 Chipset Use the Chipset menu (BIOS Menu 19) to access the PCH IO and System Agent (SA) configuration menus. WARNING! Setting the wrong values for the Chipset BIOS selections in the Chipset BIOS menu may cause the system to malfunction.

  • Page 118: System Agent (Sa) Configuration

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 5.4.1 System Agent (SA) Configuration Use the System Agent (SA) Configuration menu (BIOS Menu 20) to configure the System Agent (SA) parameters. Aptio Setup Utility – Copyright (C) 2016 American Megatrends, Inc. Chipset VT-d...

  • Page 119: Graphics Configuration

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 5.4.1.1 Graphics Configuration Use the Graphics Configuration (BIOS Menu 21) menu to configure the video device connected to the system. Aptio Setup Utility – Copyright (C) 2016 American Megatrends, Inc. Chipset Graphics Configuration Select which of...
  • Page 120 SPCIE-C236 Full-size PICMG 1.3 CPU Card DVMT Pre-Allocated [256M] Use the DVMT Pre-Allocated option to set the amount of system memory allocated to the integrated graphics processor when the system boots. The system memory allocated can then only be used as graphics memory, and is no longer available to applications or the operating system.

  • Page 121: Peg Port Configuration

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 5.4.1.2 PEG Port Configuration Aptio Setup Utility – Copyright (C) 2016 American Megatrends, Inc. Chipset PEG Port Configuration Select PEG Port Link Width as x16 or 2x8 PEG Link Width Configuration [1x16] configuration. PEG 0:1:0...

  • Page 122: Memory Configuration

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Max Link Speed [Auto] Use the Max Link Speed option to select the maximum link speed of the PCI Express slot. The following options are available: Auto Default Gen1 Gen2 Gen3 Detect Non-Compliance Device [Disabled] Use the Detect Non-Compliance Device option to enable or disable detecting if a non-compliance PCI Express device is connected to the PCI Express slot.

  • Page 123: Pch-Io Configuration

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 5.4.2 PCH-IO Configuration Use the PCH-IO Configuration menu (BIOS Menu 24) to configure the PCH parameters. Aptio Setup Utility – Copyright (C) 2016 American Megatrends, Inc. Chipset Auto Power Button Status [Disable (ATX)] Select AC power state...

  • Page 124: Table 5-2: Bios Options And Configured Usb Ports

    SPCIE-C236 Full-size PICMG 1.3 CPU Card USB Power SW1 [+5V DUAL] Use the USB Power SW1 BIOS option to configure the USB power source for the corresponding USB connectors (Table 5-2). Sets the USB power source to +5V +5V DUAL...

  • Page 125: Pci Express Configuration

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 5.4.2.1 PCI Express Configuration The PCI Express port number in the PCI Express Configuration menu varies by BIOS (BIOS1 or BIOS2). For detailed information, please refer to Section 4.9.3. For BIOS1: Aptio Setup Utility – Copyright (C) 2016 American Megatrends, Inc.
  • Page 126 SPCIE-C236 Full-size PICMG 1.3 CPU Card 5.4.2.1.1 PCIEX1 Slot/PCIEX4 Slot/MPCIE Slot Aptio Setup Utility – Copyright (C) 2016 American Megatrends, Inc. Advanced PCIe Speed [Auto] Select PCI Express port Detect Non-Compliance Device [Disabled] speed. --------------------- : Select Screen ↑ ↓: Select Item Enter: Select +/-: Change Opt.

  • Page 127: Hd Audio Configuration

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 5.4.2.2 HD Audio Configuration Use the HD Audio Configuration menu (BIOS Menu 28) to configure the PCH Azalia settings. Aptio Setup Utility – Copyright (C) 2016 American Megatrends, Inc. Chipset HD Audio Configuration Control Detection of the HD-Audio device.

  • Page 128: Security

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 5.5 Security Use the Security menu (BIOS Menu 29) to set system and user passwords. Aptio Setup Utility – Copyright (C) 2016 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit Server Mgmt...

  • Page 129: Boot

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 5.6 Boot Use the Boot menu (BIOS Menu 30) to configure system boot options. Aptio Setup Utility – Copyright (C) 2016 American Megatrends, Inc. Main Advanced Chipset Security Boot Save & Exit Server Mgmt...
  • Page 130 SPCIE-C236 Full-size PICMG 1.3 CPU Card Quiet Boot [Enabled] Use the Quiet Boot BIOS option to select the screen display when the system boots. Normal POST messages displayed Disabled Enabled OEM Logo displayed instead of POST messages EFAULT Launch PXE OpROM [Disabled] Use the Launch PXE OpROM option to enable or disable boot option for legacy network devices.

  • Page 131: Save & Exit

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 5.7 Save & Exit Use the Safe & Exit menu (BIOS Menu 31) to load default BIOS values, optimal failsafe values and to save configuration changes. Aptio Setup Utility – Copyright (C) 2016 American Megatrends, Inc.

  • Page 132: Server Mgmt (Spcie-C236-I2-R10 Only)

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 5.8 Server Mgmt (SPCIE-C236-i2-R10 Only) Use the Server Mgmt menu (BIOS Menu 32) to configure system event log and BMC network parameters. Aptio Setup Utility – Copyright (C) 2016 American Megatrends, Inc. Main Advanced...
  • Page 133 SPCIE-C236 Full-size PICMG 1.3 CPU Card SEL Components [Enabled] Use the SEL Components option to enable or disable all features of System Event Log during boot. Disabled System Event Log features disabled. System Event Log features enabled. Enabled EFAULT Erase SEL [No] Use the Erase SEL option to select an option for erasing SEL (system event log).

  • Page 134: Bmc Network Configuration

    SPCIE-C236 Full-size PICMG 1.3 CPU Card 5.8.2 BMC Network Configuration Use the BMC Network Configuration menu (BIOS Menu 34) to configure BMC network parameters. Aptio Setup Utility – Copyright (C) 2016 American Megatrends, Inc. Server Mgmt BMC network configuration Select to configure LAN...
  • Page 135 SPCIE-C236 Full-size PICMG 1.3 CPU Card DynamicBmcDhcp Select to configure LAN channel parameters dynamically by BMC Select to configure LAN channel DynamicBmcNonDhcp parameters dynamically by BIOS Page 120...

  • Page 136: Software Drivers

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Chapter Software Drivers Page 121...

  • Page 137: Available Software Drivers

    Kernel-Mode Driver Framework (Windows 7 OS only) Intel® Serial IO (Windows 8.1/10 64-bit OS only) 6.2 Software Installation All the drivers for the SPCIE-C236 are on the CD that came with the system. To install the drivers, please follow the steps below. Step 1: Insert the CD into a CD drive connected to the system.

  • Page 138: Figure 6-1: Available Drivers

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Step 3: A new screen with a list of available drivers appears (Figure 6-1). Figure 6-1: Available Drivers Step 4: Install all of the necessary drivers in this menu. Step 0: Page 123...

  • Page 139: A Regulatory Compliance

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Appendix Regulatory Compliance Page 124...
  • Page 140 SPCIE-C236 Full-size PICMG 1.3 CPU Card DECLARATION OF CONFORMITY This equipment has been tested and found to comply with specifications for CE marking. If the user modifies and/or installs other devices in the equipment, the CE conformity declaration may no longer apply.

  • Page 141: B Product Disposal

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Appendix Product Disposal Page 126...
  • Page 142 SPCIE-C236 Full-size PICMG 1.3 CPU Card CAUTION: Risk of explosion if battery is replaced by an incorrect type. Only certified engineers should replace the on-board battery. Dispose of used batteries according to instructions and local regulations. Outside the European Union–If you wish to dispose of used electrical and electronic products outside the European Union, please contact your local authority so as to comply with the correct disposal method.

  • Page 143: Cbios Options

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Appendix BIOS Options Page 128...
  • Page 144 SPCIE-C236 Full-size PICMG 1.3 CPU Card Below is a list of BIOS configuration options in the BIOS chapter. 　 System Date [xx/xx/xx] ......................78 　 System Time [xx:xx:xx] .......................78 　 Security Device Support [Disable] ..................79 　 ACPI Sleep State [S3 (Suspend to RAM)]................80 　...
  • Page 145 SPCIE-C236 Full-size PICMG 1.3 CPU Card 　 Active Processor Cores [All] ....................97 　 Intel Virtualization Technology [Disabled] ................97 　 Intel(R) SpeedStep(tm) [Enabled]..................97 　 CPU C states [Disabled] ......................97 　 Intel TXT(LT) Support [Disabled]..................98 　 SATA Controller(s) [Enabled] .....................98 　 SATA Mode Selection [AHCI]....................98 　...
  • Page 146 SPCIE-C236 Full-size PICMG 1.3 CPU Card 　 Discard Changes and Reset .................... 116 　 Restore Defaults ....................... 116 　 Save as User Defaults ...................... 116 　 Restore User Defaults ...................... 116 　 SEL Components [Enabled]..................... 118 　 Erase SEL [No] ........................118 　...

  • Page 147: D Terminology

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Appendix Terminology Page 132...
  • Page 148 SPCIE-C236 Full-size PICMG 1.3 CPU Card AC ’97 Audio Codec 97 (AC’97) refers to a codec standard developed by Intel® in 1997. ACPI Advanced Configuration and Power Interface (ACPI) is an OS-directed configuration, power management, and thermal management interface. AHCI Advanced Host Controller Interface (AHCI) is a SATA Host controller register-level interface.
  • Page 149 SPCIE-C236 Full-size PICMG 1.3 CPU Card DIMM Dual Inline Memory Modules are a type of RAM that offer a 64-bit data bus and have separate electrical contacts on each side of the module. The digital inputs and digital outputs are general control signals that control the on/off circuit of external devices or TTL devices.
  • Page 150 SPCIE-C236 Full-size PICMG 1.3 CPU Card LVDS Low-voltage differential signaling (LVDS) is a dual-wire, high-speed differential electrical signaling system commonly used to connect LCD displays to a computer. POST The Power-on Self Test (POST) is the pre-boot actions the system performs when the system is turned-on.

  • Page 151: E Digital I/O Interface

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Appendix Digital I/O Interface Page 136...

  • Page 152: Introduction

    SPCIE-C236 Full-size PICMG 1.3 CPU Card E.1 Introduction The DIO connector on the SPCIE-C236 is interfaced to GPIO ports on the Super I/O chipset. The digital inputs and digital outputs are generally control signals that control the on/off circuit of external devices or TTL devices. Data can be read or written to the selected address to enable the DIO functions.

  • Page 153: Assembly Language Sample

    SPCIE-C236 Full-size PICMG 1.3 CPU Card E.2 Assembly Language Sample 1 AX, 6F08H ;setting the digital port as input AL low byte = value AH – 6FH Sub-function: AL – 9 :Set the digital port as OUTPUT :Digital I/O input value E.3 Assembly Language Sample 2...

  • Page 154: F Watchdog Timer

    SPCIE-C236 Full-size PICMG 1.3 CPU Card Appendix Watchdog Timer Page 139...
  • Page 155 SPCIE-C236 Full-size PICMG 1.3 CPU Card NOTE: The following discussion applies to DOS environment. Contact IEI support or visit the IEI website for specific drivers for other operating systems. The Watchdog Timer is provided to ensure that standalone systems can always recover from catastrophic conditions that cause the CPU to crash.
  • Page 156 SPCIE-C236 Full-size PICMG 1.3 CPU Card NOTE: When exiting a program it is necessary to disable the Watchdog Timer, otherwise the system resets. EXAMPLE PROGRAM: ; INITIAL TIMER PERIOD COUNTER W_LOOP: AX, 6F02H ;setting the time-out value BL, 30 ;time-out value is 48 seconds ;...
  • Page 157 SPCIE-C236 Full-size PICMG 1.3 CPU Card Appendix Hazardous Materials Disclosure Page 142...
  • Page 158 SPCIE-C236 Full-size PICMG 1.3 CPU Card The details provided in this appendix are to ensure that the product is compliant with the Peoples Republic of China (China) RoHS standards. The table below acknowledges the presences of small quantities of certain materials in the product, and is applicable to China RoHS only.
  • Page 159 SPCIE-C236 Full-size PICMG 1.3 CPU Card 此附件旨在确保本产品符合中国 RoHS 标准。以下表格标示此产品中某有毒物质的含量符 合中国 RoHS 标准规定的限量要求。 本产品上会附有”环境友好使用期限”的标签，此期限是估算这些物质”不会有泄漏或突变”的 年限。本产品可能包含有较短的环境友好使用期限的可替换元件，像是电池或灯管，这些元 件将会单独标示出来。 部件名称 有毒有害物质或元素 铅 汞 镉 六价铬 多溴联苯 多溴二苯 醚 (Pb) (Hg) (Cd) (CR(VI)) (PBB) (PBDE) 壳体 显示 印刷电路板 金属螺帽 电缆组装 风扇组装 电力供应组装 电池 O: 表示该有毒有害物质在该部件所有物质材料中的含量均在 SJ/T 11363-2006 (现由 GB/T 26572-2011 取代) 标准规定的限量要求以下。...

Table of Contents
