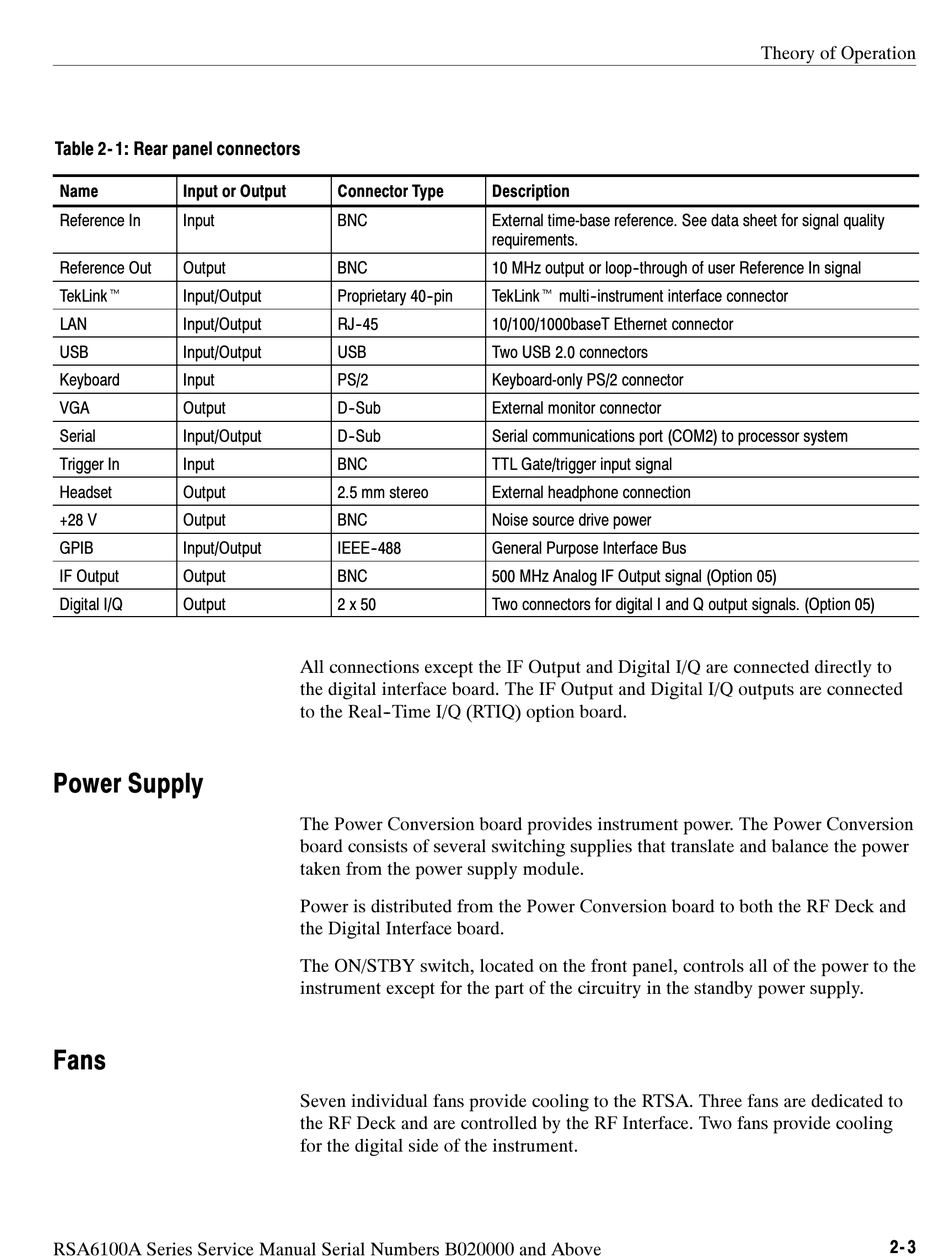

Table 2- 1: Rear panel connectors

Name
Input or Output
Reference In
Input
Reference Out
Output
TekLinkt
Input/Output
LAN
Input/Output
USB
Input/Output
Keyboard
Input
VGA
Output
Serial
Input/Output
Trigger In
Input
Headset
Output
+28 V
Output
GPIB
Input/Output
IF Output
Output
Digital I/Q
Output
Power Supply
Fans
RSA6100A Series Service Manual Serial Numbers B020000 and Above
Connector Type
BNC
BNC
Proprietary 40- - pin
RJ- - 45
USB
PS/2
D- - Sub
D- - Sub
BNC
2.5 mm stereo
BNC
IEEE- - 488
BNC
2 x 50
All connections except the IF Output and Digital I/Q are connected directly to
the digital interface board. The IF Output and Digital I/Q outputs are connected
to the Real- -Time I/Q (RTIQ) option board.
The Power Conversion board provides instrument power. The Power Conversion
board consists of several switching supplies that translate and balance the power
taken from the power supply module.
Power is distributed from the Power Conversion board to both the RF Deck and
the Digital Interface board.
The ON/STBY switch, located on the front panel, controls all of the power to the
instrument except for the part of the circuitry in the standby power supply.
Seven individual fans provide cooling to the RTSA. Three fans are dedicated to
the RF Deck and are controlled by the RF Interface. Two fans provide cooling
for the digital side of the instrument.
Description
External time-base reference. See data sheet for signal quality
requirements.
10 MHz output or loop- - through of user Reference In signal
TekLinkt multi- - instrument interface connector
10/100/1000baseT Ethernet connector
Two USB 2.0 connectors
Keyboard-only PS/2 connector
External monitor connector
Serial communications port (COM2) to processor system
TTL Gate/trigger input signal
External headphone connection
Noise source drive power
General Purpose Interface Bus
500 MHz Analog IF Output signal (Option 05)
Two connectors for digital I and Q output signals. (Option 05)
Theory of Operation
2- 3
