Figure 2- 1: Rsa6100A Series Block Diagram - Tektronix RSA6100A Series Service Manual

IF
Out
Option Slot 4
Option Slot 3 - - RTIQ Output Board
Option Slot 1 - - Acquisiton Board
Touch
Panel
Display
Panel
Inverter
Board
USB 2.0
USB 1.1
RF Input

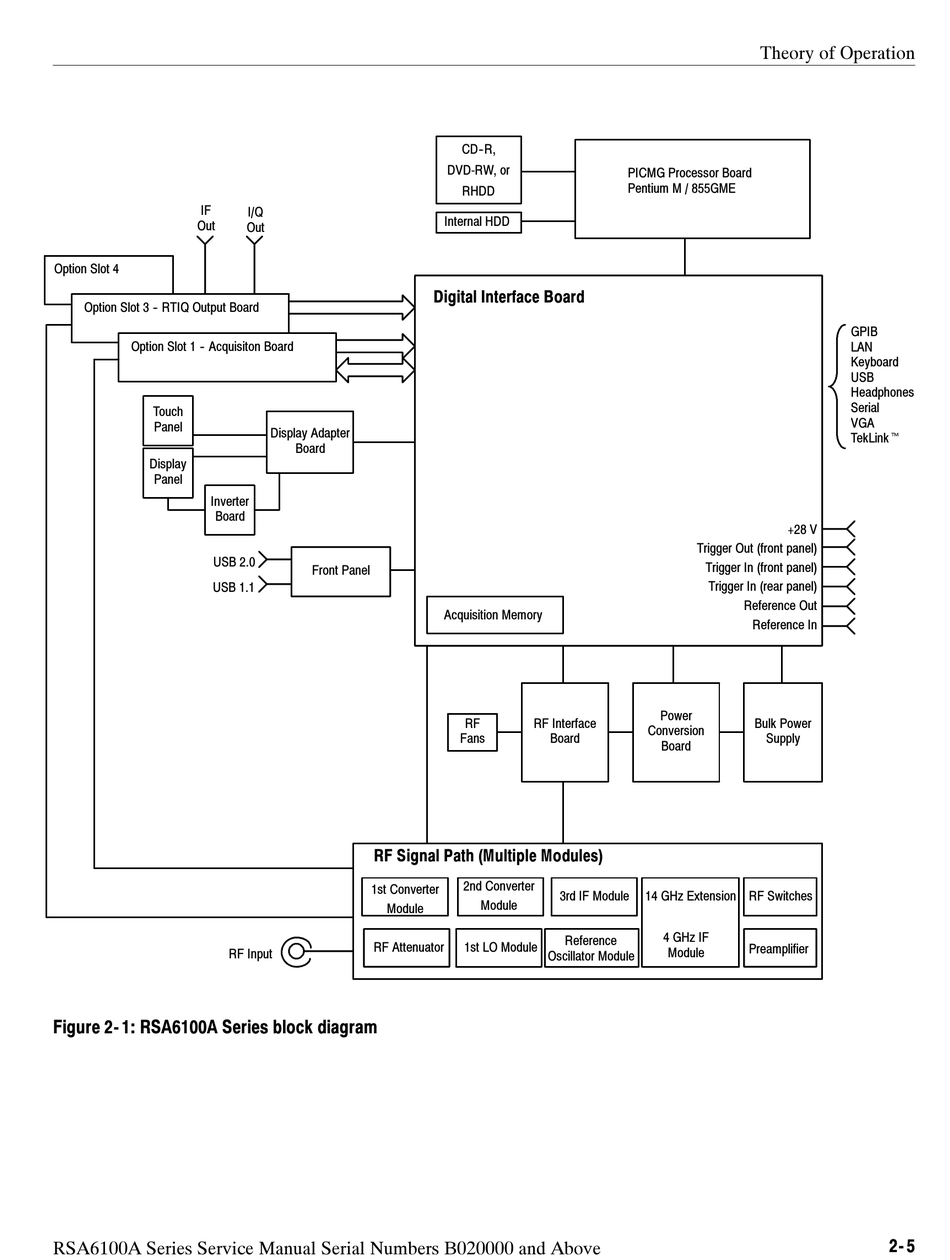

Figure 2- 1: RSA6100A Series block diagram

RSA6100A Series Service Manual Serial Numbers B020000 and Above
I/Q
Out
Display Adapter
Board
Front Panel
RF Signal Path (Multiple Modules)
1st Converter
Module
RF Attenuator
CD- - R,
DVD-RW, or
RHDD
Internal HDD
Digital Interface Board
Acquisition Memory
RF RF Interface
Fans Board
2nd Converter
3rd IF Module
Module
Reference
1st LO Module
Oscillator Module
Theory of Operation
PICMG Processor Board
Pentium M / 855GME
+28 V
Trigger Out (front panel)
Trigger In (front panel)
Trigger In (rear panel)
Reference Out
Reference In
Power
Bulk Power
Conversion
Supply
Board
14 GHz Extension RF Switches
4 GHz IF
Preamplifier
Module
GPIB
LAN
Keyboard
USB
Headphones
Serial
VGA
TekLinkt
2- 5
