INSTALL SHEET
Programming / RF Testing / Mounting
The following provides summarized steps for device
programming,testing, and mounting. For complete details,
refer to the control panel installation manual.

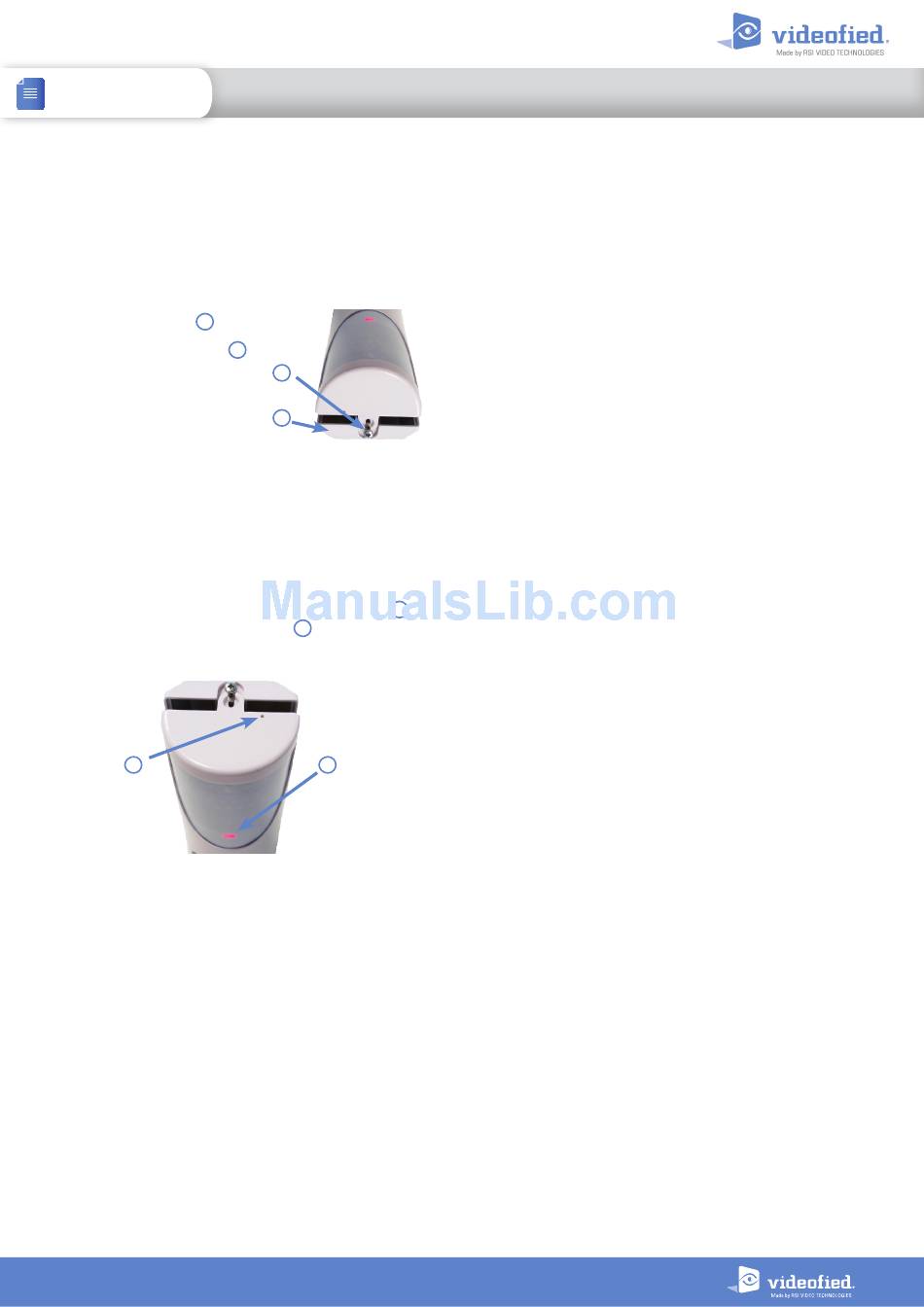

1 Loosen bottom screw
1
Separate base from ISMV
2 Install 3 CR123A 3V batteries, observing correct polarity.
3 Enter the panel into programming/configuration mode.
4 Using a programmed alphanumeric keypad, proceed through
menus until the display shows ADD A NEW DEVICE.
5 Press OK. The display shows PRESS PROGRAM BUTTON OF
DEVICE.
6 Press and release the program button on the ISMV
a paper clip. The ISMV LED flashes red
3
Wait for the keypad to display : CAMERA REGISTERED.
7 Press OK, the keypad displays RADIO RANGE TEST ? Press
OK again. The ISMV LED starts flashing and the keypad displays
TEST IN PROGRESS.
8 Move the ISMV to the intended mounting location and
confirm the signal is 9/9, indicating good communication with
the control panel.
ISMV STREAMING MOTIONVIEWER
2
1
2
3
.
4
4
9 Press OK to end the radio range test then press ESC/NO.
10 The display shows :
Press either arrow button on the keypad until the desired AREA
number appears, then press OK. By default all devices in area 1
will be subject to the entry and exit delays.
11 The screen displays NAME + LOCATION :
Enter an appropriate device name (up to 16 characters). The
name of the device should describe its intended mounting
location or zone. Press OK. The display will show the device
number and name for your verification.
12 Mount the ISMV on the wall:
> Follow the mounting rules on page 1.
> Hold the ISMV base against the mounting surface and mark
using
the appropriate mounting holes.
> Drill pilot holes and install anchors where needed.
> Place the base on mounting surface so that the pilot holes line
up and secure base with appropriate screws.
> Attach camera to base and secure with screw if required.
13 Press OK. The display shows FUNCTIONAL DEVICE TEST?
Press YES again and verify IMV operation. The red LED indicates
the detection field.
14 Press OK to end the detection test.
15 The display shows ADD A NEW DEVICE? Repeat steps 1-14
for remaining devices.
16 When finished, exit from configuration mode by pressing
and holding the ESC/NO for 5 seconds.

AREA ALLOCATION :

AREA : 1
