Videofied SE651 Product Installation Sheet

Product Summary

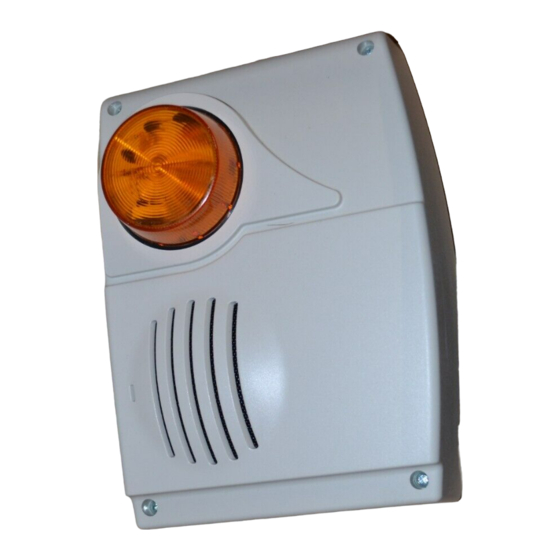

The Outdoor Siren SE651 is a wireless siren designed for
use in Videofied security systems. The siren includes the
following features:
>
Totally wireless, battery operated.
>
Dual tamper function provides detection for both wall
and cover tamper.
>
Transmits check-in/status signal every 8 minutes.
Programming/RF Testing
The following provides summarized steps for device
programming and testing. For complete details, refer
to the control panel installation manual.
1
Remove four cover
screws, separate cover
from siren and install
batteries.
2
Put control panel
into programming/
configuration mode.
3
Using a programmed
alphanumeric keypad,
proceed through menus
until the display shows
ADD A NEW DEVICE.
4 Press Yes. The display
shows PRESS PROGRAM
BUTTON OF DEVICE.
5 Press and release
program button on siren
using a paper clip end.
The siren LED flashes.
Wait for keypad display
to show SIREN (1 - 24)
RECORDED.
P R O D U C T I N S T A L L A T I O N S H E E T
Made by RSI VIDEO TECHNOLOGIES

Installation Guidelines

For easier installation, programming and RF testing should
be done to check for good communication between the
control panel and all system devices before mounting
system devices. Install the siren and other system devices
in the order of the following steps:
>
>
6
7
8
Screws
9
10
11
Program Button
Outdoor Siren SE651
Programming/RF Testing - program siren and
all other devices into the control panel and test
RF communication from each intended device
location to the control panel.
Mounting - mount siren at the tested location.
To the question "REMOTE CONTROLLED?" press:
No to be automatically controlled by the alarm panel
Yes if the siren is controlled by the monitoring station.
Press Yes. The display shows RADIO RANGE TEST?
Press Yes again. The siren LED starts flashing and
keypad display shows TEST IN PROGRESS.
Take the siren to its intended mounting location and
make sure LED flashes continuously, indicating good
communication with control panel.
Press Yes to end radio range test, then press Esc/No.
The display shows ADD A NEW DEVICES?
Repeat steps 4 - 8 for remaining sirens.
When finished, exit from configuration mode.
www.videofied.com
2204-SEOIS February 2012
