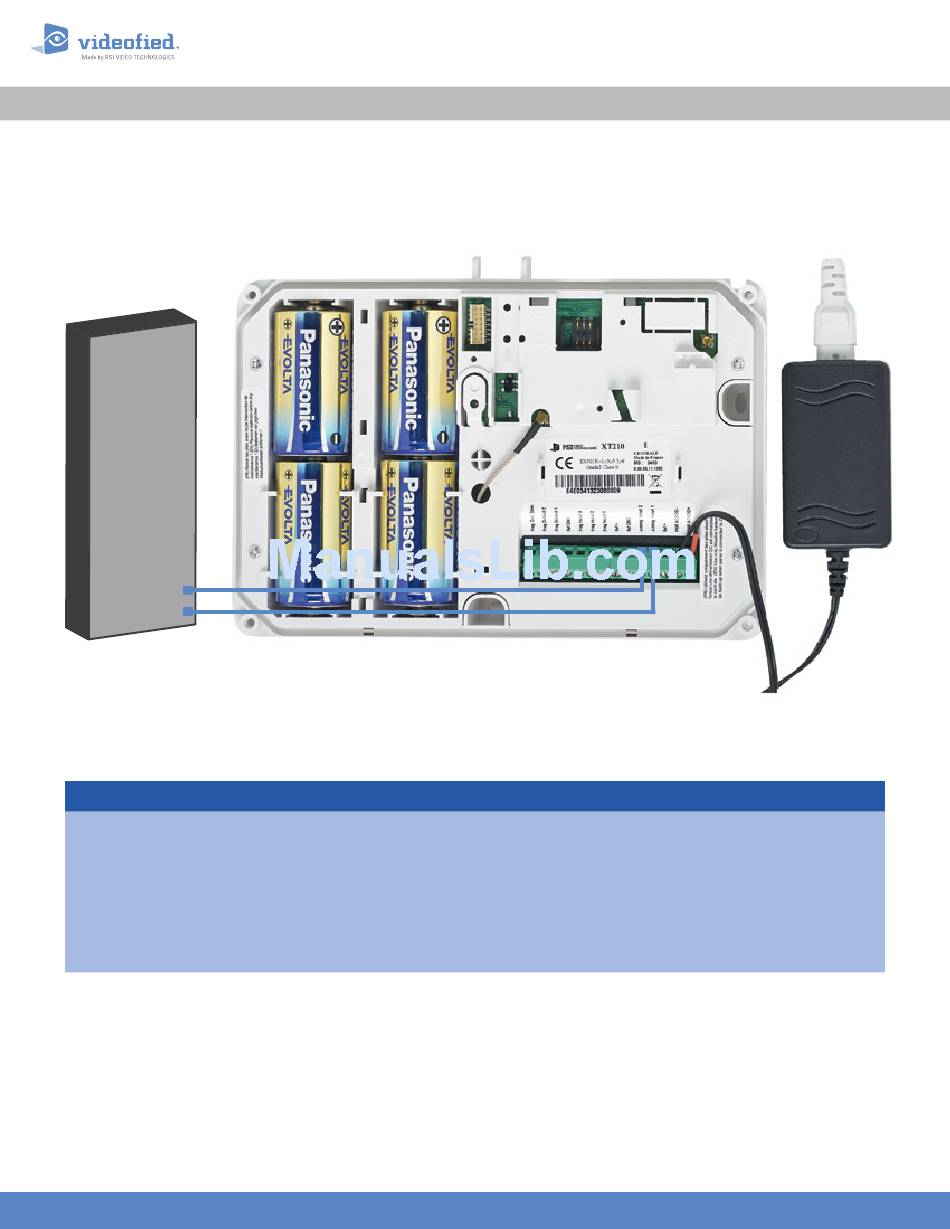

Videofied XT Application Note

Download this manual

Existing Host

Panel

Arming O/P 2

Arming O/P 1

Index

1. Introduction

2. Arming and disarming from 9-12 V

2.1

Master system with external 12 V

2.2

Master system with dry contact

3. Arming and disarming from a XT master system.

A P P L I C A T I O N

www.videofied.com

XTENDER Mode

N O T E

Doc. - Ref. 240-XT

Version : March 2014

Page 2

Page 3

Page 4

Page 5

Need help?

Do you have a question about the XT and is the answer not in the manual?

Page 1 1. Introduction Page 2 2. Arming and disarming from 9-12 V Page 3 Master system with external 12 V Page 4 Master system with dry contact Page 4 3. Arming and disarming from a XT master system. Page 5 www.videofied.com...
Page 2 The XT panels used in XTENDER or used as master system must be powered by an AC power supply. When the XT panel is used in XTENDER mode, the system will only be able to arm and disarm by latching 9-12 V to its arming inputs Arming Input 1 and/or Arming Input 2.
Page 3: Arming Mode
A P P L I C A T I O N N O T E How to parameter a XT for arming/disarming with any master system supplying 9-12 V or a dry contact ? XTENDER mode should be set up during the panel initial configuration.
Page 4 12 V DC Contact 220V AC Master system with dry contact XT Panel The master system opens or closes a contact command the XT arming/disarming. The wiring scheme is as follow : Master System with dry contact 220V AC www.videofied.com...
Page 5 Both master panel programmable outputs will switch the same relay*. In the example below you can see that Prog. Output 1 triggers when the master XT is arming and Prog. Output 2 triggers when the master panel is disarming. Those outputs will switch a 12 V impulse relay that will power the other panels arming inputs.
