Videofied
®
- Model XL GPRS
Security System
Made by RSI VIDEO TECHNOLOGIES
Document No. 2100-XL Jan. 2010
Installation
Manual
S
ubscriber linked to the monitor station by GPRS
for video and audio confirmation
XL GPRS means XL600GPRS for USA/Canada, XL700GPRS for Australia and
XL200GPRS for Europe and rest of the world.
EMEA Hotline : +33 (0)820 846 620 / UK : 0871 951 / Espagne : +34 90 166 77 00
USA Hotline : 877-206-5800

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the XL GPRS and is the answer not in the manual?

Questions and answers

Related Manuals for Videofied XL GPRS

Summary of Contents for Videofied XL GPRS

  • Page 1 GPRS for video and audio confirmation XL GPRS means XL600GPRS for USA/Canada, XL700GPRS for Australia and XL200GPRS for Europe and rest of the world. EMEA Hotline : +33 (0)820 846 620 / UK : 0871 951 / Espagne : +34 90 166 77 00...

  • Page 2: Table Of Contents

    Contents Regulatory Information for USA Preamble..................1 FCC Part 15 Changes or modifications made to this equipment not expressly approved 1. Preparation before programming ........... 2 by RSI Video Technologies may void the FCC authorization to operate this equipment. FCC Part 15 Class B This equipment has been tested and found to comply with the 2.

  • Page 3: Preamble

    Preamble • Characteristics of the XL panel The XL GPRS panel is specially designed for monitoring. It incorporates the main functions available in the VISIO panel The XL panel incorporates: range, including in particular: - A GPRS/GSM transmitter - Video verification...

  • Page 4: Preparation Before Programming

    1. Preparation before programming • On a piece of paper : Define the partial arming profiles (combinations of • areas, see paragraph 5 and the partial programs on page 7). Name the 4 geographical zones • Ask the end user to prepare his/her codes A geographical zone corresponds to a surface where all the sensors are armed/disarmed together.

  • Page 5: The Golden Rules

    2. The golden rules The keypad becomes inactive after 40 seconds of The ITRA110/600 and DCVA200/600/700 (devices inactivity, in order to make the display to reappear, with pet immune) should never be placed press on the [YES] key. in stairs, or near stairs. (Risk of untimely triggerings). Use alkaline batteries for the panel and for the interior and exterior sirens.

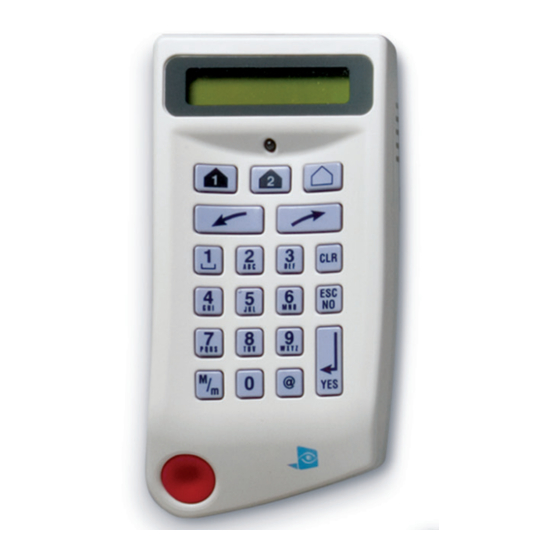

  • Page 6 3. Installation and programming Display of the keypad Actions and commentaries KEYPAD 1 RECORDED < - LANGUAGE - > to select the language. ENGLISH Verify the range : A regular flashing or a RADIO RANGE value of 2/5 or better indicates a sufficient TEST ? RF radio .
  • Page 7 Keypad Programming 3. Installation and programming Display of the keypad Actions and commentaries ACCOUNT NUMBER : Enter the Transmittor code + PERIODIC TEST PERIODIC TEST : to change the period + 24 HOURS TEST HOUR : to increase hours + , and do the same for minutes.
  • Page 8 3. Installation and programming By default your GPRS panel has parameters of the ORANGE operator. It is necessary to modify the 3 parameters that characterise the connection to another operator (SFR or BOUYGUES, WYLESS, T-MOBILE, ATT...). Remark : GPRS Parameters is Case Sensitive ! (use the M/m key of the keypad to change Capital /Small letters). ORANGE BOUYGUES ......

  • Page 9: End Of Installation

    4. End of installation You have recorded and fix all the devices, record the remote controls, then with the question : Display of the keypad Actions and commentaries ENTERING A NEW DEVICE ? OPERATION (Close the cover of the panel) COMPLETED ? SYSTEM CHECK IN PROGRESS...

  • Page 10: Delete The Keypad

    5. How to ... 5.2 Delete the keypad Display of the keypad Actions and commentaries ACCESS LEVEL ACCESS LEVEL Use the right arrow to increment the level to 4. LEVEL : 3 => 4 BADGE OR CODE Enter the installer code + ACCESS LEVEL Use the right arrow to go to the CONFIGURATION menu.

  • Page 11: Register The Keypad Again On An Xl Panel

    5. How to ... 5.3 Register again a CMA keypad on an XL panel without opening the cover Activate the touch-sensitive keypad by placing your hand over it. Enter in special mode by pressing for 3 seconds on the and the numerical keypad starts to flash. Display of the keypad Actions Type the code 000000 then...

  • Page 12: Detail Of The Menu : Alarm Codes

    Details of the menu : ALARM CODE Signalling events by default (except if you are In all cases, be sure to check that the configuration of your XL using pre programming) system is suitable for your needs. By default are not transmited: By default these events are transmited: INITIALIZATION DEVICE (intrusions)

  • Page 13: Table Of Gprs Codes

    7. Table of GPRS error code correspondances !!! The PIN code of the SIM cards must either be disactivated or be 0000 !!! During the GPRS level test, if there is an error an associated code appears in place of the the GPRS level. Start the test again after first error.

  • Page 14: Numeric Keypad

    Hot line : +33 (0)820 846 620 Hot Line : 877-206-5800 Fax : +33 (0)3 90 20 66 36 Fax : 651-762-4693 www.videofied.com © 2009 RSI Video Technologies Videofied® is a Registered Trademark of RSI Video Technologies. Specifications subject to change without notice.
  • Page 15 - Installation data sheet “Synoptics of the menus” - Installation data sheet “Remote control” XL GPRS means XL600GPRS for USA/Canada, XL700GPRS for Australia and XL200GPRS for Europe and rest of the world. EMEA Hotline : +33 (0)820 846 620 / UK : 0871 951 / Espagne : +34 90 166 77 00...

  • Page 17: Arming And Disarming

    Special Mode 1 or 2 Perimeter Keys of the Code + + or + Code + + + Code + Keypad Disarming Fully Armed Special Mode 1 or 2 Perimeter Keys of the + Code + + Code + + Code + Keypad CMA means CMA600 for USA/Canada, CMA700 for Australia/ www.videofied.com Singapore and CMA200 for Europe and rest of the world.
  • Page 18 Hot line : +33 (0)820 846 620 / UK : 0871 951 Fax : 651-762-4693 Fax : +33 (0)3 90 20 66 36 www.videofied.com © 2009 RSI Video Technologies Videofied® is a Registered Trademark of RSI Video Technologies. Specifications subject to change without notice.
  • Page 19 Hot line : +33 (0)820 846 620 / UK : 0871 951 Fax : 651-762-4693 Fax : +33 (0)3 90 20 66 36 www.videofied.com © 2009 RSI Video Technologies Videofied® is a Registered Trademark of RSI Video Technologies. Specifications subject to change without notice.
  • Page 21 Outdoor MotionViewer I N S T A L L A T I O N D A T A S H E E T Made by RSI VIDEO TECHNOLOGIES Installation height of the outdoor camera : 2m80 to 3m (9’ to 9 1/2’) to the bottom of the camera The outdoor MotionViewer detector DCV250/DCV650/ Screw cover Screw + Allen...
  • Page 22 Hot line : +33 (0)820 846 620 / UK : 0871 951 Fax : 651-762-4693 Fax : +33 (0)3 90 20 66 36 www.videofied.com © 2009 RSI Video Technologies Videofied® is a Registered Trademark of RSI Video Technologies. Specifications subject to change without notice.
  • Page 23 Hot line : +33 (0)820 846 620 / UK : 0871 951 Fax : 651-762-4693 Fax : +33 (0)3 90 20 66 36 www.videofied.com © 2009 RSI Video Technologies Videofied® is a Registered Trademark of RSI Video Technologies. Specifications subject to change without notice.
  • Page 25 Hot line : +33 (0)820 846 620 / UK : 0871 951 Fax : 651-762-4693 Fax : +33 (0)3 90 20 66 36 www.videofied.com © 2009 RSI Video Technologies Videofied® is a Registered Trademark of RSI Video Technologies. Specifications subject to change without notice.
  • Page 27 Hot line : +33 (0)820 846 620 / UK : 0871 951 Fax : 651-762-4693 Fax : +33 (0)3 90 20 66 36 www.videofied.com © 2009 RSI Video Technologies Videofied® is a Registered Trademark of RSI Video Technologies. Specifications subject to change without notice.
  • Page 29 According to the version of the Videofied panel, if we use the remote control to arm the system, it transfers the time out beeps (which will enable you to know if the contact of the site remained open : 4 seconds long beep on the remote control, if everything is ok, the remote control transfers the beeps normally).
  • Page 31 Hot line : +33 (0)820 846 620 / UK : 0871 951 Fax : 651-762-4693 Fax : +33 (0)3 90 20 66 36 www.videofied.com © 2009 RSI Video Technologies Videofied® is a Registered Trademark of RSI Video Technologies. Specifications subject to change without notice.
  • Page 33 Recording of the proximity reader The proximity reader can be placed in the interior or exterior The alarm panel must be put in "Recording device mode", and because the electronic card is weather proof. This device is used the keypad must display“PRESS PROGRAM BUTTON OF for arming and disarming a VIDEOFIED system. The recording ® DEVICE”. of the badge reader in a recording area makes that area and all Fix the base with marks «TOP-HIGH», upwards.
  • Page 34 Delete a code With the keypad, go to the menu : Display of the keypad Actions and commentaries ENTER A BADGE / CODE DELETING BADGES / CODES Then to chose the concerned badge to select the badge. DELETING CODE to accept the deletion ACCESS 5 BADGE DELETED Then repeat the operation for other badges or press on [ESC] for 5 seconds to return to the initial menu. www.videofied.com BR means BR650 for USA/Canada, BR750 for Australia/Singapore and BR250 for Europe and rest of the world.
  • Page 35 The to chose the cocerned badge and to select the badge. MODIFY NAME BADGE / CODES Then as many times as possible to select the required LEVEL ACCESS 3 level. Then for 5 seconds to return to the initial au menu. Reminder: LEVEL 1 = Arming, disarming and partials. LEVEL 2 and 3 = LEVEL 1 + Reading event logs + Changing date and time + Check of the correct functioning of the system BR means BR650 for USA/Canada, BR750 for Australia/Singapore and www.videofied.com BR250 for Europe and rest of the world.
  • Page 36 Hot line : +33 (0)820 846 620 / UK : 0871 951 Fax : 651-762-4693 Fax : +33 (0)3 90 20 66 36 www.videofied.com © 2009 RSI Video Technologies Videofied® is a Registered Trademark of RSI Video Technologies. Specifications subject to change without notice.
  • Page 37 Hot line : +33 (0)820 846 620 / UK : 0871 951 Fax : 651-762-4693 Fax : +33 (0)3 90 20 66 36 www.videofied.com © 2009 RSI Video Technologies Videofied® is a Registered Trademark of RSI Video Technologies. Specifications subject to change without notice.
  • Page 39 Hot line : +33 (0)820 846 620 / UK : 0871 951 Fax : 651-762-4693 Fax : +33 (0)3 90 20 66 36 www.videofied.com © 2009 RSI Video Technologies Videofied® is a Registered Trademark of RSI Video Technologies. Specifications subject to change without notice.

  • Page 41: General Information

    The SD photoelectronic smoke detector with built-in wireless transmitter is intended for use with wireless Videofied alarm The mounting base installation is simplified by the incorporation systems that support SD series devices. Refer to alarm panel of features compatible with drywall fasteners or other methods installation instructions for compatibility.
  • Page 42 Smoke Detector SD I N S T A L L A T I O N I N S T R U C T I O N During initial power-up, the red and green LEDs will blink synchronously once every 5 seconds. It will take approximately 20 seconds for the detector to finish the power-up cycle (see Table 1).
  • Page 43 Smoke detectors are not to be used with detector guards unless the combination has been evaluated and found suitable for that purpose. SD means SD600 for USA/Canada and SD200 for Europe and rest of www.videofied.com the world.

  • Page 44: Specifications

    Hot line : +33 (0)820 846 620 / UK : 0871 951 Fax : 651-762-4693 Fax : +33 (0)3 90 20 66 36 www.videofied.com © 2009 RSI Video Technologies Videofied® is a Registered Trademark of RSI Video Technologies. Specifications subject to change without notice.

  • Page 45: Main Menu

    = variant of the firmware & x x = i n d i c a t i o n o f ev o l u t i o n o f t h e f i r m w a r e To know the version of the firmware, enter the code 000000+YES in the menu of wait in BADGE / CODE DISARMED mode. Display of the keypad : List Software Version DG2.06.32.10.C1 C: Access code necessary www.videofied.com...

  • Page 46: Menu Configuration

    Fax +33 (0)3 90 20 66 36 Fax 651-762-4693 www.videofied.com © 2009 RSI Video Technologies Videofied® is a Registered Trademark of RSI Video Technologies. View ® is a registered trademark of RSI Video Technologies. Specifications subject to change without notice.
