Videofied ICT702 Installation Sheet

INSTALLATION SHEET
Product presentation

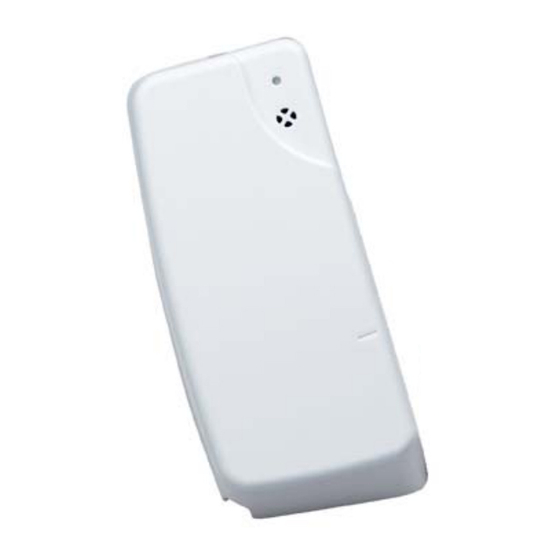

The ICT 702 universal door contact is designed
for use with Videofied™ wireless security
systems.
The contact includes the following features :
• Completely wireless and powered by a
Lithium battery
• Dual tamper function provides detection for
both wall and cover tamper
• Transmits check-in/status signal every 8
minutes
• Wired input for wired detectors connection
Programming/RF Testing/Mounting
The following provides
programming, testing and mounting. For complete details, refer to
the control panel installation manual.
1 Loosen the screw, open the box and
insert the batteries.
2 Close the box and tighten the screw.
3 Put control panel into configuration
mode.
4 Using a programmed keypad, proceed
through menus until the display shows ADD
A NEW DEVICE.
5 Press YES/OK. The display shows
PRESS PROGRAM BUTTON OF DEVICE.
6 Using a paperclip, press and release the
contact INIT button.
The contact LED flashes. Wait for the
keypad to display DETECTOR (1-24)
RECORDED.
7 Press YES/OK. The display shows
RADIO RANGE TEST?
Press YES/OK again. The detector LED
starts flashing and keypad display shows
TEST IN PROGRESS.
8 Take the detector to its intended
mounting location and make sure that the
LED flashes continuously, indicating good
communication with the control panel.
9 Press YES/OK to end the radio range test then press ESC NO.
10 The display shows AREA ASSIGNMENT AREA: 1. Press either
arrow button repeatedly until desired AREA number appears, then
press YES/OK.
INDOOR CONTACT TRANSMITTER ICT702
summarized steps for

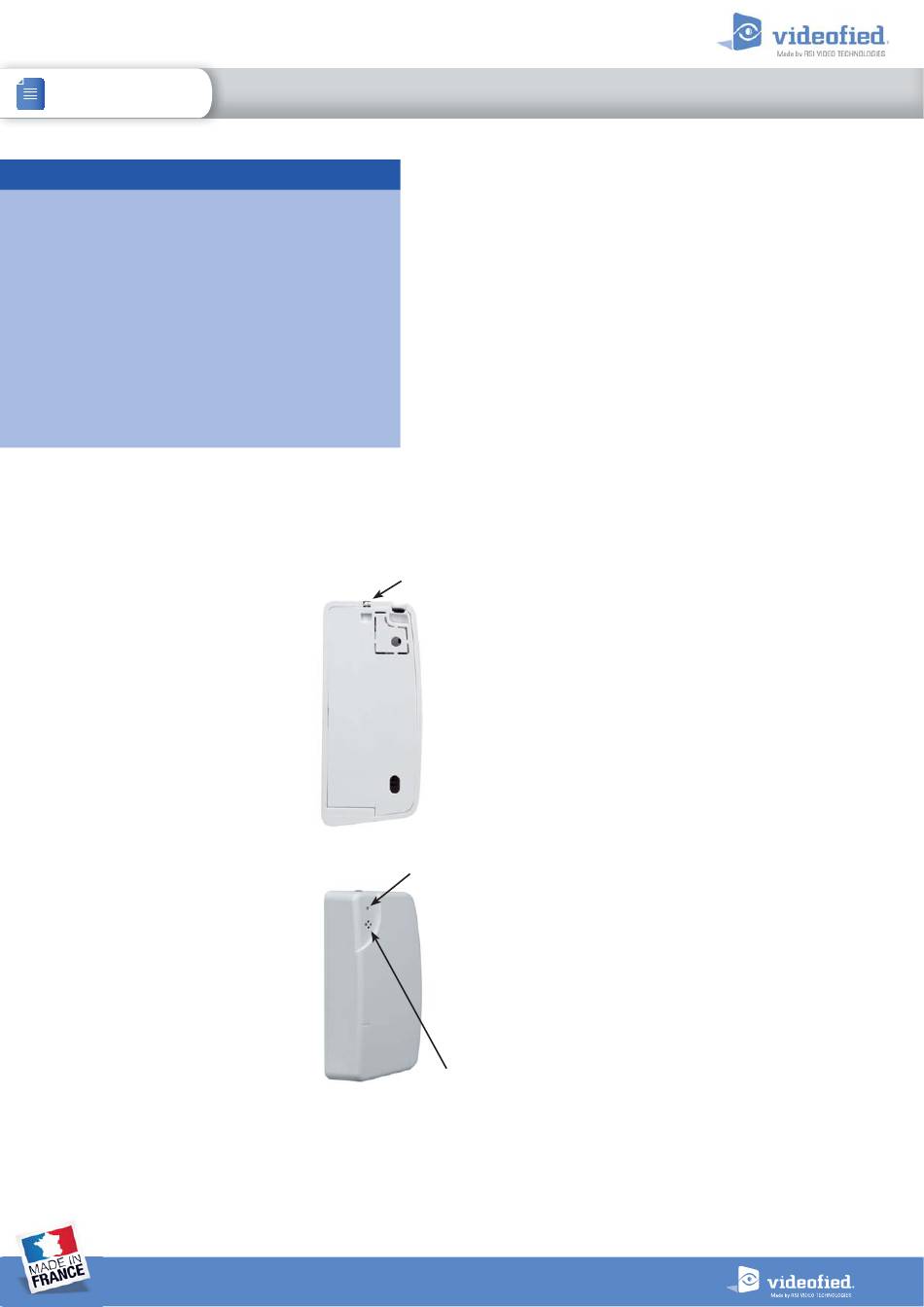

Screw
INIT button
Installation guidelines
For easier installation, programming and RF testing should be done
before mounting to check for good communication between the
control panel and all system devices
system devices in the following order:
Programming/RF Testing - program detector and all other
>
devices into the control panel and test RF communication from
each intended device location to the control panel.
Mounting - Mount detector at the tested location.
>
device
11 The display shows PERIMETER DEVICE?
Press YES/OK or ESC NO, whichever is appropriate for this device
(a device configured as PERIMETER will be armed for the "E" and
perimeter special arming modes, only contacts protecting the
external accesses should be configured for perimeter arming).
12 The display shows NAME + LOCATION:
Enter appropriate device name/location (up to 16 characters), then
press YES/OK. The display shows the device number and name for
confirmation.
13 Press YES/OK. The display shows:
FUNCTIONAL DEVICE TEST?
Caution: the panel records the current state of the detector
and the current state of the wired input as being the normal
state at the beginninfg of the functional device test :
• The door contact must be closed at the beginning of the
detection test to be configured as Normally Closed NC.
• If the wired input is open when recorded, it will be
configured as Normally Open NO(and conversely).
That setting cannot be changed unless the contact is
deleted from the panel programming and recorded again.
Press YES/OK again and verify detector operation. For example,
move the magnet next to the detector to make the LED go off,
then move the magnet away from detector to make LED turn on
indicating detection.
LED
14 Press YES/OK to end detection verification.
15 The display shows ENTERING A NEW DEVICE?
Repeat steps 1 - 14 for remaining detectors.
DOC. - REF. 219-ICT-AUS
MODIF. DATE : MAY 2017
VERSION : XX.XX.XX
. Install the detector and other
