Videofied IDC Series Install Sheet

INSTALL SHEET
Product Summary

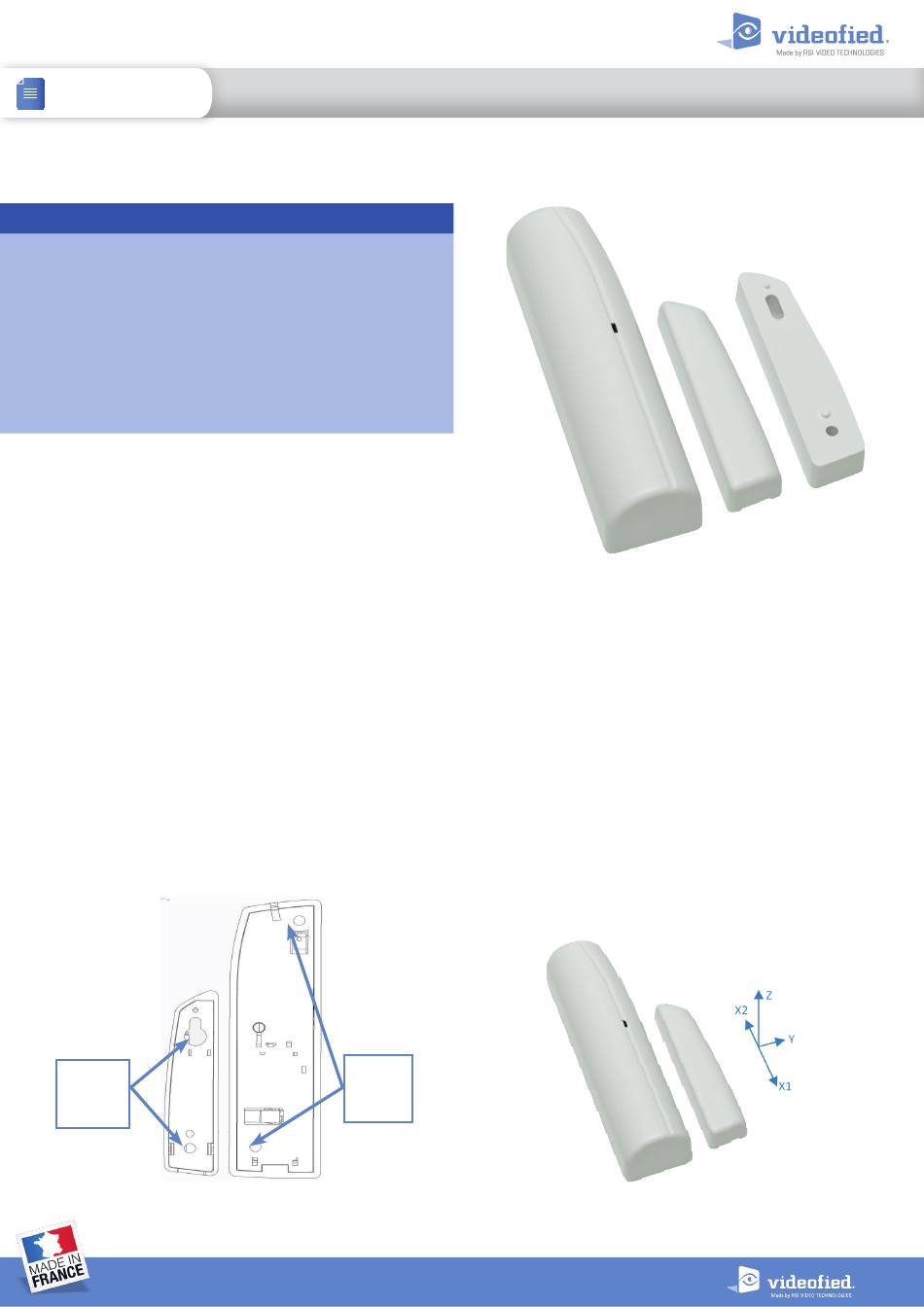

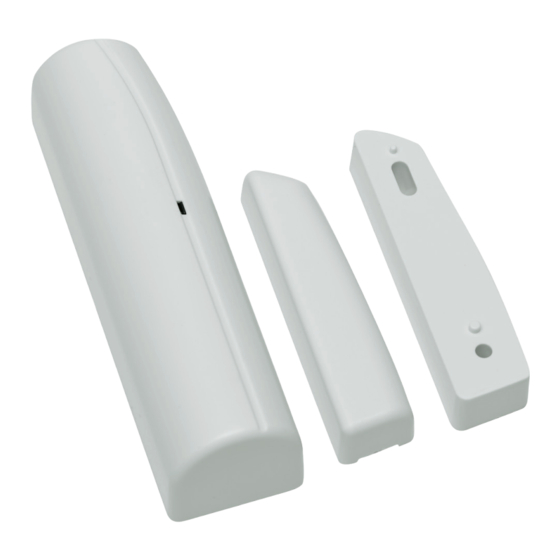

The Indoor Door Contact IDC 200/601/702 is a wireless
door/window contact designed for use with Videofied
security systems. The contact includes the following
features:
> Uses 1 Duracell CR123A Lithium battery for long life.
> Dual tamper function provides detection for both wall
and cover tamper.
> Transmits check-in/status signal every 8 minutes.
Installation Guidelines
For easier installation, programming and RF testing should be done
before mounting to check for good communication between the
control panel and all system devices.
Install the detector and other system devices in the following order:
Programming/RF Testing - program detector and all other devices
>
into the control panel and test RF communication from each intended
device location to the control panel.
Mounting - Mount detector at the tested location.
>
Door
Mounting
Holes
Magnet
IDC INDOOR DOOR CONTACT
®
Wall
Mounting
Holes
Base
Mounting Rules
>
Use proper tools and hardware.
>
Mount indoors in a temperature controlled environment.
>
Mount detector on frame and magnet assembly on movable
opening (door, window).
>
Do not exceed 20 mm (6/8") gap between detector and magnet.
>
Magnet spacer must be used to match magnet height with detector
to ensure correct alignment and functionality.
>
Do not install product on ferromagnetic surfaces.
DOC. - REF. 219-IDC
MODIF. DATE : MAY 2017
Doc. - Ref. 219-IDC
Version : April 2014
1
