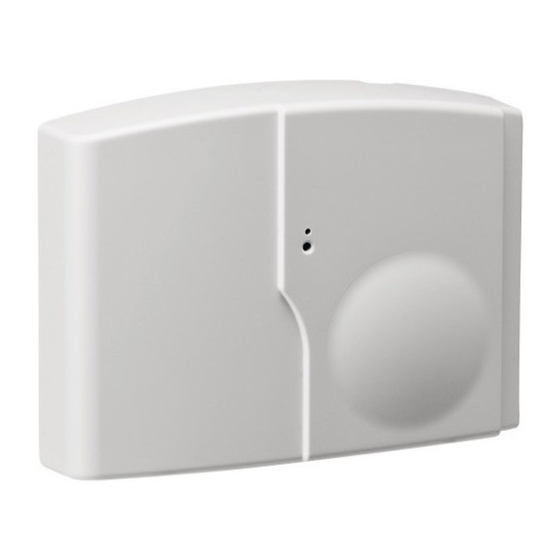

Introduction Description The XV control panel is a Videofied wireless, battery operated hybrid alarm system. It is designed for residential and small business security applications or commercial applications like warehouses and places with internet service. With Motion Viewers™ and the Videofied line-up, the XV control panel will provide video and audio verification on intrusion. -
Page 3: Table Of Contents
6. Level test GPRS error........................17 7. Specials codes ..........................17 8. Programmable Wired Inputs ......................18 9. Mapping Function ......................... 18 10. Programmable Wired Output ...................... 19 11. XV Power Values ......................... 20 12. XV Wireless Devices ........................20 15. XV Datasheet ..........................21... -
Page 4: Setup
EN.V1 Installation manual XV 1. XV setup ** THIS SYSTEM REQUIRES A CMA200 FOR PROGRAMMING** XV installation Open the Control Panel Use a screwdriver; unscrew the 2 screws holding the panel together Install the SIM card Install the SIM card... -
Page 5: Programming
EN.V1 Installation manual XV 2. XV Programming ** A CMA200 IS NECESSARY TO CONFIGURE THE XV PANEL ** Reset the Xv Panel : Press and hold the programming button ( ) for 10sec until the Indicator LED blinks twice ... - Page 6 EN.V1 Installation manual XV RADIO RANGE The Radio Range test must be run during the learn in TEST ? process in order to ensure proper pairing with the control panel. This test is the strength of communication between the device and the control panel. The keypad will display a...
- Page 7 EN.V1 Installation manual XV DATE (Month) : Use the to set the Month. 11/10/ DATE (Day) : 11/10/01 DATE (Day) : Use the to set the Day. 11/01/01 TIME (HOUR) : 00:00 TIME (HOUR) : ...
- Page 8 EN.V1 Installation manual XV CODE/STATE MODIFICATION ? CODE/STATE modification These are the default transmitted events: Intrusions TRANS. STATE Panic MODIFICATION Periodic Test Tamper Supervision Fault Device Battery Low Panel Battery Low List of all events If you would like any other events to be transmitted press...
- Page 9 GPRS LEVEL in programming. *For explanation of GPRS errors see page 17 IMPORTANT : Videofied will require a 3/5 or better for reliable transmission of Video alarms. GPRS LEVEL? ESC/NO Press YES/OK if you are going to select the full compatibility COMPATIBILITY EN with EN50131.
- Page 10 EN.V1 Installation manual XV AREAS CONFIGURATION Enter the name of the logical area 1 + YES. Repeat this step for areas 2, 3, 4. Refer to page 4 for more information. AREA NAME 1: Press ESC/NO if you want to let default value.
-
Page 11: Panel
XV Features: - Two Programmable inputs and one programmable output and have a mapping function that allows you to trigger a video from a Videofied Motion Viewer upon any event. - Two dedicated connectors to extend the GPRS and Radio range. -
Page 12: Tp200 Speakers / Microphone
Installation manual XV 4. TP200 Speakers / Microphone With the XV panel it will be possible to do two way voice communications. You can connect up to two wired TP200 (microphone & speakers). The two way voice module TP200 isn’t include in the panel for safety reasons. -
Page 13: Configuration
[YES] Use the keypad to name the badge or code or leave it blank for the default name: ACCESS #. + [YES] The XV-IP system can accept up to 19 Badges or Access codes in any combination. Reserved Codes... - Page 14 EN.V1 Installation manual XV 5.2 Configure the Special Arming mode To configure or modify a special arming mode, with the direction arrow go to the menu: CONFIGURATION (LEVEL 4) + [YES] ALARM MODES PROGRAMMABLE + [YES] FULLY ARMED, SP1 and SP2 (use direction arrows to select the arming mode you want to modify + [YES]).
- Page 15 EN.V1 Installation manual XV The first three GPRS parameters are given by your SIM card provider. GPRS parameters are provided by the cellular carrier. It is necessary to enter the correct information for the carrier you use. Remark: GPRS Parameters are Case Sensitive! (use the M/m key of the keypad to change between upper / lower case letters).
- Page 16 EN.V1 Installation manual XV 5.6 Events to transmit To configure or modify the events to transmit, go to: CONFIGURATION + [YES] >> MONITORING CONFIGURATION + [YES] >> ALARM CODES + [YES] >> TRANS. STATE MODIFICATION + [YES] The status “alarm” corresponds to the event, and the status “end” corresponds to end of the event.
-
Page 17: Level Test Gprs Error
EN.V1 Installation manual XV The option « WARNING BEEP » is triggered during scheduled arming delay. To configure this option, go to: CONFIGURATION (Level 4) + [YES] AREAS AND DEVICES + [YES] WARNING BEEPS + [YES] 6. Level test GPRS error IMPORTANT: The PIN of the SIM card has to be deactivated or 00000. -
Page 18: Programmable Wired Inputs
Example of an application using the programmable input: a panic button will transmit a panic event. 9.Mapping Function The mapping function is available on the XV panel configuration. With this option it is possible to ask for one DCV200 or DCV250 a ten video second on event or when a programmable input triggered. -
Page 19: Programmable Wired Output
Installation manual XV 10. Programmable Wired Output One wired programmable output is available on the XV-IP panel. To use and configure this programmable output, please read the application note ”Prog_Output”. Example of an application using the programmable output: on intrusion, trigger a spot light for 3... -
Page 20: Power Values
EN.V1 Installation manual XV 11. XV Power Values Below is the table of values accepted by the XV panel. 12. XV Wireless Devices Compatibility The XV GPRS works with all the following Videofied wireless devices:... -
Page 21: Datasheet
EN.V1 Installation manual XV 15. XV Datasheet Electrical Data Communicator Power requirements (option1) Communicator type ............GPRS Power supply Type B......... 12VDC / 2A Protocol..............Frontel Back up ......4x Alkalines 1.5V, D, LR20 IP stack ............... TCP/IP Battery life ............1 year VIdeo transmission .........
