Videofied ISMV 200 Install Sheet

INSTALL SHEET

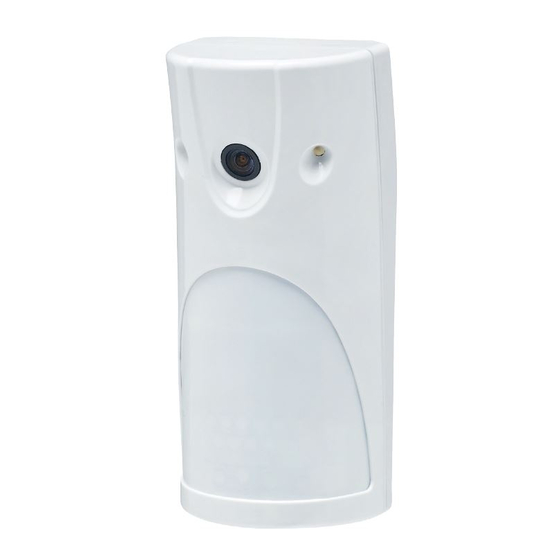

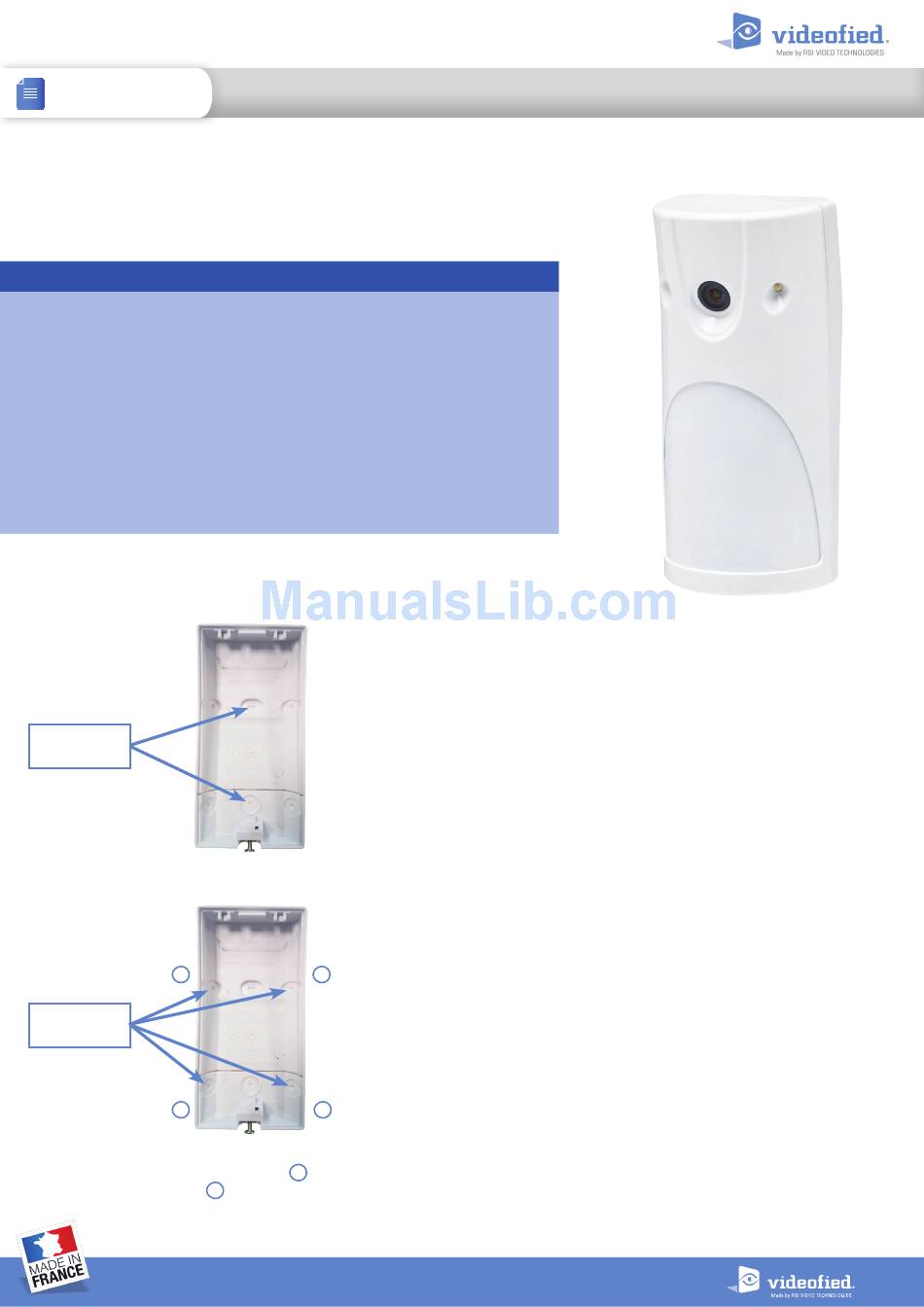

The ISMV 200/601/702 is a wireless, battery-powered, motion
activated indoor video camera. It can also be activated by user request.
• Wireless technology for optimal security.
• Color video (lighted sites) or black & white (night vision).
• Infrared LED for night vision.
• Standard motion coverage lens.
• Wall and cover tamper.
• Powered by 3 Lithium CR123A batteries for extended autonomy.
• Device supervision every 8 minutes.
• Video capture and transmission in «streaming mode» on user request.
Flat wall
mounting holes
1
Corner
mounting holes
1
Only use 2 of the 4
mounting holes.
or
ISMV STREAMING MOTIONVIEWER
Main features

Installation guidelines

For an easier installation, programming and RF testing should be done to check
for good communication between the control panel and all system devices
before mounting.
Install the detector and other system devices in the following order:
Programming / RF Testing: Program detector and all other devices into the
>
control panel and test RF communication at each intended device location to the
control panel.
Mounting: Mount detector at the tested location.
>
Mounting rules
>
Use proper tools and hardware.
> Mount indoors in a temperature controlled environment.
2
>
Mount camera 2.1m from the floor.
>
Respect Top and Bottom side of the Motion Viewer
> When possible, mount in a wall corner in order to aim at a
complete room
>
Mount detector on an outside wall, aimed at area to protect.
2
>
Do not aim detector at windows, especially those that let in direct sunlight, or at
heat sources such as lamps, fireplaces, radiators and heating vents.
>
1 Do not aim detector at moving objects such as curtains, fans or animals.
2 .
> Do not cover the Fresnel lens.
DOC. - REF. 212-ISMV
MODIF. DATE :NOVEMBER 2016
1
