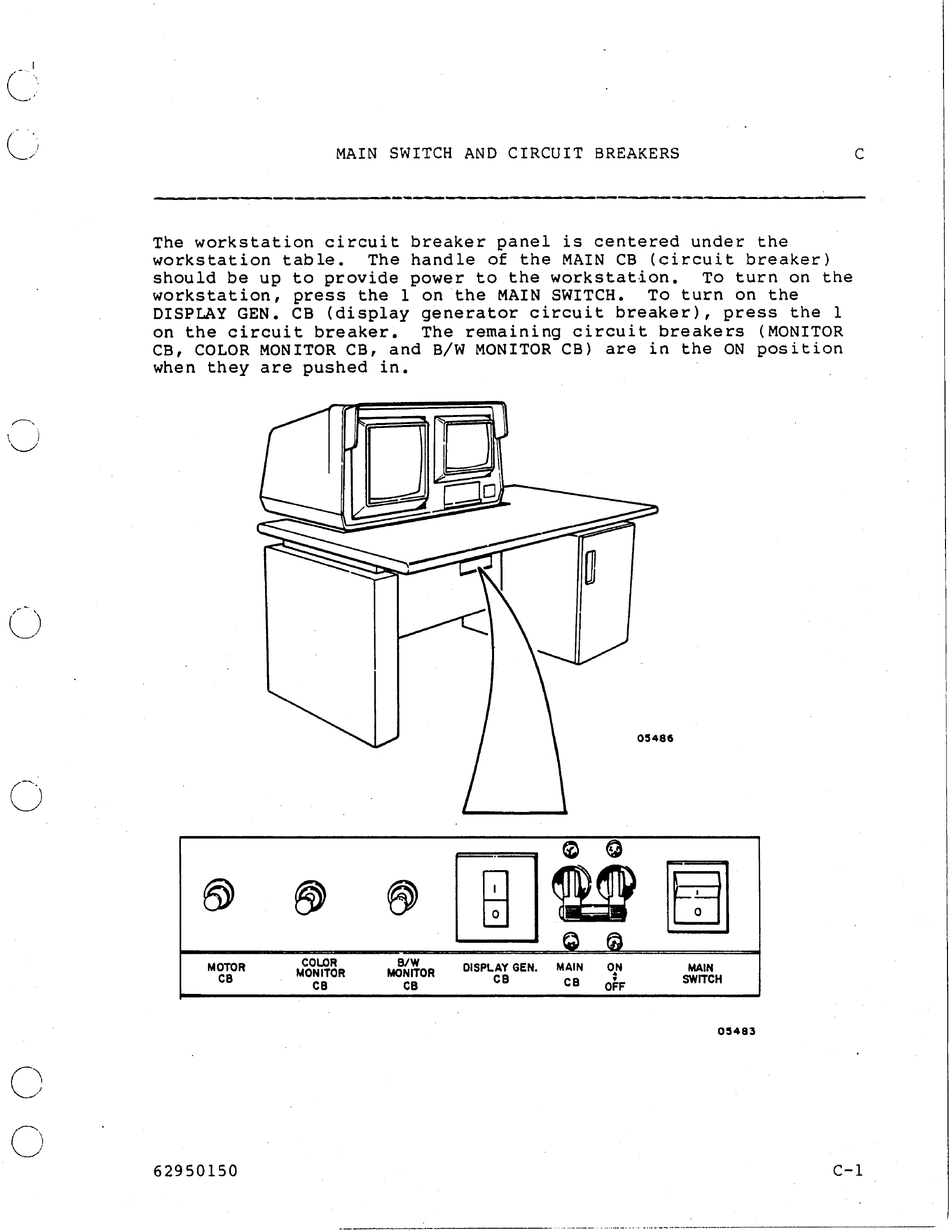

MAIN SWITCH AND CIRCUIT BREAKERS
The workstation circuit breaker panel is centered under the
workstation table. The handle of the MAIN CB (circuit breaker)
should be up to provide power to the workstation. To turn on the
workstation, press the 1 on the MAIN SWITCH. To turn on the
DISPLAY GEN. CB (display generator circuit breaker), press the 1
on the circuit breaker. The remaining circuit breakers (MONITOR
CB, COLOR MONITOR
ca,
and
a/w
MONITOR CB) are in the ON position
when they are pushed in.
~
~
