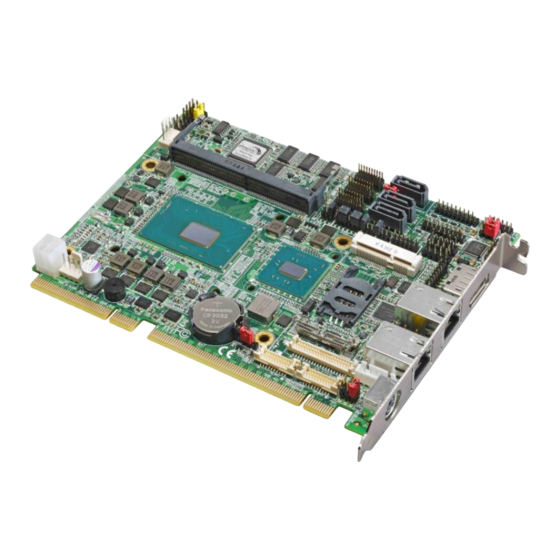

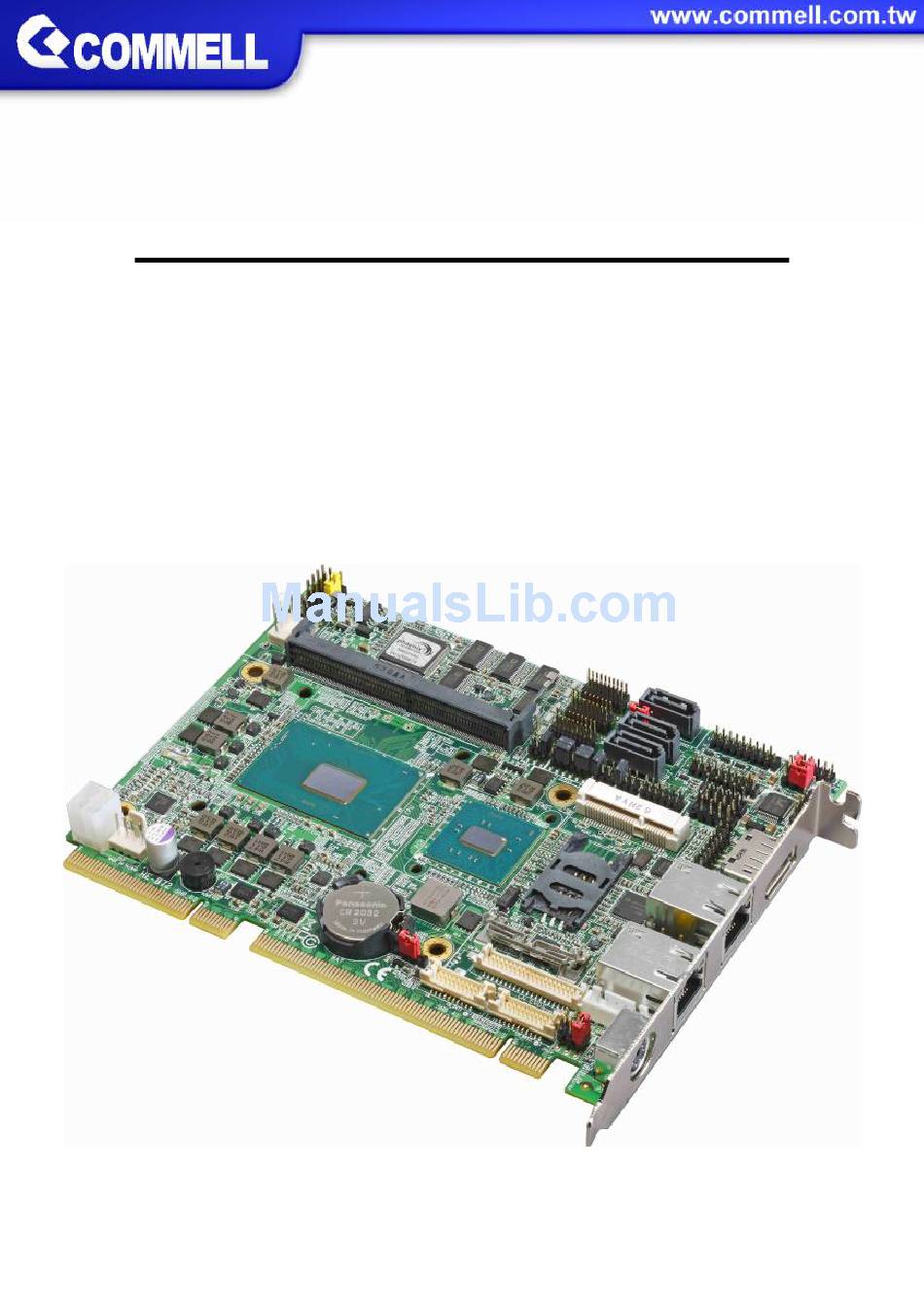

- Page 1 HE-B72 PICMG 1.3 Half-size CPU Card User’s Manual Edition 1.5 2017/10/19...
- Page 2 HE-B72 User’s Manual Copyright Copyright 2017, all rights reserved. This document is copyrighted and all rights are reserved. The information in this document is subject to change without prior notice to make improvements to the products. This document contains proprietary information and protected by copyright. No part of this document may be reproduced, copied, or translated in any form or any means without prior written permission of the manufacturer.
-
Page 3: Packing List
HE-B72 User’s Manual Packing List: Please check the package content before you starting using the board. 1 x HE-B72 PICMG 1.3 Half-size CPU Card (include Cooler Fan) 2 x SATA Cable 1 x VGA Cable (OALSATA3-L) / (1040529) (OALVGA-S-7) / (1040556) 1 x PS/2 Keyboard &... -
Page 4: Table Of Contents
HE-B72 User’s Manual Index Chapter 1 <Introduction>............... 4 1.1 <Product Overview>............4 1.2 <Product Specification> ............5 1.3 <Block Diagram>..............6 Chapter 2 <Hardware setup>............7 2.1 <Connector Location and Reference> ........ 7 2.1.1 <Internal connectors list> ..........8 2.1.2 <External connectors list>.........8 2.2 <Memory Setup>..............9... -
Page 5: Chapter 1
All in One multimedia solution HE-B72 provides high performance onboard graphics, 18/24-bit single/dual channel LVDS interface, DisplayPort, DVI-D, VGA and High Definition Audio, to meet the requirement of the multimedia application. -
Page 6: Product Specification
HE-B72 User’s Manual 1.2 <Product Specification> System Intel® Skylake Core™ i7, i5, i3 H-seriesProcessor, Processor FCBGA1440 package Chipset Intel® QM170 PCH-H 2 x DDR4 SO-DIMM 2133 MHz up to 32GB, Memory Support Non-ECC, unbuffered memory only Watchdog Timer Generates a system reset with internal timer for 1min/s ~ 255min/s... -
Page 7: Block Diagram
HE-B72 User’s Manual 1.3 <Block Diagram> 1 x DisplayPort Channel A 2 X DDI DDR4 SO-DIMM 1.2V 2 x DVI-D PTN3355 Gen Processor Channel B DDR4 SO-DIMM 1.2V 1 x VGA PCI Express X16 PTN3460 (Backplane) DMI GEN3 1 x LVDS... -
Page 8: Chapter 2
HE-B72 User’s Manual Chapter 2 <Hardware setup> 2.1 <Connector Location and Reference> DDR4_B CN_COM5/6 SATA3-3 CN_COM3/4 SATA3-2 CN_COM1/2 SATA3-1 CN_DIO CN_AUDIO JFRNT CN_USB 3-1 CPUFAN CN_USB 3-2 CN_USB2-2 CN_LPC CN_USB2-1 CN_CRT MINICARD2 SIMM CN_SMBUS CN_LVDS CN_LVDS CN _INV CN_12V SYSFAN... -
Page 9: Internal Connectors List
HE-B72 User’s Manual 2.1.1 <Internal connectors list> Connector Function DDR4_A/B 260-pin DDR4 SO-DIMM slot SATA3-1/2/3 7-pin Serial ATA3 connector CN_AUDIO 5 x 2-pin audio pin header CN_LPC 6 x 2-pin LPC pin header CN_LVDS 20 x 2-pin LVDS connector CN_INV... -
Page 10: Memory Setup
HE-B72 User’s Manual 2.2 <Memory Setup> In the process, the board must be powered off. 1. Put the memory tilt into the slot. Note the Memory notch key aligned slot key. 2. Then press down till lock into the mounting notch. -
Page 11: Jumper Location And Reference
HE-B72 User’s Manual 2.3 <Jumper Location and Reference> JVSATA3-3 JCSEL1 JCSEL2 JP1 JP2 JVUSB JMSATA JVLCD JRTC 2.3.1 <Jumper list> Jumper Function Power mode select JRTC CMOS Normal/Clear Setting JVLCD Panel Voltage Setting JMSATA MiniCard 2 MSATA Setting COM1 Voltage Setting (For Pin 9) -
Page 12: Clear Cmos And Power On Type Selection
HE-B72 User’s Manual 2.3.2 <Clear CMOS and Power on type selection> The board’s data of CMOS can be setting in BIOS. If the board refuses to boot due to inappropriate CMOS settings, here is how to proceed to clear (reset) the CMOS to its default values. -
Page 13: Ethernet Interface
HE-B72 User’s Manual 2.4.2 <Ethernet interface> The board provide I219-LM PHY Gigabit Ethernet and I210-AT Gigabit Ethernet on rear I/O.Intel I219-LM and I210 supports operation at 10/100/1000 Mb/s data rates, with IEEE802.3 compliance and Wake-On-LAN supported. I219-LM I210-AT Display Port 2.4.3 <Display interface>... - Page 14 HE-B72 User’s Manual CN_CRT: VGA 16-pin connector (Pitch 2.00 mm) Signal Signal IOGND1 IOGND1 IOGND1 IOGND1 IOGND1 5VCDA 5HSYNC 5VSYNC 5VCLK CN_LVDS: LVDS 40-pin connector ( Model: HIROSE DF13-40DP-1.25V compatible Signal Signal Set by JVLCD Set by JVLCD Detect (Active low)
- Page 15 HE-B72 User’s Manual CN_INV: LVDS 5-pin Backlight power connector Signal Backlight Control Enable Backlight JVLCD: LVDS panel power select jumper Jumper settings Function 3.3V (Default) CN_DVI: DVI onboard 20-pin connector Signal Signal Ground TMDSTX0N TMDSTX0P Ground TMDSTX1N TMDSTX1P Ground TMDSTX2N...
-
Page 16: Serial Port Interface
HE-B72 User’s Manual 2.4.4 <Serial Port interface> CN_COM5/6 CN_COM3/4 CN_COM1/2 JCSEL1 JCSEL2 COM1/2:COM 20-pin header (Pitch 2.54 x 1.27mm) Signal Signal DCD1 RXD1 TXD1 DTR1 GND1 DSR1 RTS1 CTS1 DCD2/422TX-/485- RXD2/422TX+/485+ TXD2/422RX+ DTR2/422RX- DSR2 RTS2 CTS2 Use JCSEL1 and JCSEL2 to select communication mode... - Page 17 HE-B72 User’s Manual JCSEL1, JCSEL2: For configure COM2 communication mode Function JCSEL1 JCSEL2 RS232 (Default) RS485 RS422 COM3/4: COM 20-pin header (Pitch 2.54 x 1.27mm) Signal Signal DCD1 RXD1 TXD1 DTR1 DSR1 RTS1 CTS1 DCD2 RXD2 TXD2 DTR2 DSR2 RTS2 CTS2 COM5/6: COM 20-pin header (Pitch 2.54 x 1.27mm)
-
Page 18: Usb Interface
HE-B72 User’s Manual JP1, JP2: COM1, COM2 pin-9 setting Jumper settings Function RI (Default) Effective patterns of connection: 1-2 / 3-4 / 5-6 Other may cause damage 2.4.5 <USB interface> CN_USB3-1 JVUSB CN_USB3-2 CN_USB2-1 CN_USB2-2 CN_USB 2-1/2-2: USB2.0 10-pin header (Pitch 2.54 mm) -
Page 19: Audio Interface
HE-B72 User’s Manual CN_USB3-1/3-2: USB3.0 20-pin header (Pitch 2.00 mm) Signal Signal (5V_SB/ 5V) USB3.0_RX0- (5V_SB/ 5V) USB3.0_RX0+ USB3.0_RX1- Ground USB3.0_RX1+ USB3.0_TX0- Ground USB3.0_TX0+ USB3.0_TX1- Ground USB3.0_TX1+ Data0- Ground Data0+ Data1- Data1+ JVUSB: 6-pin Power select jumper (For CN_USB 3-1 / 3-2) Description 1-3 &... -
Page 20: Expansion Slot
HE-B72 User’s Manual 2.4.7 <Expansion slot> SIMM MINI_CARD2 MINI_CARD1 JMSATA MINI_CARD2 support mSATA by JMSATA, and connect SIM card with 3G module. JMSATA: Setting MINI_CARD2 to support PCIe/mSATA Jumper settings Function Support mSATA Normal operation (Default) -19-... -
Page 21: Front Panel Switch And Indicator
HE-B72 User’s Manual 2.4.8 <Front panel switch and indicator> JFRNT JFRNT: Front panel switch and indicator 14-pin header (Pitch 2.54mm) Signal Signal HDD_LED+ Power_LED+ HDD_LED- Reset+ Power_LED- Reset- Speaker+ Power_ON+ Power_ON- Speaker- 2.4.9 <GPIO and Other interface> CN_DIO CPUFAN CN_LPC... - Page 22 HE-B72 User’s Manual When using GPIO function, please note: As Output: Open-drain, most applications need use an external pull up resistor. (If not may cause damage) As Input: TTL-level. GPIO DC characteristics Parameter UNIT Conditions Input Low Voltage Input High Voltage...
-
Page 23: Power Supply
HE-B72 User’s Manual CN_SMBUS: SMBus 5-pin connector (Pitch 2.54mm) Signal SMBDAT SMBCLK CPUFAN: CPU cooler fan 4-pin connector Signal Sensor Control SYSFAN: System cooler fan 4-pin connector Signal Sensor Control 2.5 <Power supply> 2.5.1 <Power input> (need Backplane) CN_12V CN_12V: ATX12V 4-pin connector... -
Page 24: Appendix A
HE-B72 User’s Manual Appendix A <Flash BIOS> A.1 <Flash tool> The board is based on Phoenix BIOS and can be updated easily by the BIOS auto flash tool. You can download the tool online at the address below: FPT TOOL The tool’s file name is “fpt.exe”, it’s the utility that can write the data into the... - Page 25 HE-B72 User’s Manual BIOS panel type selection form (BIOS Version:1.0) Single / Dual channel Single / Dual channel Type Type VBIOS DEFAULT 1366 x 768 640 x 480 1680 x 1050 800 x 600 1920 x 1200 1024 x 768...
-
Page 26: Appendix C
HE-B72 User’s Manual Appendix C <Programmable Watch Dog Timer> The watchdog timer makes the system auto-reset while it stops to work for a period.The integrated watchdog timer can be setup as system reset mode by program.You can select Timer setting in the BIOS, after setting the time options, the system will reset according to the period of your selection. -
Page 27: Appendix D
HE-B72 User’s Manual -o 4F 01 ; activate WDTO# function -o 4E F5 -o 4F 00 ;set “00” is second mode, set “04” is minute mode -o 4E F6 -o 4F 05 ;00h: Timeout Disable ;01h: Timeout occurs after 1 minute only ;02h: Timeout occurs after 2 second/minute... -
Page 28: Appendix E
HE-B72 User’s Manual Appendix E <Programmable GPIO > The GPIO’ can be programmed with the MS-DOS debug program using simple IN/OUT commands. The DC characteristics please refer to GPIO paragraph GPIO -o 4E 87 ;enter configuration -o 4E 87 -o 4E 07 -o 4F 07 ;select Logical Device... -
Page 29: Appendix F
HE-B72 User’s Manual Appendix F <RAID Setting> When use RAID function, it need to enter the BIOS set RAID mode first. [Advanced] [Intel Advanced Menu] [PCH-IO Configuration] [SATA Configuration] [SATA Mode Selection] If this screen stop time is too short, it can be set in the BIOS. -
Page 30: Contact Information
Taiwan Commate computer Inc. 19F., NO.94, Sec. 1, Xintai 5 Rd., Xizhi Dist., New Taipei Address City 22102, Taiwan. +886-2-26963909 +886-2-26963911 Website www.commell.com.tw info@commell.com.tw (General infomation) E-mail tech@commell.com.tw (Technical Support) Commell is a brand name of Taiwan Commate computer Inc. -29-...
