User Manual

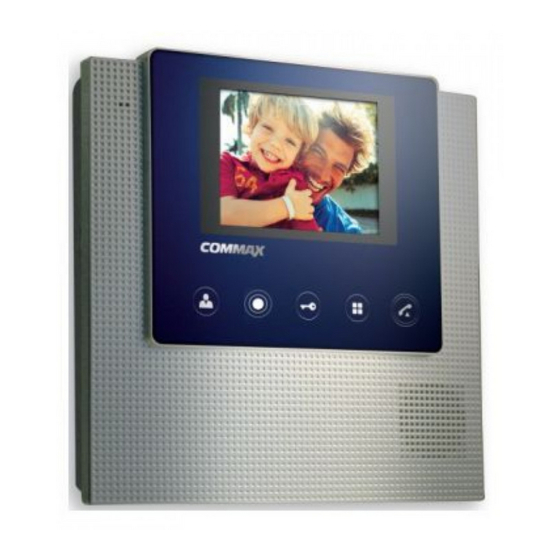

Color video door phone CDV-35U
Thank you for purchasing COMMAX products.
Please carefully read this User's Guide (in particular, precautions for safety) before using a product and follow
instructions to use a product exactly.
The company is not responsible for any safety accidents caused by abnormal operation of the product.
www.safemag.ru
www.safemag.ru
Advertisement
Table of Contents
Related Manuals for Commax CDV-35U
Summary of Contents for Commax CDV-35U
-
Page 1: User Manual
User Manual Color video door phone CDV-35U Thank you for purchasing COMMAX products. Please carefully read this User’s Guide (in particular, precautions for safety) before using a product and follow instructions to use a product exactly. The company is not responsible for any safety accidents caused by abnormal operation of the product. -
Page 2: Table Of Contents
4. How to use this product ..................5 5. Initialization (RESET) ....................8 6. How to install......................9 7. Wiring ........................10 8. Parts list ......................12 9. Miscellaneous .....................12 10. Specification......................13 1. Greetings Thank you for choosing COMMAX. Please read this manual carefully before you use the product. www.safemag.ru... -
Page 3: Warnings And Caution
www.safemag.ru 2. Warnings and caution Please follow the things described below in order to prevent any danger or property damage. Prohibition. Warning It may cause a serious damage or No disassembly injury if violated. No touch Must follow strictly. Shows plugging out the power cord Caution It may cause a minor damage or without an exception... - Page 4 www.safemag.ru Warning Please don t disassemble, If an abnormal sound, burning Please don t insert any Please use only the designated repair or rebuild this product smell or smoke is coming out metallic or burnable materials batteries for the products of arbitrarily (please contact the of the product, please plug out into the ventilation hole.
-
Page 5: Parts And Function
www.safemag.ru 3. Parts and function Name Name POWER SWITCH DOOR RELEASE BUTTON/UP BUTTON POWER AND DISPLAY LED MENU BUTTON MICROPHONE TALK BUTTON LCD MONITOR SPEAKER MONITOR BUTTON CONNECTION TERMINAL INTERPHONE BUTTON / DOWN BUTTON 1. POWER SWITCH : ON/OFF switch 2. -
Page 6: How To Use This Product
www.safemag.ru 11. TERMINAL FOR EXTERIOR : terminal for product upgrade, entrance camera and interphone connection. 4. How to use this product 1. Call from the visitor When the visitor calls from the entrance(door camera), the calling sound rings and the image of the visitor is shown on the screen. - Page 7 www.safemag.ru ③ 3-way communication is possible between household, interphone and door camera when visi- tor calls from door camera, while household is talking with interphone. Image from door cam- era is displayed on the screen of household with calling sound and 3-way communication gets available.
- Page 8 www.safemag.ru - Volume of ringing sound and receiver sound consists of 3 steps and you cannot change it any more despite pressing UP/DOWN button with certain sound (beep beep sound)in Max/Min status. 5. Image setting_ BRIGHT / CONT / COLOR adjustment (available when the screen is on) ...
-
Page 9: Initialization (Reset)
www.safemag.ru - You are in COLOR adjustment mode. - Press the UP(Door release button) / DOWN(Interphone button) button in front of the product in order to adjust the condition of the COLOR. - After completing the set, save the revised setting value by pressing the menu button. (LED lamp will be changed from red to blue.) Reference : if you press the menu button, menu mode will work as follws. -
Page 10: How To Install
www.safemag.ru 6. How to install 1. Installation Method of Video Door Phone Note Avoid the range of direct sunlight Recommended height is pertinent from 1450 ~ 1500mm Avoid the installation near magnetic activity, humid temperatures and gas 2. Installation Method of Camera Note Do not install the camera where it is exposed to Direct sunlight Keep cleaning up its lens to capture good views. -
Page 11: Wiring
www.safemag.ru 7. Wiring Camera connector The wiring of this equipment is as follows, 1. Red : Voice 2. Blue : GND 3.Yellow : DC 12V 4.White : Video When using UTP CABLE[CAT.5] for better image quality, connect the rest 4 lines to GND after con- necting 4 lines with monitor and camera. - Page 12 www.safemag.ru DOOR Camera wiring When using UTP CABLE[CAT.5] for better image quality, connect the rest 4 lines to GND after connecting 4 lines with monitor and camera. DOOR Camera wiring When using UTP CABLE[CAT.5] for better image quality, connect the rest 4 lines to GND after connecting 4 lines with monitor and interphone.
-
Page 13: Parts List
8. Parts list Manual Body of CDV-35U Bracket for wall mount 4P Connector(2EA) M3 x 6(1EA) T4 X 18(4EA) Screw for body Screw for wall mount ① Main body(CDV-35U) ② Bracket for wall surface mounting ③ User Manual ④ Screw for wall bracket (SCREW GH1T 4X18 ZnY) - 4EA ⑤... - Page 14 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Int’l Business Dept. Tel. : +82-31-7393-540~550 Fax. : +82-31-745-2133 513-11, Sangdaewon-dong, Jungwon-gu, Seongnam-si, Gyeonggi-do, Korea Web site : www.commax.com Int’l Business Dept. Tel. : +82-31-7393-540~550 Fax. : +82-31-745-2133 PM0735U00010 Printed In Korea / 2012.05.104 Web site : www.commax.com...
-
Page 15: Specification
10. Specification CDV-35U Model Spec Rating Voltage 100-240V~, 50/60Hz (FREE VOLTAGE) Consumption Operation: 10W(MAX) Transmission Entrance 4wires polarity, interphone 4wires polarity Screen size 3.5" TFT-DIGITAL LCD Call mode HANDS FREE Call mode (Voice switch circuit) Entrance : electronic chime,...
