DSL-2640U Wireless ADSL2+ Router with Ethernet WAN Support
User Manual

Creating WAN Connection

PPPoE or PPPoA Connection

In the Connection name field, specify a name for the connection for easier identification.
For ADSL WAN connection, fill in the VPI and VCI fields.
In the Username field, enter your login, and in the Password and Password confirmation
fields – the password provided by your ISP.
As a rule, the specified settings are enough to configure a connection of the selected type. If you
need to specify additional settings, open the expert settings mode. To do this, use the switch in the
bottom left corner of the page
Creating ADSL WAN Connection section, page 65 when creating ADSL WAN connection or the
Creating Ethernet WAN Connection section, page 73 when creating Ethernet WAN connection).
Click the Next button to continue.
After that the page displaying all specified settings opens. Click the Apply button to create the
connection or the Back button to specify other settings.
After clicking the Apply button, the page for checking the Internet availability opens (see the
Checking Internet Availability section, page 48).

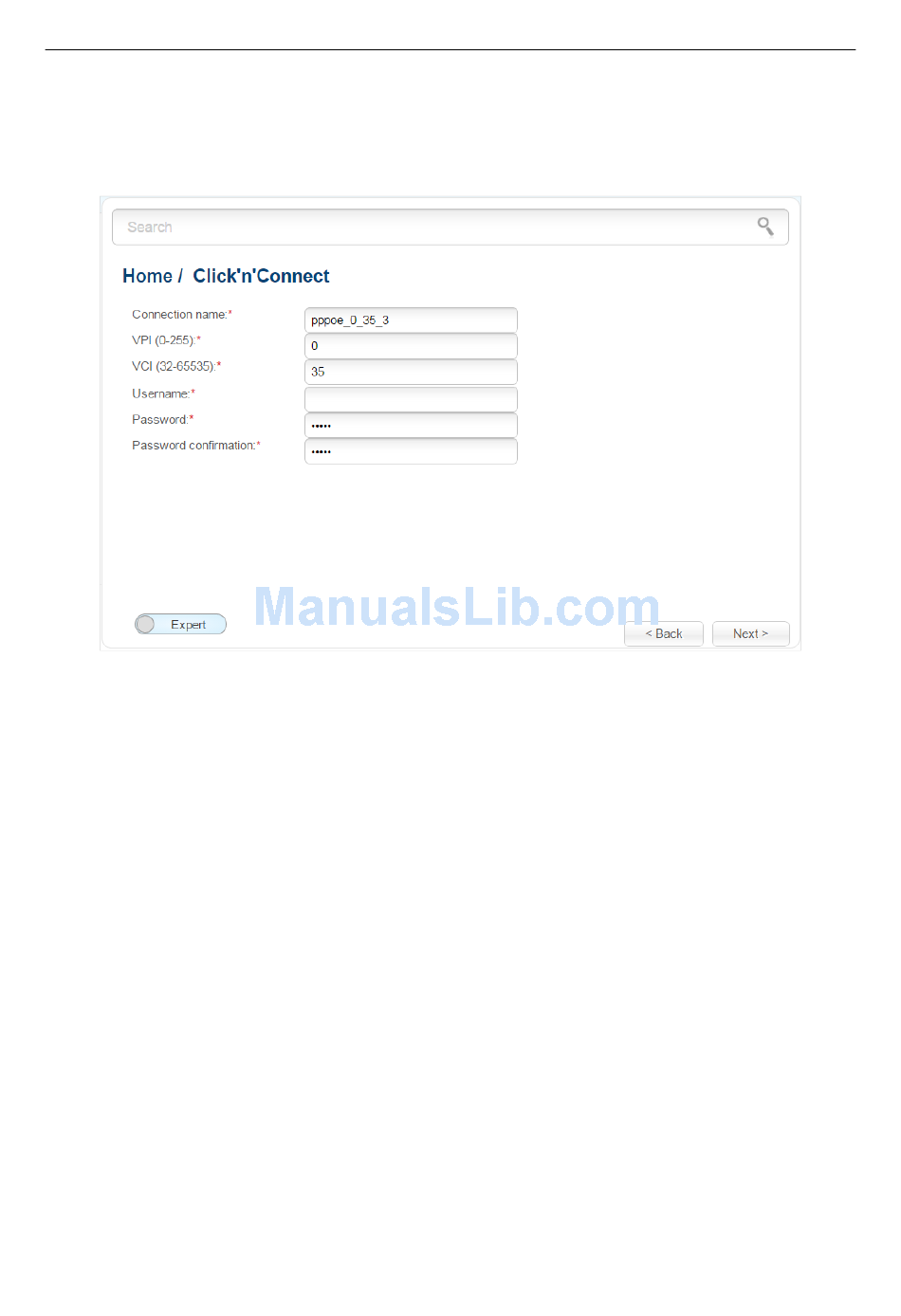

Figure 27. Configuring PPPoE WAN connection.
(for a detailed description of all the connection's parameters, see the
Page 41 of 146
Configuring via Web-based Interface
