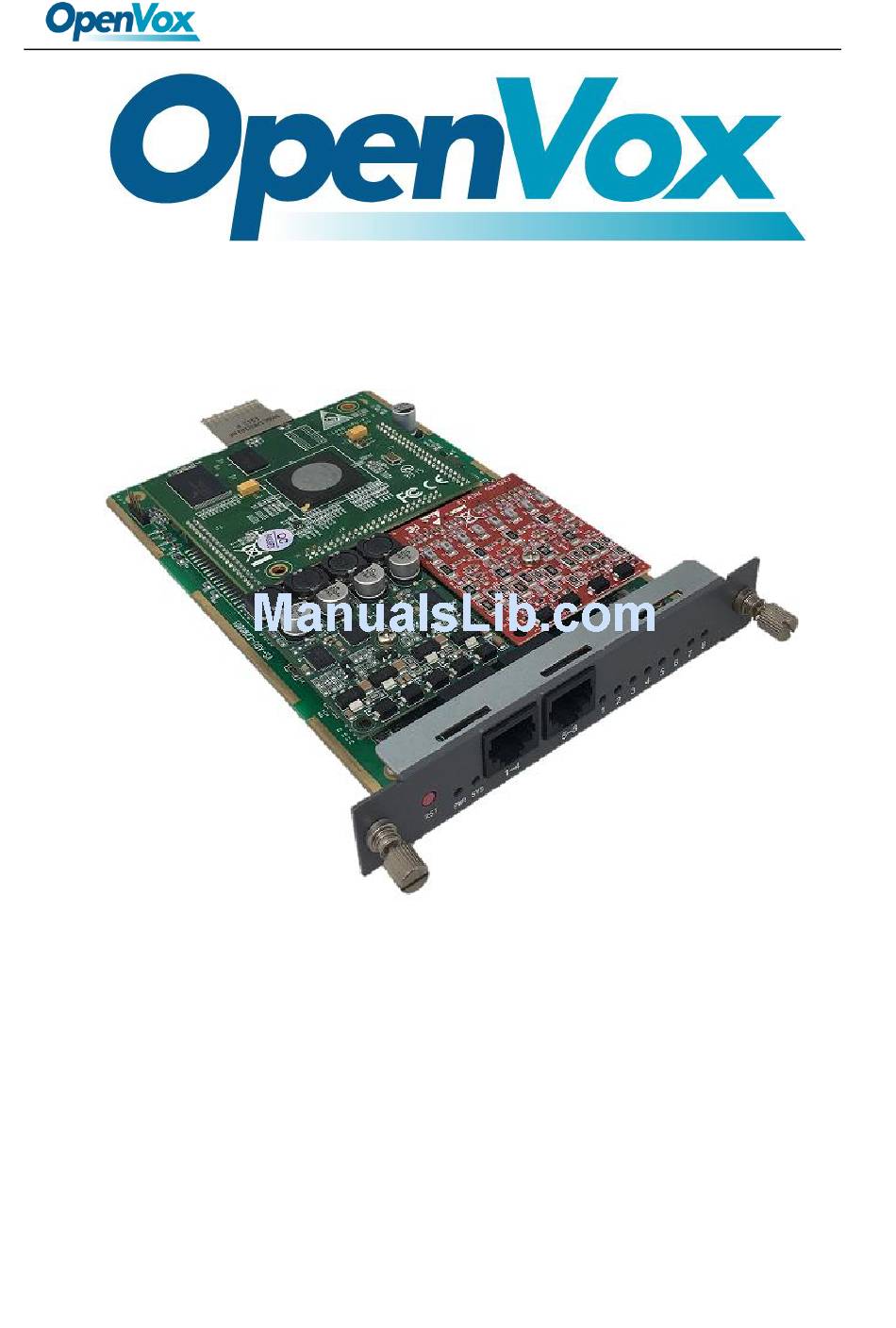

- Page 1 Analog Gateway User Manual OpenVox Communication Co Ltd Analog Gateway User Manual Version 1.0 OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
- Page 2 Address: 10/F, Building 6-A, Baoneng Science and Technology Industrial Park, Longhua New District, Shenzhen, Guangdong,China 518109 Tel: +86-755-66630978, 82535461, 82535362 Business Contact: sales@openvox.cn Technical Support: support@openvox.cn Business Hours: 09:00-18:00(GMT+8) from Monday to Friday URL: www.openvox.cn Thank You for Choosing OpenVox Products! OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
- Page 3 OpenVox has made every effort to ensure that the information contained in this document is accurate and complete; however, the contents of this document are subject to revision without notice. Please contact OpenVox to ensure you have the latest version of this document.
- Page 4 Analog Gateway User Manual Revise History Version Release Date Description 22/12/2017 First Version OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
-
Page 5: Table Of Contents
Analog Gateway User Manual Contents 1. Overview ................................8 What is Analog Gateway Series?........................8 Sample Application ............................8 Product Appearance ............................9 Main Features ..............................9 Physical Information ............................10 Software ................................10 2. System .................................. 12 Status ................................12 Time ................................. - Page 6 DDNS Settings ............................46 Toolkit ..............................47 7. Advanced ................................49 Asterisk API ..............................49 Asterisk CLI ............................... 51 Asterisk File Editor ............................52 8. Logs ..................................53 Log Settings ..............................53 System ................................55 OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
- Page 7 Analog Gateway User Manual CDR .................................. 55 OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
-
Page 8: Overview
1. Overview What is Analog Gateway Series? OpenVox Analog Gateway Series is an open source asterisk-based Analog VoIP Gateway solution for SMBs and SOHOs. With friendly GUI and unique modular design, users may easily setup their customized Gateway. Also secondary development can be completed through AMI (Asterisk Management Interface). -
Page 9: Product Appearance
The picture below is appearance of Analog Series Gateway. Figure 1-3-1 Product Appearance Figure 1-3-2 Front Panel 1: Reset button 2: Power Indicator 3: System LED 4: Analog Telephone Interface (2) 5: Channels State Indicator Main Features Modular design OpenVox Communication Co. ,LTD. URL: www.openvox.cn... -
Page 10: Physical Information
Physical Information Table 1-5-1 Description of Physical Information Weight 200g Size 22cm*2cm*12cm -40~125°C (Storage) Temperature 0~50°C (Operation) Operation humidity 10%~90% non-condensing Power source 12V DC/2A Max power Software Default IP: 172.16.99.1 Username: admin Password: admin OpenVox Communication Co. ,LTD. URL: www.openvox.cn... - Page 11 RJ45 Network ports to access to your gateway on the board, ETH1 and ETH2. ETH1 only can enter the ip of slot 1, and ETH2 can access every slot. You can choose either of them, that depends on your demand. Figure 1-6-1 Login Interface OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
-
Page 12: System
Figure 2-1-1 System Status Time Table 2-2-1 Description of Time Settings Options Definition System Time Your gateway system time. Time Zone The world time zone. Please select the one which is the same or the OpenVox Communication Co. ,LTD. URL: www.openvox.cn... -
Page 13: Login Settings
Your gateway doesn't have administration role. All you can do here is to reset what new username and password to manage your gateway. And it has all privileges to operate your gateway. You can modify both your “Web Login OpenVox Communication Co. ,LTD. URL: www.openvox.cn... - Page 14 Specify the web server port number. HTTPS Port Specify the web server port number. Port SSH login port number. Figure 2-3-1 Login Settings Notice: Whenever you do some changes, do not forget to save your configuration. OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
-
Page 15: General
Figure 2-4-2 Reboot Types If use your system frequently, you can set this enable, it can helps system work more efficient. Tools On the “Tools” pages, there are reboot, update, upload, backup and restore toolkits. OpenVox Communication Co. ,LTD. URL: www.openvox.cn... - Page 16 Sometimes there is something wrong with your gateway that you don’t know how to solve it, mostly you will select factory reset. Then you just need to press a button, your gateway will be reset to the factory status. Figure 2-5-4 Factory Reset OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
-
Page 17: Information
Analog Gateway User Manual Information On the “Information” page, there shows some basic information about the analog gateway. You can see software and hardware version, storage usage, memory usage and some help information. Figure 2-6-1 System Information OpenVox Communication Co. ,LTD. URL: www.openvox.cn... -
Page 18: Analog
You can see much information about your ports on this page. Channel Settings Figure 3-1-1 Channel System On this page, you can see every port status, and click action button to configure the port. Figure 3-1-2 FXO Port Configure OpenVox Communication Co. ,LTD. URL: www.openvox.cn... -
Page 19: Pickup Settings
“Time Out” and “Number” parameters either globally or separately for each port. The feature is accessed by pressing a special sequence of numbers which you set as “Number” parameter on the telephone set when it is enabled this function. Figure 3-2-1 Pickup Configure OpenVox Communication Co. ,LTD. URL: www.openvox.cn... -
Page 20: Dial Matching Table
Dialing rules is used to effectively judge whether the received number sequence is complete, in order to timely end receiving number and send out number The correct use of dial-up rules, helps to shorten the turn-on time of phone call Figure 3-3-1 Port Configure Advanced Settings OpenVox Communication Co. ,LTD. URL: www.openvox.cn... - Page 21 VAD/CNG Turn on/off VAD/CNG. Flash/Wink Turn on/off Flash/wink. Max flash time Max flash time.(in milliseconds). “#”as Ending Dial Key Turn on/off Ending Dial Key. Checking SIP Status Turn on/off SIP Account registration status checking. OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
- Page 22 Waiting time before sending CID channel.(in milliseconds). Sending polarity reversal(DTMF Only) Send polarity reversal before sending the CID on the channel. Start code(DTMF Only) Start code. Stop code(DTMF Only) Stop code. Figure 3-4-3 Hardware Gain OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
- Page 23 Figure 3-4-4 Fax Configuration Table 3-4-4 Definition of Fax Options Definition Mode Set the transmission mode. Rate Set the rate of sending and receiving. Enable/disable T.30 ECM (error correction mode) by default. Figure 3-4-5 Country Configuration OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
-
Page 24: Special Function Keys
Record tone Set of tones played when call recording is in progress. Set of tones played with special information messages (e.g., Info tone number is out of service.) Special Function Keys Figure 3-5-1 Function keys OpenVox Communication Co. ,LTD. URL: www.openvox.cn... -
Page 25: Sip
If you set up a SIP endpoint by registration “None” to a server, then you can’t register other SIP endpoints to this server. (If you add other SIP endpoints, this will cause Out-band Routes and Trunks confused.) OpenVox Communication Co. ,LTD. URL: www.openvox.cn... - Page 26 Figure 4-1-3 Register to Gateway Also you can choose registration by “This gateway registers with the endpoint”, it’s the same with “None”, except name and password. Figure 4-1-4 Register to Server OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
-
Page 27: Advanced: Registration Options
NAT Traversal Yes---Force Rport to always be on and perform comedia RTP handling. Rport if requested and comedia---Use Rport if the remote side says to use it and perform comedia RTP handling. Advanced: Registration Options OpenVox Communication Co. ,LTD. URL: www.openvox.cn... -
Page 28: Call Settings
Set default DTMF Mode for sending DTMF. Default: rfc2833. DTMF Mode Other options: 'info', SIP INFO message (application/dtmf-relay); 'Inband', Inband audio (require 64kbit codec -alaw, ulaw). Call Limit Setting a call-limit will cause calls above the limit not to be accepted. OpenVox Communication Co. ,LTD. URL: www.openvox.cn... -
Page 29: Advanced: Signaling Settings
SDP session if the version number Honor SDP Version change. Turn this option off to force the gateway to ignore the SDP session version number and treat all SDP data as new data. This is OpenVox Communication Co. ,LTD. URL: www.openvox.cn... -
Page 30: Advanced: Timer Settings
Request and run session-timers always; accept, run session-timers only when requested by other UA; refuse, do not run session timers in any case. Minimum Session Refresh Minimum session refresh interval in seconds. Default is 90secs. Interval OpenVox Communication Co. ,LTD. URL: www.openvox.cn... -
Page 31: Media Settings
If you want binding batch Sip accounts to FXS port, you can configure this page. Look out: this is only used when “This gateway registers with the endpoint” work mode. Figure 4-2-1 FXS Batch Binding SIP OpenVox Communication Co. ,LTD. URL: www.openvox.cn... -
Page 32: Batch Create Sip
SRV records Disabling DNS SRV lookups disables the ability Lookup to place SIP calls based on domain names to some other SIP users on the Internet specifying a port in a SIP peer definition or when dialing OpenVox Communication Co. ,LTD. URL: www.openvox.cn... -
Page 33: Nat Settings
Mapped TCP Port The external address (and optional TCP port) of the NAT. External Address = hostname[:port] specifies a static address[:port] to be used in External Address SIP and SDP messages.Examples: External Address = 12.34.56.78 OpenVox Communication Co. ,LTD. URL: www.openvox.cn... -
Page 34: Rtp Settings
Send compact SIP headers Headers Allows you to change the username filed in the SDP owner string. SDP Owner This filed MUST NOT contain spaces. Disallowed SIP The external hostname (and optional TCP port) of the NAT. OpenVox Communication Co. ,LTD. URL: www.openvox.cn... -
Page 35: Security
If available, match user entry using the 'username' field from the Match Auth Username authentication line instead of the 'from' field. Realm for digest authentication. Realms MUST be globally unique according Realm to RFC 3261. Set this to your host name or domain name. OpenVox Communication Co. ,LTD. URL: www.openvox.cn... -
Page 36: Media
183 Session Progress for early media). Default is 'yes'. Also make sure that the SIP peer is configured with progressinband=never. In order for 'noanswer' applications to work, you need to run the progress() OpenVox Communication Co. ,LTD. URL: www.openvox.cn... -
Page 37: Sip Account Security
TLS Verify Server Enable or disable tls verify server(default is no). Specify the port for remote connection. Port Values include tlsv1, sslv3, sslv2, Specify protocol for outbound client TLS Client Method connections, default is sslv2. OpenVox Communication Co. ,LTD. URL: www.openvox.cn... -
Page 38: Routing
0755 at the end, it will show caller name is China Telecom. Called transform adds 086 as prefix, and Change the last two number to 88. Figure 5-1-1 processing rules prepend prefix Match pattern SdfR StA RdfR Caller Name Calling Transformation 086 xxxxxxxx 0755 China telecom Called transformation xxxxxxx OpenVox Communication Co. ,LTD. URL: www.openvox.cn... - Page 39 Routing Name calls this route matches (for example, ‘SIP2GSM’ or ‘GSM2SIP’). Call Comes The launching point of incoming calls. From Send Call Through The destination to receive the incoming calls. Figure 5-1-3 Advance Routing Rule OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
- Page 40 StA(Suffix to Add): Designated information to be added to the right end of the current number. Caller Name: What caller name would you like to set before sending this call to the OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
-
Page 41: Groups
Ports or SIP to groups. Then if you want to make a call, it will find available port automatically. Figure 5-2-1 Group Rules You can click button to set new group, and if you want to modify existed group, you can click button. OpenVox Communication Co. ,LTD. URL: www.openvox.cn... -
Page 42: Batch Create Rules
If you bind telephone for each FXO port and want to establish separate call routings for them. For convenience, you can batch create call routing rules for each FXO port at once in this page. OpenVox Communication Co. ,LTD. URL: www.openvox.cn... - Page 43 Analog Gateway User Manual Figure 5-3-1 Batch Create Rules OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
-
Page 44: Network
A reserved IP address to access in case your gateway IP is not available. Remember to set a similar network segment with the following address of your local PC. Figure 6-1-1 LAN Settings Interface Table 6-1-1 Definition of Network Settings Options Definition OpenVox Communication Co. ,LTD. URL: www.openvox.cn... - Page 45 The reserved IP address for this gateway. Reserved Netmask The subnet mask of the reserved IP address. Basically this info is from your local network service provider, and you can fill in four DNS servers. Figure 6-1-2 DNS Interface OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
-
Page 46: Vpn Settings
About the configure format you can refer to the Notice and Sample configuration. Figure 6-2-1 VPN Interface DDNS Settings You can enable or disable DDNS (dynamic domain name server). Figure 6-3-1 DDNS Interface OpenVox Communication Co. ,LTD. URL: www.openvox.cn... -
Page 47: Toolkit
Your domain The domain to which your web server will belong. Toolkit It is used to check network connectivity. Support Ping command on web GUI. Figure 6-4-1 Network Connectivity Checking Figure 6-4-2 Channel Recording OpenVox Communication Co. ,LTD. URL: www.openvox.cn... - Page 48 Capture the data of destination host you specified Port Capture the data of port you specified Channel Capture the data of channel you specified The tool of tcpdump capture network data by parameter option Tcpdump Option Parameter specified. OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
-
Page 49: Advanced
Name of the manager without space Password for the manager. Manager secret Characters: Allowed characters “-_+.<>&0-9a-zA-Z”. Length:4-32 characters. If you want to deny many hosts or networks, use char & Deny as separator.Example: 0.0.0.0/0.0.0.0 or 192.168.1.0/255.2 55.255.0&10.0.0.0/255.0.0.0 OpenVox Communication Co. ,LTD. URL: www.openvox.cn... - Page 50 Once you set like the above figure, the host 172.16.80.16/255.255.0.0 is allowed to access the gateway API. Please refer to the following figure to access the gateway API by putty. 172.16.80.16 is the gateway’s IP, and 5038 is its API port. OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
-
Page 51: Asterisk Cli
In this page, you are allowed to run Asterisk commands. Figure 7-2-1 Asterisk Command Interface Table 7-2-1 Definition of Asterisk API Options Definition Type your Asterisk CLI commands here Command to check or debug your gateway. OpenVox Communication Co. ,LTD. URL: www.openvox.cn... -
Page 52: Asterisk File Editor
On this page, you are allowed to edit and create configuration files. Click the file to edit. Figure 7-3-1 Configuration Files List Click “New Configuration File” to create a new configuration file. After editing or creating, please reload Asterisk. OpenVox Communication Co. ,LTD. URL: www.openvox.cn... -
Page 53: Logs
On the “Log Settings” page, you should set the related logs on to scan the responding logs page. For example, set “System Logs” on like the following, then you can turn to “System” page for system logs, otherwise, system logs is unavailable. And the same with other log pages. Figure 8-1-1 Logs Settings OpenVox Communication Co. ,LTD. URL: www.openvox.cn... - Page 54 Auto clean: cut a half of the file. New logs will be retained. (Call Detail switch off : Record) logs will remain, and the file size will increase gradually. default on, default size=20MB. OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
-
Page 55: System
The same to Asterisk Logs and SIP Logs. You can scan every call detail records in this page. We also provide the filter for you to search some specific records. Figure 8-3-1 Call Detail Record OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
