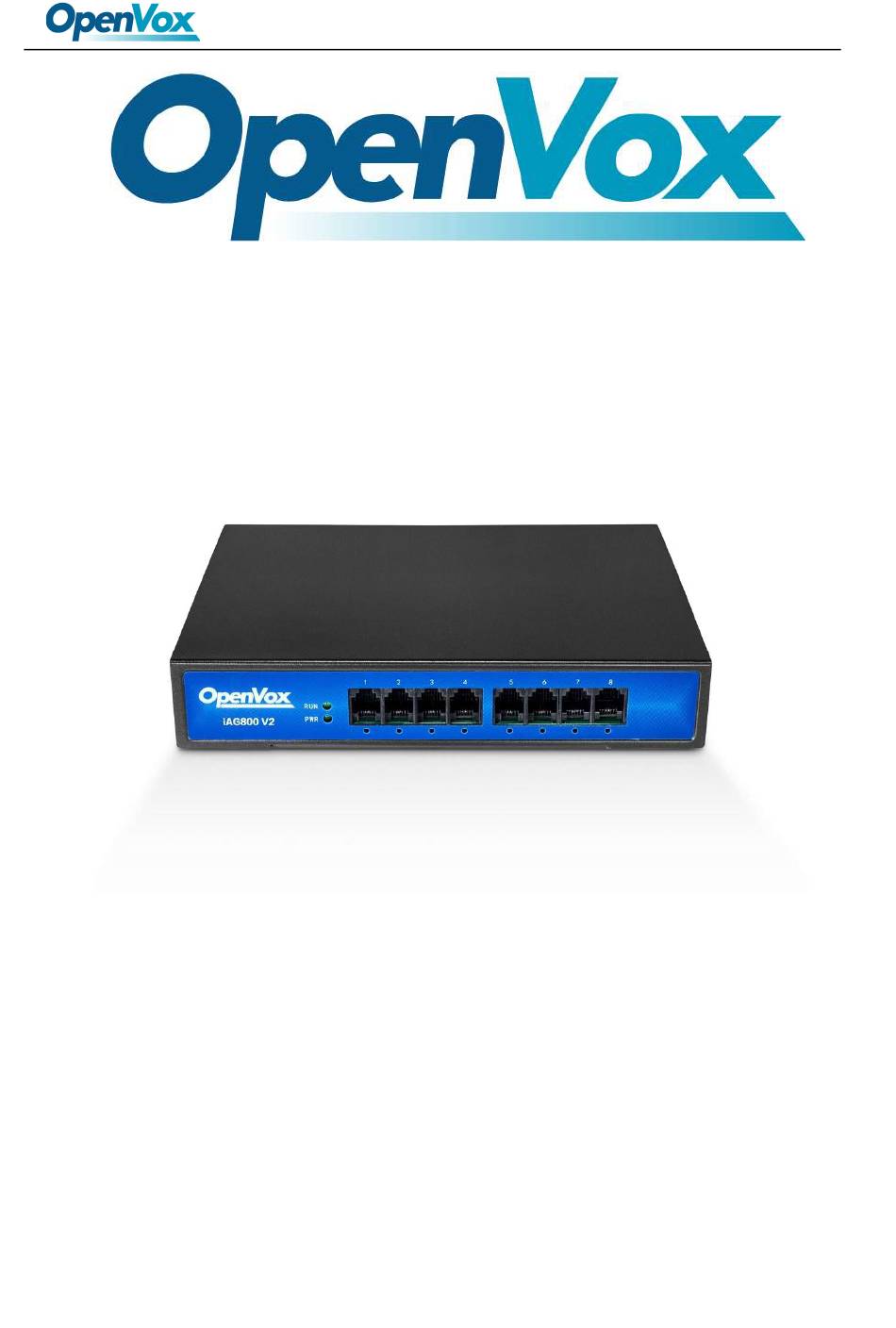

- Page 1 V2 Series Analog Gateway User Manual OpenVox Communication Co Ltd iAG800 V2 Series Analog Gateway User Manual Version 1.0 OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
- Page 2 V2 Series Analog Gateway User Manual OpenVox Communication Co Ltd Address: Room 624, 6/F, Tsinghua Information Port, Book Building, Qingxiang Road, Longhua Street, Longhua District, Shenzhen, Guangdong, China 518109 Tel: +86-755-66630978, 82535461, 82535362 Business Contact: sales@openvox.cn Technical Support: support@openvox.cn Business Hours: 09:00-18:00(GMT+8) from Monday to Friday URL: www.openvox.cn...
- Page 3 OpenVox has made every effort to ensure that the information contained in this document is accurate and complete; however, the contents of this document are subject to revision without notice. Please contact OpenVox to ensure you have the latest version of this document.
- Page 4 V2 Series Analog Gateway User Manual Revise History Version Release Date Description 28/08/2020 First Version OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
-
Page 5: Table Of Contents
V2 Series Analog Gateway User Manual Contents 1. Overview ................................7 What is iAG Series Analog Gateway? ......................... 7 Sample Application ............................7 Product Appearance ............................8 Main Features ..............................9 Physical Information ............................10 Software ................................10 2. System .................................. 11 Status ................................ - Page 6 V2 Series Analog Gateway User Manual Advanced: Timer Settings ........................29 Media Settings ............................30 FXS Batch Binding SIP ............................30 Batch Create SIP ............................... 31 Advanced SIP Settings ............................31 Networking .............................. 31 NAT Settings ............................. 32 RTP Settings ............................. 33 Parsing and Compatibility ........................
-
Page 7: Overview
1. Overview What is iAG Series Analog Gateway? OpenVox iAG800 V2 series Analog Gateway, an upgrade product of the iAG Series, is an open source asterisk-based Analog VoIP Gateway solution for SMBs and SOHOs. With friendly GUI and unique modular design, users may easily setup their customized Gateway. -
Page 8: Product Appearance

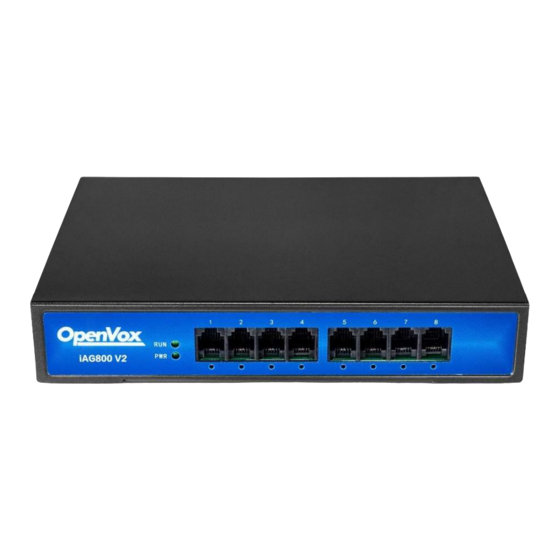

V2 Series Analog Gateway User Manual Product Appearance The picture below is appearance of iAG Series Analog Gateway. Figure 1-3-1 Product Appearance Figure 1-3-2 Front Panel 1: Power Indicator 2: System LED 3: Analog Telephone Interfaces and corresponding Channels State Indicators Figure 1-3-3 Back Panel OpenVox Communication Co. -
Page 9: Main Features
V2 Series Analog Gateway User Manual 1: Power interface 2: Reset button 3: Ethernet ports and indicators Main Features System Features NTP time synchronization and client time synchronization Support modify username and password for web login Update firmware online, backup/restore configuration file ... -
Page 10: Physical Information
V2 Series Analog Gateway User Manual Physical Information Table 1-5-1 Description of Physical Information Weight 637g Size 19cm*3.5cm*14.2cm -20~70°C (Storage) Temperature 0~50°C (Operation) Operation humidity 10%~90% non-condensing Power source 12V DC/2A Max power Software Default IP: 172.16.99.1 Username: admin Password: admin Please enter the default IP in your browser to scan and configure the module you want. -
Page 11: System
V2 Series Analog Gateway User Manual 2. System Status On the “Status” page, you will see Port/SIP/Routing/Network information and status. Figure 2-1-1 System Status Time Table 2-2-1 Description of Time Settings Options Definition System Time Your gateway system time. -
Page 12: Login Settings
V2 Series Analog Gateway User Manual closest as your city. POSIX TZ String Posix time zone strings. NTP Server 1 Time server domain or hostname. For example, [time.asia.apple.com]. NTP Server 2 The first reserved NTP server. For example, [time.windows.com]. - Page 13 V2 Series Analog Gateway User Manual Settings” and “SSH Login Settings”. If you have changed these settings, you don’t need to log out, just rewriting your new user name and password will be OK. Table 2-3-1 Description of Login Settings...
-
Page 14: General
V2 Series Analog Gateway User Manual General Language Settings You can choose different languages for your system. If you want to change language, you can switch “Advanced” on, then “Download” your current language package. After that, you can modify the package with the language you need. - Page 15 V2 Series Analog Gateway User Manual You can choose system reboot and Asterisk reboot separately. Figure 2-5-1 Reboot Prompt If you press “Yes”, your system will reboot and all current calls will be dropped. Asterisk Reboot is the same.
-
Page 16: Information
V2 Series Analog Gateway User Manual Information On the “Information” page, there shows some basic information about the analog gateway. You can see software and hardware version, storage usage, memory usage and some help information. Figure 2-6-1 System Information OpenVox Communication Co. -
Page 17: Analog
V2 Series Analog Gateway User Manual 3. Analog You can see much information about your ports on this page. Channel Settings Figure 3-1-1 Channel System On this page, you can see every port status, and click action button to configure the port. -
Page 18: Pickup Settings
V2 Series Analog Gateway User Manual Figure 3-1-3 FXS Port Configure Pickup Settings Call pickup is a feature used in a telephone system that allows one to answer someone else's telephone call. You can set the “Time Out” and “Number” parameters either globally or separately for each port. The feature is accessed by pressing a special sequence of numbers which you set as “Number”... -
Page 19: Dial Matching Table
V2 Series Analog Gateway User Manual Table 3-2-1 Definition of Pickup Options Definition Enable ON(enabled),OFF(disabled) Set the timeout, in milliseconds (ms).Note: You can Time Out only enter numbers. Number Pickup number Dial Matching Table Dialing rules is used to effectively judge whether the received number sequence is complete, in order to timely... - Page 20 V2 Series Analog Gateway User Manual Figure 3-4-1 General Configuration Table 3-4-1 Instruction of General Options Definition How long generated tones (DTMF and MF) will be Tone duration played on the channel. (in milliseconds) Specifies the number of seconds we attempt to dial Dial timeout the specified devices.
- Page 21 V2 Series Analog Gateway User Manual Figure 3-4-2 Caller ID Table 3-4-2 Instruction of Caller ID Options Definition Some countries(UK) have ring tones with different ring The pattern of sending CID tones(ring-ring), which means the caller ID needs to be set later on, and not just after the first ring, as per the default(1).
- Page 22 V2 Series Analog Gateway User Manual Table 3-4-3 Instruction of Hardware gain Options Definition FXS Rx gain Set the FXS port Rx gain. Range: from -150 to 120. Select -35, 0 or 35. FXS Tx gain Set the FXS port Tx gain. Range: from -150 to 120. Select -35, 0 or 35.
-
Page 23: Special Function Keys
V2 Series Analog Gateway User Manual Table 3-4-5 Definition of Country Options Definition Country Configuration for location specific tone indications. Ring cadence List of durations the physical bell rings. Dial tone Set of tones to be played when one picks up the hook. -
Page 24: Sip
V2 Series Analog Gateway User Manual 4. SIP SIP Endpoints This page shows everything about your SIP, you can see status of each SIP. Figure 4-1-1 SIP Status You can click button to add a new SIP endpoint, and if you want to modify existed endpoints, you can click button. - Page 25 V2 Series Analog Gateway User Manual Figure 4-1-2 Anonymous Registration For convenience, we have designed a method that you can register your SIP endpoint to your gateway, thus your gateway just work as a server. Figure 4-1-3 Register to Gateway Also you can choose registration by “This gateway registers with the endpoint”, it’s the same with “None”, except...
-
Page 26: Advanced: Registration Options
V2 Series Analog Gateway User Manual Table 4-1-1 Definition of SIP Options Options Definition Name A name which is able to read by human. And it’s only used for user’s reference. Username User Name the endpoint will use to authenticate with the gateway. -
Page 27: Call Settings
V2 Series Analog Gateway User Manual Table 4-1-2 Definition of Registration Options Options Definition Authentication User A username to use only for registration. When Gateway registers as a SIP user agent to a SIP proxy (provider), calls Register Extension from this provider connect to this local extension. -
Page 28: Advanced: Signaling Settings
V2 Series Analog Gateway User Manual Trust Whether or not the Remote-Party-ID header should be trusted. Remote-Party-ID Send Whether or not to send the Remote-Party-ID header. Remote-Party-ID Remote Party How to set the Remote-Party-ID header: from Remote-Party-ID or Format from P-Asserted-Identity. -
Page 29: Advanced: Timer Settings
V2 Series Analog Gateway User Manual required for devices that send non-standard SDP packets (observed with Microsoft OCS). By default this option is on. Whether or not to globally enable transfers. Choosing 'no' will disable all Allow Transfers transfers (unless enabled in peers or users). Default is enabled. -
Page 30: Media Settings
V2 Series Analog Gateway User Manual Maximum Session Refresh Maximum session refresh interval in seconds. Defaults to 1800secs. Interval Session Refresher The session refresher, uac or uas. Defaults to uas. Media Settings Table 4-1-6 Definition of Media Settings Options Definition Select codec from the drop down list. -
Page 31: Batch Create Sip
V2 Series Analog Gateway User Manual Batch Create SIP If you want add batch Sip accounts, you can configure this page. You can choose all the register mode. Figure 4-3-1 Batch SIP Endpoints Advanced SIP Settings Networking Table 4-4-1 Definition of Networking Options... -
Page 32: Nat Settings
V2 Series Analog Gateway User Manual outbound calls with suppress SRV lookups for that peer or call. NAT Settings Table 4-4-2 Definition of NAT Settings Options Definition Format:192.168.0.0/255.255.0.0 or 172.16.0.0./12. A list of IP address or IP ranges which are located inside a NATed network. -
Page 33: Rtp Settings
V2 Series Analog Gateway User Manual External Address = 12.34.56.78:9900 The external hostname (and optional TCP port) of the NAT. External External Hostname = hostname[:port] is similar to External Address. Examples: Hostname External Hostname = foo.dyndns.net How often to perform a hostname lookup. This can be useful when your NAT Hostname Refresh device lets you choose the port mapping, but the IP address is dynamic. -
Page 34: Security
V2 Series Analog Gateway User Manual Methods The shrinkcallerid function removes '(', ' ', ')', non-trailing '.', and '-' not in square brackets. For example, the caller id value 555.5555 becomes 5555555 when this option is enabled. Shrink Caller ID... -
Page 35: Media
V2 Series Analog Gateway User Manual Use the domain from the SIP Domains setting as the realm. In this case, the Use Domain as Realm realm will be based on the request 'to' or 'from' header and should match one of the domain. -
Page 36: Sip Account Security
V2 Series Analog Gateway User Manual application in the priority before the app. TOS for SIP Packets Sets type of service for SIP packets TOS for RTP Packets Sets type of service for RTP packets Sip Account Security This analog gateway support TLS protocl for encrypting calls. On the one hand, it can worked as TLS server, generate the session keys used for the secure connection. -
Page 37: Routing
V2 Series Analog Gateway User Manual 5. Routing The gateway embraces the flexible and friendly routing settings for user. It supports up to 512 routing rules and about 100 pairs of calleeID/callerID manipulations can be set in a rule. It support DID function The gateway support trunk group and trunk priority management. - Page 38 V2 Series Analog Gateway User Manual You can click button to set up your routings. Figure 5-1-2 Example of Setup Routing Rule The figure above realizes that calls from “support” SIP endpoint switch you have registered will be transferred to Port-1.
- Page 39 V2 Series Analog Gateway User Manual Table 5-1-3 Definition of Advance Routing Rule Options Definition A Dial Pattern is a unique set of digits that will select this route and send the call to the designated trunks. If a dialed pattern matches this route, no subsequent routes will be tried.
-
Page 40: Groups
V2 Series Analog Gateway User Manual endpoint. Disabled Caller Number Change : Disable the caller number change, and fixed caller number match pattern. Time Patterns that will use this Time Patterns that will use this Route help Route Forward... -
Page 41: Batch Create Rules
V2 Series Analog Gateway User Manual Figure 5-2-2 Create a Group Figure 5-2-3 Modify a Group Table 5-2-1 Definition of Routing Groups Options Definition The mean of this route. Should be used to describe what types of calls Group Name this route match (for example, ‘sip1 TO port1’... - Page 42 V2 Series Analog Gateway User Manual Figure 5-3-1 Batch Create Rules OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
-
Page 43: Network
V2 Series Analog Gateway User Manual 6. Network On “Network” page, there are “Network Settings”, “VPN Settings”, “DDNS Settings”, and “Toolkit”. Network Settings There are three types of LAN port IP, Factory, Static and DHCP. Factory is the default type, and it is 172.16.99.1. - Page 44 V2 Series Analog Gateway User Manual Interface The name of network interface. The method to get IP. Factory: Getting IP address by Slot Number (System Type information to check slot number). Static: manually set up your gateway IP.
-
Page 45: Vpn Settings
V2 Series Analog Gateway User Manual Table 6-1-2 Definition of DNS Settings Options Definition A list of DNS IP address. Basically this info is from your local network DNS Servers service provider. VPN Settings You can upload the VPN client configuration, if success, you can see a VPN virtual network card on SYSTEM status page. -
Page 46: Toolkit
V2 Series Analog Gateway User Manual Table 6-3-1 Definition of DDNS Settings Options Definition DDNS Enable/Disable DDNS(dynamic domain name Type Set the type of DDNS server. Username Your DDNS account’s login name. Password Your DDNS account’s password. Your domain The domain to which your web server will belong. - Page 47 V2 Series Analog Gateway User Manual Figure 6-4-3 Capture Network Data Table 6-4-1 Definition of Channel Recording Options Definition Interface The name of network interface. Source host Capture the data of source host you specified Destination host Capture the data of destination host you specified...
-
Page 48: Advanced
V2 Series Analog Gateway User Manual 7. Advanced Asterisk API When you make “Enable” switch to “on”, this page is available. Figure 7-1-1 API Interface Table 7-1-1 Definition of Asterisk API Options Definition Port Network port number Manager Name Name of the manager without space Password for the manager. - Page 49 V2 Series Analog Gateway User Manual If you want to permit many hosts or network, use char Permit & as separator.Example: 0.0.0.0/0.0.0.0 or 192.168.1.0/255. 255.255.0&10.0.0.0/255.0.0.0 General information about the system and ability to run system System management commands, such as Shutdown, Restart, and Reload.
-
Page 50: Asterisk Cli
V2 Series Analog Gateway User Manual Figure 7-1-2 Putty Access Asterisk CLI In this page, you are allowed to run Asterisk commands. Figure 7-2-1 Asterisk Command Interface Table 7-2-1 Definition of Asterisk API Options Definition Type your Asterisk CLI commands here Command to check or debug your gateway. -
Page 51: Asterisk File Editor
V2 Series Analog Gateway User Manual If you type “help” or “?” and execute it, the page will show you the executable commands. Asterisk File Editor On this page, you are allowed to edit and create configuration files. Click the file to edit. -
Page 52: Logs
V2 Series Analog Gateway User Manual 8. Logs Log Settings On the “Log Settings” page, you should set the related logs on to scan the responding logs page. For example, set “System Logs” on like the following, then you can turn to “System” page for system logs, otherwise, system logs is unavailable. - Page 53 V2 Series Analog Gateway User Manual Table 8-1-1 Definition of LOG Options Definition System Logs Whether enable or disable system log. switch on : when the size of log file reaches the max size, the system will Auto clean cut a half of the file.
-
Page 54: System
V2 Series Analog Gateway User Manual System Figure 8-2-1 System Logs Output Notice: The same to Asterisk Logs and SIP Logs. You can scan every call detail records in this page. We also provide the filter for you to search some specific records.
