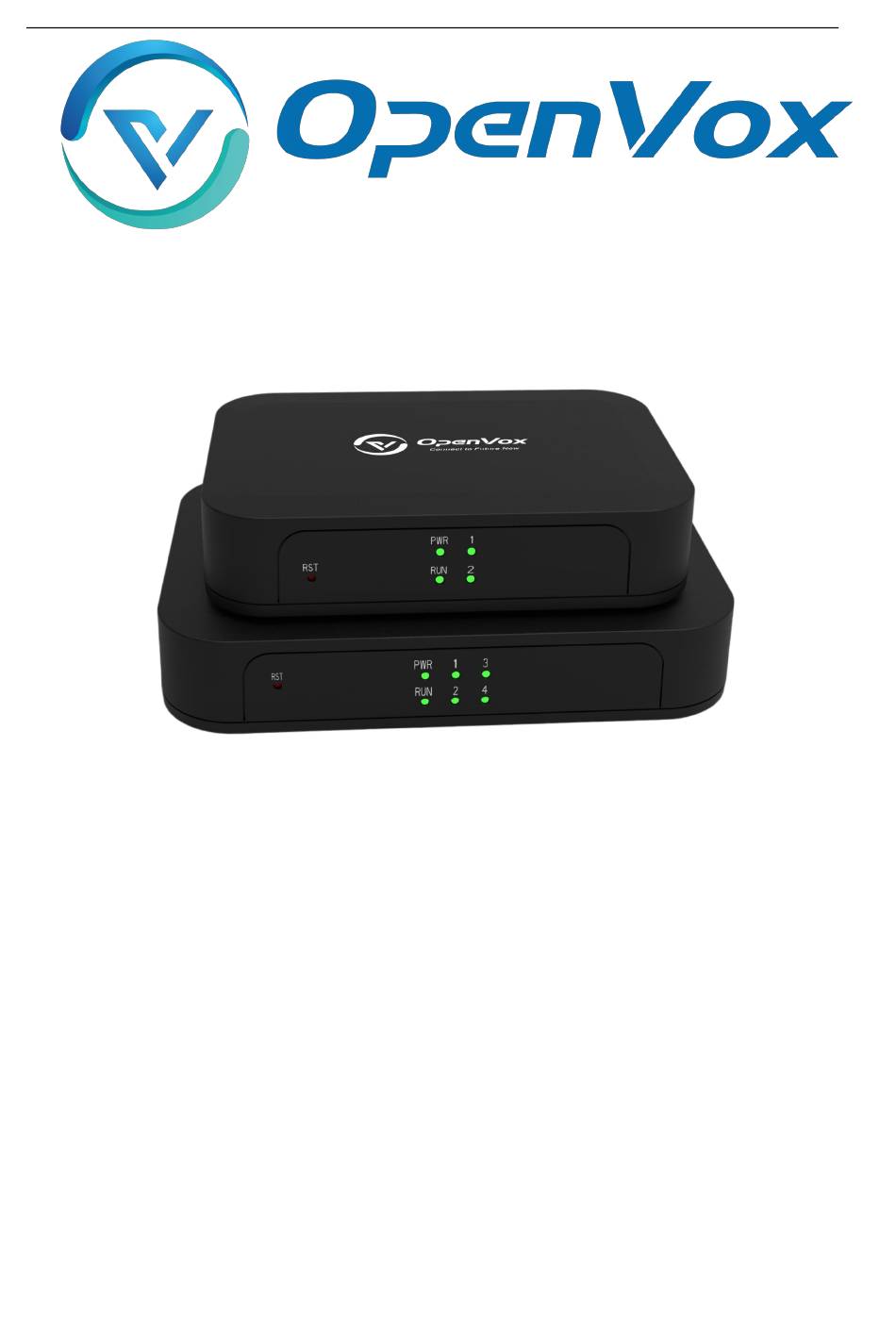

iAG200/400 Series Analog Gateway User Manual
OpenVox Communication Co Ltd
iAG200/400 Series Analog
Gateway User Manual
Version 1.0
1
OpenVox Communication Co. ,LTD.
URL: www.openvox.cn

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the iAG Series and is the answer not in the manual?

Questions and answers

Related Manuals for OpenVox iAG Series

Summary of Contents for OpenVox iAG Series

  • Page 1 Series Analog Gateway User Manual OpenVox Communication Co Ltd iAG200/400 Series Analog Gateway User Manual Version 1.0 OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
  • Page 2 Address: Room 624, 6/F, Tsinghua Information Port, Book Building, Qingxiang Road, Longhua Street, Longhua District, Shenzhen, Guangdong, China 518109 Tel: +86-755-66630978, 82535461, 82535362 sales@openvox.cn Business Contact: support@openvox.cn Technical Support: Business Hours: 09:00-18:00(GMT+8) from Monday to Friday URL: www.openvox.cn Thank You for Choosing OpenVox Products! OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
  • Page 3 OpenVox has made every effort to ensure that the information contained in this document is accurate and complete; however, the contents of this document are subject to revision without notice. Please contact OpenVox to ensure you have the latest version of this document.
  • Page 4 Series Analog Gateway User Manual Revise History Version Release Date Description 11/04/2022 First Version OpenVox Communication Co. ,LTD. URL: www.openvox.cn...

  • Page 5: Table Of Contents

    Series Analog Gateway User Manual Contents 1. Overview ...................................7 1.1 What is iAG Series Analog Gateway? ......................7 1.2 Sample Application ............................7 1.3 Product Appearance ............................8 1.4 Main Features ..............................9 1.5 Physical Information .............................10 1.6 Software ............................... 10 2. System ..................................11 2.1 Status ................................
  • Page 6 7.3 Asterisk File Editor ............................63 7.4 Cloud Management ............................63 7.5 TR069 ................................64 7.6 SNMP ................................65 7.7 Auto Provision .............................. 65 8. Logs ..................................66 8.1 Log Settings ..............................66 8.2 CDR ................................69 OpenVox Communication Co. ,LTD. URL: www.openvox.cn...

  • Page 7: Overview

    1.1 What is iAG Series Analog Gateway? OpenVox iAG200/400 Analog Gateway, a new product of the iAG Series, is specially designed for SMBs and SOHOs. With friendly GUI and unique modular design, users may easily setup their customized gateway. Also secondary development can be completed through AMI (Asterisk Management Interface).

  • Page 8: Product Appearance

    Figure 1-3-2 Front Panel 1: Reset Button 2: Running Indicator 2: Power Indicator 3: Analog Telephone Interfaces and corresponding Channels State Indicators Figure 1-3-3 Back Panel 1: Power Interface 2: Ethernet Ports and Indicators 3: Analog Interface OpenVox Communication Co. ,LTD. URL: www.openvox.cn...

  • Page 9: Main Features

    SIP accounts can be registered to multiple servers  Network Network type：Static IP, Dynamic  Support DDNS, DNS, DHCP, DTMF relay, NAT  Telnet, HTTP, HTTPS, SSH  VPN client  Network Toolbox  OpenVox Communication Co. ,LTD. URL: www.openvox.cn...

  • Page 10: Physical Information

    Power source 12V DC/2A Max power 1.6 Software Default IP: 172.16.99.1 Username: admin Password: admin Please enter the default IP in your browser to scan and configure the module you want. Figure 1-6-1 Login Interface OpenVox Communication Co. ,LTD. URL: www.openvox.cn...

  • Page 11: System

    NTP Server 2 The first reserved NTP server. For example, [time.windows.com]. NTP Server 3 The second reserved NTP server. For example, [time.nist.gov]. Auto-Sync from NTP Whether enable automatically synchronize from NTP server or not. ON OpenVox Communication Co. ,LTD. URL: www.openvox.cn...

  • Page 12: Login Settings

    And it has all privileges to operate your gateway. You can modify both your “Web Login Settings” and “SSH Login Settings”. If you have changed these settings, you don’t need to log out, just rewriting your new user name and password will be OK. OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
  • Page 13 Specify the web server port number. HTTPS Port Specify the web server port number. Port SSH login port number. Figure 2-3-1 Login Settings Notice: Whenever you do some changes, do not forget to save your configuration. OpenVox Communication Co. ,LTD. URL: www.openvox.cn...

  • Page 14: General

    Figure 2-4-1 Language Settings 2.4.2 Scheduled Reboot You can enable the automatic restart function to make your gateway restart after working for a certain period of time to achieve higher work efficiency. Figure 2-4-2 Reboot Types OpenVox Communication Co. ,LTD. URL: www.openvox.cn...

  • Page 15: Tools

    2. The analog gateway provides two firmware upgrade methods, you can choose “System Update” or “System Online Update”. To select the system upgrade, you need to download the relevant firmware from the OpenVox website first. The “System Online Update” is an easier way to update your system with one-click.
  • Page 16 Notice: You can restore the gateway to factory settings by dialing. Connect the phone to the FXS port of the gateway and dial "*1*2*3*4" , then it will restore the gateway to factory settings. OpenVox Communication Co. ,LTD. URL: www.openvox.cn...

  • Page 17: Information

    2.6 Information On the “Information” page, there shows some basic information about the analog gateway. You can see software and hardware version, storage usage, memory usage and some help information. Figure 2-6-1 System Information OpenVox Communication Co. ,LTD. URL: www.openvox.cn...

  • Page 18: Analog

    3. Analog You can see much information about your ports on this page. 3.1 Channel Settings Figure 3-1-1 Channel System Click the “Edit” button to modify the corresponding port information. Figure 3-1-2 FXO Port Configure OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
  • Page 19 Series Analog Gateway User Manual Figure 3-1-3 FXS Port Configure OpenVox Communication Co. ,LTD. URL: www.openvox.cn...

  • Page 20: Pickup

    "number" parameter correctly. Figure 3-2-1 Pickup Settings Table 3-2-1 Definition of Pickup Options Definition Enable ON(enabled), OFF(disabled) Set the timeout, in milliseconds (ms).Note: You can Time Out only enter numbers. Number Pickup number OpenVox Communication Co. ,LTD. URL: www.openvox.cn...

  • Page 21: Dial Matching Table

    The dial matching table is used to effectively judge whether the received number sequence is complete so that it can be sent in time. The correct use of the dial matching table can help shorten the turn-on time of phone call. Figure 3-3-1 Port Configure OpenVox Communication Co. ,LTD. URL: www.openvox.cn...

  • Page 22: Advanced

    Tone interval milliseconds). Echo cancel Choose enable echo cancellation or not. Default Loop start, busy tone is generated, Kewlstart, power is off, no busy tone FXS signaling is generated 3.4.2 Fax Figure 3-4-4 Fax Configuration OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
  • Page 23 Table 3-4-4 Definition of Fax Options Definition Mode Set the transmission mode. Rate Set the rate of sending and receiving. Enable/disable T.30 ECM (error correction mode) by default. 3.4.3 Country Figure 3-4-5 Country Configuration OpenVox Communication Co. ,LTD. URL: www.openvox.cn...

  • Page 24: Special Function Keys

    Set of tones played when call recording is in progress. Set of tones played with special information messages (e.g., Info tone number is out of service.) 3.5 Special Function Keys Figure 3-5-1 Function keys OpenVox Communication Co. ,LTD. URL: www.openvox.cn...

  • Page 25: Fxs Settings

    Min flash time. (in milliseconds). Range: 1-100. Max flash time Max flash time. (in milliseconds). Range:100-3000. “#” as Ending Dial Key Turn on/off Ending Dial Key. Display extension number Turn on/off display extension number. OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
  • Page 26 Table 3-4-2 Definition of Other Parameters Options Definition The anti-jitter delay value when the gateway FXS port detects Offhook-antishake the off-hook signal. The setting value is from 32ms to 2048ms (multiple of 32) and the default value is 64ms. OpenVox Communication Co. ,LTD. URL: www.openvox.cn...

  • Page 27: Driver

    Series Analog Gateway User Manual 3.7 Driver 3.7.1 General Figure 3-7-1 General Table 3-7-1 Definition of General Options Definition Codec Set the global encoding: ulaw, alaw. Impedance Configuration for impedance. 3.7.2 CallerID Detect Figure 3-7-2 CallerID Detect OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
  • Page 28 FXS Rx gain Set FXS to IP gain. Range: -35, 0 or 35. the default is 0. FXS Tx gain Set FXS to terminal gain. Range: -35, 0 or 35. the default is 0. OpenVox Communication Co. ,LTD. URL: www.openvox.cn...

  • Page 29: Voip

    If you set up a SIP endpoint by registration “None” to a server, then you can’t register other SIP endpoints to this server. (If you add other SIP endpoints, this will cause Out-band Routes and Trunks confused.) Figure 4-1-2 Main Endpoint Settings - None OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
  • Page 30 Server---When register as this type, it means the gateway acts as a SIP server, and the SIP Registration endpoints should register to the gateway; Client---When register as this type, it means the gateway acts as a client, and the endpoint OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
  • Page 31 Yes --- Force Rport to always be on and perform comedia RTP handling. Rport if requested and comedia --- Use Rport if the remote side says to use it and perform comedia RTP handling. OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
  • Page 32 A proxy to which the gateway will send all outbound signaling instead of Outbound Proxy sending signaling directly to endpoints. Custom Registery Custom Registery On / Off. Enable Outboundproxy Outboundproxy to Host On / Off. to Host OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
  • Page 33 Send Remote-Party-ID Whether or not to send the Remote-Party-ID header. How to set the Remote-Party-ID header: from Remote-Party-ID or from Remote Party ID Format P-Asserted-Identity. Caller ID Presentation Whether or not to display Caller ID. OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
  • Page 34 Turn this option off to force the gateway to ignore the SDP session version Honor SDP Version number and treat all SDP data as new data. This is required for devices that send non-standard SDP packets (observed with Microsoft OCS). By default this option is on. OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
  • Page 35 "hairpin" call. Max Forwards Setting for the SIP Max-Forwards header (loop prevention). Send TRYING on Send a 100 Trying when the endpoint registers. REGISTER OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
  • Page 36 Minimum session refresh interval in seconds. Default is 90secs. Refresh Interval Maximum Session Maximum session refresh interval in seconds. Defaults to 1800secs. Refresh Interval Session Refresher The session refresher, uac or uas. Defaults to uas. OpenVox Communication Co. ,LTD. URL: www.openvox.cn...

  • Page 37: Fxs Batch Binding Sip

    4.2 FXS Batch Binding SIP If you want to bind sip accounts in batches on the FXS port, you can configure this page. Notice: this is only used when “Client” work mode. Figure 4-2-1 FXS Batch Binding SIP OpenVox Communication Co. ,LTD. URL: www.openvox.cn...

  • Page 38: Batch Create Sip

    Series Analog Gateway User Manual 4.3 Batch Create SIP On this interface, users can create multiple SIP accounts at one time. You can choose any registration mode. Figure 4-3-1 Batch SIP Endpoints OpenVox Communication Co. ,LTD. URL: www.openvox.cn...

  • Page 39: Advanced Sip Settings

    SRV lookups disables the ability to place SIP calls based on domain names Lookup to some other SIP users on the Internet Sepcifying a port in a SIP peer definition or when dialing outbound calls with supress SRV lookups for that peer or call. OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
  • Page 40 Only substitute the externaddr or externhost setting if it matches Address Locally Dynamic Exclude Disallow all dynamic hosts from registering as any IP address. Used for staticly Static defined hosts. This helps avoid the configuration error of allowing your users to OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
  • Page 41 Table 4-4-3 Definition of STUN Settings Options Definition Start Turn on function. Server Port Default port 3478. Refresh Request Interval Time interval in seconds, default 30 seconds. Server IP Address/Domain Name Server address or domain name. OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
  • Page 42 Start of RTP Port Range Start of range of port numbers to be used for RTP. End of RTP port Range End of range of port numbers to be used for RTP. RTP Timeout RTP Timeout OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
  • Page 43 Series Analog Gateway User Manual 4.4.5 Parsing and Compatibility Figure 4-4-5 Definition of Parsing and Compatibility OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
  • Page 44 How often, in seconds, to retry registration calls. Default 20 seconds. Number of registration attempts before we give up. 0 = continue Number of Registration forever, hammering the other server until it accepts the registration. Attempts Default is 0 tries, continue forever. OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
  • Page 45 Always Auth Reject invalid password/hash instead of letting the requester know whether there was a matching user or peer for their request. This reduces the ability of an OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
  • Page 46 'noanswer' applications to work, you need to run the progress() application in the priority before the app. TOS for SIP Packets Sets type of service for SIP packets TOS for RTP Packets Sets type of service for RTP packets OpenVox Communication Co. ,LTD. URL: www.openvox.cn...

  • Page 47: Sip Account Security

    TLS Verify Server Enable or disable tls verify server(default is no). Port Specify the port for remote connection. Values include tlsv1, sslv3, sslv2, Specify protocol for outbound client TLS Client Method connections, default is sslv2. OpenVox Communication Co. ,LTD. URL: www.openvox.cn...

  • Page 48: Routing

    Figure 5-1-1 Routing Rules Click “Add”, you can set up a new routing rule. Click "Edit" to modify the routing rule, and click "Delete" to delete the routing rule. Figure 5-1-2 Example of Setup Routing Rule OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
  • Page 49 DISA Timeout The specific setting time of DISA timeout. Maximum Number of Set the maximum number of password digits Digits In Password Password Set a password within the specified range Figure 5-1-3 Advance Routing Rule OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
  • Page 50 Caller Name <caller display name>: Set your favorite caller name before sending this call to the terminal, allowing the use of local languages, such as Chinese and Latin. Time Patterns Time mode setting of routing rules. OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
  • Page 51 What destination number will you dial? Number This is very useful when you have a transfer call. Failover Call Through The gateway will attempt to send the call out each of these in the order you specify. Number OpenVox Communication Co. ,LTD. URL: www.openvox.cn...

  • Page 52: Groups

    Figure 5-2-1 Group Rules You can click the "Add" button to set up a new group, if you want to modify an existing group, you can click the "Edit" button. Figure 5-2-2 Create a Group OpenVox Communication Co. ,LTD. URL: www.openvox.cn...

  • Page 53: Batch Create Rules

    If you bind telephone for each FXO port and want to establish separate call routings for them. For convenience, you can batch create call routing rules for each FXO port at once in this page. Figure 5-3-1 Batch Create Rules OpenVox Communication Co. ,LTD. URL: www.openvox.cn...

  • Page 54: Network

    IP is 172.16.99.1. If you forget the current IP, you can connect the phone to any FXS port of the analog gateway and dial "**" to query the current IP. Figure 6-1-1 LAN Settings Interface OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
  • Page 55 Enable or disable the reserved IP address switch. Enable ON(enabled), OFF(disabled) Reserved Address The reserved IP address for this gateway. Reserved Netmask The subnet mask of the reserved IP address. OpenVox Communication Co. ,LTD. URL: www.openvox.cn...

  • Page 56: Vpn Settings

    VPN virtual network card on the system status page. You can refer to the parameter hints and sample configuration. Figure 6-2-1 VPN Interface 6.3 DDNS Settings You can enable or disable DDNS (Dynamic Domain Name Server) according to your needs. Figure 6-3-1 DDNS Interface OpenVox Communication Co. ,LTD. URL: www.openvox.cn...

  • Page 57: Toolkit

    The domain to which your web server will belong. 6.4 Toolkit This tool is used to detect the network connection, you can execute the Ping command on the web interface. Figure 6-4-1 Network Connectivity Checking Figure 6-4-2 Channel Recording OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
  • Page 58 Port Specify the port where you want to get data. Channel Specify the channel number you want to get data. The tool of tcpdump capture network data by parameter option Tcpdump Option Parameter specified. OpenVox Communication Co. ,LTD. URL: www.openvox.cn...

  • Page 59: Security Settings

    Series Analog Gateway User Manual 6.5 Security Settings Figure 6-5-1 Security Settings Interface 6.6 Security Rules Figure 6-6-1 Security Rules Interface OpenVox Communication Co. ,LTD. URL: www.openvox.cn...

  • Page 60: Advanced

    If you want to deny many hosts or networks, use char & as separator. Deny Example: 0.0.0.0/0.0.0.0 or 192.168.1.0/255.255.255.0&10.0.0.0/255.0.0.0. Permit If you want to permit many hosts or network, use char & as separator. OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
  • Page 61 Permission to originate new calls. Write-only. Select all or deselect all. Refer to the above configuration diagram, the host 172.16.80.16/255.255.0.0 has been allowed to enter the gateway API, and the port number is 5038. Figure 7-1-2 Putty Access OpenVox Communication Co. ,LTD. URL: www.openvox.cn...

  • Page 62: Asterisk Cli

    For example: enter "help" or "?" in the command bar, after execution, the page will prompt for executable commands, as shown in the figure above. Table 7-2-1 Definition of Asterisk CLI Options Definition Command Type your Asterisk CLI commands here to check or debug your gateway. OpenVox Communication Co. ,LTD. URL: www.openvox.cn...

  • Page 63: Asterisk File Editor

    On this page, you are allowed to edit and create configuration files. Figure 7-3-1 Configuration Files List Notice: After modifying the configuration file, Asterisk needs to be reloaded. 7.4 Cloud Management Figure 7-4-1 Cloud Management Interface OpenVox Communication Co. ,LTD. URL: www.openvox.cn...

  • Page 64: Tr069

    Series Analog Gateway User Manual 7.5 TR069 Figure 7-4-1 TR069 Interface OpenVox Communication Co. ,LTD. URL: www.openvox.cn...

  • Page 65: Snmp

    Series Analog Gateway User Manual 7.6 SNMP Figure 7-4-1 SNMP Interface 7.7 Auto Provision Figure 7-4-1 Auto Provision Interface OpenVox Communication Co. ,LTD. URL: www.openvox.cn...

  • Page 66: Logs

    On the log setting interface, open the corresponding log option, and you can view different logs in the corresponding interface. Take the system log as an example. Figure 8-1-1 Logs Settings Figure 8-1-2 System Logs Output OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
  • Page 67 Switch off: logs will remain, and the file size will increase gradually. default on, max size=1MB. Verbose Asterisk console verbose message switch. Notice Asterisk console notice message switch. Warning Asterisk console warning message switch. OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
  • Page 68 Switch on: when the size of log file reaches the max size,the system will Auto clean: cut a half of the file. New logs will be retained. (Call Detail Switch off: logs will remain, and the file size will increase gradually. Record) default on, default size=20MB. OpenVox Communication Co. ,LTD. URL: www.openvox.cn...

  • Page 69: Cdr

    8.2 CDR You can browse the details of each call record on this page. If you need to search for a specific record, you can use the filter function. Figure 8-3-1 Call Detail Record OpenVox Communication Co. ,LTD. URL: www.openvox.cn...
