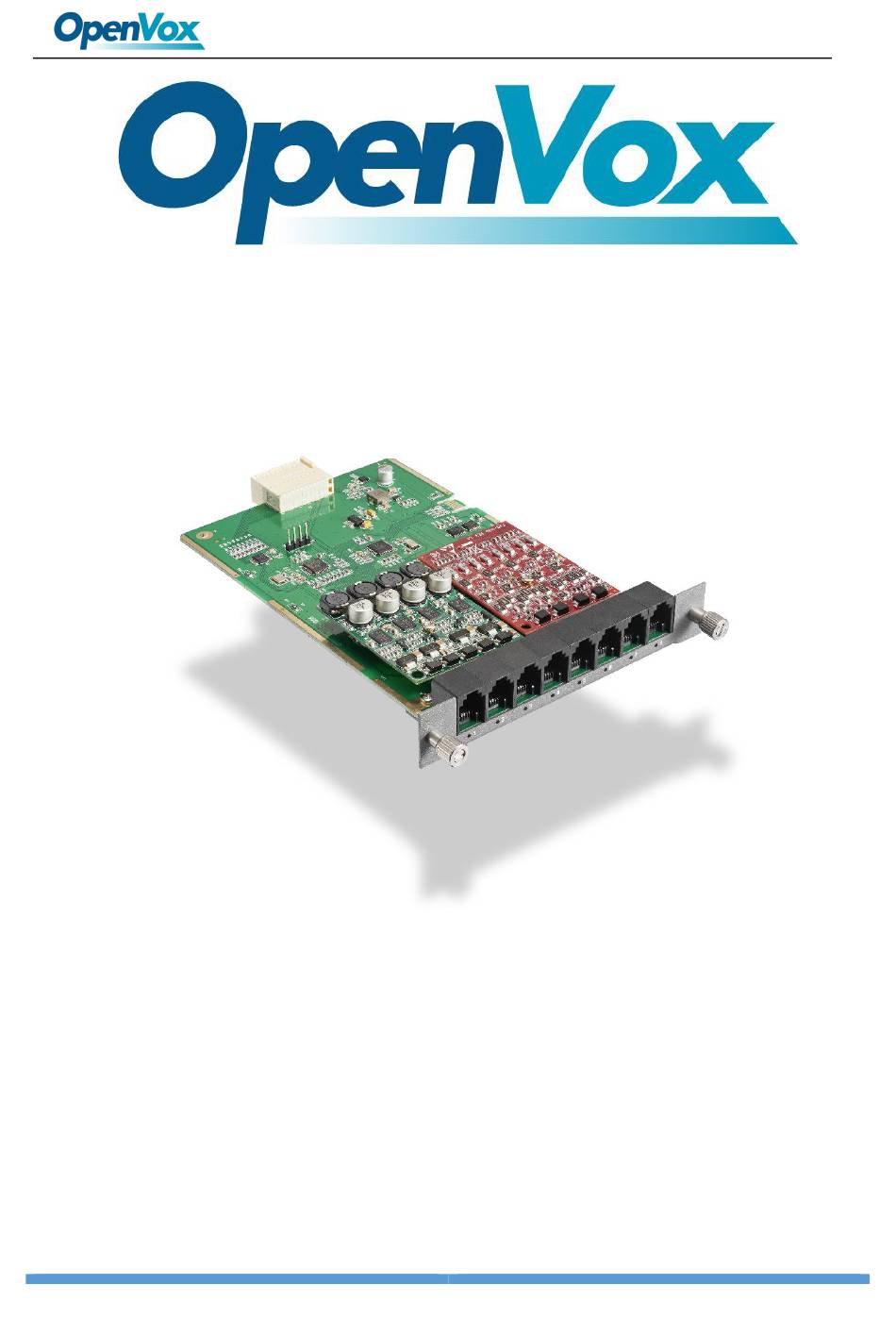

Analog Gateway User Manual
OpenVox Communication Co Ltd
Analog Gateway User Manual
Version 2.0
1
OpenVox Communication Co. ,LTD.

Advertisement

Table of Contents
loading

Related Manuals for OpenVox VS-GW1600

Summary of Contents for OpenVox VS-GW1600

  • Page 1 Analog Gateway User Manual OpenVox Communication Co Ltd Analog Gateway User Manual Version 2.0 OpenVox Communication Co. ,LTD.
  • Page 2 Address: 10/F, Building 6-A, Baoneng Science and Technology Industrial Park, Longhua New District, Shenzhen, Guangdong,China 518109 Tel: +86-755-66630978, 82535461, 82535362 Business Contact: sales@openvox.cn Technical Support: support@openvox.cn Business Hours: 09:00-18:00(GMT+8) from Monday to Friday URL: www.openvox.cn Thank You for Choosing OpenVox Products! OpenVox Communication Co. ,LTD.
  • Page 3 Information contained herein is of a highly sensitive nature and is confidential and proprietary to OpenVox Inc. No part may be distributed, reproduced or disclosed orally or in written form to any party other than the direct recipients without the express written consent of OpenVox Inc.
  • Page 4 Analog Gateway User Manual Revise History Version Release Date Description 22/12/2017 First Version 23/7/2019 Upgraded 2.0 version OpenVox Communication Co. ,LTD.

  • Page 5: Table Of Contents

    3.1 Channel Settings ........................21 3.2 Pickup Settings ........................22 3.3 Dial Matching Table ......................23 3.4 Advanced Settings ........................ 24 3.5 Special Function Keys ......................28 3.6 FXO ............................29 3.7 FXS ............................30 3.8 Driver ............................ 31 OpenVox Communication Co. ,LTD.
  • Page 6 6.3 DDNS Settings........................53 6.4 Toolkit ........................... 54 6.5 Firewall Settings ........................55 6.6 Security Rules ........................56 7. Advanced ............................58 7.1 Asterisk API ........................... 58 7.2 Asterisk CLI ........................... 60 7.3 Asterisk File Editor ........................ 61 OpenVox Communication Co. ,LTD.
  • Page 7 Analog Gateway User Manual 8. Logs ..............................62 8.1 Log Settings .......................... 62 8.2 CDR ............................65 OpenVox Communication Co. ,LTD.

  • Page 8: Overview

    1. Overview 1.1 What is Analog Gateway Series? OpenVox Analog Gateway Series is an open source asterisk-based Analog VoIP Gateway solution for SMBs and SOHOs. With friendly GUI and unique modular design, users may easily setup their customized Gateway. Also, secondary development can be completed through AMI (Asterisk Management Interface).

  • Page 9: Sample Application

    Analog Gateway User Manual 1.2 Sample Application Figure 1-2-1 Topological Graph OpenVox Communication Co. ,LTD.

  • Page 10: Product Appearance

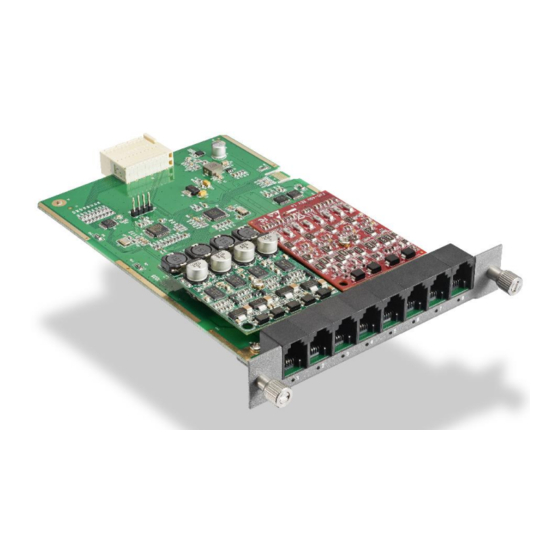

    Analog Gateway User Manual 1.3 Product Appearance The picture below is appearance of Analog Series Gateway. Figure 1-3-1 Product Appearance Figure 1-3-2 Front Panel 1: Reset button 2: Power Indicator 3: System LED 4: Analog Telephone Interface (2) OpenVox Communication Co. ,LTD.

  • Page 11: Main Features

    Table 1-5-1 Description of Physical Information Overall Unit Product Name VS-GW1600(V2) VS-GW2120(V2) Interface FXS/FXO Port 16/24/32/40 48/56/64/72/80/88 1 (Supports USB storage) 1 (Supports TF Card storage) Console Specifications 3310g(without module 5710g(without module Weight board) board) Dimension 44cm*4.5cm*30cm 48.3cm*33.1cm*8.8cm Maximum Power Consumption OpenVox Communication Co. ,LTD.
  • Page 12 1 (Supports USB storage) 1 (Supports TF Card storage) Console Specifications Weight 150g 140g 145g 190g Dimension 13cm*2.1cm*20cm Maximum Power Consumption Operaton 0℃ ~ 40℃ Temperature Operaton 10% ~ 90% Humidity Range Storage Temperature -20℃ ~ 70℃ Range OpenVox Communication Co. ,LTD.

  • Page 13: Software

    RJ45 Network ports to access to your gateway on the board, ETH1 and ETH2. ETH1 only can enter the ip of slot 1, and ETH2 can access every slot. You can choose either of them, that depends on your demand. Figure 1-6-1 Login Interface OpenVox Communication Co. ,LTD.

  • Page 14: System

    Figure 2-1-1 System Status 2.2 Time Table 2-2-1 Description of Time Settings Options Definition System Time Your gateway system time. Time Zone The world time zone. Please select the one which is the same or the closest OpenVox Communication Co. ,LTD.

  • Page 15: Login Settings

    Your gateway doesn't have administration role. All you can do here is to reset what new username and password to manage your gateway. And it has all privileges to operate your gateway. You can modify both your “Web Login Settings” and “SSH Login Settings”. If you have changed these OpenVox Communication Co. ,LTD.
  • Page 16 Specify the web server port number. HTTPS Port Specify the web server port number. Port SSH login port number. Figure 2-3-1 Login Settings Notice: Whenever you do some changes, do not forget to save your configuration. OpenVox Communication Co. ,LTD.

  • Page 17: General

    “By Day, By Week, By Month and By Running Time”. Figure 2-4-2 Reboot Types If use your system frequently, you can set this enable, it can help system work more efficient. OpenVox Communication Co. ,LTD.

  • Page 18: Snmp Agent

    We offer two kinds of update types for you, you can choose System Update or System Online Update. System Online Update is an easier way to update your system. Figure 2-5-2 Update Firmware If you want to store your previous configuration, you can first backup configuration, then you can OpenVox Communication Co. ,LTD.

  • Page 19: Information

    Figure 2-5-4 Factory Reset 2.6 Information On the “Information” page, there shows some basic information about the analog gateway. You can see software and hardware version, storage usage, memory usage and some help information. Figure 2-6-1 System Information OpenVox Communication Co. ,LTD.

  • Page 20: Config Record

    Figure 2-7-1 Config Record Interface Turn on the configuration record function to roll back by operation record. 2.8 Config Label Figure 2-8-1 Config Label Interface Create a new label and make a manual backup to roll back. OpenVox Communication Co. ,LTD.

  • Page 21: Analog

    You can see much information about your ports on this page. 3.1 Channel Settings Figure 3-1-1 Channel System On this page, you can see every port status, and click action button to configure the port. Figure 3-1-2 FXO Port Configure OpenVox Communication Co. ,LTD.

  • Page 22: Pickup Settings

    You can set the “Time Out” and “Number” parameters either globally or separately for each port. The feature is accessed by pressing a special sequence of numbers which you set as “Number” parameter on the telephone set when it is enabled this function. Figure 3-2-1 Pickup Configure OpenVox Communication Co. ,LTD.

  • Page 23: Dial Matching Table

    Dialing rules is used to effectively judge whether the received number sequence is complete, in order to timely end receiving number and send out number The correct use of dial-up rules, helps to shorten the turn-on time of phone call Figure 3-3-1 Port Configure OpenVox Communication Co. ,LTD.

  • Page 24: Advanced Settings

    Codec Set the global encoding : mulaw, alaw. Impedance Configuration for impedance. Echo cancel tap length Hardware echo canceler tap length. VAD/CNG Turn on/off VAD/CNG. Flash/Wink Turn on/off Flash/wink. Max flash time Max flash time.(in milliseconds). OpenVox Communication Co. ,LTD.
  • Page 25 How long we will waiting before sending the CID on the channel. (in sending CID milliseconds). Sending polarity Send polarity reversal before sending the CID on the channel. reversal (DTMF Only) Start code (DTMF Only) Start code. Stop code (DTMF Only) Stop code. OpenVox Communication Co. ,LTD.
  • Page 26 Set the FXS port Tx gain. Range: from -150 to 120. Select -35, 0 or 35. Figure 3-4-4 Fax Configuration Table 3-4-4 Definition of Fax Options Definition Mode Set the transmission mode. Rate Set the rate of sending and receiving. Enable/disable T.30 ECM (error correction mode) by default. OpenVox Communication Co. ,LTD.
  • Page 27 Many phone systems play a recall dial tone after hook flash. Record tone Set of tones played when call recording is in progress. Set of tones played with special information messages (e.g., number is out Info tone of service.) OpenVox Communication Co. ,LTD.

  • Page 28: Special Function Keys

    When turn on the Blind Transfer, configure the dialplan before Blind Transfer transferring the call (*38 by default) When turn on the Asked Transfer, configure the dialplan before Asked Transfer transferring the call (*38 by default) OpenVox Communication Co. ,LTD.

  • Page 29: Fxo

    Busy Detection is used for detecting busy signal or far end hang-up Configure the number of busy tones the user will hear before hanging up the Busy Count call when Busy Detect is enabled. Busy country Select country for tone settings. OpenVox Communication Co. ,LTD.

  • Page 30: Fxs

    Send polarity reversal before sending the CID on the channel. reversal (DTMF Only) Start code (DTMF Start code. Only) Stop code (DTMF Stop code. Only) Flash/Wink Turn on/off Flash/wink. Min flash time Min flash time. (in milliseconds). OpenVox Communication Co. ,LTD.

  • Page 31: Driver

    Table 3-8-1 Instruction of Driver Options Definition Codec Set the global encoding: ulaw, alaw. Impedance Configuration for impedance. cidbeforering Swith to handle irregular CID function Cidbuflen CID media stream length byte size Cutcidbufheadlen CID media stream header length byte size OpenVox Communication Co. ,LTD.
  • Page 32 Set FXO to IP gain. Range: from -150 to 120. FXS Rx gain Set FXS to terminal gain. Select -35, 0 or 35. FXS Tx gain Set FXS to IP gain. Select -35, 0 or 35. OpenVox Communication Co. ,LTD.

  • Page 33: Sip

    If you set up a SIP endpoint by registration “None” to a server, then you can’t register other SIP endpoints to this server. (If you add other SIP endpoints, this will cause Out-band Routes and Trunks confused.) OpenVox Communication Co. ,LTD.
  • Page 34 Figure 4-1-3 Register to Gateway Also you can choose registration by “This gateway registers with the endpoint”, it’s the same with “None”, except name and password. Figure 4-1-4 Register to Server OpenVox Communication Co. ,LTD.
  • Page 35 Force Rport on---Force Rport to always be on. NAT Traversal Yes---Force Rport to always be on and perform comedia RTP handling. Rport if requested and comedia---Use Rport if the remote side says to use it and perform comedia RTP handling. OpenVox Communication Co. ,LTD.

  • Page 36: Advanced: Registration Options

    4.1.3 Call Settings Table 4-1-3 Definition of Call Options Options Definition Set default DTMF Mode for sending DTMF. Default: rfc2833. Other options: 'info', SIP INFO message (application/dtmf-relay); DTMF Mode 'Inband', Inband audio (require 64kbit codec -alaw, ulaw). OpenVox Communication Co. ,LTD.

  • Page 37: Media Settings

    If you want binding batch Sip accounts to FXS port, you can configure this page. Look out: this is only used when “This gateway registers with the endpoint” work mode. Figure 4-2-1 FXS Batch Binding SIP OpenVox Communication Co. ,LTD.

  • Page 38: Batch Create Sip

    Enable DNS SRV lookups on outbound calls Note: the gateway only Enable Hostname uses the first host in SRV records Disabling DNS SRV lookups disables Lookup the ability to place SIP calls based on domain names to some other SIP OpenVox Communication Co. ,LTD.
  • Page 39 The externally mapped TCP port, when the gateway is behind a static NAT TCP Port or PAT The external address (and optional TCP port) of the NAT. External Address External Address = hostname[:port] specifies a static address[:port] to be OpenVox Communication Co. ,LTD.

  • Page 40: Parsing And Compatibility

    4.4.2 Parsing and Compatibility Table 4-4-4 Instruction of Parsing and Compatibility Options Definition Check header tags, character conversion in URIs, and multiline headers for Strict RFC Interpretation strict SIP compatibility(default is yes) Send compact SIP headers Send Compact Headers OpenVox Communication Co. ,LTD.

  • Page 41: Security

    Default is 0 Attempts Enter '0' tries, continue forever. for unlimited 4.4.3 Security Table 4-4-5 Instruction of Security Options Definition If available, match user entry using the 'username' field from the Match Auth Username OpenVox Communication Co. ,LTD.

  • Page 42: Media

    Some ISDN links send empty media frames before the call is in ringing or Premature Media progress state. The SIP channel will then send 183 indicating early media which will be empty - thus users get no ring signal. Setting this to "yes" will OpenVox Communication Co. ,LTD.

  • Page 43: Sip Account Security

    Figure 4-5-1 TLS settings Table 4-5-1 Instruction of TLS Options Definition Enable or disable DTLS-SRTP support. TLS Enable Enable or disable tls verify server(default is no). TLS Verify Server Specify the port for remote connection. Port OpenVox Communication Co. ,LTD.
  • Page 44 Analog Gateway User Manual Values include tlsv1, sslv3, sslv2, Specify protocol for outbound client TLS Client Method connections, default is sslv2. OpenVox Communication Co. ,LTD.

  • Page 45: Routing

    China Telecom. Called transform adds 086 as prefix, and Change the last two number to 88. Figure 5-1-1 processing rules prepend prefix Match pattern SdfR RdfR Caller Name China Calling Transformation xxxxxxxx 0755 telecom Called transformation xxxxxxx OpenVox Communication Co. ,LTD.
  • Page 46 The name of this route. Should be used to describe what types of calls Routing Name this route matches (for example, ‘SIP2GSM’ or ‘GSM2SIP’). Call Comes in From The launching point of incoming calls. Send Call Through The destination to receive the incoming calls. Figure 5-1-3 Advance Routing Rule OpenVox Communication Co. ,LTD.
  • Page 47 If the value of this item under the length of the current number, the whole number will be reserverd. StA(Suffix to Add): Designated information to be added to the right end of the current number. OpenVox Communication Co. ,LTD.

  • Page 48: Groups

    You can combine many Ports or SIP to groups. Then if you want to make a call, it will find available port automatically. Figure 5-2-1 Group Rules You can click button to set new group, and if you want to modify existed group, you can click button. OpenVox Communication Co. ,LTD.

  • Page 49: Batch Create Rules

    The mean of this route. Should be used to describe what types of calls this route Group Name match (for example, ‘sip1 TO port1’ or ‘port1 To sip2’). 5.3 Batch Create Rules If you bind telephone for each FXO port and want to establish separate call routings for them. For OpenVox Communication Co. ,LTD.

  • Page 50: Advanced Settings

    SIP accounts. You can set related routing rules. In this case, you can choose to enable the internal FXS/SIP call function. Figure 5-4-1 Advanced settings OpenVox Communication Co. ,LTD.

  • Page 51: Network

    A reserved IP address to access in case your gateway IP is not available. Remember to set a similar network segment with the following address of your local PC. Figure 6-1-1 LAN Settings Interface Table 6-1-1 Definition of Network Settings Options Definition Interface The name of network interface. OpenVox Communication Co. ,LTD.
  • Page 52 The reserved IP address for this gateway. Address Reserved The subnet mask of the reserved IP address. Netmask Basically this info is from your local network service provider, and you can fill in four DNS servers. Figure 6-1-2 DNS Interface OpenVox Communication Co. ,LTD.

  • Page 53: Vpn Settings

    SYSTEM status page. About the configure format you can refer to the Notice and Sample configuration. Figure 6-2-1 VPN Interface 6.3 DDNS Settings You can enable or disable DDNS (dynamic domain name server). Figure 6-3-1 DDNS Interface OpenVox Communication Co. ,LTD.

  • Page 54: Toolkit

    Your DDNS account’s password. Your domain The domain to which your web server will belong. 6.4 Toolkit It is used to check network connectivity. Support Ping command on web GUI. Figure 6-4-1 Network Connectivity Checking Figure 6-4-2 Channel Recording OpenVox Communication Co. ,LTD.

  • Page 55: Firewall Settings

    The tool of tcpdump capture network data by parameter option specified. Parameter 6.5 Firewall Settings Figure 7-6-1 Firewall Settings Table 7-6-1 Definition of Firewall Settings Options Definition Firewall Enable If you want to use White/Black List, and security rules, you must enable this OpenVox Communication Co. ,LTD.

  • Page 56: Security Rules

    Figure 7-6-2 White/Black List Settings Table 7-6-2 Definition of White/Black List Settings Options Definition White/Black List Enable To enable White/Black list or not. List IP IP is separated only by "," character. 6.6 Security Rules Figure 7-7-1 Security Rules Settings OpenVox Communication Co. ,LTD.
  • Page 57 And Click "Apply" button in 1 minute. If time runs out, this window will close automatically. Figure 7-7-2 Security Rules Apply If you see the windows like below. It means your configuration has been applied successfully. Figure 7-7-3 Security Rules Apply OpenVox Communication Co. ,LTD.

  • Page 58: Advanced

    Name of the manager without space Password for the manager. Manager secret Characters: Allowed characters “-_+.<>&0-9a-zA-Z”. Length:4-32 characters. If you want to deny many hosts or networks, use char & as separato Deny r.Example: 0.0.0.0/0.0.0.0 or 192.168.1.0/255.255.255.0&10.0.0.0/255.0.0. OpenVox Communication Co. ,LTD.
  • Page 59 Once you set like the above figure, the host 172.16.80.16/255.255.0.0 is allowed to access the gateway API. Please refer to the following figure to access the gateway API by putty. 172.16.80.16 is the gateway’s IP, and 5038 is its API port. OpenVox Communication Co. ,LTD.

  • Page 60: Asterisk Cli

    In this page, you are allowed to run Asterisk commands. Figure 7-2-1 Asterisk Command Interface Table 7-2-1 Definition of Asterisk API Options Definition Command Type your Asterisk CLI commands here to check or debug your gateway. OpenVox Communication Co. ,LTD.

  • Page 61: Asterisk File Editor

    On this page, you are allowed to edit and create configuration files. Click the file to edit. Figure 7-3-1 Configuration Files List Click “New Configuration File” to create a new configuration file. After editing or creating, please reload Asterisk. OpenVox Communication Co. ,LTD.

  • Page 62: Log Settings

    On the “Log Settings” page, you should set the related logs on to scan the responding logs page. For example, set “System Logs” on like the following, then you can turn to “System” page for system logs, otherwise, system logs are unavailable. And the same with other log pages. Figure 8-1-1 Logs Settings OpenVox Communication Co. ,LTD.
  • Page 63 Auto clean: the file. New logs will be retained. (Call Detail switch off: Record) logs will remain, and the file size will increase gradually. default on, default size=20MB. OpenVox Communication Co. ,LTD.
  • Page 64 Figure 8-1-2 System Logs Output Notice: The same to Asterisk Logs, SIP Logs and DAHDI Logs. With Syslog software, you can monitor and store the gateway's logs and CDRs locally on the PC. Figure 8-1-3 Syslog OpenVox Communication Co. ,LTD.
  • Page 65 Analog Gateway User Manual 8.2 CDR You can scan every call detail record in this page. We also provide the filter for you to search some specific records. Figure 8-2-1 Call Detail Record OpenVox Communication Co. ,LTD.
