3. Functionality

3.1.

Docking Procedure

The following docking procedure is common across each of the docking station types
PREPARATION:
To place the IsatPro Phone into the docking unit, both the 'doors' on the
external antenna connectors and the USB/Audio connectors need to
opened.
The antenna 'door' must be placed at 90 degrees to the antenna
connector cavity and run parallel to the top edge of the phone
The 'door' in the base of the phone should be in the fully opened position.
DOCKING:
To dock the handset, align the IsatPhone with the phone tray and slide the handset down until it
seats flush to the bottom of the tray
Swing the phone down into the cradle by applying pressure to the top of the handset. An audible
'click' is heard when the phone is in the docked position.
Page 7 of 25
Beam Communications
STRICTLY CONFIDENTIAL
A
A
N N T T E E N N
C
C
O O V V E E R R
U S B / A
U S B / A
U D
U D
C
C
O V E R
O V E R

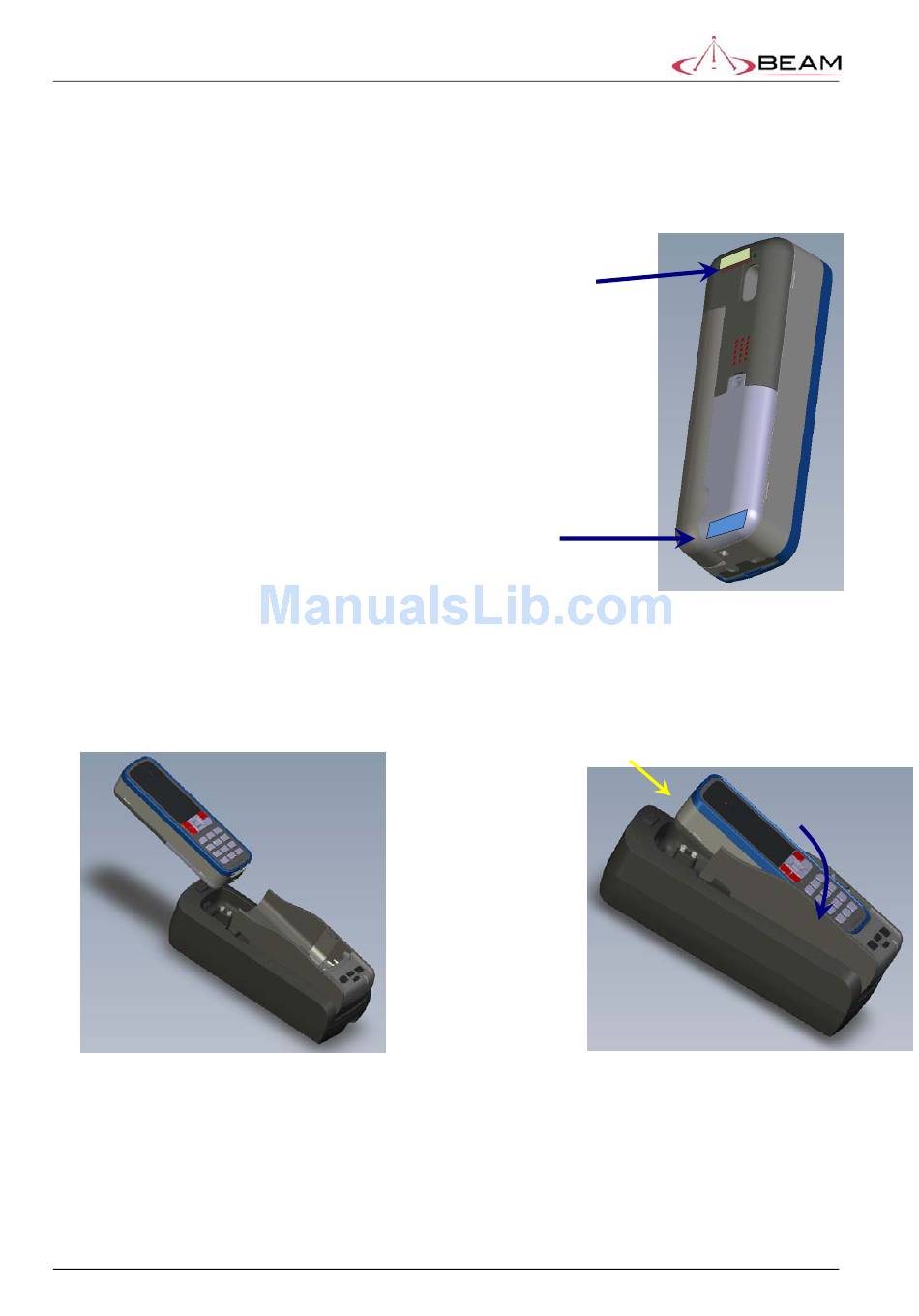

Figure 2 – Door Openings
Figure 3 – Phone alignment
