3. Specifications

3.1. Operating Elements

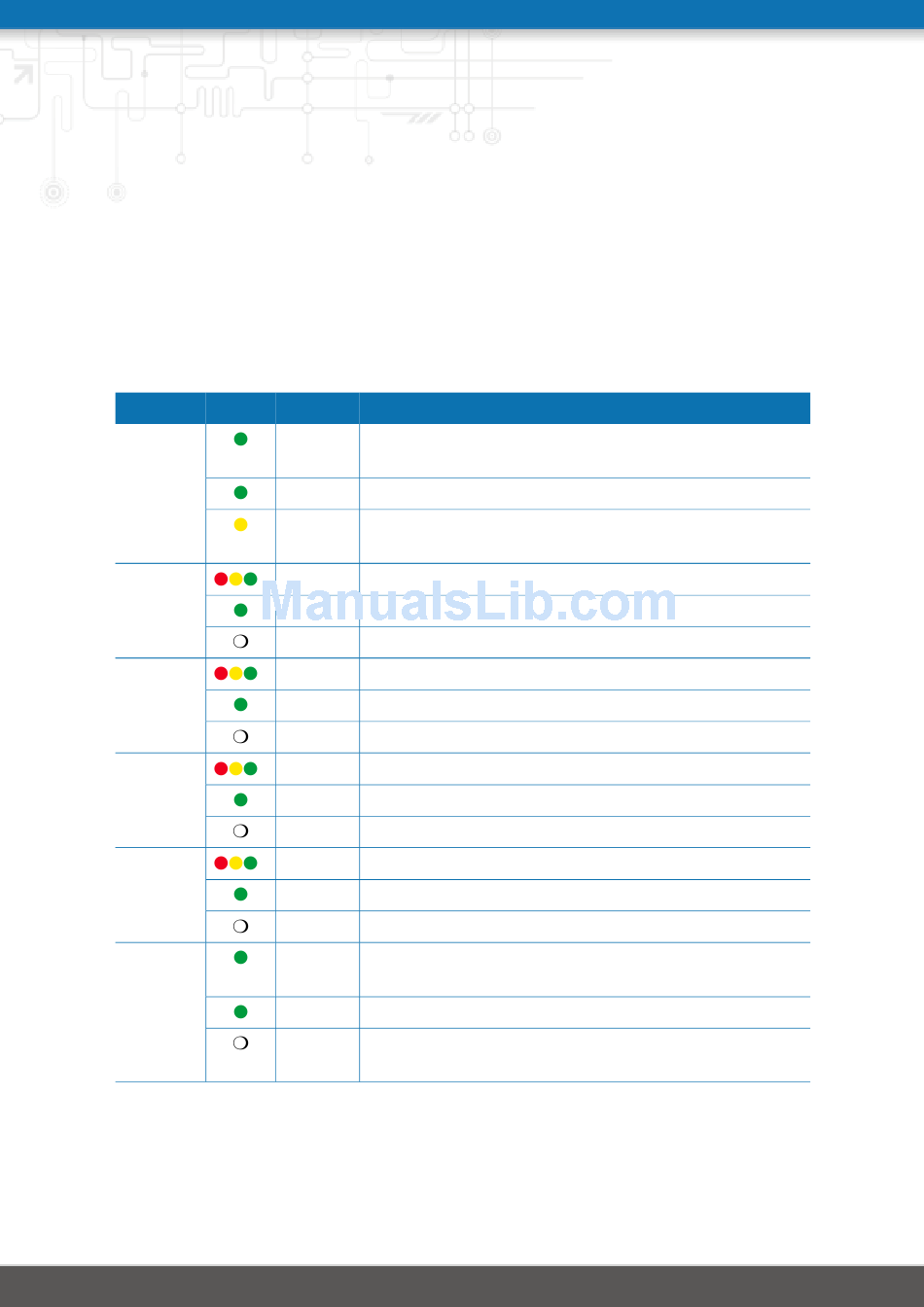

The following table describes the NB3711 status indicators.
Label Color
Status blinking The device is busy due to startup, software or configu-
[1]
Mob1
blinking Mobile connection 1 is being established.
[1]
Mob2
blinking Mobile connection 2 is being established.
[1]
WLAN1
blinking WLAN connection 1 is being established.
[1]
WLAN2
blinking WLAN connection 2 is being established.
GNSS
blinking GNSS is searching for satellites.
State Function
ration update.
on The device is ready. The captions of the top bank apply.
on The device is ready. The captions of the bottom bank
apply.
on Mobile connection 1 is up.
off Mobile connection 1 is down.
on Mobile connection 2 is up.
off Mobile connection 2 is down.
on WLAN connection 1 is up.
off WLAN connection 1 is down.
on WLAN connection 2 is up.
off WLAN conne ction 2 is down.
on GNSS is turned on and a valid NMEA stream is avail-
able.
off GNSS is turned off or no valid NMEA stream is avail-
able.
