Dynon Avionics SkyView SE System Installation Manual page 395

o Shield of the cable from SV-COM-425 #1 Pins 1 and 2
o SV-COM-425 #2 Pin 9
o Shield of the cable from SV-COM-425 #2 Pins 9 and 10
o SV-COM-425 #2 Pin 2
o Shield of the cable from SV-COM-425 #2 Pins 1 and 2
Rather than trying to terminate these eight connections directly to SV-INTERCOM-2S Pin 1, we
suggest connecting a wire to Pin 1, then bond all nine connections together. One method is to
tie-wrap the bundle of wires and shields together, twist the wires together, and solder the nine
wires and shields. After the solder cools, use heat shrink tubing to insulate the connection.

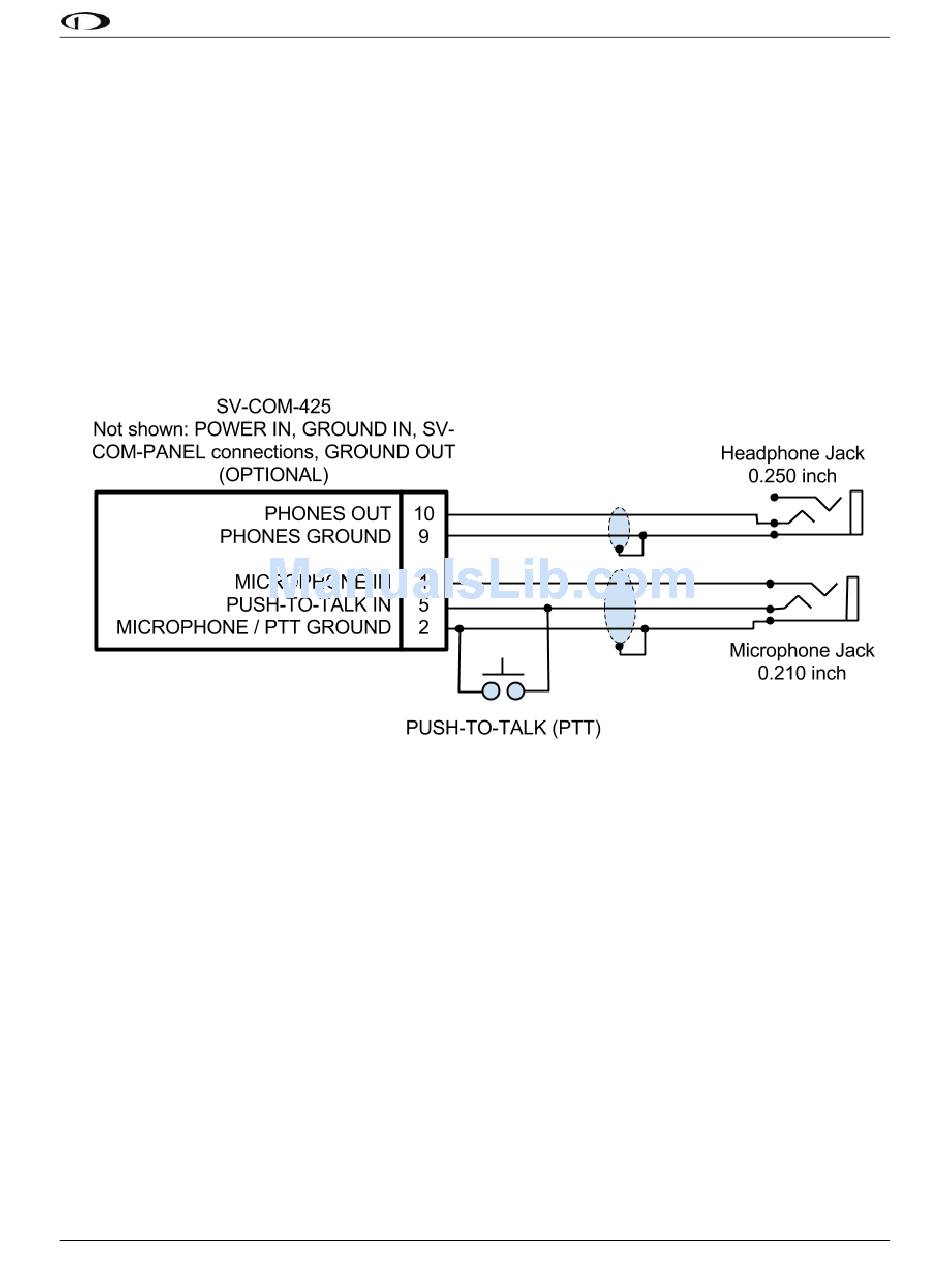

The following figure depicts connecting a SV-COM-425 directly to a single headset (headphone
+ microphone) and a Push-To-Talk Switch when no intercom is used in a single-place aircraft.
SkyView System Installation Guide - Revision AA
SV-COM-C25 Installation and Configuration
Figure 182 – SV-COM-425 to Headset
16-13
