Example Skyview Systems - Dynon Avionics SkyView SE System Installation Manual

Dynon Avionics P/N
SV-HARNESS-XPNDR
SV-NET-1.5CC
SV-NET-3CC
SV-NET-6CC
SV-NET-10CP
SV-NET-15CP
SV-NET-20CP
SV-NET-25CP
SV-NET-30CP
SV-NET-HUB
SV-NET-SERVO
SV-NET-SPL
Table 7 – Dynon Avionics SkyView Harnesses and SkyView Network Cables

Example SkyView Systems

SkyView systems are easily scalable and can accommodate a wide variety of components
ranging from a single display with one module to multiple displays with multiple modules. The
following diagrams illustrate several example SkyView systems and the components needed to
build them. Diagrams do not show a connection to aircraft power and do not imply an
installation location. Additionally, cable lengths and models pictured below should not be
blindly used as a "prescription". Always consider your aircraft's particular geometry and module
installation locations before purchasing harnesses, hubs, and splitters.
SkyView System Installation Guide - Revision AA
Wiring Harness for SV-XPNDR-261/262 – 15 ft. (4.6 m)
SkyView Network Cable, both ends with connectors – 1.5 ft. (0.46 m)
SkyView Network Cable, both ends with connectors – 3 ft. (0.91 m)
SkyView Network Cable, both ends with connectors – 6 ft. (1.82 m)
SkyView Network Cable, 1 end connector, 1 end pins only – 10 ft. (3.05 m)
SkyView Network Cable, 1 end connector, 1 end pins only
SkyView Network Cable, 1 end connector, 1 end pins only
SkyView Network Cable, 1 end connector, 1 end pins only
SkyView Network Cable, 1 end connector, 1 end pins only
SkyView Network Hub (5 SkyView Network connections)
(Does not include a SkyView Network Cable – purchase separately)
SkyView Network Cabling Kit for Autopilot Servos – 20 ft. (6.10 m)
One SV-NET-SERVO is used for each servo in most installations.
SkyView Network Splitter – 1 ft. (0.30 m)
KEY
DB9 Female SV-ADAHRS-200

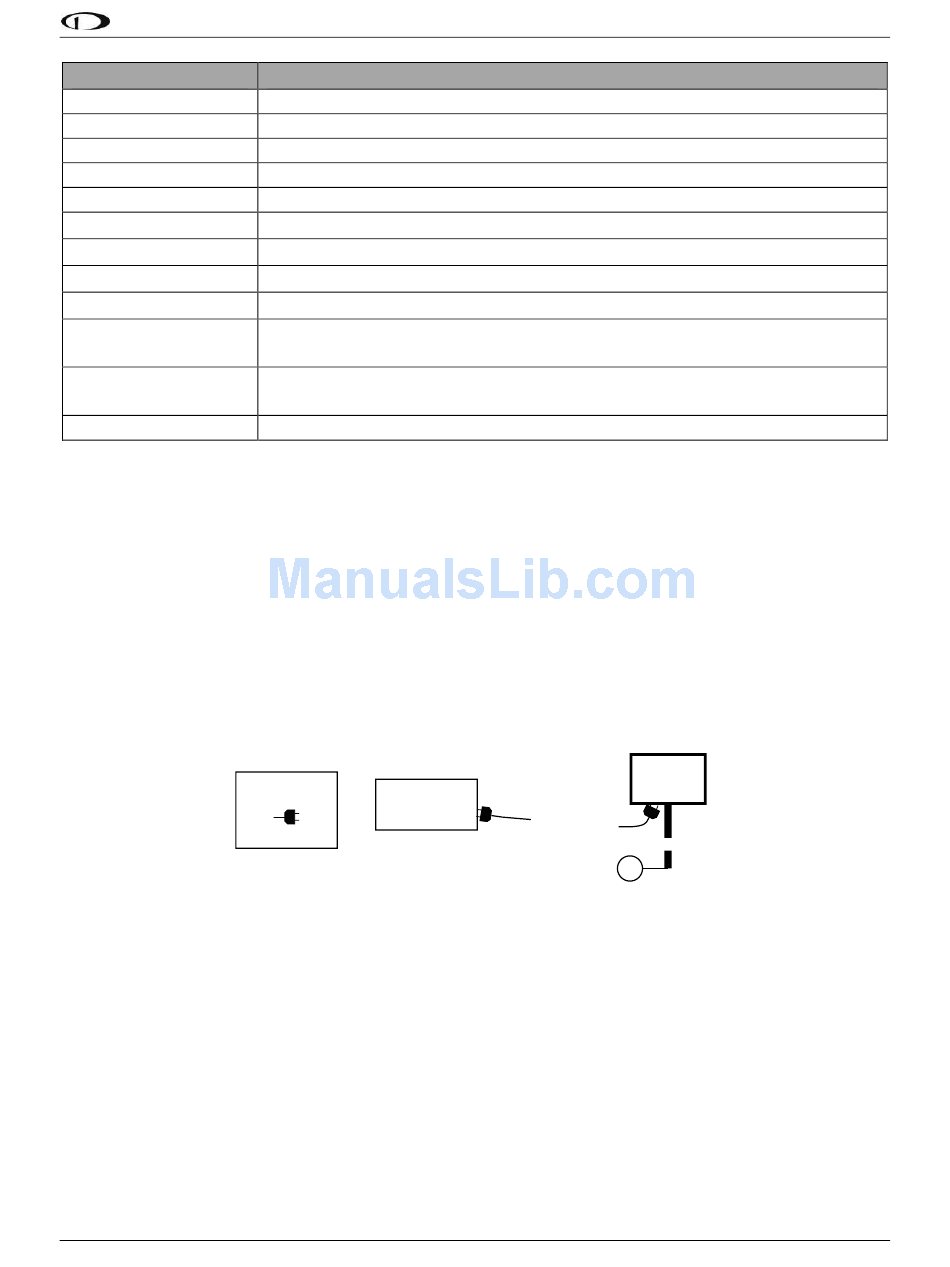

Figure 5 – SkyView System with One Display and One ADAHRS
Description
SV-D1000
SV-NET-10CP
(with installed D9)
SV-HARNESS-D37
USB
Connector
System Planning
–
15 ft. (4.60 m)
–
20 ft. (6.10 m)
–
25 ft. (7.62 m)
–
30 ft. (9.10 m)
2-13
