User Manual
EPIC SBC supports Intel® 14nm 6th Generation Mobile Core™ i7/i5/i3
and Celeron® on-board Processor (ULT) with HDMI/LVDS/iDP,
Dual PCIe GbE, USB 3.0, PCIe Mini, SATA 6Gb/s,
Quick Installation Guide
Package List
NANO-ULT3 package includes the following items:
1 x NANO-ULT3 single board computer with heatspreader
1 x Audio cable
1 x Power cable
1 x RS-232 cable
1 x SATA with power cable kit
1 x One Key Recovery CD
1 x QIG (Quick Installation Guide)
1 x Utility CD
mSATA , COM, Audio and RoHS
NANO-ULT3
Version 1.0
Oct 27 2017.
©2016 Copyright by IEI Integration corp.
All rights reserved.
1
Advertisement
Table of Contents
Related Manuals for IEI Technology NANO-ULT3
Summary of Contents for IEI Technology NANO-ULT3
-
Page 1: Quick Installation Guide

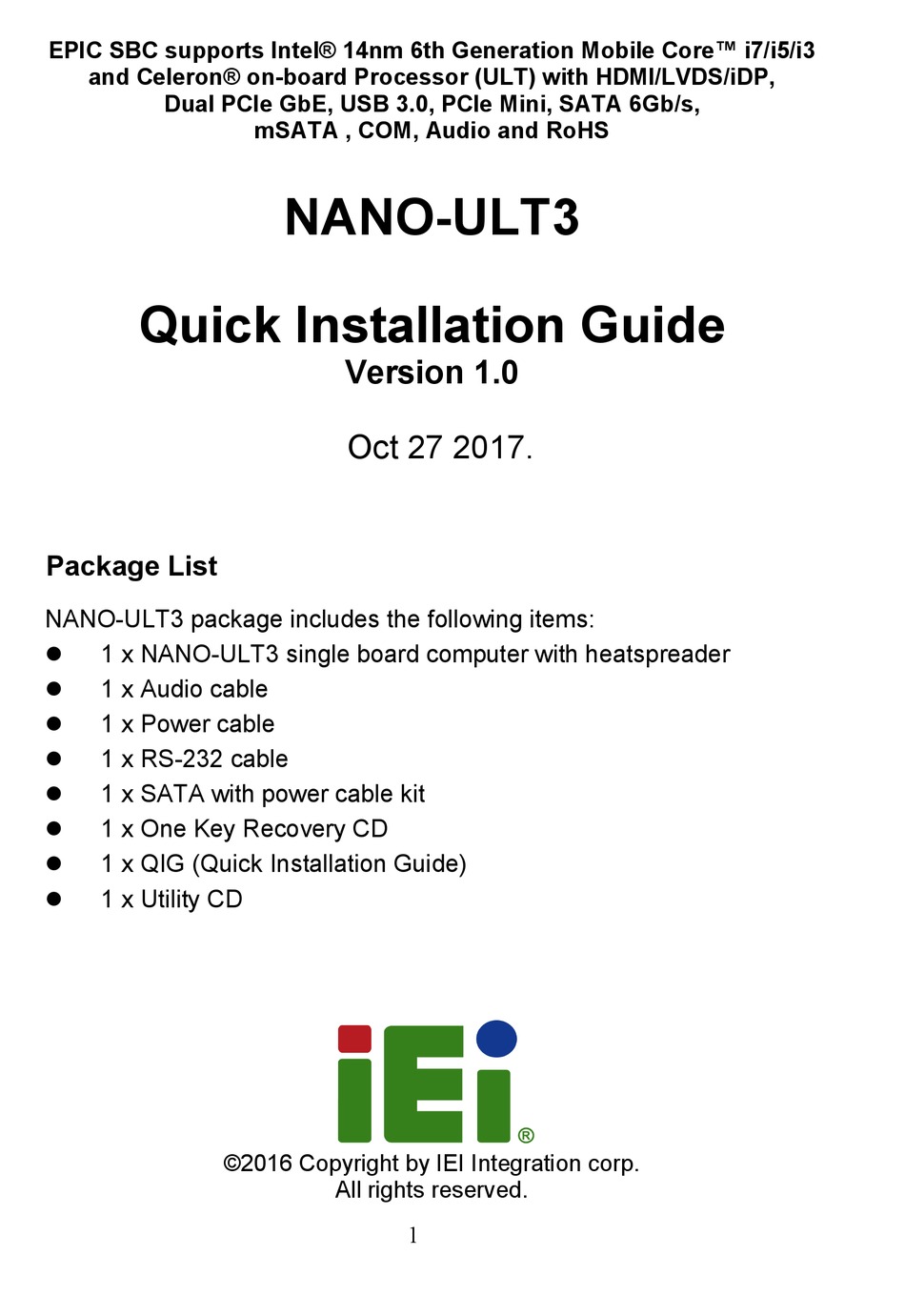

Quick Installation Guide Version 1.0 Oct 27 2017. Package List NANO-ULT3 package includes the following items: 1 x NANO-ULT3 single board computer with heatspreader 1 x Audio cable 1 x Power cable 1 x RS-232 cable ... -
Page 2: Specifications
Specifications SoC: 6th generation Intel® mobile ULT on-board SoC Intel® Core™ i7-6600U (up to 3.4GHz, dual-core, 4MB cache, TDP=15W) Intel® Core™ i5-6300U (up to 3.0GHz, dual-core, 3MB cache, TDP=15W) Intel® Core™ i3-6100U (up to 2.3GHz, dual-core, 3MB cache, TDP=15W) Intel®... - Page 3 1 x KB/MS (1x6 pin) 1 x RS-232/422/485 (2x5 pin, P=2.0) 1 x USB 2.0 (180° Type-A) 2 x USB 2.0 (2x4 pin, P=2.0) 2 x RS-232 (2x5 pin, P=2.0) 2 x SATA 6G/s with 5V SATA power connector (RAID 0,1) ...
-
Page 4: Ordering Information
Dimensions: 115mm x 165mm Weight(GW/ NW): 850g/ 350g Ordering Information NANO-ULT3-i7-R10: EPIC SBC supports Intel® 14nm 6th Generation Mobile Core™ i7- 6600U (15W) on-board Processor (ULT) with HDMI/LVDS/iDP, Dual PCIe GbE, USB 3.0, Dual PCIe Mini, SATA 6Gb/s, mSATA, COM, Audio and RoHS ... -
Page 5: Jumpers Setting And Connectors
NANO-ULT3-CE-R10: EPIC SBC supports Intel® 14nm 6th Generation Mobile Celeron® 3855U (15W) on-board Processor (ULT) with HDMI/LVDS/iDP, Dual PCIe GbE, USB 3.0, Dual PCIe Mini, SATA 6Gb/s, COM, Audio and RoHS 32000-023800-RS: PS/2 KB/MS cable, 135mm, P=2.0 ... - Page 6 RST_BTN1 Reset Button Connector SMBUS_1 SMBUS Connector Buzzer Connector COM1, COM2, COM3 External Serial Port Connector Internal Display Port Connector DIO1 Digital I/O Connector USB1, USB2 Internal USB 2.0 Connector BAT1 BAT Connector ME_FLASH1 ME Override Connector PCIe Mini Card Slot (Half) PCIe Mini Card Slot (Full Size) SIM1 SIM Card Connector...
- Page 7 HDMI1, 2: HDMI Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION HDMI_DATA2 HDMI_DATA2# HDMI_DATA1 HDMI_DATA1# HDMI_DATA0 HDMI_DATA0# HDMI_CLK HDMI_CLK# HDMI_SCL HDMI_SDA HDMI_HPD HDMI_GND HDMI_GND HDMI_GND HDMI_GND SW1: LVDS panel resolution selection * ON=0, OFF=1; Single=S, Dual=D 4-3-2-1 DESCRIPTION 0000 800x600 18bit S (default) 0001 1024x768 18bit S 0010...
- Page 8 USB_CON1, 2: External USB3.0 Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION USB_DATA- USB_DATA- USB_DATA+ USB_ DATA+ USB3_RX- USB3_RX- USB3_RX+ USB3_ RX+ USB3_TX- USB3_TX- USB3_TX+ USB3_TX+ LAN1, LAN2: RJ45 LAN Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION LAN_MDI0+ LAN_MDI2+ LAN_MDI0- LAN_MDI2- LAN_MDI1+ LAN_MDI3+ LAN_MDI1-...
- Page 9 Audio1: Audio Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION LINE_OUTR LINEIN_R ANALOG_GND ANALOG_GND LINE_OUTL LINEIN_L ANALOG_GND ANALOG_GND MICIN1 MICIN2 SATA1, SATA2: Serial ATA Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION SATA_PWR1, 2: SATA Power Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION Ground CPU/FAN1, SYS/FAN1: Fan Connector...
- Page 10 CN2: LVDS Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION A0P_L A0M_L A1P_L A1M_L A2P_L A2M_L CLK1P_L CLK1M_L A3P_L A3M_L A4P_L A4M_L A5P_L A5M_L A6P_L A6M_L CLK2P_L CLK2M_L A7P_L A7M_L +VCC_LCD_BEAD2 +VCC_LCD_BEAD2 +VCC_LCD_BEAD2 +VCC_LCD_BEAD2 PWR_BTN1: Power Button Connector PIN NO. DESCRIPTION PIN NO.
- Page 11 SMBUS_1: 4-pin Header SMBUS Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION SMBUS CLOCK SMBUS DATA SP1: Buzzer Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION VCC+ MCP_SPKR COM1, COM2, COM3: External Serial Port Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION SOUT DP1: Internal DisplayPort Connector PIN NO.
- Page 12 DIO1: Digital Input / Output Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION DOUT3 DOUT2 DOUT1 DOUT0 DIN3 DIN2 DIN1 DIN0 USB1: Internal USB 2.0 Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION -DATA4 +DATA5 +DATA4 -DATA5 USB2: Internal USB 2.0 Connector PIN NO.
- Page 13 CN1: PCIe Mini Card Slot (Half) PIN NO. DESCRIPTION PIN NO. DESCRIPTION PCIE_WAKE# VCC3 1.5 V VCC3 CLK_PCIE_MINI2_N CLK_PCIE_MINI2_P BUF_PLT_RST# VCC3 BUF_PLT_RST# PCIE_RX4DN VCC3 PCIE_RX4DP 1.5 V SMBCLK PCIE_TX4DN SMBDATA PCIE_TX4DP USBD8- USBD8+ VCC3 VCC3 RF_LINK# BLUELED# 1.5 V VCC3...
- Page 14 CN8: PCIe Mini Card Slot (Full Size) PIN NO. DESCRIPTION PIN NO. DESCRIPTION PCIE_WAKE# VCC3 1.5 V VCC3 SIM_VCC SIM_IO CLK- SIM_CLK CLK+ SIM_RST SIM_VPP BUF_PLT_RST# VCC3 BUF_PLT_RST# SATA_RXN2_C VCC3 SATA_RXP2_C 1.5 V SMBCLK SATA_TXN2 SMBDATA SATA_TXP2 USBD7- USBD7+ VCC3 VCC3 RF_LINK# BLUELED#...
- Page 15 SIM1: SIM Card Connector PIN NO. DESCRIPTION PIN NO. DESCRIPTION SIM_VCC SIM_RST SIM_CLK SIM_VPP SIM_IO...
- Page 16 Board Layout: Jumper and Connector Locations (Unit: mm)
