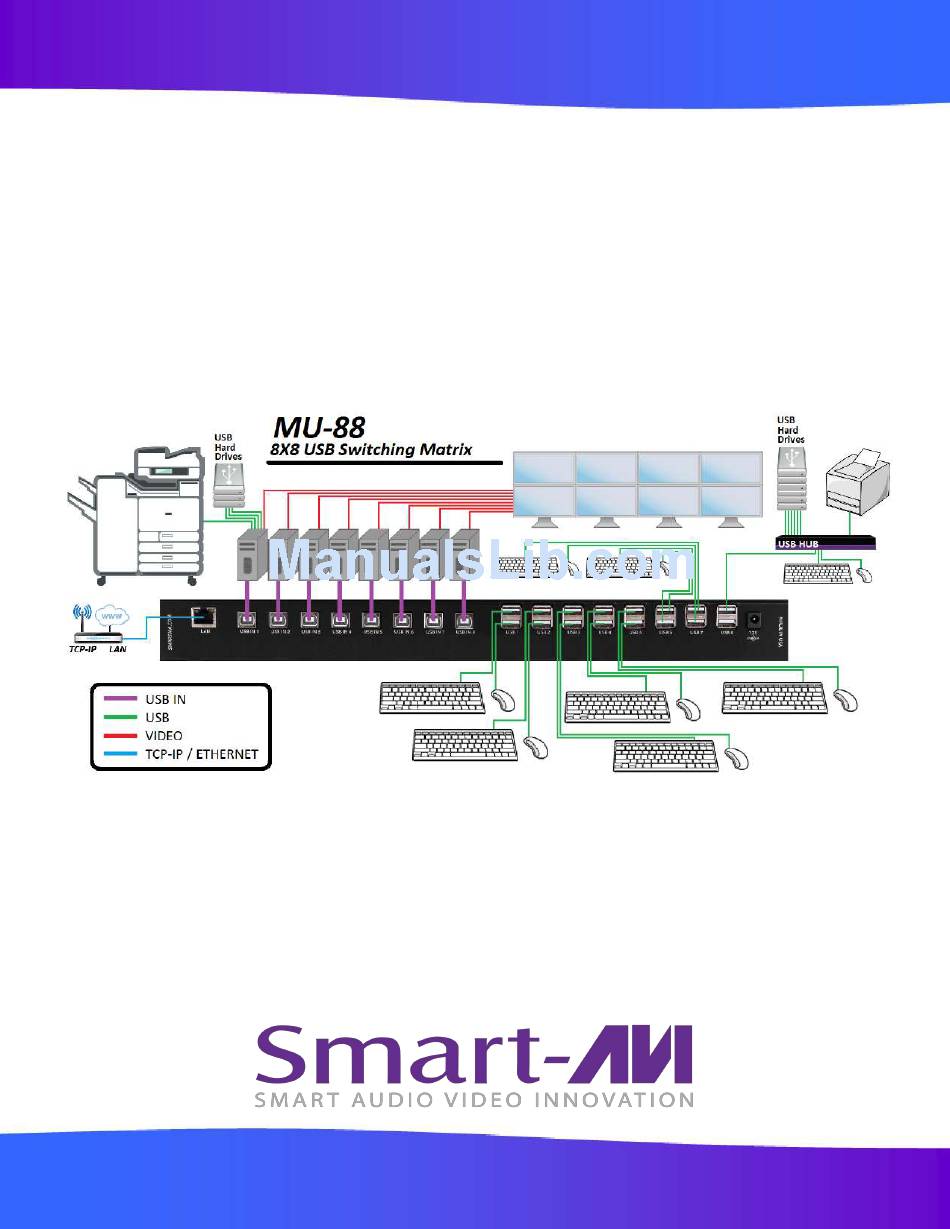

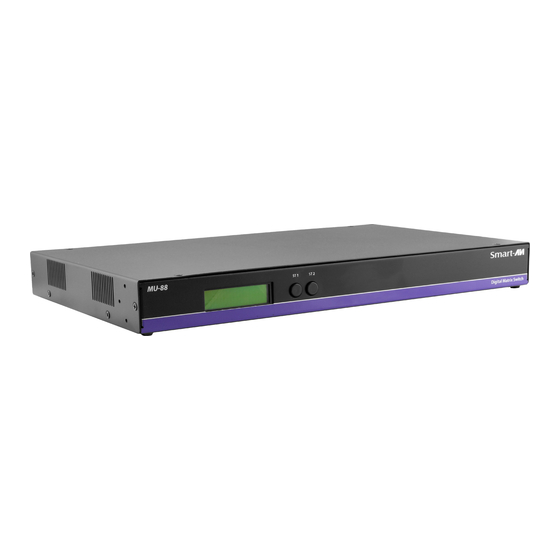

- Page 1 MU-88 User Manual 8X8 Transparent USB 2.0 Matrix Switch Access and control up to 8 computers with Transparent USB 2.0 from up to 8 connected stations Made in U.S.A. www.SmartAVI.com 1-800-AVI-2131...
-
Page 2: Table Of Contents
TABLE OF CONTENTS WHAT'S IN THE BOX? INTRODUCTION FEATURES APPLICATIONS TECHNICAL SPECIFICATIONS HARDWARE INSTALLATION FRONT PANEL CONTROL CONTROL VIA ETHERNET LIMITED WARRANTY STATEMENT WHAT'S IN THE BOX? PART NO. QTY DESCRIPTION MU88-S 8X8 Transparent USB 2.0 Matrix Switch PS12VDC5A Power Adapter Quick Start Guide Brackets for mounting this device in a standard 19”... -
Page 3: Introduction
INTRODUCTION The MU-88 is an 8x8 transparent USB 2.0 matrix switch. It allows up to eight users to control any eight remote computers from USB 2.0 equipped stations. The MU-88 excels at expediting workflow by offering control of remote systems via USB devices, such as keyboards and mice, as well as connectivity for pe- ripherals like external hard-drives, printers, and scanners. -
Page 4: Technical Specifications
TECHNICAL SPECIFICATIONS Signal Type USB 2.0, 1.1 and 1.0 (8) USB Type B Female (No Emulation) Input Output (16) USB Type A Female (2 per Station) CONTROL Front Panel Buttons Ethernet (TCP/IP) (1) RJ-45 OTHER Power Adapter PS12VDC5A Dimensions 17.06” W x 2” H x 10.4” D Weight 8.8 lbs. -
Page 5: Hardware Installation
2. Connect up to 8 computer’s USB outputs to the MU-88 USB type B inputs 3. Connect up to 8 keyboards and mice to the MU-88 type A USB outputs. USB hubs may be used to con- nect additional USB devices. - Page 6 Press ST1 & ST2 simultaneously to connect the ports. Press ST2 to move to another IN port or press ST1 & ST2 simultaneously to exit back to the main menu. Press ST1 & ST2 simultaneously to display the IP address in use by the MU-88.
- Page 7 CONTROL VIA ETHERNET On the front panel of the MU-88 press the ST2 button until the cursor is by the IP selection. Press ST1 & ST2 simultaneously to display the IP address in use by the MU-88. Enter the IP address into a web browser of your choice.
- Page 8 CONTROL VIA ETHERNET (Continued) From the main webpage you can select IP Config and a webpage will display with fields allowing to set the network settings for the MU-88. Figure 8-1...
- Page 9 Smart-AVI limited warranty is valid in any country where the covered product is distributed by Smart-AVI. Limitations of warranty To the extant allowed by local law, neither Smart-AVI nor its third party suppliers make any other warranty or condition of any kind whether expressed or implied with respect to the Smart-AVI product, and specifically disclaim implied warranties or conditions of merchantability, satisfactory quality, and fitness for a particular purpose.
- Page 10 NOTICE The information contained in this document is subject to change without notice. SmartAVI makes no war- ranty of any kind with regard to this material, including but not limited to, implied warranties of merchant- ability and fitness for particular purpose. SmartAVI will not be liable for errors contained herein or for inci- dental or consequential damages in connection with the furnishing, performance or use of this material.
