Summary of Contents for SMART-AVI 4KWALL-UHD

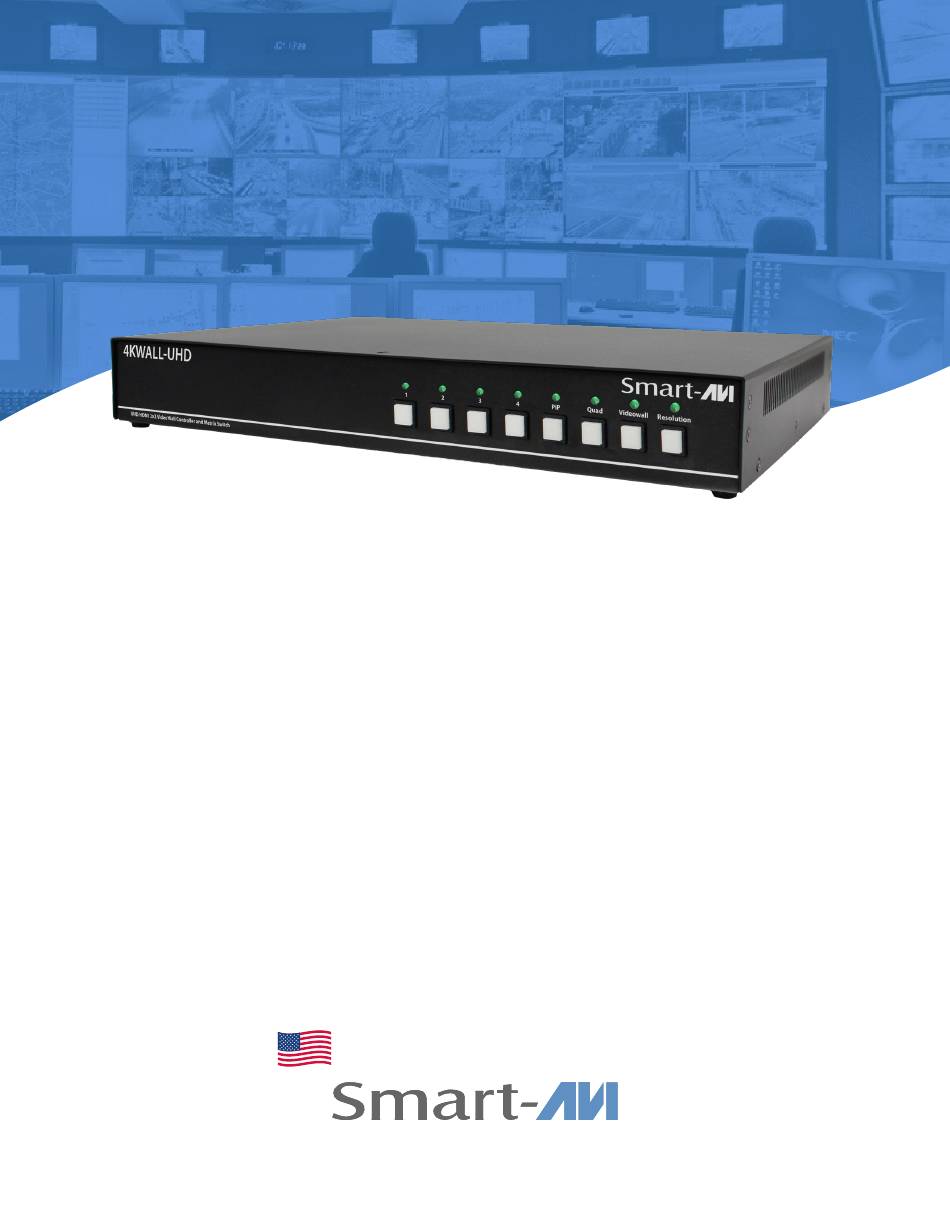

- Page 1 4KWALL-UHD UHD HDMI 2x2 video wall controller and 4x4 matrix switch USER MANUAL Designed and Manufactured in the USA 1-800-284-2131 www.smartavi.com...
-
Page 2: Table Of Contents
OVERVIEW TECHNICAL SPECIFICATIONS___________________________________________________________________________ WHAT’S IN THE BOX?_____________________________________________________________________________________ FRONT AND BACK________________________________________________________________________________________ INTRODUCTION___________________________________________________________________________________________ FEATURES__________________________________________________________________________________________________ APPLICATION_____________________________________________________________________________________________ INSTALLATION____________________________________________________________________________________________ AVAILABLE CONFIGURATIONS__________________________________________________________________________ CONTROL USING FRONT PANEL_________________________________________________________________________ CONTROL VIA ETHERNET (TCP/IP)______________________________________________________________________ CONTROL USING RS-232 CONTROL____________________________________________________________________ 9-10 RS-232 COMMANDS______________________________________________________________________________________ CONTROL USING IR REMOTE CONTROL________________________________________________________________ TROUBLESHOOTING____________________________________________________________________________________ TECHNICAL SUPPORT____________________________________________________________________________________ LIMITED WARRANTY STATEMENT______________________________________________________________________ UHD HDMI 2x2 Video Wall Controller and 4x4 Matrix Switch... -
Page 3: Technical Specifications

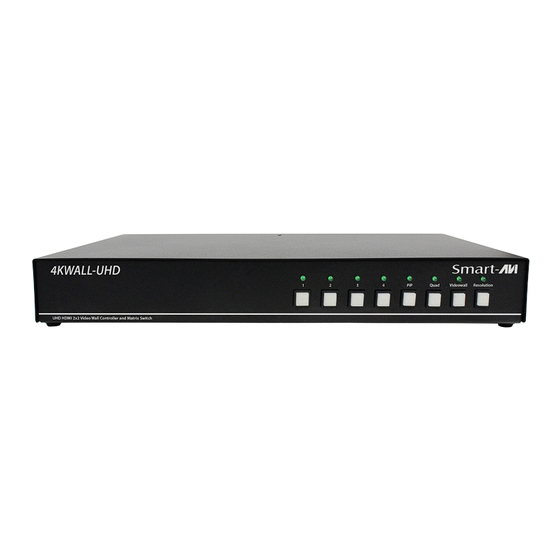

UHD HDMI 2x2 video wall controller and 4x4 matrix switch PS5VDC3A 12V DC 3A (minimum) power adapter with center-pin positive polarity User Manual FRONT AND BACK 4KWALL-UHD Back Panel 4KWALL-UHD Front Panel UHD HDMI 2x2 Video Wall Controller and 4x4 Matrix Switch... -
Page 4: Introduction
Introduction To create a four-screen 2x2 video wall with four UHD video inputs, the 4KWALL-UHD video wall controller provides a truly simple plug-and-play hardware solution. With four inputs and four outputs, users can arrange their content in numerous ways, providing unique functionality by combining the abilities of a video wall hardware controller and a 4x4 HDMI port Matrix. -
Page 5: Installation
INSTALLATION 1. Position your 4KWALL-UHD conveniently and keep the power cord unplugged. 2. Connect up to 4 screens to the HDMI output ports on the back of the 4KWALL-UHD using HDMI cables. 3. Connect up to 4 HDMI inputs i.e. (Blu-Ray player, Digital Signage, computer, etc) to the HDMI input ports on the back of the 4KWALL-UHD using HDMI cables. -
Page 6: Available Configurations
QUAD MODE Users can divide each screen into four sections with all four inputs playing on each screen. Allowing users to have complete control on each screen. Further enhancing the 4KWALL-UHD’s matrix functionality. Picture-in-Picture MODE Users can create Picture-in-Picture (PiP) displays on each screen using all four inputs, with one main UHD source and one accompanying PiP source alongside. -
Page 7: Control Using Front Panel
The buttons marked above are used for selecting the various modes and resolutions offered by the 4KWALL-UHD. Changing Modes using the Front Panel Video Wall Mode: Select the Video Wall button and wait for the light above to begin flashing. Then select the desired input. -
Page 8: Control Via Ethernet (Tcp/Ip)
Download and install: SAVI Finder: IP address locater software. Download and install the SAVI Finder software for your product. Click search device and the 4KWALL-UHD and its IP address should appear in the display as shown to the side. Select your device and click Open Device. Your browser should open and you should see the 4KWALL-UHD Home/ Welcome page as shown below. -
Page 9: Control Using Rs-232 Control
Ethernet (tcp/ip) (continued) control using rs-232 control The 4KWALL-UHD may also be controlled via RS-232 commands. This feature requires an RS-232 card installed on your computer or a USB to RS-232 adapter. Below are instructions on how to properly create an RS-232 connection between a PC and the 4KWALL-UHD. - Page 10 Connecting to the 4KWALL-UHD using a terminal application Use a terminal program like PuTTY or Terminal to connect to the 4KWALL-UHD. Select the COM port you identified previously. Use the standard communication mode of 115200bps, 8, N, 1, No Flow Control.
-
Page 11: Rs-232 Commands
The IR Remote Control gives users great flexibility and ease of use when looking to manage their video wall. It can be operated with the IR Remote Control. The 4KWALL-UHD will only respond to the remote control unit provided in the box. An image of which is shown below. -
Page 12: Troubleshooting
Troubleshooting No Power • Make sure that the power adapter is securely connected to the power connector of the unit. • Check the output voltage of the power supply and make sure that the voltage value is around 12VDC. • Replace the power supply. No Video •... -
Page 13: Limited Warranty Statement
Limited warranty statement A. Extent of limited warranty SmartAVI, Inc. warrants to the end-user customers that the SmartAVI product specified above will be free from defects in materials and workmanship for the duration of 1 year, which duration begins on the date of purchase by the customer. Customer is responsible for maintaining proof of date of purchase. - Page 14 NOTICE The information contained in this document is subject to change without notice. SmartAVI makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for particular purpose. SmartAVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.
