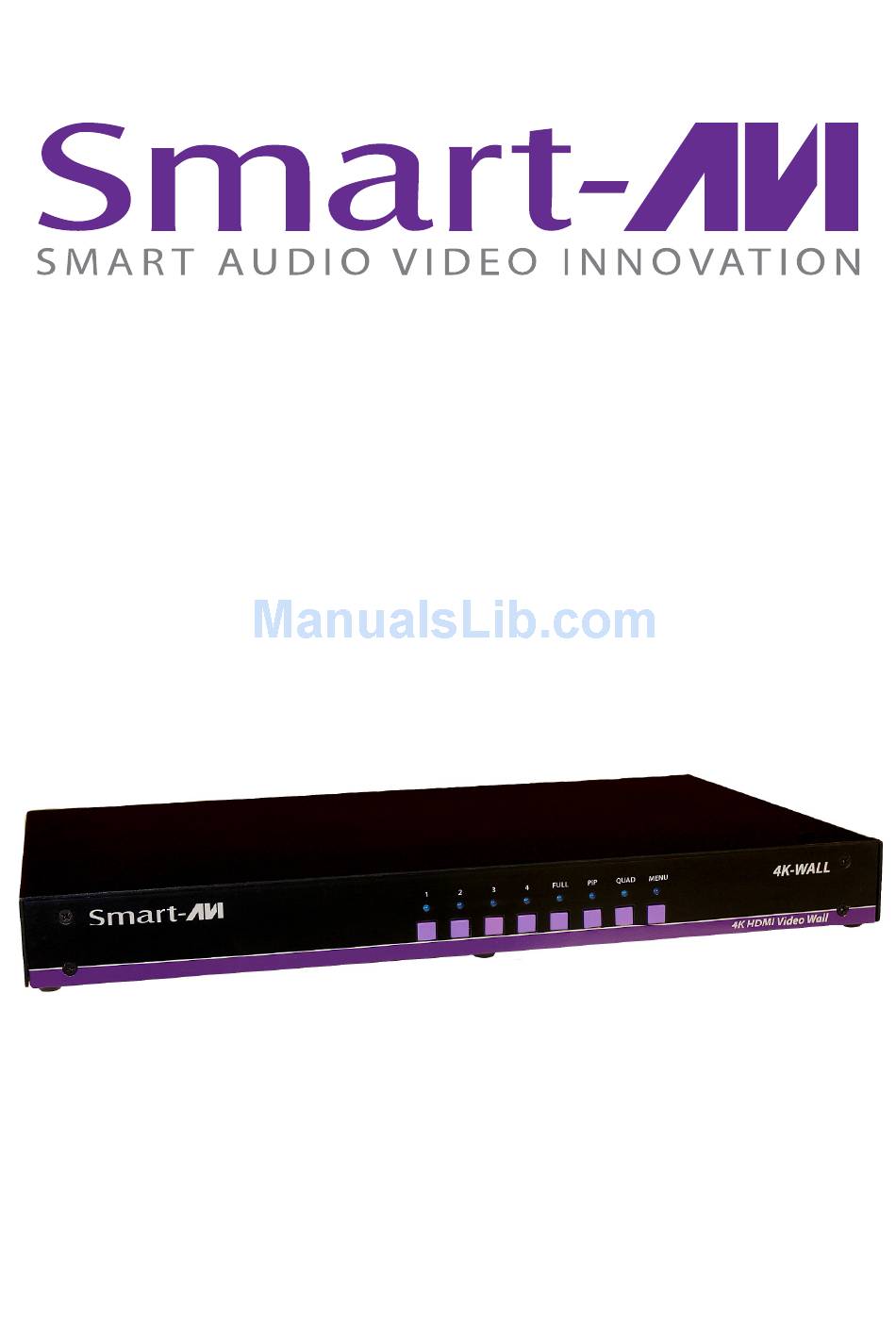

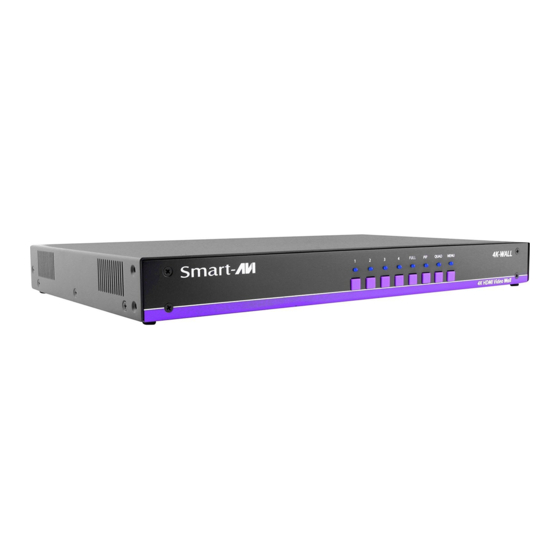

- Page 1 4K-WALL HDMI/DVI 2x2 Video Wall Controller and 4x4 Matrix Switch The ideal video wall controller and video matrix hardware solution with On Screen Display and stunning 4K resolution, no software required USER MANUAL...
- Page 2 WHAT’S IN THE BOX? PART NO. QTY. DESCRIPTION 4X4 Port HDMI, Real-Time Matrix with SM-4KWL-S integrated video wall Includes: [SM-4KWL] Power supply cord (CCPWR06) RS-232 Cable RS-232 (male-to-female) SRC-2A IR Remote Control SM-EYE IR receiver TABLE OF CONTENTS INTRODUCTION & FEATURES TECHNICAL SPECIFICATIONS APPLICATIONS HARDWARE INSTALLATION...
- Page 3 INTRODUCTION To create a four-screen video wall with four HD video inputs, the 4K-Wall video wall controller and matrix provides a truly simple plug-and-play hard- ware solution with incredible 4K resolution. With four inputs and four out- puts, users can arrange their content in numerous ways, providing unique functionality by combining the abilities of a video wall hardware controller and a matrix.
-
Page 4: Technical Specifications
TECHNICAL SPECIFICATIONS VIDEO Video Bandwidth Single-link 340MHz [10.2Gbps] Resolution HDTV 480i,480p,720i,720p,1080i,1080p PC Resolution 800 x 600 up to 1920 x 1200 Input Video Signal 1.2 volts Input DDC Signal 5 volts Single Link Range 1080p Format HDMI 1.4 DVI Compliance Single-link DVI-D 2.0 Output Cable Length Up to 20 ft. -
Page 5: Application Diagram
APPLICATION DIAGRAM APPLICATIONS Corporate or Educational Presentations • Airport Installations • Wall Displays • Digital Signage • Dealer Rooms • Control Rooms • Shopping Centers • Security • Point-of-Sale • Entertainment Venues • Corporate Lobbies • Restaurants •... -
Page 6: Hardware Installation
HDMI cables for HDMI monitors and TVS, or HDMI-to-DVI adapt- ers for DVI displays. 4. Connect the IR receiver to the IR input jack at the back of the 4k-Wall. 5. Optionally connect an RS-232 cable from PC to the RS-232 port of the unit for additional control. -
Page 7: Front Panel Buttons
CONTROL USING THE FRONT PANEL Front Panel Buttons To switch to Video Wall Mode, press the QUAD and MENU buttons si- • multaneously and then press the desired channel 1, 2, 3, or 4. To switch to Individual Mode: • 1. -
Page 8: Ir Remote Control
It can be operated with the IR Remote Control and through the Front Panel Buttons. IR REMOTE CONTROL The 4K-Wall will only respond to the remote control unit provided in the box. Below is the list of commands on how to control using the remote control:... - Page 9 1. Connect a straight- through male-to-female RS-232 cable to the RS- 232 connector on the PC. 2. Connect the other end of the cable to the RS-232 port of the 4K-Wall. 3. Power on the device. Setting up the Terminal Application:...
- Page 10 “N” is the input channel (1 to 4, or a = all), and “M” is the EDID mode. Ex. “wEDID a 3” is to learn the EDID of the local monitor to all inputs • To do a power reset on the 4K-Wall, type “reset” followed by <enter> key.
- Page 11 USING RS-232 CONTROL (continued) Command Mode: Command Mode: Command Mode: Command Mode: allows raw commands to be sent to the 4K-WALL to con- trol its various functions without the use of a menu or prompt. Console Mode Description & Example...
-
Page 12: Firmware Update
FIRMWARE UPDATE The firmware of the 4K-WALL can be upgraded by the end-user. Please contact info@smartavi.com for more details. Below are instructions on how to upgrade the firmware of your 4K-WALL: Power OFF the 4K-WALL. Connect the RS-232 cable from computer to the RS-232 port of the 4K-WALL. - Page 13 NOTES...
- Page 14 LIMITED WARRANTY STATEMENT A. A. A. A. Extent of limited warranty Extent of limited warranty Extent of limited warranty Extent of limited warranty SmartAVI Technologies, Inc. warrants to the end-user customers that the SmartAVI product specified above will be free from defects in materials and workmanship for the duration of 1 year, which duration begins on the date of purchase by the customer.
- Page 15 NOTICE The information contained in this document is subject to change without notice. SmartAVI makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for particular purpose. SmartAVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.
- Page 16 Designed and Manufactured in the USA 800.AVI.2131 Tel: (818) 503-6200 Fax: (818) 503-6208 11651 Vanowen St. North Hollywood, CA 91605 SmartAVI.com...
