Summary of Contents for SMART-AVI MU-88

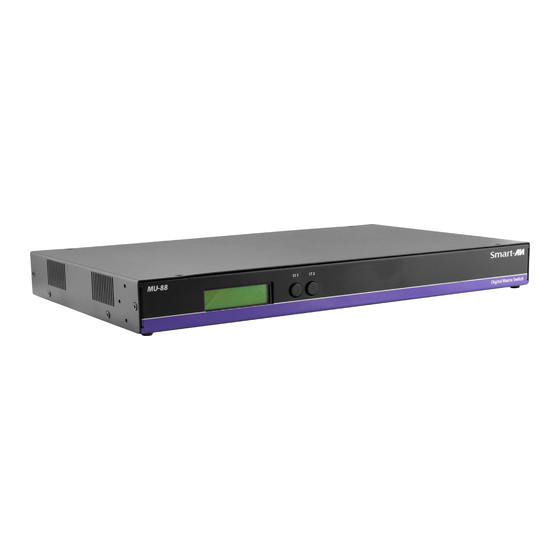

- Page 1 MU-88 8X8 Transparent USB 2.0 Matrix Switch USER MANUAL Designed and Manufactured in the USA 1-800-284-2131 www.smartavi.com...
-
Page 2: Table Of Contents
OVERVIEW TECHNICAL SPECIFICATIONS_________________________________________________________________ WHAT’S IN THE BOX?________________________________________________________________________ FRONT AND BACK___________________________________________________________________________ HARDWARE INSTALLATION__________________________________________________________________ FRONT PANEL CONTROL_____________________________________________________________________ CONTROL VIA ETHERNET____________________________________________________________________ LIMITED WARRANTY STATEMENT____________________________________________________________ 8x8 Transparent USB 2.0 Matrix Switch... -
Page 3: Technical Specifications
Technical Specifications Signal Type USB 2.0, 1.1, and 1.0 Input Interface (8) USB Type B Female (No Emulation) Output Interface (16) USB Type A Female CONTROL Front Panel Front panel buttons Ethernet (TCP/IP) via RJ-45 OTHER Power Adapter Internal 100-240 VAC/ 12 DC, 5A Max Consumption 100 W Dimensions... -
Page 4: What's In The Box
What’s in the box? PART NO. Q-TY DESCRIPTION MU88-S 8x8 Transparent USB 2.0 Matrix Switch PS12VD5A-WLLMNT Power supply User Manual FRONT panel BACK panel 8x8 Transparent USB 2.0 Matrix Switch... -
Page 5: Hardware Installation
2. Connect up to 8 computer’s USB outputs to the MU-88 USB type B inputs 3. Connect up to 8 keyboards and mice to the MU-88 type A USB outputs. USB hubs may be used to connect additional USB devices. -
Page 6: Front Panel Control
Press ST2 to move to another IN port or press ST1 & ST2 simultaneously to exit back to the main menu. • IP: Press ST1 & ST2 simultaneously to display the IP address in use by the MU-88. 8x8 Transparent USB 2.0 Matrix Switch... -
Page 7: Control Via Ethernet
CONTROL VIA ETHERNET On the front panel of the MU-88 press the ST2 button until the cursor is by the IP selection. Press ST1 & ST2 simultaneously to display the IP address in use by the MU-88. Enter the IP address into a web browser of your choice. -
Page 8: Limited Warranty Statement
Limited warranty statement A. Extent of limited warranty SmartAVI, Inc. warrants to the end-user customers that the SmartAVI product specified above will be free from defects in materials and workmanship for the duration of 1 year, which duration begins on the date of purchase by the customer. Customer is responsible for maintaining proof of date of purchase. - Page 9 NOTICE The information contained in this document is subject to change without notice. SmartAVI makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for particular purpose. SmartAVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.
