- Page 1 HDR-ULTRA HDMI 16x16 Matrix over Cat 5e/6 QUICK INSTALLATION GUIDE www.smartavi.com...

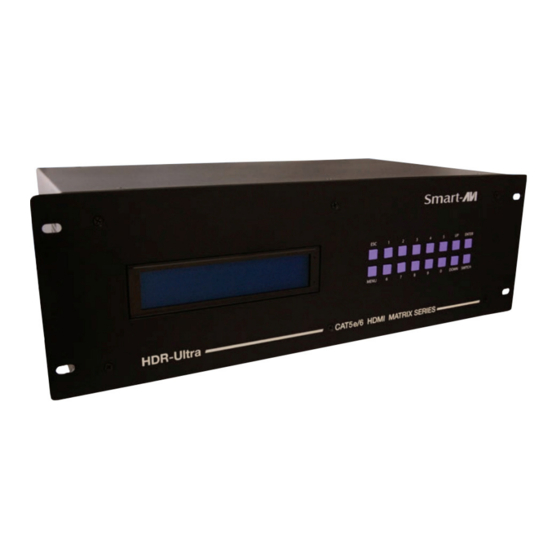

- Page 2 INTRODUCTION The HDR-ULTRA is a High Definition video router that enables users to route HD signals up to 425 feet over CAT 5e/6 cables, providing the ultimate solution to create clean and efficient video and digital signage systems in configurations up to 16x16.
- Page 3 1. Turn off all input devices and displays. 2. Connect the HDMI cables from the input devices and to the “IN” ports on the HDR-ULTRA matrix. 3. Connect the HDMI cables from the HDMI port of the HDX-Ultra Receivers to the HDMI displays.
- Page 4 LEARNING THE EDID OF THE MONITOR 1. Power on the HDR-ULTRA. 2. Connect CAT5e/6 cable from one of the HDX-Ultra Receivers to the OUT1 of the HDR-ULTRA. 3. Connect a straight-through male-to-female RS-232 cable from the computer to the RS-232 port of the HDR- ULTRA.
