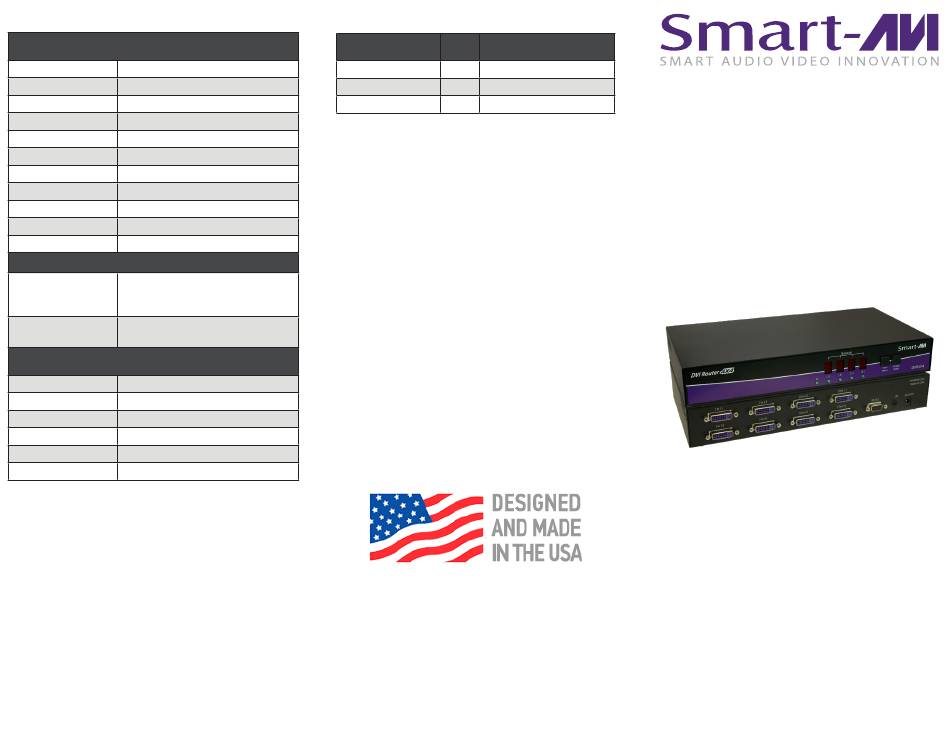

SMART-AVI DVR-4X4 Quick Start Manual

TECHNICAL SPECIFICATION

VIDEO
Format DVI-D Single Link
Input interface (4) DVI-D 29-pin (Female)
Output interface (4) DVI-D 29-pin (Female)
Resolution Up to 1920 x 1200 60 Hz
DDC 5 volts p-p (TTL)
TMDS Rate 1.65Gb/s
Bandwidth 380 MHz
Pixel Clock 165 MHz Maximum
Input Equalization Automatic
Input Cable Length Up to 20 ft
Output Cable Length Up to 20 ft
CONTROL
Buttons, Select/Switch between
Front Panel sources and view the current
selected channels
DB9 Female - 115200, N, 8, 1,
RS-232
No flow control
OTHER
Power Supply External 100-240 VAC/5VDC4A
Dimensions 12" W X 6.5" D x 2" H
Weight 2.3 lbs
Operating Temp. 32 to 131°F (0 to 55 °C)
Storage Temp. -4 to 185 °F (-20 to 85 °C)
Humidity Up to 95% (non-condencing)
WHAT'S IN THE BOX
PART NO. Q-TY DESCRIPTION
DVR4X4 1 DVI-D 4x4 Router
PS5VDC4A 1 Power adapter
Quick Start Guide 1
NOTICE
The information contained in this document is
subject to change without notice. SmartAVI makes
no warranty of any kind with regard to this material,
including but not limited to, implied warranties of
merchantability and fitness for particular purpose.
SmartAVI will not be liable for errors contained
herein or for incidental or consequential damages in
connection with the furnishing, performance or use of
this material.
No part of this document may be photocopied,
reproduced, or translated into another language
without prior written consent from SmartAVI
Technologies, Inc.
888.994.7427, 702.800.0005
2455 W Cheyenne Ave, Suite 112
North Las Vegas, NV 89032
SmartAVI.com

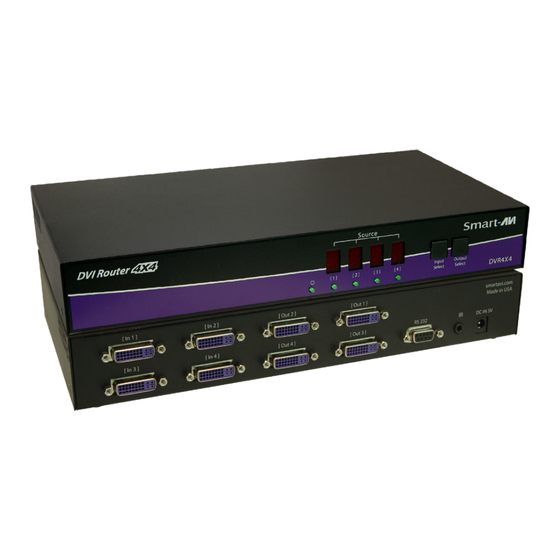

DVR-4X4
4-port DVI-D Matrix Switch
DISPLAY CONTENT FROM ANY 4
COMPUTERS ON ANY 4
SCREENS INDEPENDENTLY
UP TO 20 FEET AWAY
Quick Start Guide
