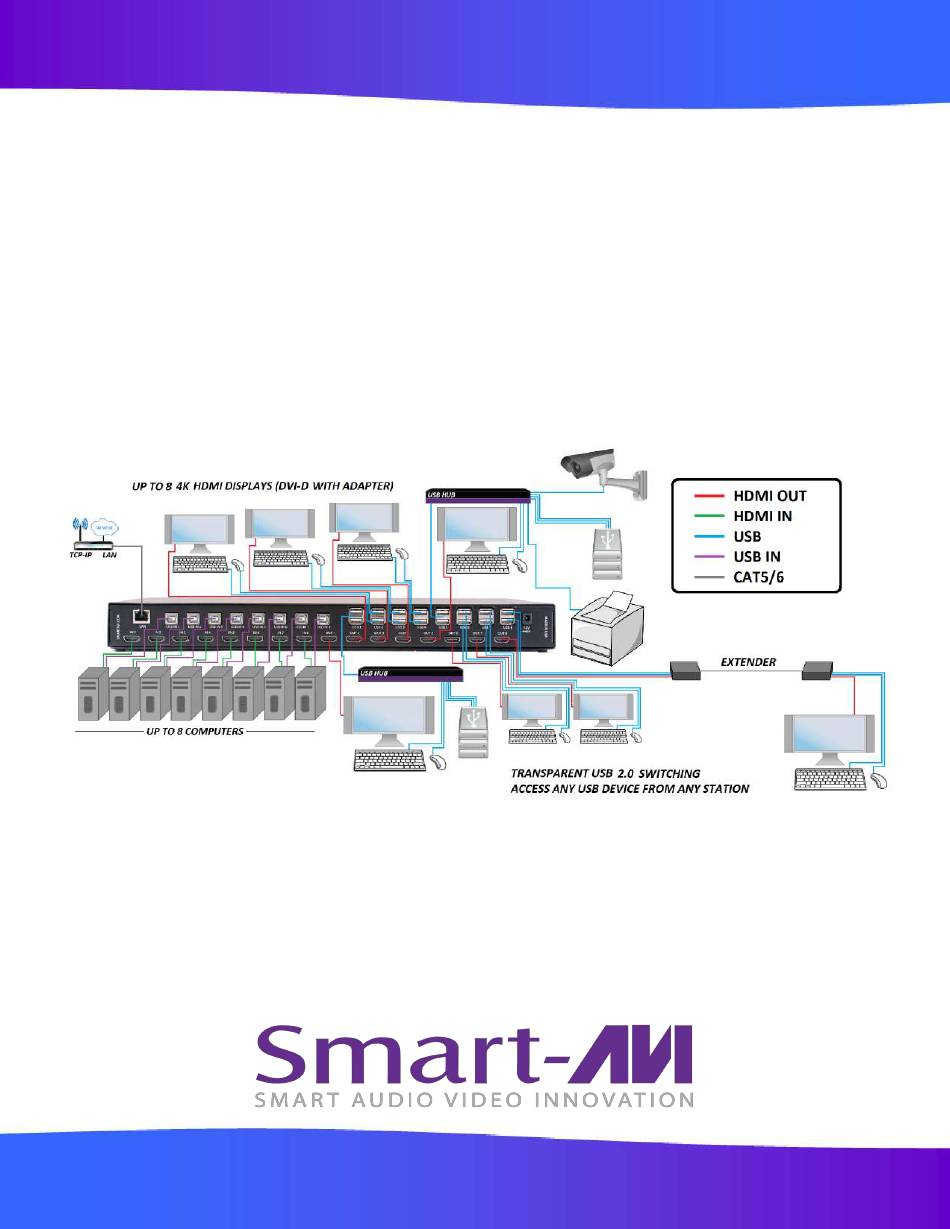

- Page 1 MXU-88 User Manual 8X8 4K HDMI / USB 2.0 Matrix Switch Access and control up to 8 computers with 4K HDMI and Transparent USB 2.0 from up to 8 connected stations Made in U.S.A. www.SmartAVI.com 1-800-AVI-2131...
-
Page 2: Table Of Contents
TABLE OF CONTENTS WHAT'S IN THE BOX? INTRODUCTION FEATURES APPLICATIONS TECHNICAL SPECIFICATIONS HARDWARE INSTALLATION FRONT PANEL CONTROL CONTROL VIA ETHERNET LIMITED WARRANTY STATEMENT WHAT'S IN THE BOX? PART NO. QTY DESCRIPTION MXU88-S 8X8 4K HDMI USB 2.0 Matrix Switch PS12VDC5A Power Adapter Quick Start Guide Brackets for mounting this device in a standard 19”... -
Page 3: Introduction

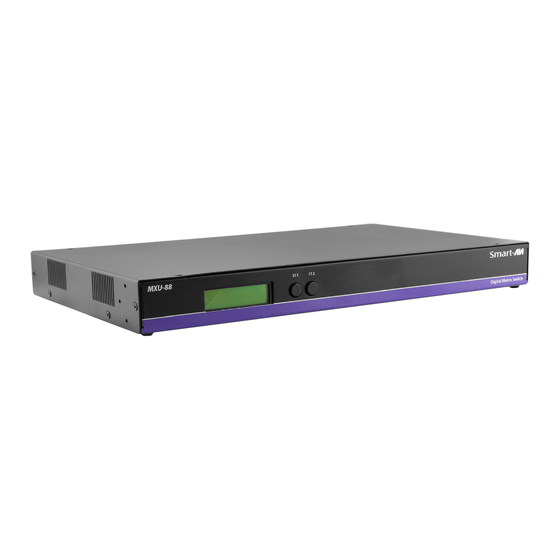

INTRODUCTION The MXU-88 is an 8x8 4K HDMI and USB 2.0 matrix switch. It allows up to eight users to control & share any eight remote computers from USB 2.0 equipped stations with up to 4K resolution HDMI displays (DVI- D with adapters). -
Page 4: Technical Specifications
TECHNICAL SPECIFICATIONS VIDEO 4Kx2K (3840x2160@30Hz), 1080p, 1080i, 720p, 480p, Supported Resolutions Supports all DVI-D Resolutions Video Bandwidth 300 MHz HDMI Version HDMI 1.4 Input Interface (8) HDMI Type A 19-pin Female TMDS (DVI-D with adapter) Output Interface (8) HDMI Type A 19-pin Female TMDS (DVI-D with adapter) Max Cable length Up to 20 ft. - Page 5 3. Connect up to 8 computer’s USB outputs to the MXU-88 USB type B inputs 4. Connect HDMI (DVI-D with adapter) monitors to the MXU-88 HDMI outputs. 5. Connect up to 8 keyboards and mice to the MXU-88 type A USB outputs. USB hubs may be used to connect additional USB devices.
- Page 6 Learn: Will load and store the EDID from the display connected to port 1. Info: Will display the name of the EDID currently in use. Exit: Will exit back to the main menu. Press ST1 & ST2 simultaneously to display the IP address in use by the MXU-88.
- Page 7 CONTROL VIA ETHERNET On the front panel of the MXU-88 press the ST2 button until the cursor is by the IP selection. Press ST1 & ST2 simultaneously to display the IP address in use by the MXU-88. Enter the IP address into a web browser of your choice.
- Page 8 CONTROL VIA ETHERNET (Continued) From the main webpage you can select IP Config and a webpage will display with fields allowing to set the network settings for the MXU-88. Figure 8-1...
- Page 9 Smart-AVI limited warranty is valid in any country where the covered product is distributed by Smart-AVI. Limitations of warranty To the extant allowed by local law, neither Smart-AVI nor its third party suppliers make any other warranty or condition of any kind whether expressed or implied with respect to the Smart-AVI product, and specifically disclaim implied warranties or conditions of merchantability, satisfactory quality, and fitness for a particular purpose.
- Page 10 NOTICE The information contained in this document is subject to change without notice. SmartAVI makes no war- ranty of any kind with regard to this material, including but not limited to, implied warranties of merchant- ability and fitness for particular purpose. SmartAVI will not be liable for errors contained herein or for inci- dental or consequential damages in connection with the furnishing, performance or use of this material.
