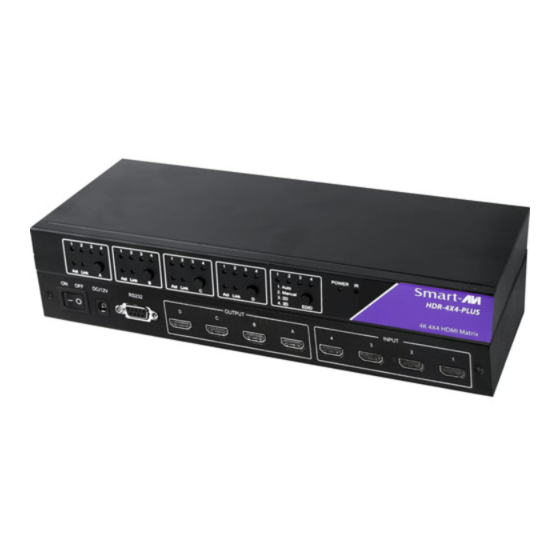

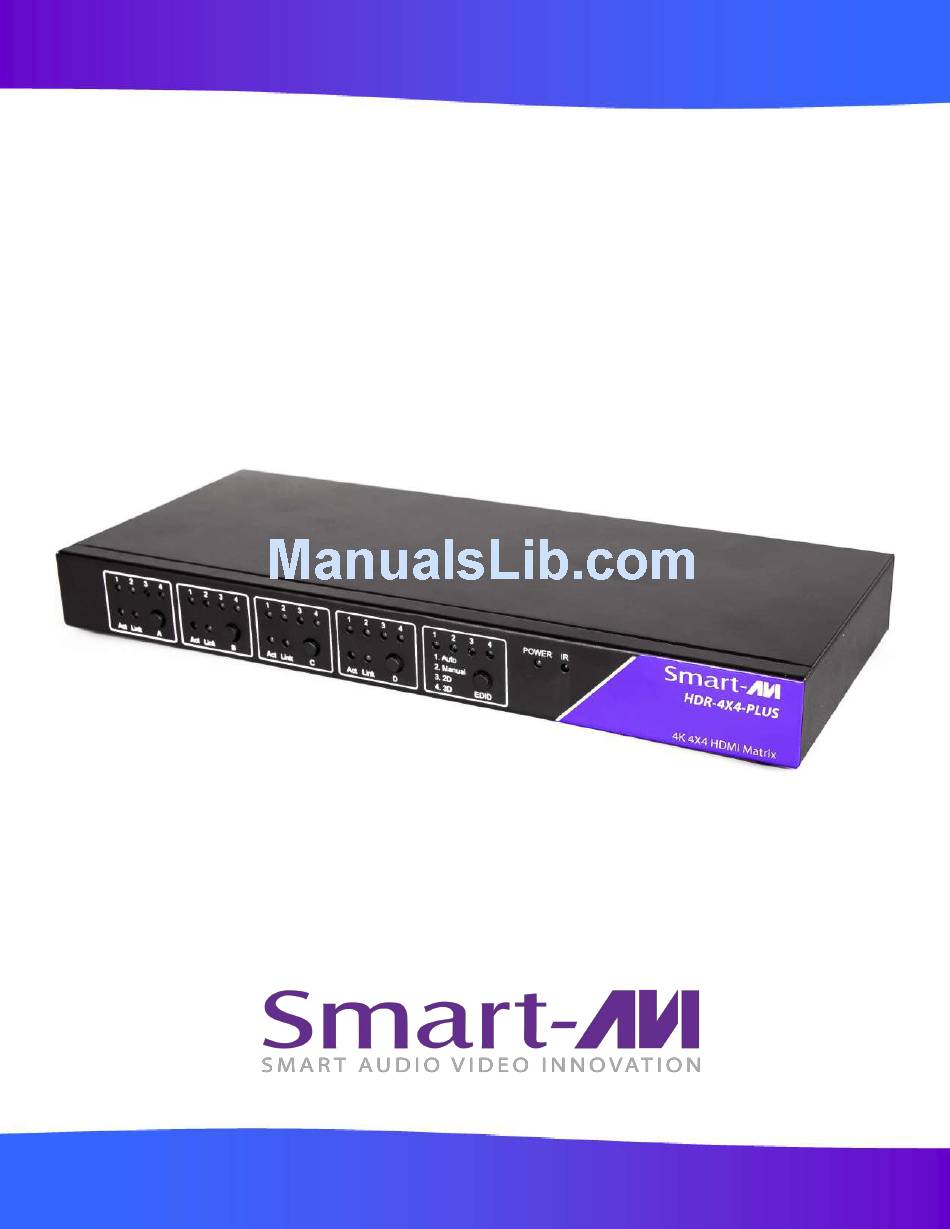

- Page 1 HDR-4X4-Plus User Manual 4K Resolution - 4x4 HDMI Matrix Switch Deliver 4K Resolution While Switching Four Video Signals Between Four Displays Made in U.S.A. www.SmartAVI.com 1-800-AVI-2131...
- Page 2 FRONT PANEL CONTROL ESTABLISHING AN RS-232 CONNECTION RS-232 CONTROL WITH Smart Control Pro LIMITED WARRANTY STATEMENT WHAT’S IN THE BOX? PART NO. DESCRIPTION HDR-4X4-Plus-S 4x4 HDMI Router with 4K resolution PS12VDC3A & CCPWR06 Power Adapter HDR4X4-RMT IR Remote control Quick Start Guide...
- Page 3 INTRODUCTION To distribute and switch the latest in 4K HDMI video signals, the HDR-4x4-Plus allows users to switch four HDMI inputs with four displays. Four outputs give users flexibility while routing 4K video (3840x2160 @30Hz) and audio signals to four displays. The HDR-4x4-Plus eliminates the need to disconnect and re- connect HDMI sources to a single display.
-
Page 4: Technical Specifications
TECHNICAL SPECIFICATIONS VIDEO (and AUDIO) Format HDMI DVI Compliance Single-link DVI-D 1.1 with Adapter HDCP Compliance 1.0/1.1 Video Bandwidth Single-link 340 MHz (10.2 Gbps) Resolution Up to 3840x2160 @30Hz. Input Interface (4) HDMI (7.1 Ch. Audio & Video) Output Interface (4) HDMI (7.1 Ch. -
Page 5: Hardware Installation
HARDWARE INSTALLATION 1. Turn off all input devices and displays. 2. Connect (4) HDMI cables from the input devices to the INPUT ports of the HDR-4x4-Plus. 3. Connect the displays to the (4) OUTPUT ports on the HDR-4x4-Plus. 4. Power on the input devices, displays, and the HDR-4x4-Plus. - Page 6 Check the device and your PC to determine if you need a male to male or a male to female cable and how long it needs to be. This Smart-AVI device uses a straight through cable. You can use a Null Modem Adapter to convert a straight through cable to a crossed cable or a crossed cable to a straight through ca- ble.
- Page 7 Figure 7-1 RS-232 CONTROL WITH Smart Control Pro Go to the Smart-AVI website, www.smartavi.com and click Support. On the Support page click on “HELPFUL LINKS TO SOFTWARE” On the HELPFUL LINKS page click on SmartControlPro. SmartControlPro-v5-0-03_Installer.zip should begin to download.
- Page 8 RS-232 CONTROL WITH Smart Control Pro (Continued) When the software starts, you will see the configuration window. Select the COM port number that the RS-232 is connected to. Choose “HDR 4x4” for Router Type. Click “OK”. After clicking OK, you will then be working with the main Matrix View.
- Page 9 RS-232 CONTROL WITH Smart Control Pro (Continued) Main Routing Window The Main Routing Window enables you to control the router connections by means of the cross-point panel, the button panel, or with the pre-recorded routes called macros. Cross-point Panel: Simply click on the cross point itself. The input on the left will then be routed to the output above. Note: Inputs can be routed to several different outputs, but each output can only have a single input at any one time.
- Page 10 Smart-AVI limited warranty is valid in any country where the covered product is distributed by Smart-AVI. Limitations of warranty To the extant allowed by local law, neither Smart-AVI nor its third party suppliers make any other warranty or condition of any kind whether expressed or implied with respect to the Smart-AVI product, and specifically disclaim implied warranties or conditions of merchantability, satisfactory quality, and fitness for a particular purpose.
- Page 11 NOTICE The information contained in this document is subject to change without notice. SmartAVI makes no war- ranty of any kind with regard to this material, including but not limited to, implied warranties of merchant- ability and fitness for particular purpose. SmartAVI will not be liable for errors contained herein or for inci- dental or consequential damages in connection with the furnishing, performance or use of this material.
