KX61-3, KX71-3 WSM-M
English

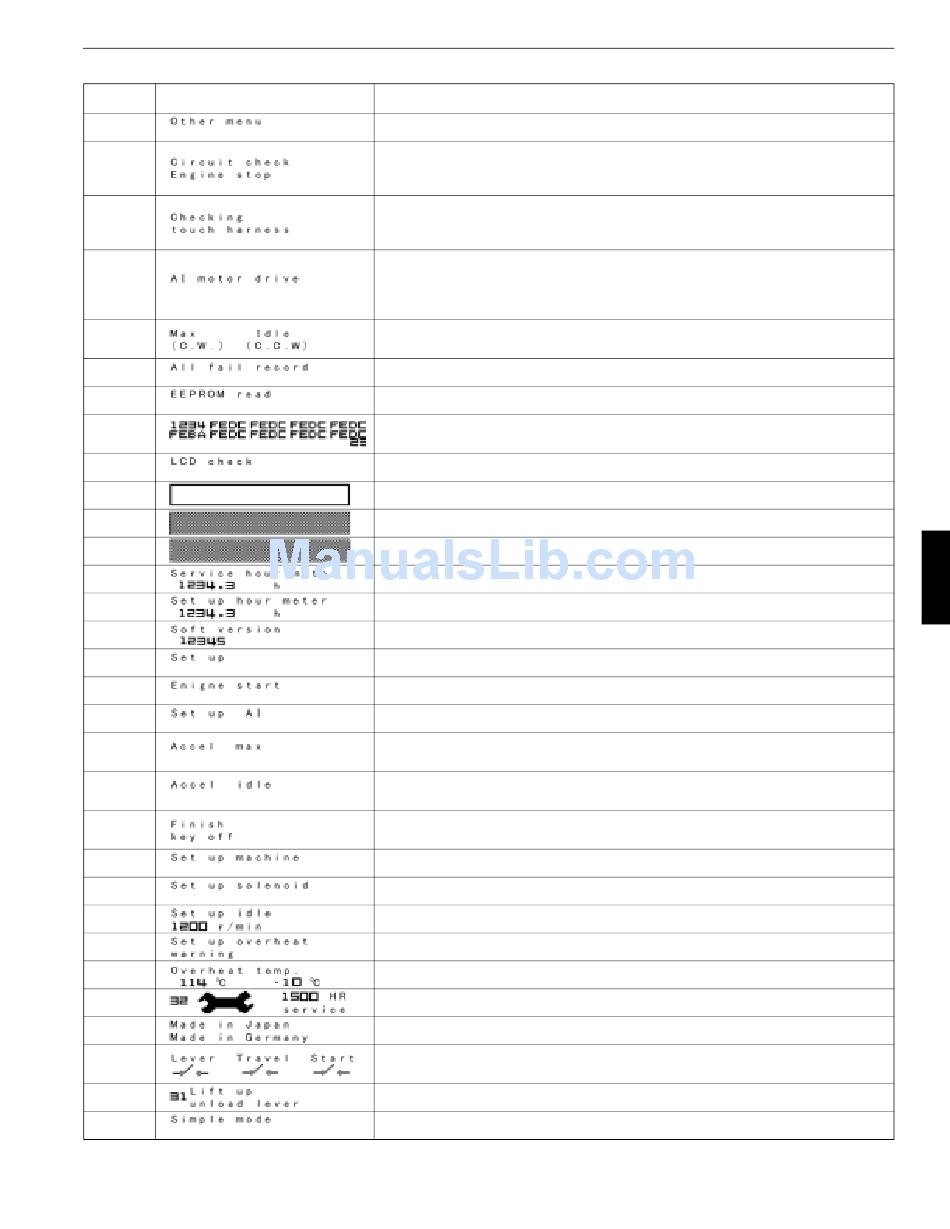

name
data055
data056
data057
data058
data059
data060
data061
data062
data063
data064
data065
data066
data067
data068
data069
data070
data071
data072
data073
data074
data075
data076
data077
data078
data079
data080
data081
data082
data083
data084
data085
meaning and explanation
Literary it means other menus.
This means micro computor is ready to check electrical harness conditions, break
or breaking.
In this case, for your sefety engine should be off.
This means micro computor is checking the harness conditions. Service person-
nel is required to put hands on the suspected harness, then controller detects the
break of harness.
This display letter means that AI motor can be controlled by just pressing switches
on the panel board.
Aim of this function is to adjust AI motor link to fit the cable not by the accel knob
but by switch.
Max(CW) means AI motor link moves toward engine speed Max. direction.
Idle(CCW) means AI motor link moves toward engine speed idle direction.
With this display on, all fail records will be shown up on LCD.
This display means that data in the EEPROM will be shown up on LCD.
These figures and letters indicate the data of EEPROM.
Data can be scrolled up by pressing the switch.
This indication shows that micro computor is checking the LCD function.
This shows LCD condition.
This shows LCD condition.
This shows LCD condition.
This indicates the service hours of the machine.
This indicates the hours of machine set up.
This indicates the software version of main controller.
This means initialization of the machine main controller.
This indicates that operator is required to start engine.
This means initialization of the AI system.
This indicates that operator is suggested to turn the accel knob to Max engine
speed.
This indicates that operator is suggested to turn the accel knob to idle engine
speed.
This means all initialization process has completed and operator is suggested to
turn off key.
This means initialization of the machine.
This means initialization of the solenoid valve.
This means initialization of the engine idle speed.
This means initialization of engine overheat warning system.
This indicates the overheat temp. setting value.
This indicates service hour to conduct maintenance job.
These indicates where machine was manufactured.
These letters and signs indicate the switch conditions; safety lock lever, travel
high speed and main key position at start or not.
This indicates that operator is suggested to lift up unload lever(safety lock lever).
Simple mode means that min. fail indications are shown up on LCD.
M-V-11
Electrical System
