KX61-3, KX71-3 WSM-M
English

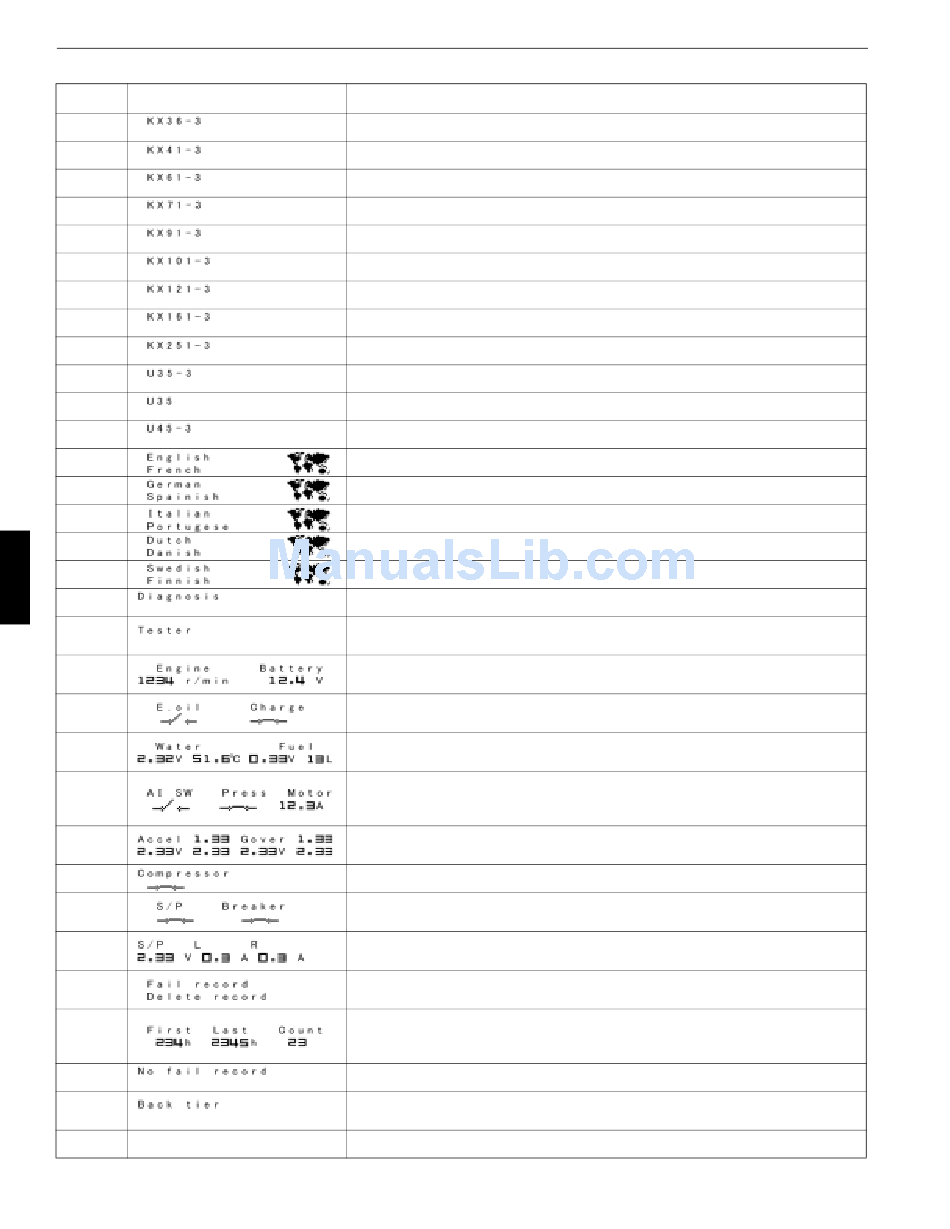

name
data023
data024
data025
data026
data027
data028
data029
data030
data031
data032
data033
data034
data035
data036
data037
data038
data039
data040
data041
data042
data043
data044
data045
data046
data047
data048
data049
data050
data051
data052
data053
data054
meaning and explanation
Indicates the model name.
Indicates the model name.
Indicates the model name.
Indicates the model name.
Indicates the model name.
Indicates the model name.
Indicates the model name.
Indicates the model name.
Indicates the model name.
Indicates the model name.
Indicates the model name.
Indicates the model name.
Owner is expected to select the language he prefers.
This means tester mode which test the following circuit conditions electrically on
real time.
The letters and symbols indicate the real time conditions of the following items.
engine speed , battery voltage
Engine oil pressure switch condition; on or off, Alternator charging circuit condi-
tion; normal or abnormal
Water V indicates water temp. sensor voltage
Fuel V indicates fuel sensor voltage
AI SW indicates on or off condition of AI switch. Press indicates AI pressure
switch condition.
Motor A means current amount flowing to AI motor.
Accel V indicates voltage amount at accel sensor.
Gover V indicates voltage amount at governer sensor.
Compressor indicates the condition of air conditioner's compressure switch.
Aux. Is abbriviation of auxiliary port and indicates the switch condition, on or off.
Breaker indicates the breaker switch condition ,on or off.
Aux. means in this case auxiliary port solenoid valve.
L;left side, R; right side, A; current amount to each solenoid valve.
Fail record means machines' failure record are stored in the memory and can be
shown up on the display. Delete record means you can delete if you want.
First h indicates the operating hours when first failure occurred, last means last
fail occurred.
Count indicates the number of fail occurred.
This means no failure occurred in the past.
Back tier indicates that you can return back to one upper tier or same tier by
pressing the buttom, for either a long or a short time.
M-V-10
Electrical System
