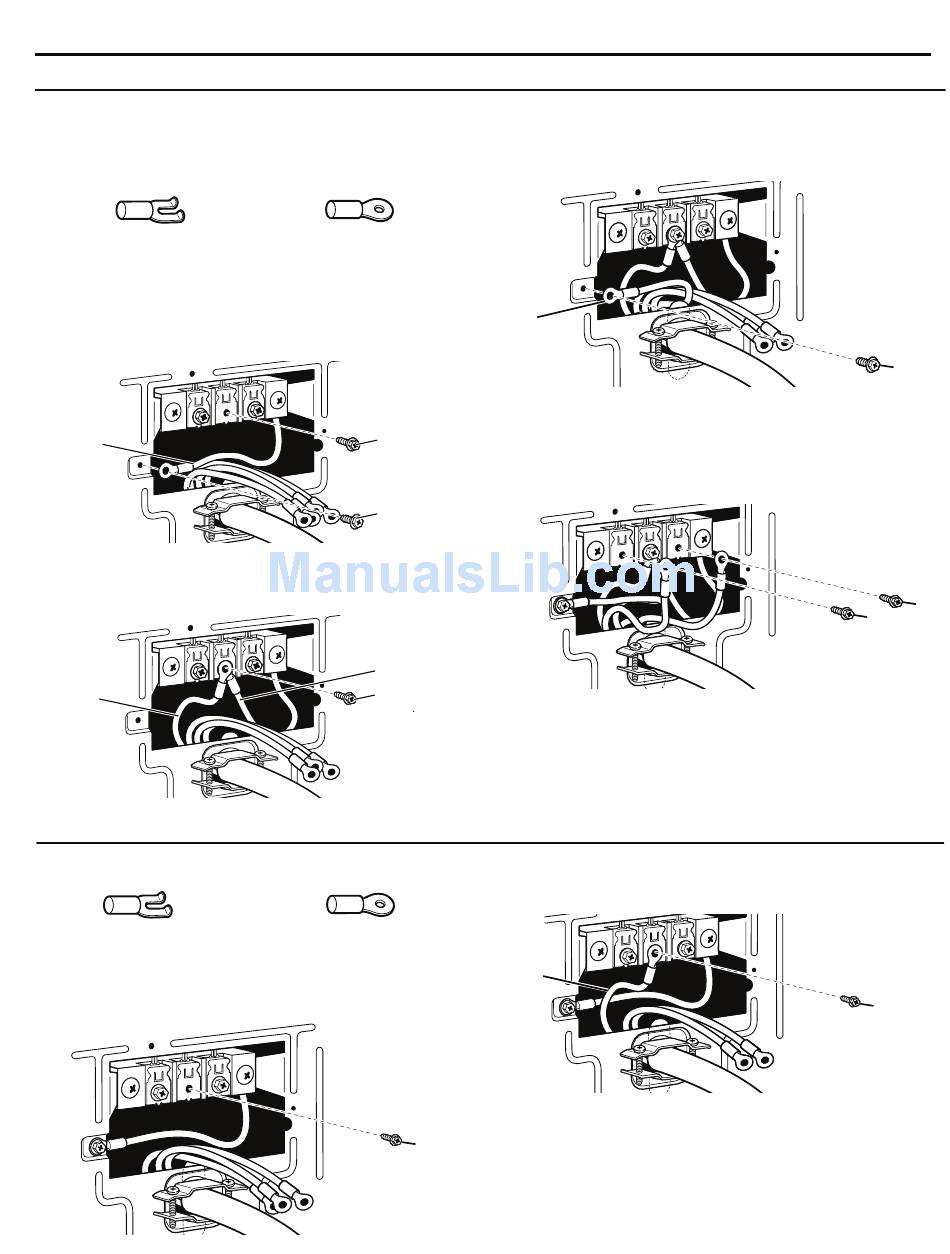

ELECTRIC DRYER ELECTRICAL CONNECTIONS
Connecting 4-Wire Connection: Power Supply Cord
IMPORTANT:
A 4-wire connection is required for mobile
homes and where local codes do not permit the use of 3-wire
connections.
Standard Power Supply Cord Connectors
Flanged Spade Connector
Connecting Neutral Ground and Neutral Wires
1. Remove center terminal block screw (A) and the neutral
ground wire (B) by removing the green external ground
conductor screw (C).
B
E
2. Connect neutral ground wire (B) and neutral wire (white or
center wire) (D) of power supply cord under center terminal
block screw (A). Tighten screw.
D
C
Connecting 3-Wire Connection: Power Supply Cord
Standard Power Cord Connectors
Flanged Spade Connector
Connecting Neutral Wire
1. Loosen or remove center terminal block screw (A).
Ring Connector
A
B
A
C
B
E
B
A
Ring Connector
A
Connecting Power Cord Ground Wire
3. Connect ground wire (green or bare) (E) of power supply cord
under green external ground conductor screw (C). Tighten
screw.
E
Connecting Remaining Wires
4. Connect remaining wires under outer terminal block screws
(F). Tighten screws. Finally, reinstall terminal block cover to
dryer rear panel. Secure cover with hold-down screw. Now
go to "Venting Requirements."
2. Connect neutral wire (white or center wire) (D) of power
supply cord under center terminal block screw (A). Tighten
screw.
D
(FOR U.S.A. ONLY)
C
F
A
F
19
