Whirlpool CGM2751TQ - COMM GAS DRYR 3CYC 3TEMP 3LITE Parts List

Commercial gas dryer
Hide thumbs


Advertisement

COMMERCIAL
GAS DRYER
MODELS
CGM2751TQ0
(WHITE)
CGM2751TQ1
(WHITE)
c
2012 WHIRLPOOL CORPORATION
5−12 Litho in U.S.A. (CMS) (psw)
Part No. W10119631 Rev. C

Advertisement

Table of Contents
loading

  Also See for Whirlpool CGM2751TQ - COMM GAS DRYR 3CYC 3TEMP 3LITE

  Related Manuals for Whirlpool CGM2751TQ - COMM GAS DRYR 3CYC 3TEMP 3LITE

  Summary of Contents for Whirlpool CGM2751TQ - COMM GAS DRYR 3CYC 3TEMP 3LITE

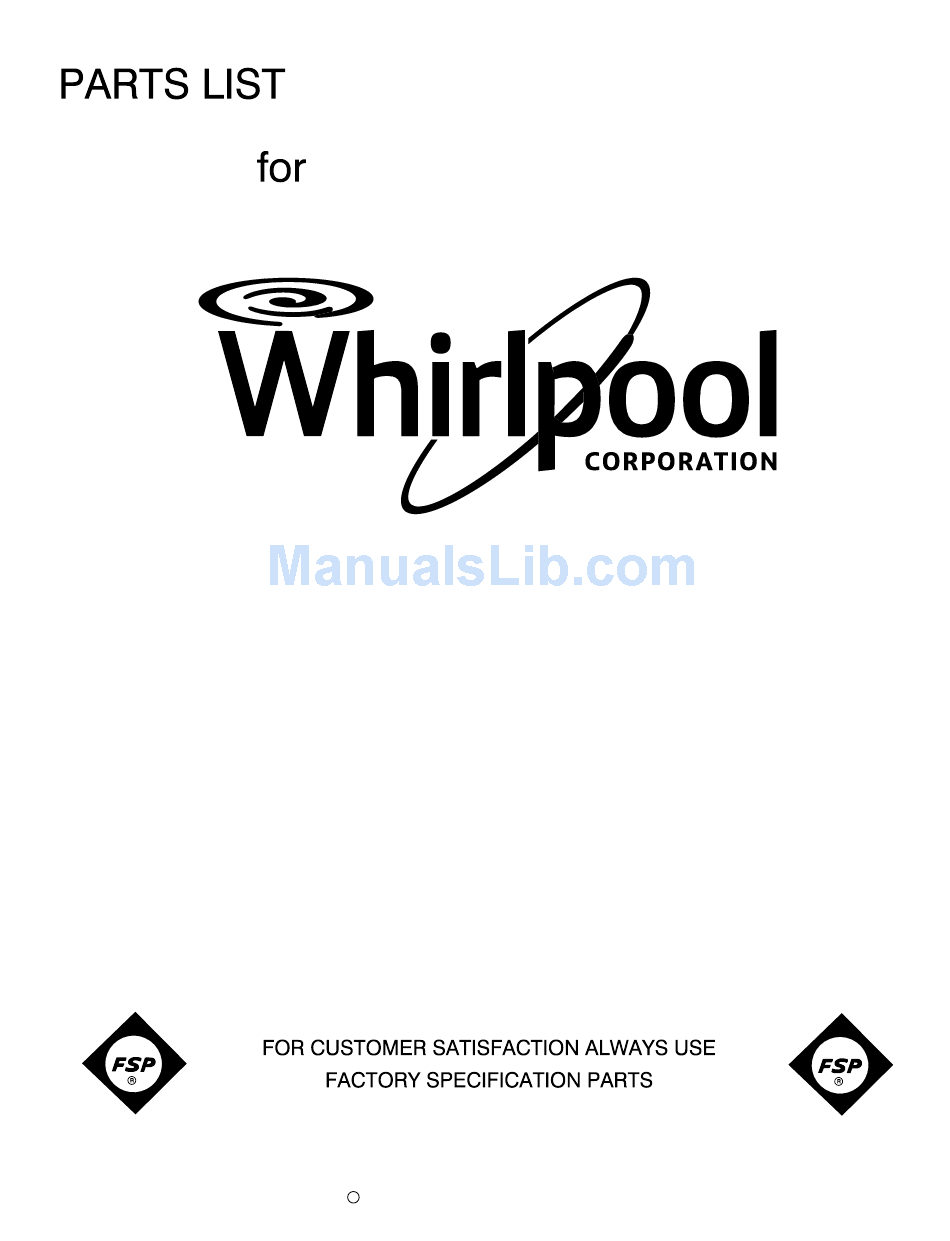

  • Page 1 COMMERCIAL GAS DRYER MODELS CGM2751TQ0 (WHITE) CGM2751TQ1 (WHITE) 2012 WHIRLPOOL CORPORATION 5−12 Litho in U.S.A. (CMS) (psw) Part No. W10119631 Rev. C...
  • Page 2 TOP AND CONSOLE PARTS For Models: CGM2751TQ0, CGM2751TQ1 (White) (White) W10119631...
  • Page 3 3347825 Plate−Mounting 3954761 Plate, 98445 Screw Chute Adapter Coin Mechanism Parts May be 90406 Nut, Cage (Includes Ordered From Whirlpool Or Illus. 25) Following Parts Supplied The Vendor (s) Listed Below. 3978608 Panel, Rear On Whirlpool Coin (Upper) Equipped Models Only...
  • Page 4: Cabinet Parts

    CABINET PARTS For Models: CGM2751TQ0, CGM2751TQ1 (White) (White) W10119631...
  • Page 5 CABINET PARTS For Models: CGM2751TQ0, CGM2751TQ1 (White) (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 63554 Rivet 3391943 Boot, Foot 3388229 Retainer 3389249 Nut, "U" 356674 Cone, Wedge 3392563 Door, Rear 8538264 Motor Assembly 3 W10045050 Screw 694091 Screw (60 Hz.) 3387872 Door, Front 3391846 Clip, Front...
  • Page 6 BULKHEAD PARTS For Models: CGM2751TQ0, CGM2751TQ1 (White) (White) W10119631...
  • Page 7 BULKHEAD PARTS For Models: CGM2751TQ0, CGM2751TQ1 (White) (White) Illus. Part DESCRIPTION 8575324 Shaft, R.H. Thread 697770 Seal, Cover Plate 8533971 Screw 90767 Screw 3394346 Air Duct Assembly 697813 Seal, Outlet Housing 697814 Seal, Drum Front 3934666 Nut, 3/8 x 16 (R.H.) 8066224 Exhaust Pipe 8572105 Clip 3387230 Screw...
  • Page 8: Burner Assembly

    3401797 BURNER ASSEMBLY For Models: CGM2751TQ0, CGM2751TQ1 (White) (White) USE WITH TYPE 1 − NATURAL, TYPE 2 − MIXED, AND TYPE 4 − LIQUEFIED PROPANE AND BUTANE GASES BA−133−A W10119631...
  • Page 9 3401797 BURNER ASSEMBLY For Models: CGM2751TQ0, CGM2751TQ1 (White) (White) USE WITH TYPE 1 − NATURAL, TYPE 2 − MIXED, AND TYPE 4 − LIQUEFIED PROPANE AND BUTANE GASES Illus. Part DESCRIPTION 3401797 Burner Assembly 60 Hz. (Type 1, 2 & 3) (White Rodgers) 688617 Tube, Burner 694298 Bracket, Ignitor...
  • Page 10 OPTIONAL PARTS (NOT INCLUDED) For Models: CGM2751TQ0, CGM2751TQ1 (White) (White) Illus. Part DESCRIPTION ACCESSORY PARTS 4392067 Kit, Dryer Repair 8522199 Kit, Dryer Vent Testing PAINT, TOUCH−UP (1/2oz.) 72017 White PAINT, PRESSURIZED SPRAY (12 oz.) 350930 White 350938 Primer, Gray PAINT, BULK (1 qt.) 799344 White (Uncut) W10119631...
