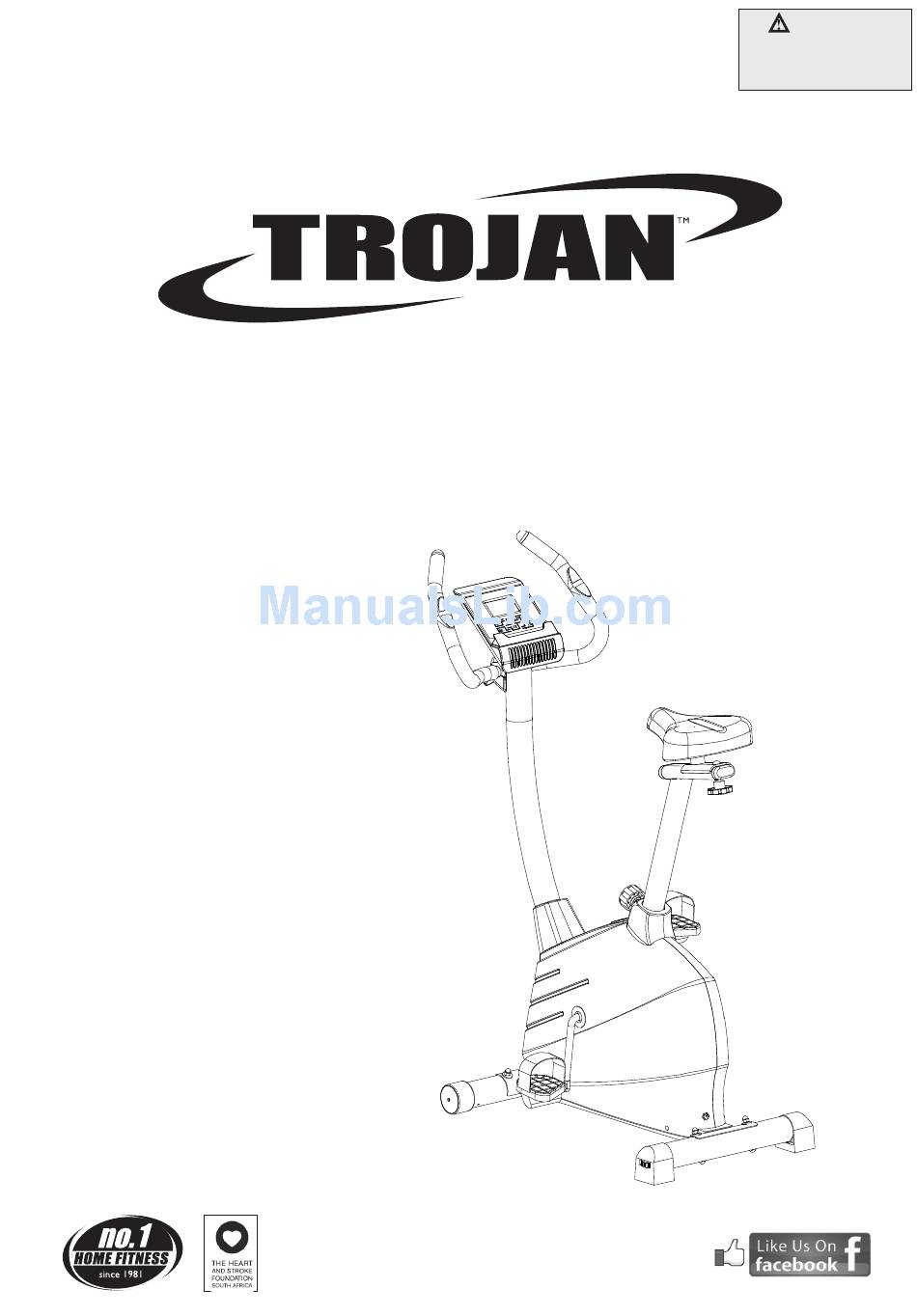

- Page 1 CAUTION READ ALL PRECAUTIONS AND INSTRUCTIONS IN THIS MANUAL BEFORE USING THIS EQUIPMENT. KEEP THIS MANUAL FOR FUTURE REFERENCE. ECLIPSE 400 EXERCISE BIKE USER MANUAL Visit facebook.com/trojanhealth www.trojanhealth.co.za...
-
Page 2: Table Of Contents
INDEX • Important Safety Instructions ______________________________________ 3 • Pre Assembly Check List __________________________________________ 5 • Hardware & Tools List ____________________________________________ 6 • Assembly Steps _________________________________________________ 7 • Exploded Drawing ______________________________________________ 12 • Parts List ______________________________________________________ 13 • Console Functions _ ______________________________________________ 15 • Maintenance _ __________________________________________________ 19 • Fitness Tips & Techniques _ _________________________________________ 20 • Conditioning Guidelines __________________________________________ 21 • Warm Up & Cool Down _________________________________________ 22 • 1 Year Limited Warranty __________________________________________ 23... -
Page 3: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS It is the sole responsibility of the purchaser of Trojan products to read the owner’s manual, warning labels and instruct all individuals, on proper usage of the equipment. Understanding each and every warning in its entirety is important. If any of these instructions or warnings are unclear please contact Trojan Customer Services on 0861 TROJAN (0861 876526), within the Republic of South Africa. - Page 4 INSPECTION • Do not use or permit use of any equipment that is damaged or has worn or broken parts. For all Trojan equipment use only replacement parts supplied by Trojan. • Always make sure that all nuts and bolts are tightened prior to each use.
-
Page 5: Pre Assembly Check List
PRE ASSEMBLY CHECK LIST Thank you for choosing the Trojan Eclipse 400 Exercise Bike. We took great pride in producing this product and hope it will provide many hours of quality exercise to make you feel better, look better and enjoy life to the full. -
Page 6: Hardware & Tools List
HARDWARE & TOOLS LIST INSTRUCTIONS FOR ASSEMBLY • Before you start to assemble, please check the hardware packaging to make sure all parts are included. • Basic tools, such as spanners will be provided for assembly. • The following is included: (17) Bolt M8 x 70 (15) Big Curve Washer Ø25 x Ø8 (30) Cap Nut M8 4 PCS... -
Page 7: Assembly Steps
ASSEMBLY STEPS 1. PREPARATION • Before assembly, make sure you have enough space to assemble. • Use the provided tools for the assembly. • Before assembling, check whether all the parts needed have been supplied. STEP 1: INSTALL THE FRONT / REAR STABILISERS •... - Page 8 ASSEMBLY STEPS STEP 2: INSTALL THE SEAT POST, SEAT CUSHION AND SEAT SLIDING TUBE • Release the Locking Knob (48) by turning it in a counterclockwise direction until it can be pulled out. • Pull out the Locking Knob (48) and slide the Seat Post (5) into the Bushing (53) and Seat Post Cover (59) on the tube of the Main Frame (1).
- Page 9 ASSEMBLY STEPS STEP 3: INSTALL THE COMPUTER POST • Remove four M8 x 15 Bolts (19) Big Curve Washer Ø20 x Ø8 (14) from the tube of the Main Frame (1). • Slide the Computer Post Cover (58) up to the Computer Post (7). •...
- Page 10 ASSEMBLY STEPS STEP 4: INSTALL STEP 4 THE HANDLEBAR • Install the Handlebar (8) to the groove of the Computer Post (7). • Insert the Hand Pulse Sensor Wires (68) into the hole on the Computer Post (7) and then pull them out from the top end of the Computer Post (7).
- Page 11 ASSEMBLY STEPS STEP 6: AC ADAPTER INSTALLATION • Plug one end of the AC Adapter (70) into the power jack of the Power Supply Wire (54) on the Front of the Left Chain Cover. • Before plugging in, make sure to check carefully the specifications on the Adapter. •...
-
Page 12: Exploded Drawing
EXPLODED DRAWING 10385... -
Page 13: Parts List
PARTS LIST Description Description Main Frame Cap Nut M8 Front Stabilize Ø60 Flywheel Rear Stabilize Ø60 Axle Bush Idle Wheel Bracket Ball Bearing Seat Post Axle Sleeve 15 / 16” Seat Sliding Tube Axle Sleeve 7 / 8” Computer Post Washer I Handlebar Ø25 Washer II U Bracket Nut 7 / 8” Washer Ø16x Ø8 Belt Pulley with Crank Washer Ø20x Ø10 Spring Idle Wheel Ø10 x Ø35 Spacer Ø12 x 1.5 x 20 Washer Ø12 x Ø6 Extension Sensor Wire L = 500 mm Big Curve Washer Ø20 x Ø8 Handlebar Foam Grip Ø24 x Ø30 x 550 Big Curve Washer Ø25 x Ø8 Left Pedal Spring Washer Ø6 Right Pedal Bolt M8 x 70 Handlebar End Cap Ø25 Bolt M10 x 50 Cover Cap Bolt M8 x 15 Locking Knob Bolt M8 x 18 Hand Pulse Sensor with Wire L = 750 mm... - Page 14 PARTS LIST Description Seat Post Cover End Cap Nut M10 T-Knob M8 x 55 Decorate Cover Belt Seat Computer BOLT M5 x 10 Middle Sensor Wire L=1100 mm Motor L=400 mm AC Adapter L=2000 mm 10385...
-
Page 15: Console Functions
CONSOLE FUNCTIONS FUNCTION BUTTON START/STOP: 1. Starts & pauses workouts. 2. Starts body fat measurement and quit the body fat program. 3. Operates only when in stop mode. Holding key 3 seconds will reset all function value to zero. DOWN: Decreases value of selected workout parameter: TIME, DISTANCE, etc. - Page 16 CONSOLE FUNCTIONS MORE ABOUT WORKOUT PARAMETERS Setting Default Increment/ Field Description Range value Decrement 1. When display is 0:00, Time will count up. Time 0:00~99:00 00:00 ±1:00 2. When Time is 1:00~99:00, it will count down to 0. 1. When display is 0.0, Distance will count up.
-
Page 17: Program Operation
CONSOLE FUNCTIONS PROGRAM OPERATION MANUAL (P1) Select “Manual” using UP or DOWN button then pressing ENTER button. First parameter “Time” will flash so value can be adjusted using UP or DOWN button. Press ENTER button to save value & move to next parameter to be adjusted. Continue through all desired parameters, pressing START / STOP to start workout. - Page 18 CONSOLE FUNCTIONS TARGET HEART RATE PROGRAM (P9) SETTING PARAMETER FOR TARGET H.R. Select the “TARGET H.R. ” using UP or DOWN button and press the ENTER button. First parameter “Time” will flash so value can be adjusted using UP or DOWN button. Press ENTER button to save value & move to next parameter to be adjusted. Continue through all desired parameters, pressing START / STOP to start the workout.
-
Page 19: Maintenance
CLEANING The Trojan Eclipse 400 Exercise Bike can be cleaned with a soft cloth and mild detergent. Do not use abrasives or solvents on plastic parts. Please wipe your perspiration off the Trojan Eclipse 400 Exercise Bike after each use. Be careful not to get excessive moisture on the computer display panel as this might cause an electrical hazard or electronics to fail. -
Page 20: Fitness Tips & Techniques
The Heart and Stroke Foundation South Africa encourages all South Africans to make heart-healthy choices that include daily physical activity, exercise and a balanced diet. Use Trojan, SA’s No. 1 selling Home Fitness brand to give you the ability to boost your fitness level and lower your risk of cardiovascular disease. -
Page 21: Conditioning Guidelines
CONDITIONING GUIDELINES How you begin your exercise program depends on your physical condition. If you have been inactive for several years, or are severely overweight, you must start slowly and increase your time on the equipment, by a few minutes per workout. Initially, you may be able to exercise only for a few minutes in your target zone, however, your aerobic fitness will improve over the next six to eight weeks. -
Page 22: Warm Up & Cool Down
WARM UP & COOL DOWN WORKOUT GUIDELINES Each workout should include the following three parts: A warm-up: 5 to 10 minutes of stretching and light exercise. A proper warm-up increases your body temperature, heart rate, and circulation in preparation for exercise. Training zone exercise: 20 to 30 minutes of exercising with your heart rate in your training zone. (Note: During the first few weeks of your exercise program, do not keep your heart rate in your training zone for longer than 20 minutes). -
Page 23: Year Limited Warranty
The Consumer does not need to return the product to the store. The Consumer should call the Trojan Call Centre on 0861 TROJAN (0861 876526) and the Manufacturer’s authorised agent will at its discretion either repair the item at the Consumer’s residence or collect and repair the item at their premises. -
Page 24: Repairs Procedure
Do not return the product to the store.* • Call the Trojan Call Centre on 0861 TROJAN (0861 876526) to log the faulty product (under warranty or out of warranty). • Customers outside South Africa can contact the store where the product was purchased.
