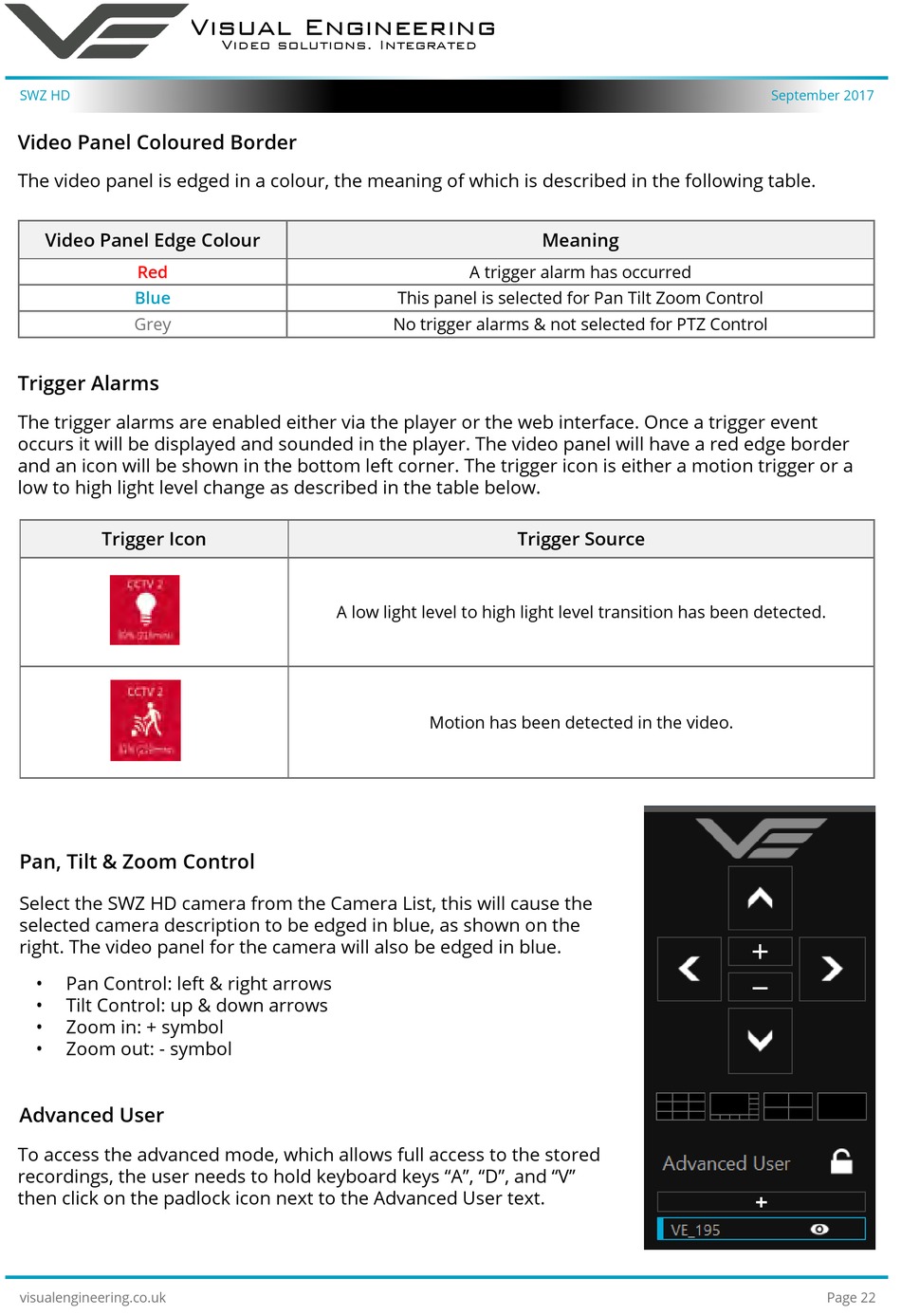

Video Panel Coloured Border
The video panel is edged in a colour, the meaning of which is described in the following table.
Video Panel Edge Colour
Red
Blue
Grey
Trigger Alarms
The trigger alarms are enabled either via the player or the web interface. Once a trigger event
occurs it will be displayed and sounded in the player. The video panel will have a red edge border
and an icon will be shown in the bottom left corner. The trigger icon is either a motion trigger or a
low to high light level change as described in the table below.
Trigger Icon
Pan, Tilt & Zoom Control
Select the SWZ HD camera from the Camera List, this will cause the
selected camera description to be edged in blue, as shown on the
right. The video panel for the camera will also be edged in blue.
•
Pan Control: left & right arrows
•
Tilt Control: up & down arrows
•
Zoom in: + symbol
•
Zoom out: - symbol
Advanced User
To access the advanced mode, which allows full access to the stored
recordings, the user needs to hold keyboard keys "A", "D", and "V"
then click on the padlock icon next to the Advanced User text.
visualengineering.co.uk
Visual Engineering
Video solutions. Integrated
A low light level to high light level transition has been detected.
Meaning
A trigger alarm has occurred
This panel is selected for Pan Tilt Zoom Control
No trigger alarms & not selected for PTZ Control
Trigger Source
Motion has been detected in the video.
