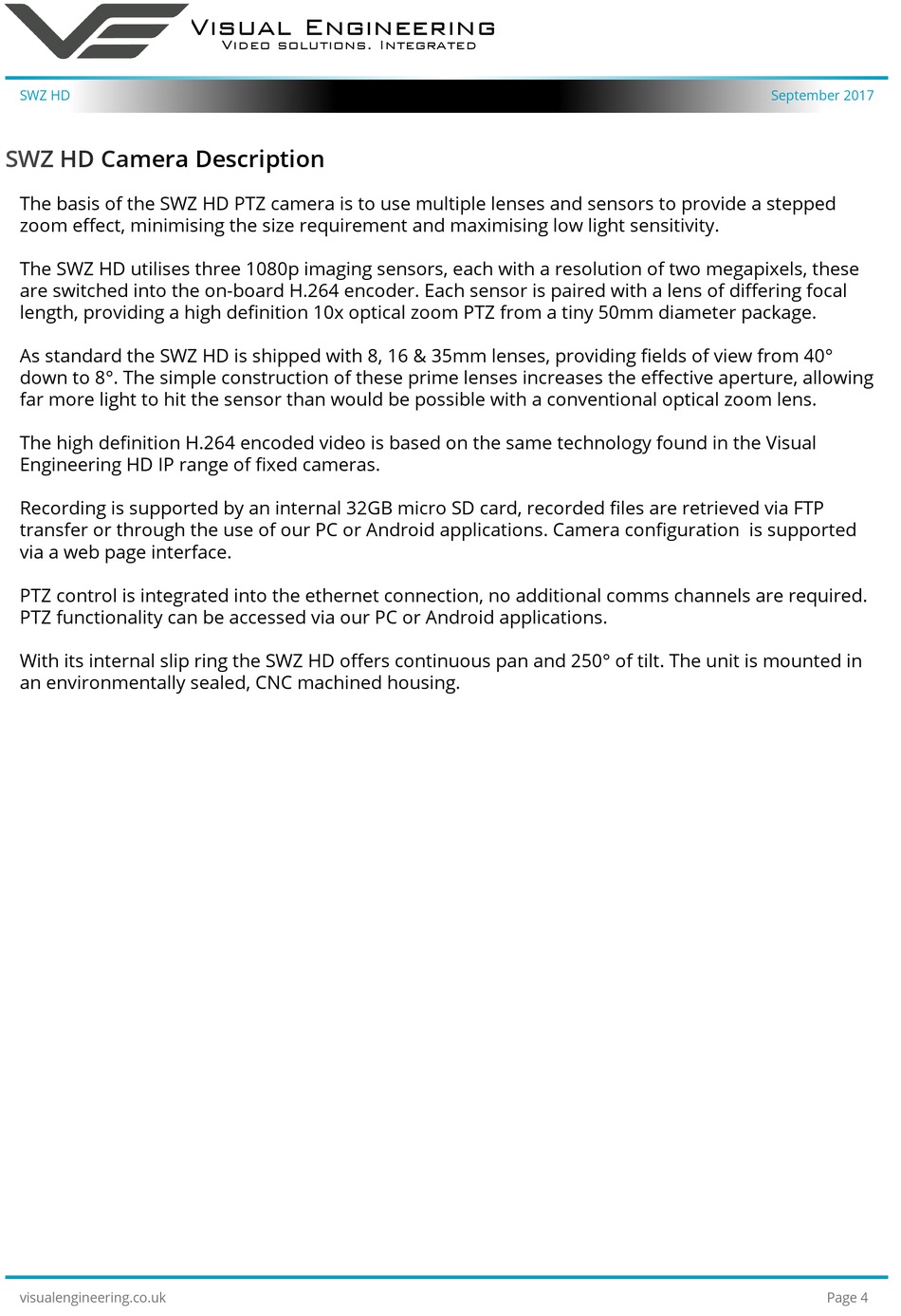

SWZ HD Camera Description

The basis of the SWZ HD PTZ camera is to use multiple lenses and sensors to provide a stepped
zoom effect, minimising the size requirement and maximising low light sensitivity.
The SWZ HD utilises three 1080p imaging sensors, each with a resolution of two megapixels, these
are switched into the on-board H.264 encoder. Each sensor is paired with a lens of differing focal
length, providing a high definition 10x optical zoom PTZ from a tiny 50mm diameter package.
As standard the SWZ HD is shipped with 8, 16 & 35mm lenses, providing fields of view from 40°
down to 8°. The simple construction of these prime lenses increases the effective aperture, allowing
far more light to hit the sensor than would be possible with a conventional optical zoom lens.
The high definition H.264 encoded video is based on the same technology found in the Visual
Engineering HD IP range of fixed cameras.
Recording is supported by an internal 32GB micro SD card, recorded files are retrieved via FTP
transfer or through the use of our PC or Android applications. Camera configuration is supported
via a web page interface.
PTZ control is integrated into the ethernet connection, no additional comms channels are required.
PTZ functionality can be accessed via our PC or Android applications.
With its internal slip ring the SWZ HD offers continuous pan and 250° of tilt. The unit is mounted in
an environmentally sealed, CNC machined housing.
