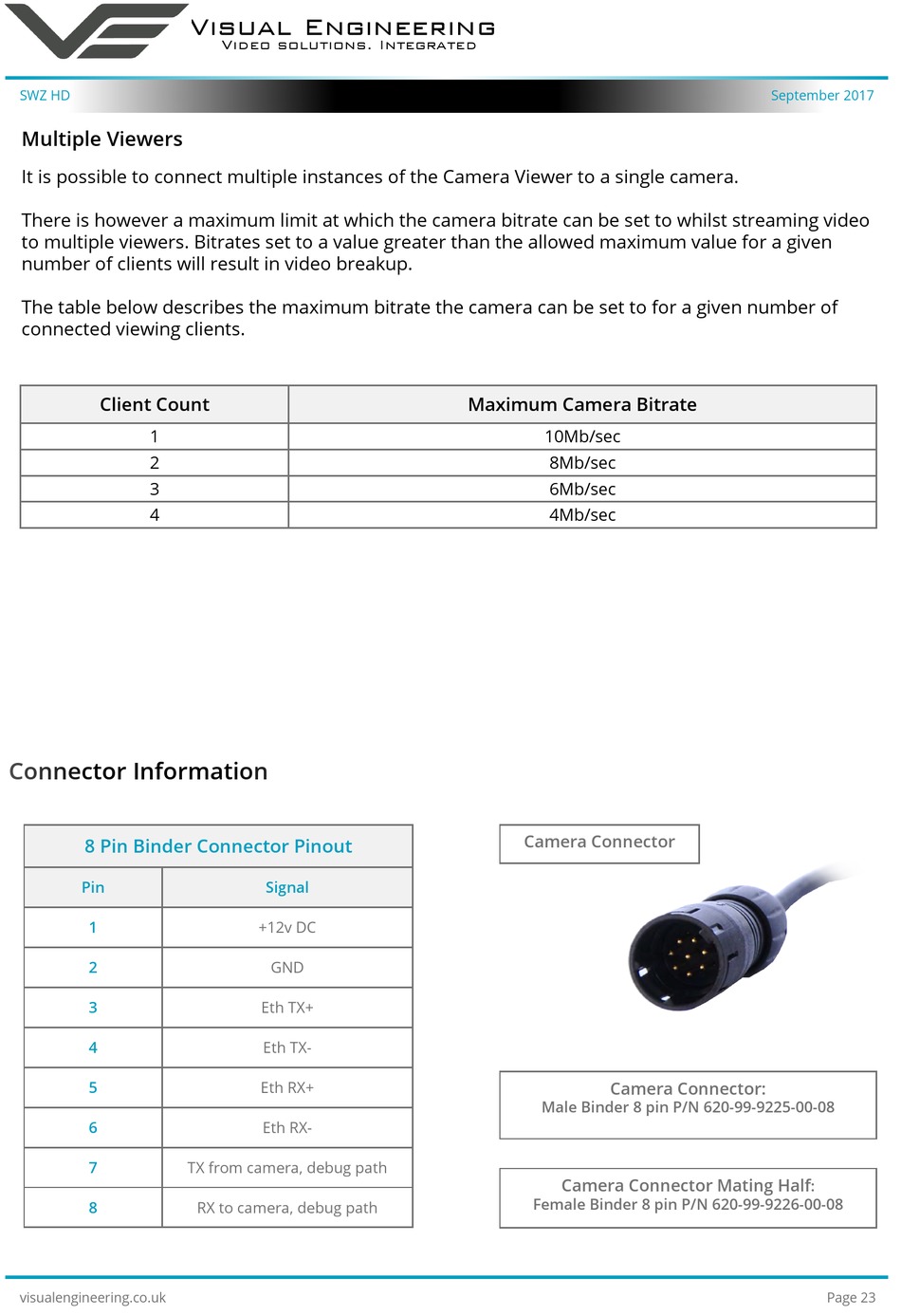

Multiple Viewers
It is possible to connect multiple instances of the Camera Viewer to a single camera.
There is however a maximum limit at which the camera bitrate can be set to whilst streaming video
to multiple viewers. Bitrates set to a value greater than the allowed maximum value for a given
number of clients will result in video breakup.
The table below describes the maximum bitrate the camera can be set to for a given number of
connected viewing clients.
Client Count
1
2
3
4
Connector Information
8 Pin Binder Connector Pinout
Pin
1
2
3
4
5
6
7
8
visualengineering.co.uk
Visual Engineering
Video solutions. Integrated
Signal
+12v DC
GND
Eth TX+
Eth TX-
Eth RX+
Eth RX-
TX from camera, debug path
RX to camera, debug path
Maximum Camera Bitrate
10Mb/sec
8Mb/sec
6Mb/sec
4Mb/sec
Camera Connector
Camera Connector:
Male Binder 8 pin P/N 620-99-9225-00-08
Camera Connector Mating Half
Female Binder 8 pin P/N 620-99-9226-00-08
September 2017
:
Page 23
