Pc Connection - Milkotester Master Pro Operating Instructions Manual

Milkotester milk analyzers usually operate with two type
communication port – RS232 COM and USB 2.0 connectors
It is recommended always to connect the USB connector to the
analyzer before switching the device ON.
Usually computers contain one COM PORT, so the connection with the
analyzer is trough COM1.
Port is used to connect with the program MASTER DATA BANK, which is
included in each CD supplied with the ordered set.

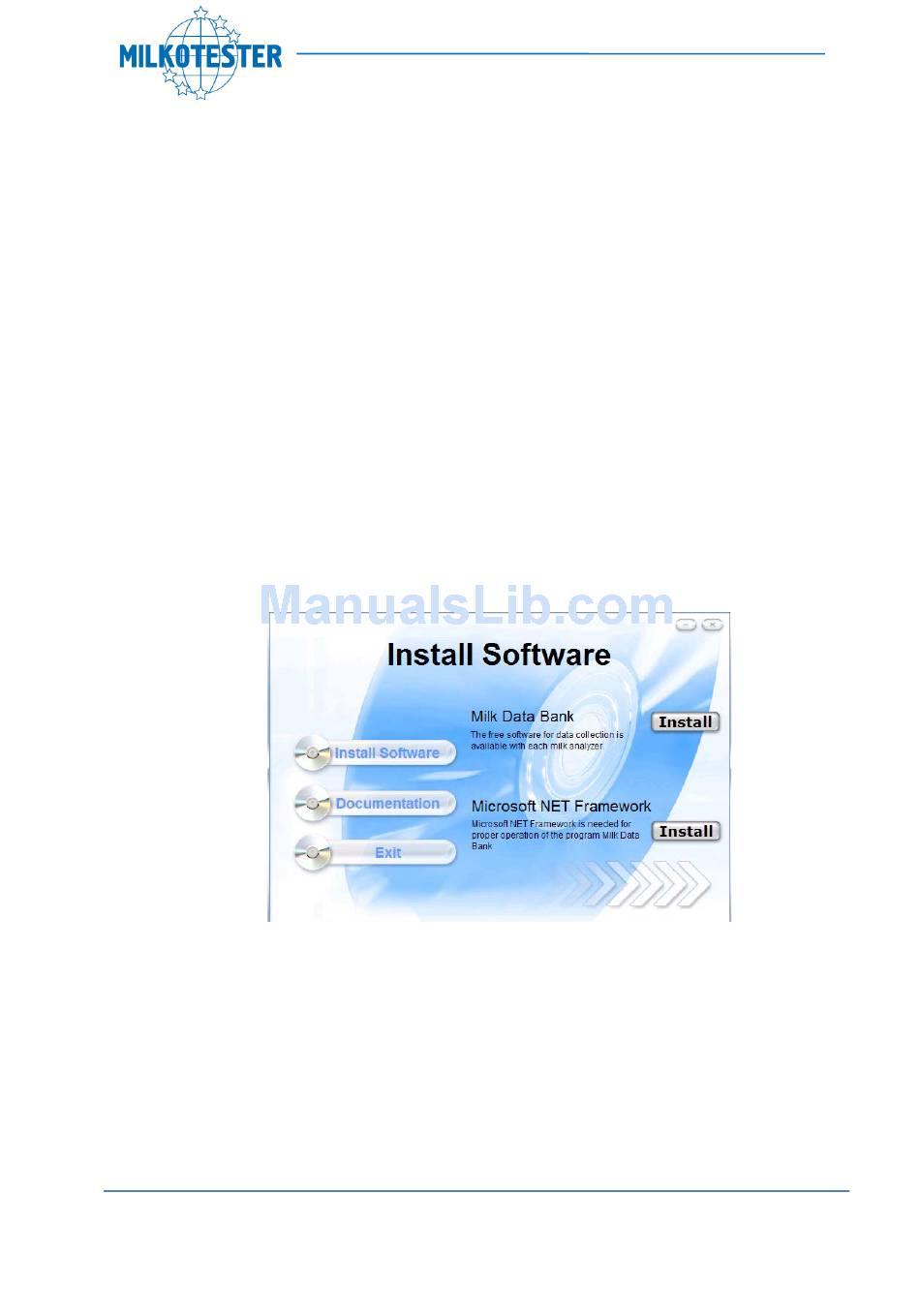

First step is to use the CD that comes with any device. When
started, the CD appears in picture and you have to click 'INSTALL' on the
Microsoft NET Framework, and after that 'INSTALL' on the Milk data bank
program.
When installed correctly, the program will make it's own shortcut on
the desktop:
MILK DATA BANK.
After successful installation, connect the milk analyzer with USB cable and
turn it ON.

PC CONNECTION

55
Operating Instructions Master Pro
Milkotester Ltd
Ultrasonic milk analyzers
