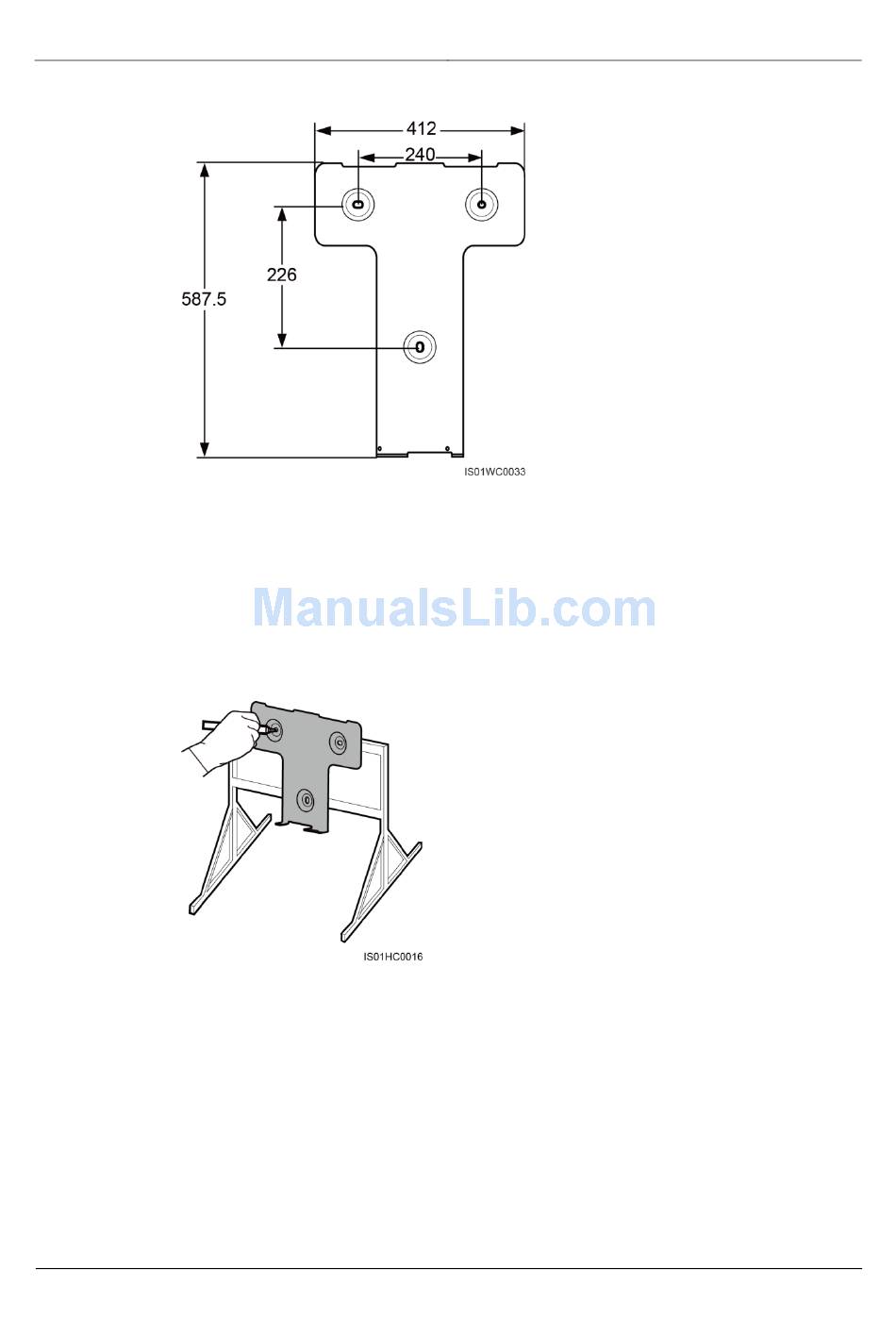

Figure 4-23 Dimensions of the rear panel (unit: mm)
Procedure
Step 1 Determine the positions for drilling holes (as shown in
available in the packing case, level the hole positions using a level, and mark the hole
positions using a marker.
Figure 4-24 Determining hole positions
Step 2 Drill holes using a hammer drill, as shown in
Issue 04 (2016-06-20) Huawei Proprietary and Confidential
Copyright © Huawei Technologies Co., Ltd.
Figure 4-24) using the rear panel
Figure 4-25.
