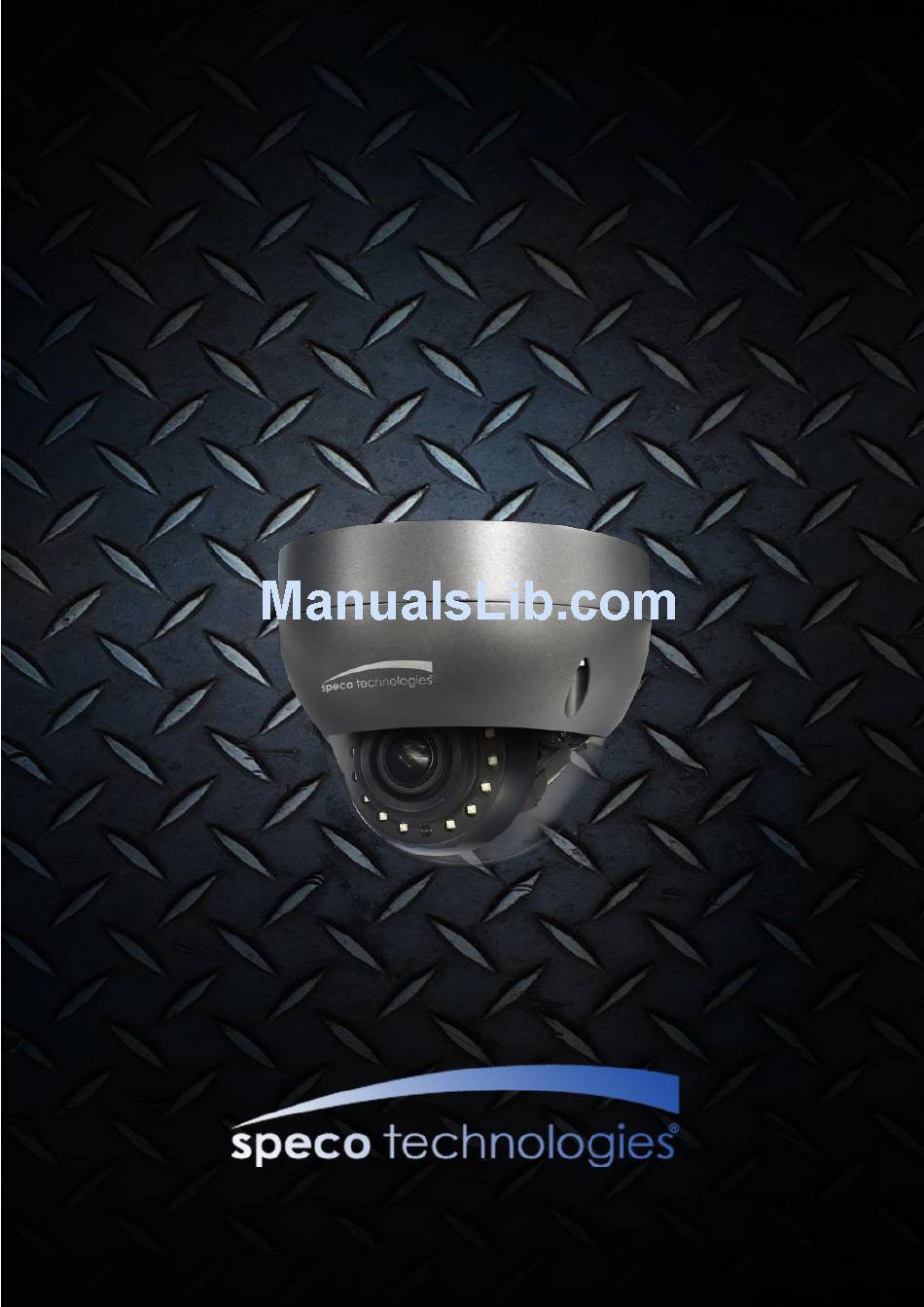

- Page 1 O2D11M 2MP 1080p H.265 Indoor/Outdoor Dome IP Camera...
- Page 2 ’ ’ Directions Be careful not to cause any physical damage by dropping or throwing the camera. Especially keep the device out of reach from children. Do not disassemble the camera. No after service is assumed when disassembled. Use only power adapters compatible with the unit. Be careful to prevent moisture or water penetration into the unit.
-
Page 3: Revision History
’ ’ Revision History Date Revision Details Oct 26 , 2016 First manual revision creation. Rev.1.4 (Oct. 2016) -
Page 4: Table Of Contents
Getting Started ............................. 15 4.1. PC Requirement ..........................15 4.2. Quick Installation Guide ........................15 4.2.1. Connect PC and O2D11M to network..................15 4.2.2. Set IP parameters on O2D11M....................16 4.2.3. Remote video connection to O2D11M ..................17 4.2.4. -
Page 5: Introduction
1. Introduction 1.1. Overview The ONSIP O2D11M is multi-codec (H.265, H.264, MJPEG) IP camera (or network camera) built with embedded software and hardware technology. It enables real time transmission of synchronized video up to 2MP and audio data. Remote clients can connect to IP Camera for the real time video/audio data through various client solutions running on PC or smart device. -
Page 6: Specification
’ ’ 1.2. Specification Camera Image sensor 1/3 Inch Progressive scan 2Mega CMOS effective Pixel 1944 x 1092 pixels Scanning System Progressive scan S/N Ratio More than 50dB(AGC Off) Lens 2.8 ~ 12mm Motorized Varifocal(F 1.4) Diagonal 120.8˚(W) ~ 36˚(T) Angular of View High Power Led 10ea(850nm, 50˚) IR Led... - Page 7 ’ ’ 64Kbps G.711 16bit μ-law PCM(Line-out) Mono Downstream IPv4, TCP, UDP, IGMP, ICMP, ARP, RARP, PPPoE, RTCP, RTP, RTSP, SDP, Network Protocol HTTP, HTTPS, SMTP, FTP, DHCP, UPnP, NTP, DNS, DynDNS Dynamic IP Support - User ID & Password protection, Security - IP address filtering - Digest Authentication, User Access Log...
-
Page 8: Applications Of O2D11M
’ ’ 1.3. Applications of O2D11M Security surveillance (buildings, stores, manufacturing facilities, parking lots, banks, government facilities, military, etc.) Remote monitoring (hospitals, kindergartens, traffic, public areas, etc.) Teleconference (Bi-directional audio conference). Remote Learning, Internet broadcasting Weather and environmental observation... -
Page 9: Product Description
2. Product Description 2.1. Contents The product package contains followings: Contents Description Remarks O2D11M O2D11M main unit Screws & Anchors Accessories L-type wrench, CVBS Cable Guide pattern Software & User’s Guide Default built in standard PoE module 12V DC Adaptor Power Adaptor (IEEE802.3af) -
Page 10: Physical Description
’ ’ 2.3. Physical description 2.3.1. External View Figure 2-1. External view of IP Camera 2.3.2. Dimensions Unit: inch Figure 2-2. Dimensions Rev.1.4 (Oct. 2016) -
Page 11: External Connector
’ ’ 2.3.3. External Connector Sensor Input (white(+), Red(-)) Relay Output (Black(+), Yellow(-)) Line Output Network (LAN) Power Mic/Line Input Figure 2-3. Connector for external connection 2.3.4. Factory Default Switch Factory default switch is provided for returning the IP camera to factory default state. The factory default switch can be found by opening the lower body cap of the camera. -
Page 12: Camera Control (Sw3 /Sw4)
’ ’ 2.3.5. Camera Controls (SW3 / SW4) Pan / Tilt Zoom TELE LEFT NEAR RIGHT AUTO FOCUS DOWN WIDE 2.4. Functional Description Power : Power input for supplying 12V DC power. Caution : If IP Camera is powered by PoE, do not plug in DC Jack with active DC power into DC power connector. - Page 13 ’ ’ Relay Output Relay output is provided for connecting alarm devices or for remote on/off control of devices such as light. Relay is normal open and it will be closed upon alarm annunciation or remote on. The relay is capable of switching 30V AC/DC, 2A.
-
Page 14: On Site Installation
’ ’ 3. On Site Installation Use cables and conduits that are suitable for the installation. Particular attention should be paid in the installation so that no moisture is allowed to penetrate into the unit through the cables or conduits during the life time of the product. -
Page 15: Getting Started
(PC is needed to assign IP address to O2D11M) 2. In the case of using PoE, connect the PC and O2D11M to the network using one of the following ways. If your LAN Switch does not support standard PoE, connect O2D11M as shown in dotted line in Figure. -
Page 16: Set Ip Parameters On O2D11M
’ ’ 4.2.2. Set IP parameters on O2D11M Follow the sequence below for setting the IP parameter Run ONSIP installer Click (1) in ONSIP installer window.> Double click on (2) > Fill in (4) > make a selection in (5) > Fill... -
Page 17: Remote Video Connection To O2D11M
Note : Active-X module should be installed on your PC before actual connection. If your PC is not connected to the internet, you cannot download Active-X module. Most convenient way of installing the Active-X module is installing Speco-NVR which is available from the CD or our web site. -
Page 18: Additional Settings Through Connection To The Admin Page
’ ’ 4.2.4. Additional settings through connection to the Admin Page All parameters of the camera are factory default out of the box. For a more sophisticated target application, parameters need to be changed through the admin page. The admin page can be connected through “http://IP_Address:Port_Number/admin.htm”... -
Page 19: Troubleshooting
’ ’ 5. Troubleshooting 5.1. No power In case of Standard PoE (Power over Ethernet) Power supply through standard PoE is possible only when the following conditions are met. 1. Standard PoE is supported on the product. 2. The LAN switch supports standard PoE. Make sure that both the IP camera and the LAN switch support standard PoE (IEEE 802.3af) ... -
Page 20: Technical Assistance
’ ’ 5.3. Technical Assistance If you need any technical assistance, please contact technical support. For immediate service please provide the following information. 1. Model name 2. MAC address and Registration number 3. Purchase date 4. Description of the problem 5. -
Page 21: Appendix A - Important Notice In Exchanging Sd Card (Micro Sd)
’ ’ Appendix A – Important Notice in Exchanging SD Card (Micro SD) SD Card is a non-volatile memory device for storing video and audio data on the product. Continued writing to the SD Card will cause wear-off of the memory cell. When you plug out the SD Card for replacement or other purpose, follow the steps below in order to prevent data loss or crash of the SD Card.
